PPT转H5系列（九）----ppt转换成xml文件进行解析

1 使用转换工具将《PPT转H5系列（六）----提取PPT中使用的字体文件》中PPT转换后的pdf文件转换成xml文件

转换工具：mudraw.exe

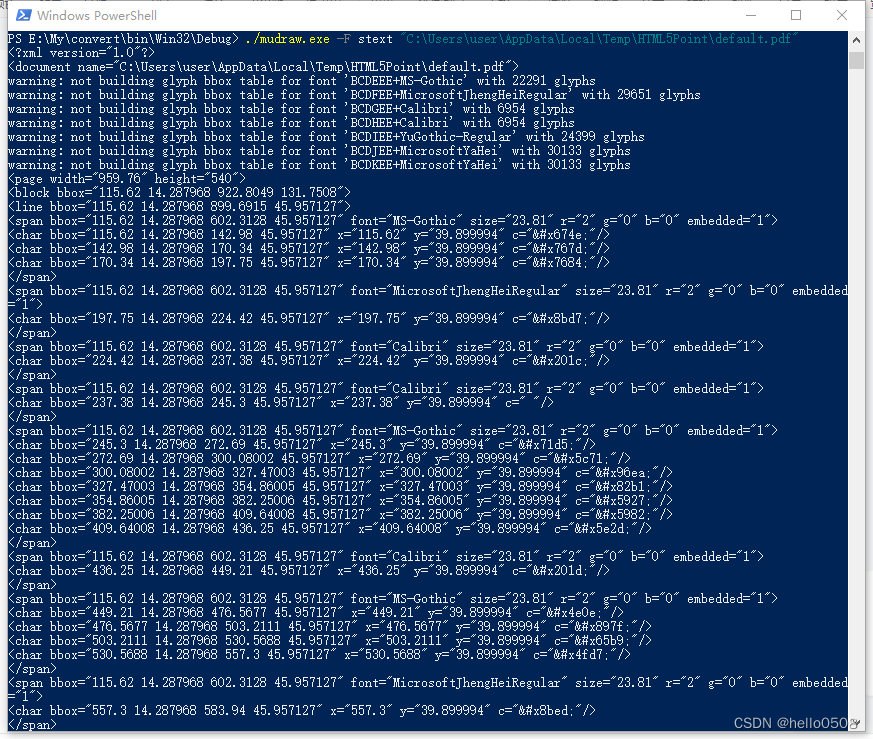

命令示例如下：./mudraw.exe -F stext "C:\Users\user\AppData\Local\Temp\HTML5Point\default.pdf"

解析出来的xml然后用tinyxml2进行解析，得出每一页的使用的字体信息

void MuxmlReader::OpenFromString(const std::string& xml)
{
	try
	{
		tinyxml2::XMLDocument doc;
		if(doc.Parse(xml.c_str()) == tinyxml2::XML_SUCCESS)
		{
			tinyxml2::XMLElement* element = doc.RootElement();
			this->m_document.DeSerial(element);
			this->State = MuxmlReader::MuxmlReaderState_Loaded;
		}
		else
		{
			this->State = MuxmlReader::MuxmlReaderState_Invalid;
		}
	}
	catch(...)
	{
		this->State = MuxmlReader::MuxmlReaderState_Invalid;
	}
}

然后遍历节点，获取使用的字体信息并保存

void CPdfPresentation::OpenFromString(const std::string& strXmlString)
{
	try
	{
		this->m_MuxmlReader.OpenFromString(strXmlString);
		vector<documentPage> pages = this->m_MuxmlReader.m_document.get_page();
		for (int i = 0; i < pages.size(); i++)
		{
			documentPage& page = pages[i];
			A::CPdfXmlPageInfo pageinfo;
			vector<documentPageBlock>& blocks = page.blockField;
			for (int i = 0; i < blocks.size(); i++)
			{
				documentPageBlock& block = blocks[i];
				vector<documentPageBlockLine>& lines = block.lineField;
				if(lines.size() > 0)
				{
					for (int i = 0; i < lines.size(); i++)
					{
						documentPageBlockLine& line = lines[i];
						if (line.spanField.size() > 0)
						{
							vector<documentPageBlockLineSpan>& spans = line.spanField;
							for (int i = 0; i < spans.size(); i++)
							{
								documentPageBlockLineSpan& span = spans[i];
								if (span.charField.size() > 0)
								{
									CPdfXmlFontInfo info;
									info.FontSize = (float)span.get_size();
									info.FontName = span.get_font();
									info.LineSpan = span;
									pageinfo.m_PdfXmlFontInfo_Vec.push_back(info);
								}
							}
						}
					}
				}
			}
			this->m_PdfXmlPageInfo_Vec.push_back(pageinfo);
		}
	}
	catch(...)
	{
		this->m_PdfXmlPageInfo_Vec.clear();
	}
}

本项目还在开发中，已有能运行的程序，但还不完善，欢迎感兴趣的朋友私信交流

测试程序下载地址：

https://download.csdn.net/download/cwp0508/88958928?spm=1001.2014.3001.5503
