原地址：http://blog.csdn.net/chenzheng8975/article/details/54645704

一、概述

在2015年的google大会上，google发布了新的Android Support Design库，里面包含了几个新的控件，其中就有一个TabLayout，它就可以完成TabPageIndicator的效果，而且还是官方的，最好的是它可以兼容到2.2以上版本，包括2.2。
依稀记得前几年要实现这样的功能用的还是viewpagerindicator开源库，如今既然谷歌推出了TabLayout，所以特地学习了一下。
使用之前需要添加依赖：

compile 'com.android.support:design:24.2.1'

 1

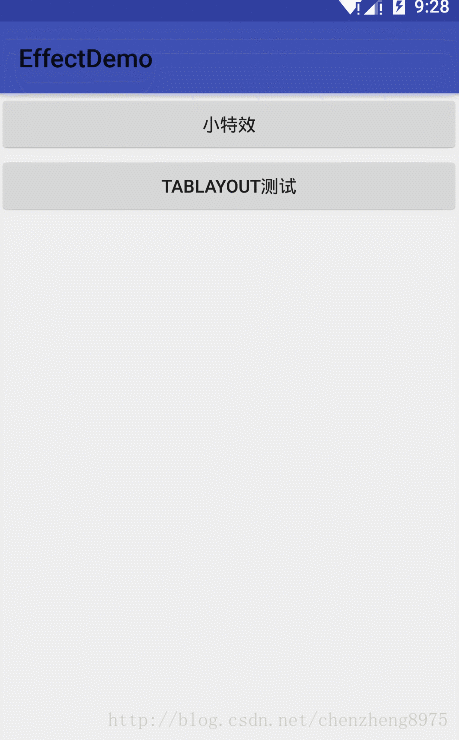

二、实现效果图

这里写图片描述

TabLayout一般都是配合着ViewPager使用，众所周知，ViewPager有个预加载功能，在加载本页数据时，它会提前加载下页数据，可以极大的浪费资源，而且不利于用户体验，你如果调试我的源码就会发现，本文特地取消了ViewPager预加载。
主要是初始化Frament时给每个Fragment设置一个mTabPos常量，第一次进入时加以判断setCurrentItem的页是否和mTabPos相同，如果相同就加载，这样第一次就不会预加载，后面进行页面切换时，通过onPageSelected方法加载。

三、核心代码

1.页面TabLayoutTestActivity.java

package com.czhappy.effectdemo.activity;

import android.os.Bundle;
import android.support.annotation.Nullable;
import android.support.design.widget.TabLayout;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v7.app.AppCompatActivity;

import com.czhappy.effectdemo.R;
import com.czhappy.effectdemo.fragment.PageFragment;

import java.util.ArrayList;
import java.util.List;

/**
 * Description:
 * User: chenzheng
 * Date: 2017/1/20 0020
 * Time: 14:24
 */
public class TabLayoutTestActivity extends AppCompatActivity {

    private TabLayout mTabLayout;
    private ViewPager mViewPager;

    private SimpleFragmentPagerAdapter mAdapter;
    private List<Fragment> mFragments = new ArrayList<Fragment>();
    private String tabTitles[] = new String[]{"tab1","tab2","tab3", "tab4","tab5","tab6"};

    private int curTab=0;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        this.setContentView(R.layout.activity_tablayout_test);

        initView();
    }

    private void initView() {
        mTabLayout = (TabLayout) this.findViewById(R.id.layout_tab);
        mViewPager = (ViewPager) this.findViewById(R.id.view_pager);

        for(int i=0; i<tabTitles.length; i++){
            PageFragment fragment = new PageFragment(curTab);
            fragment.setTabPos(i);
            mFragments.add(fragment);
        }
        mAdapter = new SimpleFragmentPagerAdapter(getSupportFragmentManager(), mFragments);
        mViewPager.setAdapter(mAdapter);
        mTabLayout.setupWithViewPager(mViewPager);
        mTabLayout.setSmoothScrollingEnabled(true);
        //mTabLayout.setTabMode(TabLayout.MODE_FIXED);//全部放下，不滑动
        mTabLayout.setTabMode(TabLayout.MODE_SCROLLABLE);//超过长度可滑动
        //设置当前显示哪个标签页
        mViewPager.setCurrentItem(curTab);
        mViewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {
            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {

            }

            @Override
            public void onPageSelected(int position) {
                //滑动监听加载数据，一次只加载一个标签页
                ((PageFragment)mAdapter.getItem(position)).sendMessage();
            }

            @Override
            public void onPageScrollStateChanged(int state) {

            }
        });
    }

    class SimpleFragmentPagerAdapter extends FragmentPagerAdapter {

        private List<Fragment> fragments;

        public SimpleFragmentPagerAdapter(FragmentManager fm, List<Fragment> fragments) {
            super(fm);
            this.fragments = fragments;
        }

        @Override
        public Fragment getItem(int position) {
            return fragments.get(position);
        }

        @Override
        public int getCount() {
            return tabTitles.length;
        }

        @Override
        public CharSequence getPageTitle(int position) {
            return tabTitles[position];
        }

        //防止fragment自动销毁
        @Override
        public void destroyItem(ViewGroup container, int position, Object object) {
            //super.destroyItem(container, position, object);
        }
    }
}


 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

2.布局activity_tablayout_test.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <android.support.design.widget.TabLayout
        android:id="@+id/layout_tab"
        android:layout_width="match_parent"
        android:layout_height="32dp"
        app:tabIndicatorColor="@color/actionbar_background"
        app:tabMode="scrollable"
        app:tabSelectedTextColor="?attr/colorPrimary"
        app:tabTextColor="@color/project_listitem_someinfo" />


    <android.support.v4.view.ViewPager
        android:id="@+id/view_pager"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</LinearLayout>

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

3.PageFragment.java

package com.czhappy.effectdemo.fragment;

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.annotation.Nullable;
import android.support.v4.app.Fragment;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;

import com.czhappy.effectdemo.R;

/**
 * Description:
 * User: chenzheng
 * Date: 2017/1/20 0020
 * Time: 15:18
 */
public class PageFragment extends Fragment {

    public static final String ARG_PAGE = "ARG_PAGE";
    private boolean IS_LOADED = false;
    private static int mSerial=0;
    private int mTabPos=0;
    private boolean isFirst = true;

    private Handler handler = new Handler(){
        public void handleMessage(android.os.Message msg) {
            Log.e("tag", "IS_LOADED="+IS_LOADED);
            if(!IS_LOADED){
                IS_LOADED = true;
                //这里执行加载数据的操作
                Log.e("tag", "我是page"+(mTabPos+1));
            }
            return;
        };
    };

    public PageFragment(int serial){
        mSerial = serial;
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        Log.e("tag","onCreate()方法执行");

    }

    public void sendMessage(){
        Message message = handler.obtainMessage();
        message.sendToTarget();
    }

    public void setTabPos(int mTabPos) {
        this.mTabPos = mTabPos;
    }

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        Log.e("tag","onCreateView()方法执行");
        View view = inflater.inflate(R.layout.fragment_page, container, false);
        TextView textView = (TextView) view.findViewById(R.id.content);
        textView.setText("我是page" + (mTabPos+1));
        //设置页和当前页一致时加载，防止预加载
        if (isFirst && mTabPos==mSerial) {
            isFirst = false;
            sendMessage();
        }
        return view;
    }

    @Override
    public void onDestroyView() {
        super.onDestroyView();
        Log.e("tag","onDestroyView()方法执行");
    }
}


 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

4.Fragment布局文件fragment_page.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#fff"
    android:gravity="center"
    android:orientation="vertical">

    <TextView
        android:id="@+id/content"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textSize="16sp"
        android:text="我是page1"/>

</LinearLayout>
