java中线程启动过程分析及本地方法 start0源代码的追踪学习

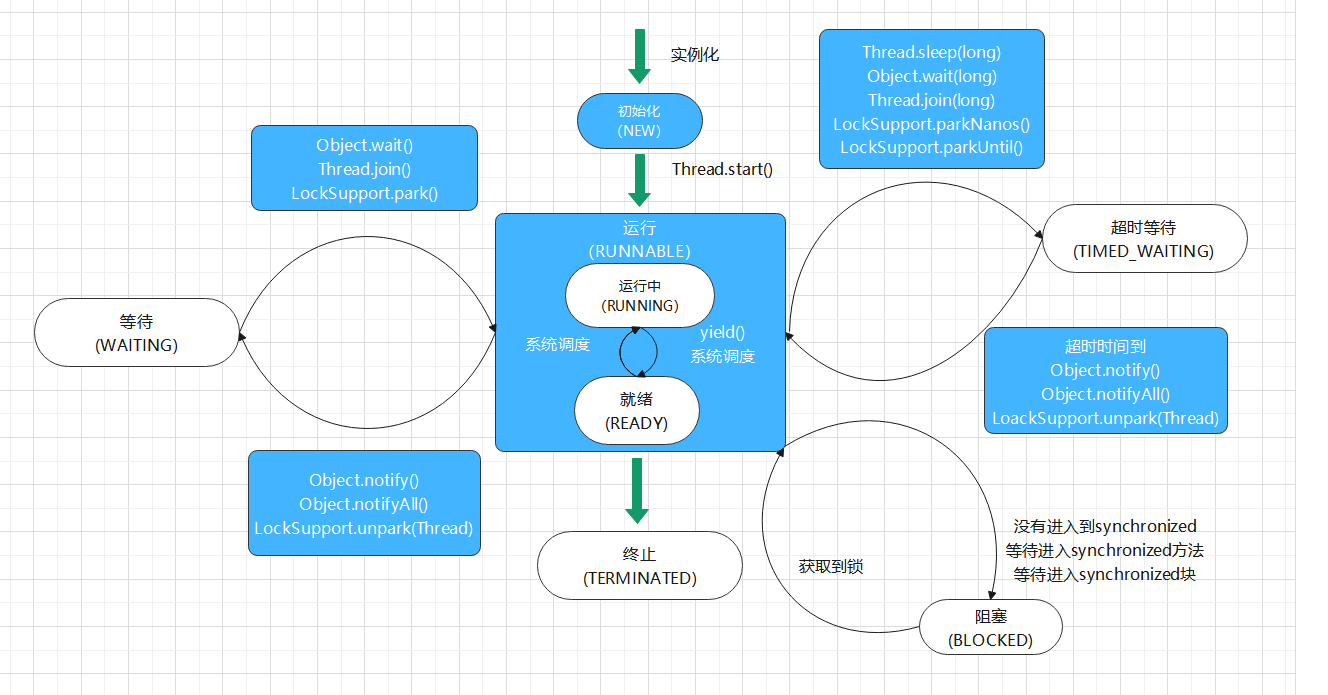

先回顾一下线程的生命周期
流程图:
当我们调用Thread的start方法时(没有放任务,重写了run方法):
public class _0_Thread {
public static void main(String[] args) {
System.out.println("主方法的开头");
MyThread myThread = new MyThread();
myThread.start();//子程序运行
}
}
class MyThread extends Thread{
@Override
public void run() {
for (int i = 0; i < 100; i++) {
System.out.println("MyThread类中的i值为:"+i);
try {
Thread.sleep(1000);
} catch (Exception e) {
e.printStackTrace();
}
}
}
}
start()方法的调用过程如下:
myThread.start() -> 继承自Thread类的start()方法 -> start0() -> private native void start0() -> cpp底层去找当前线程类的run方法 -> myThread的run方法
在Java中用native
关键字修饰的方法表示这是一个本地方法,也就是底层是用cpp
写的
当我们往Thread里面丢一个任务,在start时
public static void main(String[] args) {
Thread thread = new Thread(() -> System.out.println("线程启动"));
thread.start();
}
new Thread(() -> System.out.println("线程启动"))
的调用过程如下:
thread.start() -> Thread类的start0() -> init(null, target, "Thread-" + nextThreadNum(), 0)
-> init(ThreadGroup g, Runnable target, String name,
long stackSize, AccessControlContext acc,
boolean inheritThreadLocals)
-> this.target = target(Thread类有一个target属性)
thread.start()
的调用过程如下:
thread.start() -> start0() 注意这里是线程类的start0方法,不是任务类的 -> cpp底层去找当前线程类的run方法
-> Thread类的run方法
-> @Override
public void run() {
if (target != null) {
target.run();
}
到这里,我们可以看出
start0()
这个本地方法的作用,但是我们还是没有办法查看下去。我们可以去openJDK
里找到答案首先我们需要知道的是,我们一般用的都是
Oracle JDK
,它和openJDK
的区别有:
openJDK
是对外开放源码的,Oracle JDK
则没有(部分开源,大概开源7%作用)
他们之间区别看:比较一下 Oracle JDK与openJDK的区别
openJDK可以在这里下载:openJDK下载 openJDK1.8
start0()
底层 c 代码地址:start0()底层c代码
点进去看之后我们可以注意到一个方法:
这个方法主要是建立了方法之间的映射关系,将 start0 映射到 JVM_StartThread方法上
static JNINativeMethod methods[] = {
{"start0", "()V", (void *)&JVM_StartThread},
{"stop0", "(" OBJ ")V", (void *)&JVM_StopThread},
{"isAlive", "()Z", (void *)&JVM_IsThreadAlive},
{"suspend0", "()V", (void *)&JVM_SuspendThread},
{"resume0", "()V", (void *)&JVM_ResumeThread},
{"setPriority0", "(I)V", (void *)&JVM_SetThreadPriority},
{"yield", "()V", (void *)&JVM_Yield},
{"sleep", "(J)V", (void *)&JVM_Sleep},
{"currentThread", "()" THD, (void *)&JVM_CurrentThread},
{"countStackFrames", "()I", (void *)&JVM_CountStackFrames},
{"interrupt0", "()V", (void *)&JVM_Interrupt},
{"isInterrupted", "(Z)Z", (void *)&JVM_IsInterrupted},
{"holdsLock", "(" OBJ ")Z", (void *)&JVM_HoldsLock},
{"getThreads", "()[" THD, (void *)&JVM_GetAllThreads},
{"dumpThreads", "([" THD ")[[" STE, (void *)&JVM_DumpThreads},
{"setNativeName", "(" STR ")V", (void *)&JVM_SetNativeThreadName},
};
(void *)&JVM_StartThread
方法是写在#include "jvm.h"
这个库文件中的
接下来我们要查JVM
虚拟机底层实现的代码,但是JVM
也分很多种类,openJDK使用的是基于hotspot
的虚拟机
所以我们可以在这里找到底层源码:hotspot源码 jvm.h源码
这里我们注意:jvm.h
文件只是声明了宏,具体实现在,jvm.cpp中,我们点进去搜索一下JVM_StartThread
就可以看到下面的代码:
JVM_ENTRY(void, JVM_StartThread(JNIEnv* env, jobject jthread))
JVMWrapper("JVM_StartThread");
JavaThread *native_thread = NULL;
这个JVM_ENTRY
是一个入口程序,我们来研究下里面的代码:
JVM_ENTRY(void, JVM_StartThread(JNIEnv* env, jobject jthread))
JVMWrapper("JVM_StartThread");
JavaThread *native_thread = NULL; //创建一个引用
// We cannot hold the Threads_lock when we throw an exception,
// due to rank ordering issues. Example: we might need to grab the
// Heap_lock while we construct the exception.
bool throw_illegal_thread_state = false;
// We must release the Threads_lock before we can post a jvmti event
// in Thread::start.
{
// Ensure that the C++ Thread and OSThread structures aren't freed before
// we operate.
MutexLocker mu(Threads_lock); //加了一把线程锁
// Since JDK 5 the java.lang.Thread threadStatus is used to prevent
// re-starting an already started thread, so we should usually find
// that the JavaThread is null. However for a JNI attached thread
// there is a small window between the Thread object being created
// (with its JavaThread set) and the update to its threadStatus, so we
// have to check for this
if (java_lang_Thread::thread(JNIHandles::resolve_non_null(jthread)) != NULL) {
throw_illegal_thread_state = true; //抛异常
} else { //下面的是重点
// We could also check the stillborn flag to see if this thread was already stopped, but
// for historical reasons we let the thread detect that itself when it starts running
// 计算创建线程所需要的大小
jlong size =
java_lang_Thread::stackSize(JNIHandles::resolve_non_null(jthread));
// Allocate the C++ Thread structure and create the native thread. The
// stack size retrieved from java is signed, but the constructor takes
// size_t (an unsigned type), so avoid passing negative values which would
// result in really large stacks.
size_t sz = size > 0 ? (size_t) size : 0;
//生成一个JavaThread的对象
native_thread = new JavaThread(&thread_entry, sz);
// At this point it may be possible that no osthread was created for the
// JavaThread due to lack of memory. Check for this situation and throw
// an exception if necessary. Eventually we may want to change this so
// that we only grab the lock if the thread was created successfully -
// then we can also do this check and throw the exception in the
// JavaThread constructor.
if (native_thread->osthread() != NULL) {
// Note: the current thread is not being used within "prepare".
native_thread->prepare(jthread);
}
}
}
这里面至关重要的一句代码就是:
native_thread = new JavaThread(&thread_entry, sz);
这里由生成了一个Java线程,里面的第一个参数是一个函数,我们继续找下这个函数:
static void thread_entry(JavaThread* thread, TRAPS) {
HandleMark hm(THREAD);
Handle obj(THREAD, thread->threadObj());
JavaValue result(T_VOID);
JavaCalls::call_virtual(&result,
obj,
KlassHandle(THREAD, SystemDictionary::Thread_klass()),
vmSymbols::run_method_name(),
vmSymbols::void_method_signature(),
THREAD);
}
JavaCalls::call_virtual表示调用了call_virtual这个方法
这里面最重要的代码就是这行:
vmSymbols::run_method_name()
表示调用了一个方法,我们继续查vmSymbols到底调用了什么,这个方法是在这个文件里面的:
#include "classfile/vmSymbols.hpp"
我们可以在这里查到vmSymbols.cpp
的源码:vmSymbols.cpp源码

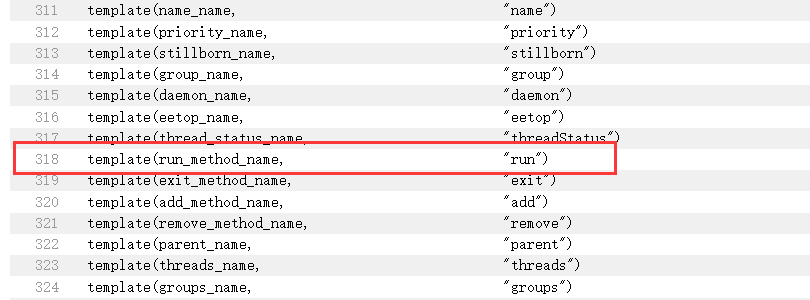

我们可以在318查到:
其实vmSymbols::run_method_name()
就是调用了run
方法
这样我们就可以得出结论:
start0()调用的是当前线程类的run方法
例如在上面的栗子中:
MyThread类没有传任务类进去,调用的就是
MyThread类
的run方法Thread类里传入一个任务类,然后
start0()
调用的是Thread类的run方法,然后就会执行这一行代码:@Override public void run() { if (target != null) { target.run(); }
所以最终调用的是任务类的run方法!
