城市数据API微服务（springBoot-city）

项目结构图：

pom文件：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.csq.study</groupId>
  <artifactId>springBoot-city</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		 <version>1.5.2.RELEASE</version>
	</parent>
	<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>Camden.SR6</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-test -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		</dependencies>
</project>

controller层：

package com.csq.study.springboot.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import com.csq.study.springboot.service.CityDataService;
import com.csq.study.springboot.vo.City;

@RestController
@RequestMapping("/cities")
public class CityController {
	@Autowired
	private CityDataService cityDataService;

	@RequestMapping(method=RequestMethod.GET)
	public List<City> listCity() throws Exception {
		return cityDataService.listCity();
	}

}

service接口以及实现类：

接口：
package com.csq.study.springboot.service;

import java.util.List;

import com.csq.study.springboot.vo.City;

public interface CityDataService {
	//获取城市列表
	List<City> listCity() throws Exception;
}

实现类：
package com.csq.study.springboot.service;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.util.List;

import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
import org.springframework.stereotype.Service;

import com.csq.study.springboot.util.XmlBuilder;
import com.csq.study.springboot.vo.City;
import com.csq.study.springboot.vo.CityList;
@Service
public class CityDataServiceImpl implements CityDataService{

	@Override
	public List<City> listCity() throws Exception {
		        //读取xml文件
				Resource resource=new ClassPathResource("cityList.xml");
				BufferedReader br=new BufferedReader(new InputStreamReader(resource.getInputStream(),"utf-8"));
				StringBuffer buffer=new StringBuffer();
				String line="";

				while((line=br.readLine())!=null){
					buffer.append(line);
				}

				br.close();

				//xml转为Java对象
				CityList cityList= (CityList) XmlBuilder.xmlStrToObject(CityList.class, buffer.toString());

				return cityList.getCityList();


	}

}

util工具类XmlBuilder ：

package com.csq.study.springboot.util;

import java.io.Reader;
import java.io.StringReader;

import javax.xml.bind.JAXBContext;
import javax.xml.bind.Unmarshaller;

public class XmlBuilder {
	//将xml转为指定的POJO
		public static Object xmlStrToObject(Class<?> clazz,String xmlStr) throws Exception{

			Object xmlObject=null;
			Reader reader=null;
			JAXBContext context=JAXBContext.newInstance(clazz);

			//xml转为对象的接口
			Unmarshaller unmarshaller=context.createUnmarshaller();

			reader=new StringReader(xmlStr);
			xmlObject=unmarshaller.unmarshal(reader);

			if(reader!=null){
				reader.close();
			}

			return xmlObject;
		}

}

vo类：

package com.csq.study.springboot.vo;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlRootElement;

//声明为xml的根元素
@XmlRootElement(name = "d")
//声明xml的访问类型为FIELD（字段）
@XmlAccessorType(XmlAccessType.FIELD)
public class City{
	//声明为xml的属性
		@XmlAttribute(name = "d1")
	    private String cityId;
		//声明为xml的属性
		@XmlAttribute(name = "d2")
	    private String cityName;
		//声明为xml的属性
		@XmlAttribute(name = "d3")
	    private String cityCode;
		//声明为xml的属性
		@XmlAttribute(name = "d4")
	    private String province;

		public String getCityId() {
			return cityId;
		}


		public void setCityId(String cityId) {
			this.cityId = cityId;
		}


		public String getCityName() {
			return cityName;
		}


		public void setCityName(String cityName) {
			this.cityName = cityName;
		}


		public String getCityCode() {
			return cityCode;
		}


		public void setCityCode(String cityCode) {
			this.cityCode = cityCode;
		}


		public String getProvince() {
			return province;
		}


		public void setProvince(String province) {
			this.province = province;
		}


		@Override
		public String toString() {
			return "City [cityId=" + cityId + ", cityName=" + cityName + ", cityCode=" + cityCode + ", province="
					+ province + "]";
		}


}


citylist类：
package com.csq.study.springboot.vo;

import java.util.List;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(name = "c")
@XmlAccessorType(XmlAccessType.FIELD)
public class CityList {
	  @XmlElement(name = "d")
    private List<City> cityList;

	public List<City> getCityList() {
		return cityList;
	}

	public void setCityList(List<City> cityList) {
		this.cityList = cityList;
	}

}

快速启动类：

package com.csq.study.springboot;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class Aplication {
	public static void main(String[] args) {
		SpringApplication.run(Aplication.class, args);
	}

}

配置文件：

citylist.xml

<?xml version="1.0" encoding="UTF-8" ?>
<c c1="0">
    <d d1="101010100" d2="北京" d3="beijing" d4="北京"/>
    <d d1="101010200" d2="海淀" d3="haidian" d4="北京"/>
    <d d1="101010300" d2="朝阳" d3="chaoyang" d4="北京"/>
    <d d1="101010400" d2="顺义" d3="shunyi" d4="北京"/>
    <d d1="101010500" d2="怀柔" d3="huairou" d4="北京"/>
    <d d1="101010600" d2="通州" d3="tongzhou" d4="北京"/>
    <d d1="101010700" d2="昌平" d3="changping" d4="北京"/>
    <d d1="101010800" d2="延庆" d3="yanqing" d4="北京"/>
    <d d1="101010900" d2="丰台" d3="fengtai" d4="北京"/>
    <d d1="101011000" d2="石景山" d3="shijingshan" d4="北京"/>
    <d d1="101011100" d2="大兴" d3="daxing" d4="北京"/>
    <d d1="101011200" d2="房山" d3="fangshan" d4="北京"/>
    <d d1="101011300" d2="密云" d3="miyun" d4="北京"/>
    <d d1="101011400" d2="门头沟" d3="mentougou" d4="北京"/>
    <d d1="101011500" d2="平谷" d3="pinggu" d4="北京"/>
    <d d1="101020100" d2="上海" d3="shanghai" d4="上海"/>
    <d d1="101020200" d2="闵行" d3="minhang" d4="闵行"/>
    <d d1="101020300" d2="宝山" d3="baoshan" d4="上海"/>
    <d d1="101020500" d2="嘉定" d3="jiading" d4="上海"/>
    <d d1="101020600" d2="南汇" d3="nanhui" d4="上海"/>
    <d d1="101020700" d2="金山" d3="jinshan" d4="上海"/>
    <d d1="101020800" d2="青浦" d3="qingpu" d4="上海"/>
    <d d1="101020900" d2="松江" d3="songjiang" d4="上海"/>
    <d d1="101021000" d2="奉贤" d3="fengxian" d4="上海"/>
    <d d1="101021100" d2="崇明" d3="chongming" d4="上海"/>
    <d d1="101021200" d2="徐家汇" d3="xujiahui" d4="上海"/>
    <d d1="101021300" d2="浦东" d3="pudong" d4="上海"/>
</c>

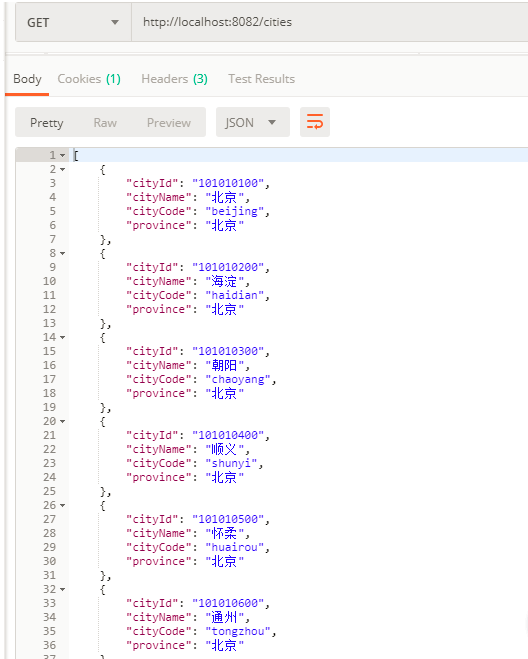

访问：http://localhost:8082/cities 可看到如下截图：
