usb device over current status detected

source:Fix USB Device Over Current Status Detected | System Will Shutdown After 15 Seconds

source:https://www.youtube.com/watch?v=DHie6JtXLm8

source:https://www.jb51.net/diannaojichu/770879.html

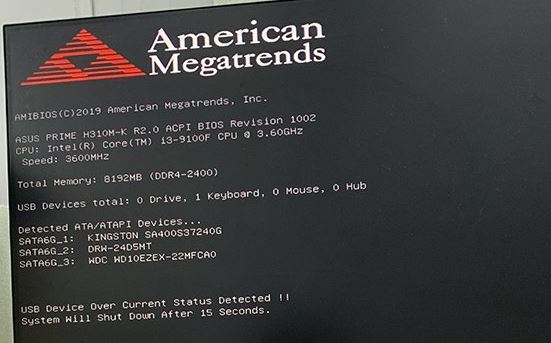

american megatrends

detected ata/atapi devices...

usb device over current status detected!!

system will shutdown after 15 seconds

'' USB device over current status detected '' is a boot screen error which pops up when you start the system. As mentioned in its message, a defective USB device or connector is the reason behind this error. Along with this error some users have reported to smell burning odor.
It is commonly experience when building a new PC. Following this your system usually shuts down in 15 seconds. This is done to protect your system from further damages. Since this error generally occurs because of a hardware problem there are some simple solutions which aids to fix this by yourself.
In this article, I will be examining about the Fixing USB Device Over Current Status Detected | System Will Shutdown After 15 Seconds. You can try these solutions to continue using your computer back to normal.
Let's get started,

1. Check USB Devices

A malfunctioning device is most often the cause for this error. Before you try any other solutions given below, you need to ensure that all of the devices connected to your PC are working properly. A simple way to find out the culprit device is by removing the USB devices one by one and reconnecting them again.

2. Check USB Ports

If the connected devices appears to be fine, then the actual problem might be in the USB ports. There is also a possibility that the USB ports present on your PC are either damaged or not connected properly. The ports can be easily be damaged due to reported use or any physical impacts. In this case, you can try connecting the USB devices to other additional ports.


3. Check Jumpers

A jumper is a small component which connects your USB port to the motherboard. Each USB port is connected through a jumper. So each of them needs to be checked and make sure that they are not with damages. If found any damages, you must take necessary steps to replace them.

4. Update BIOS

Basic Input/ Output System System (BIOS) is a firmware model on your computer which makes sure that all of the hardware components are functioning properly. It is the primary software which runs during the boot initialization. If the BIOS is outdated, they may fail to recognize the connected USB devices. Therefore, sometimes this error might just be removed by updating the BIOS firmware.

5. Replace Motherboard

If your motherboard is old enough and too over used it is possible that it isn't working anymore. Most often this happens if the modules are damaged. For checking whether the motherboard is damaged or not, you can temporarily use another motherboard. If the motherboard isn't working properly, you may have to replace it with a new one.

你的电脑是否一开机就显示“USB Device Over Current status detected!!,Sysyem Will shut down after 15 Seconds”,导致电脑无法正常开机,进入不了桌面。那么遇到这种情况该怎么解决呢?这一串的提示大致意思是检测到USB设备过流状态

  你的电脑是否一开机就显示“USB Device Over Current status detected!!,Sysyem Will shut down after 15 Seconds”,导致电脑无法正常开机,进入不了桌面。那么遇到这种情况该怎么解决呢?这一串的提示大致意思是检测到USB设备过流状态,系统将在15秒后关闭。跟小编看看解决方法吧。

  故障原因及解决方法:

  1、USB键盘或USB鼠标进水了,或者某个USB设备短路导致,例如U盘、移动硬盘、键盘鼠标、USB摄像头、USB耳机、USB延长线等USB设备,拔掉电脑主机上所有的USB设备,将电脑开机测试是否可行,这种情况解决方法只要把USB设备逐一拔掉,并电脑重启查看是否可以正常开机,即可排查出到底是哪个USB设备坏了。

  2、前置USB接口损坏或桌面开关USB接口损坏导致,电脑关机操作,打开电脑主机机箱,拔掉主板上的前置USB连接线,包括USB2.0或者USB3.0/3.1等,放个电试试,将主板上的纽扣电池取出来,放置5-10分钟后再安装回去试试。

  3、主板自身的USB模块或者芯片坏了,只有送修了。

  以上就是装机之家分享的电脑开机提示“USB Device Over Current status detected”的解决方法,希望本文能够帮助到大家。
