C#创建ActiveX

来自:http://www.cnblogs.com/homer/archive/2005/01/04/86473.html

创建类库 ActiveX

1、AssemblyInfo中添加引用

using System.Security;//add

添加

[assemblyAllowPartiallyTrustedCallers()] //add

2、创建类或控件(此处创建的用户控件)

将文件中添加如下固定格式的内容。

namespace ActiveX
{
    #region 固定的格式

    [ComImport, GuidAttribute("CB5BDC81-93C1-11CF-8F20-00805F2CD064")]
    [InterfaceTypeAttribute(ComInterfaceType.InterfaceIsIUnknown)]
    public interface IObjectSafety
    {
        [PreserveSig]
        int GetInterfaceSafetyOptions(ref Guid riid
            , [MarshalAs(UnmanagedType.U4)] ref int pdwSupportedOptions
            , [MarshalAs(UnmanagedType.U4)] ref int pdwEnabledOptions);

        [PreserveSig()]
        int SetInterfaceSafetyOptions(ref Guid riid
            , [MarshalAs(UnmanagedType.U4)] int dwOptionSetMask
            , [MarshalAs(UnmanagedType.U4)] int dwEnabledOptions);
    }
    #endregion 固定的格式



    [Guid("4823975A-ECDE-4947-B673-427E01AADA2D")]//工具-->创建GUID
    [ProgId("ActiveX.AXTest")]//namespace.class
    [ComVisible(true)]
    public partial class AXTest : UserControl, IObjectSafety
    {
        #region IObjectSafety 成员 格式固定

        private const string _IID_IDispatch = "{00020400-0000-0000-C000-000000000046}";
        private const string _IID_IDispatchEx = "{a6ef9860-c720-11d0-9337-00a0c90dcaa9}";
        private const string _IID_IPersistStorage = "{0000010A-0000-0000-C000-000000000046}";
        private const string _IID_IPersistStream = "{00000109-0000-0000-C000-000000000046}";
        private const string _IID_IPersistPropertyBag = "{37D84F60-42CB-11CE-8135-00AA004BB851}";

        private const int INTERFACESAFE_FOR_UNTRUSTED_CALLER = 0x00000001;
        private const int INTERFACESAFE_FOR_UNTRUSTED_DATA = 0x00000002;
        private const int S_OK = 0;
        private const int E_FAIL = unchecked((int)0x80004005);
        private const int E_NOINTERFACE = unchecked((int)0x80004002);

        private bool _fSafeForScripting = true;
        private bool _fSafeForInitializing = true;

        public int GetInterfaceSafetyOptions(ref Guid riid, ref int pdwSupportedOptions, ref int pdwEnabledOptions)
        {
            int Rslt = E_FAIL;

            string strGUID = riid.ToString("B");
            pdwSupportedOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER | INTERFACESAFE_FOR_UNTRUSTED_DATA;
            switch (strGUID)
            {
                case _IID_IDispatch:
                case _IID_IDispatchEx:
                    Rslt = S_OK;
                    pdwEnabledOptions = 0;
                    if (_fSafeForScripting == true)
                        pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER;
                    break;
                case _IID_IPersistStorage:
                case _IID_IPersistStream:
                case _IID_IPersistPropertyBag:
                    Rslt = S_OK;
                    pdwEnabledOptions = 0;
                    if (_fSafeForInitializing == true)
                        pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_DATA;
                    break;
                default:
                    Rslt = E_NOINTERFACE;
                    break;
            }

            return Rslt;
        }

        public int SetInterfaceSafetyOptions(ref Guid riid, int dwOptionSetMask, int dwEnabledOptions)
        {
            int Rslt = E_FAIL;
            string strGUID = riid.ToString("B");
            switch (strGUID)
            {
                case _IID_IDispatch:
                case _IID_IDispatchEx:
                    if (((dwEnabledOptions & dwOptionSetMask) == INTERFACESAFE_FOR_UNTRUSTED_CALLER) && (_fSafeForScripting == true))
                        Rslt = S_OK;
                    break;
                case _IID_IPersistStorage:
                case _IID_IPersistStream:
                case _IID_IPersistPropertyBag:
                    if (((dwEnabledOptions & dwOptionSetMask) == INTERFACESAFE_FOR_UNTRUSTED_DATA) && (_fSafeForInitializing == true))
                        Rslt = S_OK;
                    break;
                default:
                    Rslt = E_NOINTERFACE;
                    break;
            }

            return Rslt;
        }

        #endregion

        public AXTest()
        {
            InitializeComponent();
        }
}


3、Activex类库属性:为COM互操作注册(勾选)

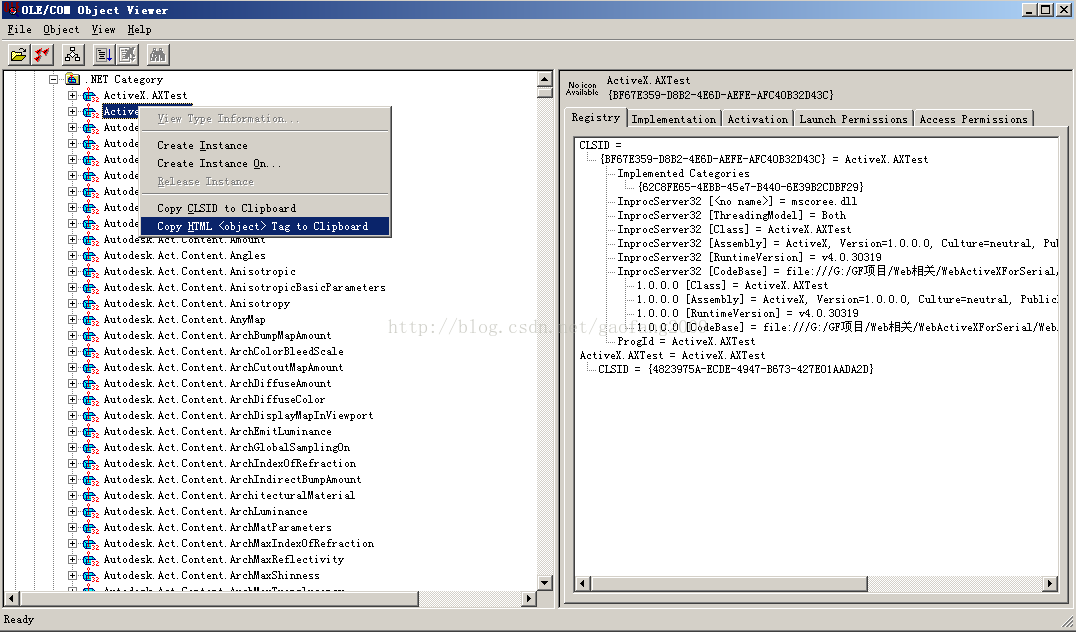

4、重新编译。我们使用 工具—〉OLE/COM对象查看器 查看,

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1、选择 工具(Tools)-外部工具(External Tools)-添加

2.如图所示在标题中输入“OLE/COM 对象查看器

   在命令处输入“oleview.exe”,如果提示该命令无效的话请加入具体路径如:C:/Program Files/Microsoft SDKs/Windows/v6.0A/bin/OleView.Exe

3.单击确定。。

来自:http://blog.csdn.net/lanhaizhixing/article/details/6077033

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


复制到html文件即可。
