FragmentTabHost 是一个TabHost结合Fragment的使用
关键点如下:
1,FragmentTabHost在初始化的时候调用setup()方法,传入需要承载fragment的framelayout容器id。
2,逐步(本例中使用for)添加TabSpec。
#tasHost.newTabSpec(s)这个方法设置的是一个tab的标签,与tabHost.setOnTabChangedListener()->onTabChanged(String s ) 中的s对应
#每一个TabSpec可以设定一个对应的Fragment和View,Fragment就是需要显示的Fragment,View就是界面中tab部分显示的内容。
#view通过setIndicator()方法指定,这个方法可以指定一个String名称,也可以指定一个View(本例使用
View,通过getTabSpecView()返回一个
View,内容有一个ImageView和一个TextView)

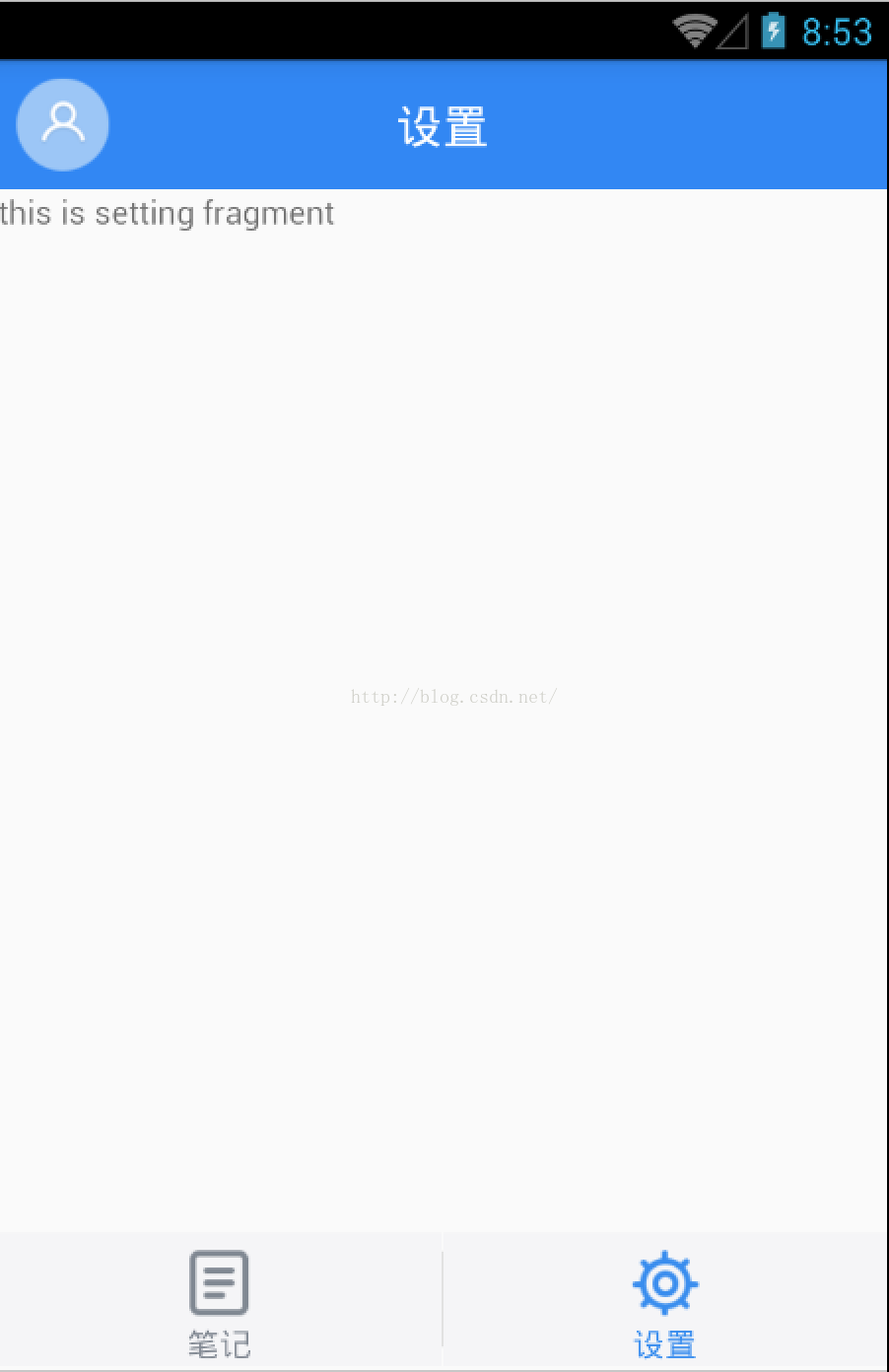

如何修改Tab在被选中时的样式变化?
1)在onTabChanged(String s )中可以监听tab的改变事件
2)tabHost.getTabWidget().getChildAt(position); ->可以获取tab中的View,然后对View进行管理,比如修改图片的样式
ImageView iv = view.findViewById(ImageViewResId);
iv.setImageSource(xxx);
示例代码:
1, activity_main.xml 添加如下代码,fragment_container用来承载fragment
<FrameLayout
android :id= "@+id/fragment_container"
android :layout_width= "match_parent"
android :layout_height= "wrap_content"
android :layout_weight= "1" />
<android.support.v4.app.FragmentTabHost
android :id= "@+id/tab_host"
android :layout_width= "match_parent"
android :layout_height= "60dp" >
<!--<FrameLayout-->
<!--android:id="@android:id/tabcontent"-->
<!--android:layout_width="0dp"-->
<!--android:layout_height="0dp"-->
<!--android:layout_weight="0" />-->
</android.support.v4.app.FragmentTabHost>
2,添加tab_spec的布局item_tab_spec.xml
<?
xml version=
"1.0"
encoding=
"utf-8"
?>
<LinearLayout xmlns: android = "http://schemas.android.com/apk/res/android"
android :layout_width= "match_parent"
android :background= "@color/colorTabBackground"
android :layout_height= "match_parent"
android :orientation= "vertical" >
<ImageView
android :layout_marginTop= "5dp"
android :layout_gravity= "center"
android :id= "@+id/tab_spec_imageview"
android :layout_width= "wrap_content"
android :layout_height= "wrap_content" />
<TextView
android :text= "haha"
android :layout_gravity= "center"
android :id= "@+id/tab_spec_textview"
android :textColor= "@color/colorTabTitleTextNormal"
android :layout_width= "wrap_content"
android :layout_height= "wrap_content" />
</LinearLayout>
<LinearLayout xmlns: android = "http://schemas.android.com/apk/res/android"
android :layout_width= "match_parent"
android :background= "@color/colorTabBackground"
android :layout_height= "match_parent"
android :orientation= "vertical" >
<ImageView
android :layout_marginTop= "5dp"
android :layout_gravity= "center"
android :id= "@+id/tab_spec_imageview"
android :layout_width= "wrap_content"
android :layout_height= "wrap_content" />
<TextView
android :text= "haha"
android :layout_gravity= "center"
android :id= "@+id/tab_spec_textview"
android :textColor= "@color/colorTabTitleTextNormal"
android :layout_width= "wrap_content"
android :layout_height= "wrap_content" />
</LinearLayout>
3,MainActivity中定义需要用到的变量
private FragmentTabHost
tabHost
;
private int tabSpecTitle[] = {R.string. notes ,R.string. settings} ;
private int tabSpecImg[] = {R.drawable. docker_tab_note_selector ,R.drawable. docker_tab_setting_selector} ;
private Class fragments[] = {NoteListFragment. class,SettingFragment. class} ;
private int tabSpecTitle[] = {R.string. notes ,R.string. settings} ;
private int tabSpecImg[] = {R.drawable. docker_tab_note_selector ,R.drawable. docker_tab_setting_selector} ;
private Class fragments[] = {NoteListFragment. class,SettingFragment. class} ;
4,初始化FragmentTabHost
//initial FragmentTabHost
tabHost = (FragmentTabHost) findViewById(R.id. tab_host) ;
tabHost.setup( this, getSupportFragmentManager() , R.id. fragment_container) ;
for ( int i = 0 ; i < fragments. length ; i++) {
tabHost.addTab( tabHost.newTabSpec(getString( tabSpecTitle[i])).setIndicator(getTabSpecView(i)) , fragments[i] ,null) ;
}
tabHost.setOnTabChangedListener( this) ;
changeTabTextColor( 0) ;
tabHost = (FragmentTabHost) findViewById(R.id. tab_host) ;
tabHost.setup( this, getSupportFragmentManager() , R.id. fragment_container) ;
for ( int i = 0 ; i < fragments. length ; i++) {
tabHost.addTab( tabHost.newTabSpec(getString( tabSpecTitle[i])).setIndicator(getTabSpecView(i)) , fragments[i] ,null) ;
}
tabHost.setOnTabChangedListener( this) ;
changeTabTextColor( 0) ;
/**
* get every view of tab
* it is a view group contains ImageView & TextView which is from item_tab_spec.xml
* @param i view's current index
* @return view of tab
*/
private View getTabSpecView( int i){
View v = LayoutInflater. from( this).inflate(R.layout. item_tab_spec ,null) ;
ImageView iv = (ImageView) v.findViewById(R.id. tab_spec_imageview) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
iv.setBackgroundResource( tabSpecImg[i]) ;
tv.setText(getString( tabSpecTitle[i])) ;
return v ;
}
* get every view of tab
* it is a view group contains ImageView & TextView which is from item_tab_spec.xml
* @param i view's current index
* @return view of tab
*/
private View getTabSpecView( int i){
View v = LayoutInflater. from( this).inflate(R.layout. item_tab_spec ,null) ;
ImageView iv = (ImageView) v.findViewById(R.id. tab_spec_imageview) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
iv.setBackgroundResource( tabSpecImg[i]) ;
tv.setText(getString( tabSpecTitle[i])) ;
return v ;
}
@Override
public void onTabChanged(String s) {
//get title-text of current tab and change the color to selected.
int position = tabHost.getCurrentTab() ;
changeTabTextColor(position) ;
}
/**
* change the color of tab's title-text which is been selected.
* @param position
*/
public void changeTabTextColor( int position){
clearTabTextcolor() ;
View v = tabHost.getTabWidget().getChildAt(position) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
tv.setTextColor(getResources().getColor(R.color. colorTabTitleTextSelected)) ;
}
/**
* set all tab's title-text to default color.
*/
public void clearTabTextcolor(){
for ( int i = 0 ; i < tabHost.getTabWidget().getChildCount() ; i++) {
View v = tabHost.getTabWidget().getChildAt(i) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
tv.setTextColor(getResources().getColor(R.color. colorTabTitleTextNormal)) ;
}
}
public void onTabChanged(String s) {
//get title-text of current tab and change the color to selected.
int position = tabHost.getCurrentTab() ;
changeTabTextColor(position) ;
}
/**
* change the color of tab's title-text which is been selected.
* @param position
*/
public void changeTabTextColor( int position){
clearTabTextcolor() ;
View v = tabHost.getTabWidget().getChildAt(position) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
tv.setTextColor(getResources().getColor(R.color. colorTabTitleTextSelected)) ;
}
/**
* set all tab's title-text to default color.
*/
public void clearTabTextcolor(){
for ( int i = 0 ; i < tabHost.getTabWidget().getChildCount() ; i++) {
View v = tabHost.getTabWidget().getChildAt(i) ;
TextView tv = (TextView) v.findViewById(R.id. tab_spec_textview) ;
tv.setTextColor(getResources().getColor(R.color. colorTabTitleTextNormal)) ;
}
}
5,定义tab图标被选中时的样式(这部分可以用代码实现)
#注意item的顺序不能错,否则显示不正常
docker_tab_note_selector.xml:
<?
xml version=
"1.0"
encoding=
"utf-8"
?>
<selector xmlns: android = "http://schemas.android.com/apk/res/android" >
<item android :drawable= "@drawable/docker_tab_note_selected" android :state_selected= "true" />
<item android :drawable= "@drawable/docker_tab_note_normal" ></item>
</selector>
<selector xmlns: android = "http://schemas.android.com/apk/res/android" >
<item android :drawable= "@drawable/docker_tab_note_selected" android :state_selected= "true" />
<item android :drawable= "@drawable/docker_tab_note_normal" ></item>
</selector>
docker_tab_setting_selector.xml:
<?
xml version=
"1.0"
encoding=
"utf-8"
?>
<selector xmlns:android= "http://schemas.android.com/apk/res/android" >
<item android:drawable= "@drawable/docker_tab_setting_selected" android:state_selected= "true" />
<item android:drawable= "@drawable/docker_tab_setting_normal" ></item>
</selector>
<selector xmlns:android= "http://schemas.android.com/apk/res/android" >
<item android:drawable= "@drawable/docker_tab_setting_selected" android:state_selected= "true" />
<item android:drawable= "@drawable/docker_tab_setting_normal" ></item>
</selector>
