本教程通过三个步骤指导用户填写个人信息，包括基本资料、上传头像和撰写自我介绍，最后展示填写结果。

通过按钮来实现页面的转换以及信息的存储

代码（自定义布局类太多了，就不上传了，需要的话要我）

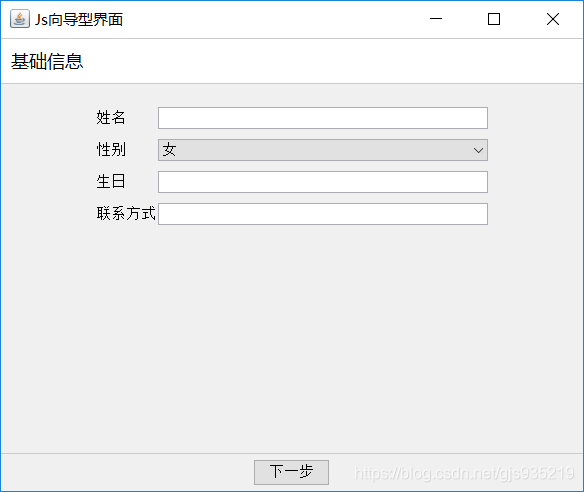

1页：

package my.pages;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Font;

import javax.swing.BorderFactory;
import javax.swing.JButton;
import javax.swing.JComboBox;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

import js.swing.JsPanel;
import js.swing.activity.JsActivity;
import js.swing.border.JsBorder;
import js.swing.layout.JsColumnLayout;
import js.swing.layout.JsMarginLayout;
import js.swing.layout.JsRowLayout;

/*
 * 第一页
 */
public class Step1Activity extends JsActivity
{

	JTextField nameField = new JTextField();
	JComboBox<String>sexField = new JComboBox<>();
	JTextField birthdayField = new JTextField();
	JTextField phoneField = new JTextField();

	public Step1Activity()
	{
		this.setLayout(new BorderLayout());

		initTop("基础信息");

		initCenter();

		initBottom();
	}

	//顶部
	private void initTop(String title)
	{
		JLabel label = new JLabel(title);
		label.setFont(new Font("微软雅黑",Font.PLAIN,18));

		this.add(label, BorderLayout.PAGE_START);
		label.setOpaque(true);
		label.setBackground(Color.WHITE);
		label.setBorder(BorderFactory.createMatteBorder(1, 0, 0, 0, new Color(0xCCCCCC)));

		JsBorder.addPadding(label, 10);
	}

	//中心
	private void initCenter()
	{
		JsPanel center = new JsPanel();
		center.setLayout(new JsColumnLayout());

		if(true)
		{
			JsPanel row = new JsPanel();
			row.setLayout(new JsRowLayout());
			center.add(row, "30px");
			row.padding(4);
			row.add(new JLabel("姓名"), "60px");
			row.add(nameField, "1w");
		}

		if(true)
		{
			JsPanel row =new JsPanel();
			row.setLayout(new JsRowLayout());
			center.add(row, "30px");
			row.padding(4);
			row.add(new JLabel("性别"), "60px");

			sexField.addItem("女");
			sexField.addItem("男");
			row.add(sexField, "1w");
		}

		if(true)
		{
			JsPanel row =new JsPanel();
			row.setLayout(new JsRowLayout());
			center.add(row, "30px");
			row.padding(4);
			row.add(new JLabel("生日"), "60px");
			row.add(birthdayField, "1w");
		}
		if(true)
		{
			JsPanel row =new JsPanel();
			row.setLayout(new JsRowLayout());
			center.add(row, "30px");
			row.padding(4);
			row.add(new JLabel("联系方式"), "60px");
			row.add(phoneField, "1w");
		}

		center.setPreferredSize(new Dimension(400,9999));
		center.setOpaque(true);
		center.setBackground(new Color(0,0,0,0));

		JPanel wrapper = new JPanel();
		wrapper.setLayout(new JsMarginLayout());
		wrapper.add(center, new JsMarginLayout.Margin(20, -1, -1, -1));
		wrapper.setBorder(BorderFactory.createMatteBorder(1, 0, 1, 0, new Color(0xCCCCCC)));
		this.add(wrapper, BorderLayout.CENTER);
	}

	//按钮
	private void initBottom()
	{
		JPanel bottom = new JPanel();
		this.add(bottom, BorderLayout.PAGE_END);
		JButton next = new JButton("下一步");
		bottom.add(next);

		next.addActionListener( (e)->{
			saveData();
			startActivity(Step2Activity.class, null);
		});
	}


	@Override
	public void onCreate(Object intent) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onStart() {
		// TODO Auto-generated method stub

	}

	//上下文
	private void saveData()
	{
		Resume r = (Resume) context.getParam("resume", null);

		r.name = nameField.getText().trim();
		r.sex = sexField.getSelectedIndex() == 1;
		r.birthday = birthdayField.getText().trim();
		r.cellphone = phoneField.getText().trim();
	}

}

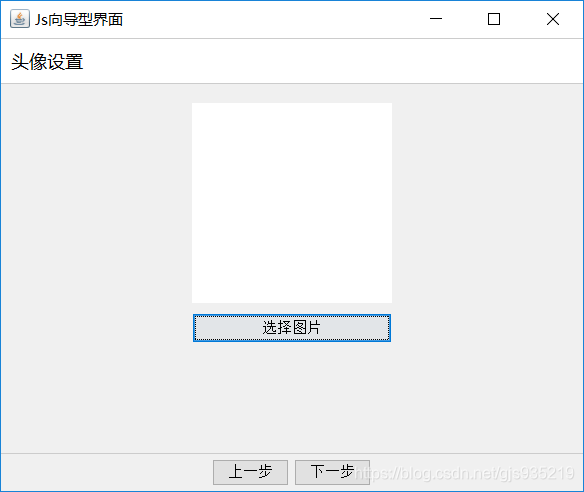

2页：

package my.pages;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Font;
import java.awt.Image;
import java.io.File;

import javax.imageio.ImageIO;
import javax.swing.BorderFactory;
import javax.swing.JButton;
import javax.swing.JFileChooser;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.filechooser.FileNameExtensionFilter;

import js.swing.JsPanel;
import js.swing.JsToaster;
import js.swing.activity.JsActivity;
import js.swing.border.JsBorder;
import js.swing.image.JsImageView;
import js.swing.layout.JsColumnLayout;
import js.swing.layout.JsMarginLayout;
/*
 * 第二页
 */
public class Step2Activity extends JsActivity
{

	JsImageView photoField = new JsImageView();
	File imageFile; //选中图片的文件

	public Step2Activity()
	{
		this.setLayout(new BorderLayout());

		initTop("头像设置");

		initCenter();

		initBottom();
	}

	//顶部
	private void initTop(String title)
	{
		JLabel label = new JLabel(title);
		label.setFont(new Font("微软雅黑",Font.PLAIN,18));

		this.add(label, BorderLayout.PAGE_START);
		label.setOpaque(true);
		label.setBackground(Color.WHITE);
		label.setBorder(BorderFactory.createMatteBorder(1, 0, 0, 0, new Color(0xCCCCCC)));

		JsBorder.addPadding(label, 10);
	}

	//中心
	private void initCenter()
	{
		JsPanel center = new JsPanel();
		center.setLayout(new JsColumnLayout(10));

		center.setPreferredSize(new Dimension(200, 240));
		center.add(photoField, "200px");

		JButton button = new JButton ("选择图片");
		center.add(button, "1w");

		JPanel wrapper = new JPanel();
		wrapper.setLayout(new JsMarginLayout());
		wrapper.add(center, new JsMarginLayout.Margin(20,-1,-1,-1));
		wrapper.setBorder(BorderFactory.createMatteBorder(1, 0, 1, 0, new Color(0xCCCCCC)));
		this.add(wrapper, BorderLayout.CENTER);

		button.addActionListener( (e)->{
			openFile();
		});
	}

	//底部
	private void initBottom()
	{
		JPanel bottom = new JPanel();
		this.add(bottom, BorderLayout.PAGE_END);

		JButton preButton = new JButton("上一步");
		bottom.add(preButton);
		preButton.addActionListener((e)->{
			back();
		});

		JButton nextButton = new JButton("下一步");
		bottom.add(nextButton);
		nextButton.addActionListener( (e)->{

//			if(!ispicture())
//				JOptionPane.showMessageDialog(this, "请上传照片！");
//			else
//				{
				saveData();
				startActivity(Step3Activity.class, null);
				//}
		});
	}
	@Override
	public void onCreate(Object intent) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onStart()
	{
		Resume r = (Resume) context.getParam("resume", null);

		if(r.photo!=null)
		{
			openFile(r.photo);
		}
	}

	private boolean ispicture()
	{
		if(imageFile==null) return false;
		else return true;

	}
	private void openFile()
	{
		JFileChooser chooser = new JFileChooser();
		FileNameExtensionFilter filter
			= new FileNameExtensionFilter("图片文件", "jpg", "jpeg", "png");
		chooser.setFileFilter(filter);

		int ret = chooser.showOpenDialog(this);
		if (ret == JFileChooser.APPROVE_OPTION)
		{
			// 结果为：已经存在的一个文件
			File file = chooser.getSelectedFile();
			openFile(file);
		}
	}

	private void openFile(File file)
	{
		try {
			Image image = ImageIO.read(file);
			imageFile = file;
			photoField.setImage( image );

			saveData();
		}catch(Exception e)
		{
			JsToaster.show(this, JsToaster.Leval.WARN, e.getMessage());
		}
	}

	private void saveData()
	{
		Resume r = (Resume) context.getParam("resume", null);

		r.photo = imageFile;
	}


}

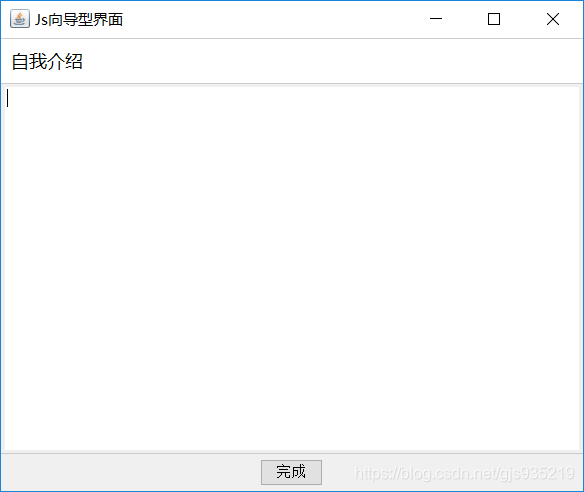

3页：

package my.pages;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Font;
import java.awt.TextArea;

import javax.swing.BorderFactory;
import javax.swing.JButton;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextArea;

import js.swing.activity.JsActivity;
import js.swing.border.JsBorder;
import js.swing.layout.JsMarginLayout;

public class Step3Activity extends JsActivity
{

	JTextArea textarea = new JTextArea();

	public Step3Activity()
	{
		this.setLayout(new BorderLayout());

		initTop("自我介绍");

		initCenter();

		initBottom();
	}
	private void initTop(String title)
	{
		JLabel label = new JLabel(title);
		label.setFont(new Font("微软雅黑", Font.PLAIN, 18));

		this.add(label, BorderLayout.PAGE_START);
		label.setOpaque(true);
		label.setBackground(Color.WHITE);
		label.setBorder(BorderFactory.createMatteBorder(1, 0, 0, 0, new Color(0xCCCCCC)));

		JsBorder.addPadding(label, 10);
	}

	private void initCenter()
	{
		textarea.setPreferredSize(new Dimension(9999,9999));

		JPanel wrapper = new JPanel();
		wrapper.setLayout(new JsMarginLayout());
		wrapper.add(textarea, new JsMarginLayout.Margin(4,4,4,4));
		wrapper.setBorder(BorderFactory.createMatteBorder(1, 0, 1, 0, new Color(0xCCCCCC)));
		this.add(wrapper, BorderLayout.CENTER);
	}

	private void initBottom()
	{
		JPanel bottom = new JPanel();
		this.add(bottom, BorderLayout.PAGE_END);

		JButton finishButton = new JButton("完成");
		bottom.add(finishButton);
		finishButton.addActionListener( (e)->{
			saveData();

			startActivity(SummaryActivity.class, null);
		});
	}
	@Override
	public void onCreate(Object intent) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onStart() {
		// TODO Auto-generated method stub

	}

	public void saveData()
	{
		Resume r = (Resume) context.getParam("resume", null);

		r.introduce= textarea.getText();
	}

}

总结页：

package my.pages;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Font;

import javax.swing.JLabel;
import javax.swing.SwingConstants;

import js.swing.JsToaster;
import js.swing.activity.JsActivity;

public class SummaryActivity extends JsActivity
{
	public SummaryActivity()
	{
		this.setLayout(new BorderLayout());

		JLabel label = new JLabel("已经处理你的简历，请等待通知...");
		label.setFont(new Font("宋体 ", Font.PLAIN, 20));
		label.setOpaque(true);
		label.setBackground(new Color(0xFFFFFF));
		label.setHorizontalAlignment(SwingConstants.CENTER);

		this.add(label, BorderLayout.CENTER);


	}

	@Override
	public void onCreate(Object intent) {
		// TODO Auto-generated method stub

	}

	@Override
	public void onStart()
	{

		Resume r = (Resume) context.getParam("resume", null);

		// 处理 ...

		JsToaster.show(this, "处理简历...");
	}
}

信息：

package my.pages;

import java.io.File;

/* 表格里的数据项
 *
 */

public class Resume
{
	public String name;
	public boolean sex;
	public String birthday;
	public String cellphone;

	public File photo; // 照片
	public String introduce; // 自我介绍
}

MyFrame：

package my;

import java.awt.BorderLayout;

import javax.swing.JFrame;
import javax.swing.JPanel;

import js.swing.activity.JsActivityPane;
import my.pages.Resume;
import my.pages.Step1Activity;
import my.pages.Step2Activity;

public class MyFrame extends JFrame
{
	JsActivityPane activityPane=new JsActivityPane();

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new BorderLayout());

		root.add(activityPane, BorderLayout.CENTER);

		//开始导航
		activityPane.putParam("resume", new Resume());
		activityPane.startActivity(Step1Activity.class, null);
	}
}
