搭建Atlas2.2.0 集成CDH6.3.2 生产环境+kerberos

首先确保环境的干净，如果之前有安装过清理掉相关残留

确保安装atlas的服务器有足够的内存（至少16G），有必要的hadoop角色

• HDFS客户端 — 检索和更新Hadoop使用的用户组信息（UGI）中帐户成员资格的信息。对调试很有用。
• HBase Client - Atlas 存储其 Janus 数据库，用于初始导入 HBase 内容，因此它需要持续访问 HBase 服务中的两个表。
• Hive 客户端 - 用于初始导入 Hive 内容。

备注： kafka我取消了kerberos。没搞定atlas用带kerberos的kafka传消息

准备编译环境

mvn3.8.8 必须3.8以上的版本 3.6无法编译

java 1.8.0_181 跟你的CDH环境保持一致

node node-v16.20.2

下载和解压缩源代码

该项目的网站可以在这里找到 Apache Atlas – Data Governance and Metadata framework for Hadoop

查找并下载 Apache Atlas

更改pom.xml

在主pom（就是文件夹打开第一个）添加一个包含 maven 工件的 clouder 存储库

<repository>
    <id>cloudera</id>
    <url>https://repository.cloudera.com/artifactory/cloudera-repos</url>
    <releases>
        <enabled>true</enabled>
    </releases>
    <snapshots>
        <enabled>false</enabled>
    </snapshots>
</repository>

然后修改对应的cdh组件版本

<hadoop.version>3.0.0-cdh6.3.2</hadoop.version>
<hbase.version>2.1.0-cdh6.3.2</hbase.version>
<hive.version>2.1.1-cdh6.3.2</hive.version>
<kafka.scala.binary.version>2.11</kafka.scala.binary.version>
<kafka.version>2.2.1-cdh6.3.2</kafka.version>
<solr-test-framework.version>7.4.0-cdh6.3.2</solr-test-framework.version>
<lucene-solr.version>7.4.0</lucene-solr.version>
<solr.version>7.4.0-cdh6.3.2</solr.version>
<sqoop.version>1.4.7-cdh6.3.2</sqoop.version>
<zookeeper.version>3.4.5-cdh6.3.2</zookeeper.version>

然后修改一些jar包的版本

将“atlas-buildtools”工件的版本从“1.0”更改为“0.8.1”
                    <dependency>
                        <groupId>org.apache.atlas</groupId>
                        <artifactId>atlas-buildtools</artifactId>
                        <version>0.8.1</version>
                    </dependency>

修改jsr.version为2.0.1
 <jsr.version>2.0.1</jsr.version>

修改一些次pom

主目录下
grep -rn jsr311-apii | grep pom.xml

addons/impala-bridge/pom.xml:332
addons/falcon-bridge/pom.xml:178
addons/hive-bridge/pom.xml:312:
addons/hbase-bridge/pom.xml:345:
addons/storm-bridge/pom.xml:360:
addons/sqoop-bridge/pom.xml:250:

这几个pom中jsr311-api改成javax.ws.rs-api

修改其他文件

 在文件

addons/hive-bridge/src/main/java/org/apache/atlas/hive/bridge/HiveMetaStoreBridge.java

中，转到第618行，

注释”String catalogName = hiveDB.getCatalogName（） ！= null ？hiveDB.getCatalogName（）.toLowerCase（） ： null;“

并添加 ”String catalogName = null;“：

public static String getDatabaseName(Database hiveDB) {
    String dbName      = hiveDB.getName().toLowerCase();
    //String catalogName = hiveDB.getCatalogName() != null ? hiveDB.getCatalogName().toLowerCase() : null;
    String catalogName = null;

    if (StringUtils.isNotEmpty(catalogName) && !StringUtils.equals(catalogName, DEFAULT_METASTORE_CATALOG)) {
        dbName = catalogName + SEP + dbName;
    }

    return dbName;
}

在文件

addons/hive-bridge/src/main/java/org/apache/atlas/hive/hook/AtlasHiveHookContext.java

中

转到第83行”this.metastoreHandler = （listenerEvent ！= null） ？metastoreEvent.getIHMSHandler（） ： null;“，

注释它并添加”this.metastoreHandler = null;“：

public AtlasHiveHookContext(HiveHook hook, HiveOperation hiveOperation, HookContext hiveContext, HiveHookObjectNamesCache knownObjects,
                            HiveMetastoreHook metastoreHook, ListenerEvent listenerEvent) throws Exception {
    this.hook             = hook;
    this.hiveOperation    = hiveOperation;
    this.hiveContext      = hiveContext;
    this.hive             = hiveContext != null ? Hive.get(hiveContext.getConf()) : null;
    this.knownObjects     = knownObjects;
    this.metastoreHook    = metastoreHook;
    this.metastoreEvent   = listenerEvent;
    //this.metastoreHandler = (listenerEvent != null) ? metastoreEvent.getIHMSHandler() : null;
    this.metastoreHandler = null;


    init();
}

 在文件addons/hive-bridge/src/main/java/org/apache/atlas/hive/hook/events/CreateHiveProcess.java

注释第 293 行提到“MATERIALIZED_VIEW”：

private boolean isDdlOperation(AtlasEntity entity) {
    return entity != null && !context.isMetastoreHook()
        && (context.getHiveOperation().equals(HiveOperation.CREATETABLE_AS_SELECT)
         || context.getHiveOperation().equals(HiveOperation.CREATEVIEW)
         || context.getHiveOperation().equals(HiveOperation.ALTERVIEW_AS));
         //|| context.getHiveOperation().equals(HiveOperation.CREATE_MATERIALIZED_VIEW));
}

注意这里要加；号，因为原来的符号被注释了

 在文件addons/hive-bridge/src/main/java/org/apache/atlas/hive/hook/HiveHook.java

注释提及“MATERIALIZED_VIEW”的第 212 行和第 217 行

开始构建。基本无坑。有问题多试几次。有时候会因为网络问题下不到包

mvn clean  -DskipTests package -Pdist  -Drat.skip=true

包在distro/target/apache-atlas-2.2.0-bin.tar.gz

不要用官方文档说的server包 那个包没有各种hook文件

解压到安装目录，开始安装

为atlas部署准备 CDH 集群服务

• Atlas使用HBase来存储他的Janus数据库。
• Solr 用于存储和搜索审核日志。
• Kafka被用作从Atlas库（即嵌入Hadoop服务中的钩子）到Atlas本身的消息发送器。

1.1. 在 HBase 中创建必要的表

1. 在 Atlas 计算机或安装了“HBase 网关”角色的任何其他计算机上，创建必要的表

TABLE1="apache_atlas_entity_audit"
TABLE2="apache_atlas_janus"

echo "create '${TABLE1}', 'dt'; grant 'atlas', 'RWXCA', '${TABLE1}'"  | hbase shell
echo "create '${TABLE2}', 's'; grant 'atlas', 'RWXCA', '${TABLE2}'" | hbase shell

如果将“atlas”帐户添加到“hbase.superuser”参数中，或添加到“test2_hbase_su”IPA组（在Hadoop直接连接到LDAP的情况下），或将所有HBase权限分配给“atlas”帐户，Atlas将自动创建必要的数据库并将其权限分配给atlas帐户。这有时很方便，例如，出于研究目的。
请注意，在 Atlas 2.2.0 中，在将 'atlas' 添加到 'hbase.superuser' 的情况下，这不起作用。

检查已创建的表

1. 在 Atlas 计算机或安装了“HBase 网关”角色的任何其他计算机上，执行：

   echo "list" | hbase shell

   复制

   标准输出：

   Took 0.0028 seconds
   list
   TABLE
   apache_atlas_entity_audit
   apache_atlas_janus
   2 row(s)
   Took 0.6872 seconds
   ["apache_atlas_entity_audit", "apache_atlas_janus"]


添加hbase集群配置文件到conf/hbase下

ln -s /etc/hbase/conf/ /data/apache-atlas-2.2.0/conf/hbase

Apache Kafka

Atlas 使用 Apache Kafka 接收有关 Hadoop 服务中发生的事件的消息。消息是使用嵌入在某些服务中的Atlas的特殊库发送的。目前，Atlas 读取有关 Hbase 和 Hive 中事件的消息，例如创建和删除表、添加列、等等等等......

在 Kafka 中添加必要的topic

1. Apache Atlas 需要 Apache Kafka 中的三个topic。在安装了 Kafka 的计算机上创建它们：

kafka-topics --zookeeper S0:2181,S1:2181,S2:2181,S3:2181 --create --replication-factor 3 --partitions 3 --topic _HOATLASOK
kafka-topics --zookeeper S0:2181,S1:2181,S2:2181,S3:2181 --create --replication-factor 3 --partitions 3 --topic ATLAS_ENTITIES
kafka-topics --zookeeper S0:2181,S1:2181,S2:2181,S3:2181 --create --replication-factor 3 --partitions 3 --topic ATLAS_HOOK

有kerberos的关掉kerberos，我没测试成功使用带kerberos的kafka

 配置atlas的sentry role 以访问kafka topic

在具有“Kafka 网关”和“sentry网关”角色的机器上，在sentry中创建“kafka4atlas_role”角色：

KROLE="kafka4atlas_role"

kafka-sentry -cr -r ${KROLE}
将创建的角色分配给 atlas 组：

kafka-sentry -arg -r ${KROLE} -g atlas

为消费者分配权限：
TOPIC1="_HOATLASOK"
TOPIC2="ATLAS_ENTITIES"
TOPIC3="ATLAS_HOOK"

kafka-sentry -gpr -r ${KROLE} -p "Host=*->CONSUMERGROUP=*->action=read"
kafka-sentry -gpr -r ${KROLE} -p "Host=*->CONSUMERGROUP=*->action=describe"

kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC1}->action=read"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC2}->action=read"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC3}->action=read"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC1}->action=describe"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC2}->action=describe"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC3}->action=describe"
为生产者分配权限
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC1}->action=write"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC2}->action=write"
kafka-sentry -gpr -r ${KROLE} -p "HOST=*->TOPIC=${TOPIC3}->action=write"
检查sentry设置
 $ kafka-sentry -lr
....
solradm_role
kafka4atlas_role
显示组及其分配角色的列表：

$ kafka-sentry -lg
...
atlas = kafka4atlas_role
test2_solr_admins = solradm_role
显示权限列表：

$ kafka-sentry -lp -r kafka4atlas_role
...
HOST=*->TOPIC=_HOATLASOK->action=read
HOST=*->TOPIC=_HOATLASOK->action=describe
HOST=*->TOPIC=ATLAS_HOOK->action=read
HOST=*->TOPIC=ATLAS_ENTITIES->action=describe
HOST=*->TOPIC=ATLAS_HOOK->action=describe
HOST=*->CONSUMERGROUP=*->action=describe
HOST=*->TOPIC=_HOATLASOK->action=write
HOST=*->TOPIC=ATLAS_ENTITIES->action=write
HOST=*->TOPIC=ATLAS_HOOK->action=write
HOST=*->TOPIC=ATLAS_ENTITIES->action=read
HOST=*->CONSUMERGROUP=*->action=read

集成CDH的Solr
①将apache-atlas-2.3.0/conf/solr文件拷贝到solr的安装目录下，即/opt/cloudera/parcels/CDh/lib/solr下，然后更名为atlas-solr

②创建collection

vi /etc/passwd
/sbin/nologin 修改为 /bin/bash
su - solr

/opt/cloudera/parcels/CDH/lib/solr/bin/solr create -c  vertex_index -d /opt/cloudera/parcels/CDH/lib/solr/atlas-solr -shards 3 -replicationFactor 2

/opt/cloudera/parcels/CDH/lib/solr/bin/solr create -c  edge_index -d /opt/cloudera/parcels/CDH/lib/solr/atlas-solr -shards 3 -replicationFactor 2

/opt/cloudera/parcels/CDH/lib/solr/bin/solr create -c  fulltext_index -d /opt/cloudera/parcels/CDH/lib/solr/atlas-solr -shards 3 -replicationFactor 2

③验证创建collection成功
登录 solr web控制台： http://xxxx:8983 验证是否启动成功

创建好相关的kerberos帐号和keytab

修改atlas-application.properties

#########  Graph Database Configs  #########

# Graph Database

#Configures the graph database to use.  Defaults to JanusGraph
#atlas.graphdb.backend=org.apache.atlas.repository.graphdb.janus.AtlasJanusGraphDatabase

# Graph Storage
# Set atlas.graph.storage.backend to the correct value for your desired storage
# backend. Possible values:
#
# hbase
# cassandra
# embeddedcassandra - Should only be set by building Atlas with  -Pdist,embedded-cassandra-solr
# berkeleyje
#
# See the configuration documentation for more information about configuring the various  storage backends.
#
atlas.graph.storage.backend=hbase
atlas.graph.storage.hbase.table=apache_atlas_janus

#Hbase
#For standalone mode , specify localhost
#for distributed mode, specify zookeeper quorum here
atlas.graph.storage.hostname=S0:2181,S1:2181,S2:2181
atlas.graph.storage.hbase.regions-per-server=1
atlas.graph.stoorage.lock.wait-time=10000

#In order to use Cassandra as a backend, comment out the hbase specific properties above, and uncomment the
#the following properties
#atlas.graph.storage.clustername=
#atlas.graph.storage.port=

# Gremlin Query Optimizer
#
# Enables rewriting gremlin queries to maximize performance. This flag is provided as
# a possible way to work around any defects that are found in the optimizer until they
# are resolved.
#atlas.query.gremlinOptimizerEnabled=true

# Delete handler
#
# This allows the default behavior of doing "soft" deletes to be changed.
#
# Allowed Values:
# org.apache.atlas.repository.store.graph.v1.SoftDeleteHandlerV1 - all deletes are "soft" deletes
# org.apache.atlas.repository.store.graph.v1.HardDeleteHandlerV1 - all deletes are "hard" deletes
#
#atlas.DeleteHandlerV1.impl=org.apache.atlas.repository.store.graph.v1.SoftDeleteHandlerV1

# Entity audit repository
#
# This allows the default behavior of logging entity changes to hbase to be changed.
#
# Allowed Values:
# org.apache.atlas.repository.audit.HBaseBasedAuditRepository - log entity changes to hbase
# org.apache.atlas.repository.audit.CassandraBasedAuditRepository - log entity changes to cassandra
# org.apache.atlas.repository.audit.NoopEntityAuditRepository - disable the audit repository
#
atlas.EntityAuditRepository.impl=org.apache.atlas.repository.audit.HBaseBasedAuditRepository

# if Cassandra is used as a backend for audit from the above property, uncomment and set the following
# properties appropriately. If using the embedded cassandra profile, these properties can remain
# commented out.
# atlas.EntityAuditRepository.keyspace=atlas_audit
# atlas.EntityAuditRepository.replicationFactor=1


# Graph Search Index
atlas.graph.index.search.backend=solr

#Solr
#Solr cloud mode properties
atlas.graph.index.search.solr.mode=cloud
atlas.graph.index.search.solr.zookeeper-url=S0:2181/solr,S1:2181/solr,S2:2181/solr
atlas.graph.index.search.solr.zookeeper-connect-timeout=60000
atlas.graph.index.search.solr.zookeeper-session-timeout=60000
atlas.graph.index.search.solr.wait-searcher=true

#Solr http mode properties
#atlas.graph.index.search.solr.mode=http
#atlas.graph.index.search.solr.http-urls=http://localhost:8983/solr

# ElasticSearch support (Tech Preview)
# Comment out above solr configuration, and uncomment the following two lines. Additionally, make sure the
# hostname field is set to a comma delimited set of elasticsearch master nodes, or an ELB that fronts the masters.
#
# Elasticsearch does not provide authentication out of the box, but does provide an option with the X-Pack product
# https://www.elastic.co/products/x-pack/security
#
# Alternatively, the JanusGraph documentation provides some tips on how to secure Elasticsearch without additional
# plugins: https://docs.janusgraph.org/latest/elasticsearch.html
#atlas.graph.index.search.hostname=localhost
#atlas.graph.index.search.elasticsearch.client-only=true

# Solr-specific configuration property
atlas.graph.index.search.max-result-set-size=150

#########  Import Configs  #########
#atlas.import.temp.directory=/temp/import

#########  Notification Configs  #########
atlas.notification.embedded=false
atlas.kafka.data=${sys:atlas.home}/data/kafka
atlas.kafka.zookeeper.connect=S0:2181,S1:2181,S2:2181
atlas.kafka.bootstrap.servers=S0:9092,S1:9092,S2:9092
atlas.kafka.zookeeper.session.timeout.ms=60000
atlas.kafka.zookeeper.connection.timeout.ms=60000
atlas.kafka.zookeeper.sync.time.ms=20
atlas.kafka.auto.commit.interval.ms=1000
atlas.kafka.hook.group.id=atlas

atlas.kafka.enable.auto.commit=true
atlas.kafka.auto.offset.reset=earliest
atlas.kafka.session.timeout.ms=30000
atlas.kafka.offsets.topic.replication.factor=3
atlas.kafka.poll.timeout.ms=1000

atlas.notification.create.topics=true
atlas.notification.replicas=1
atlas.notification.topics=ATLAS_HOOK,ATLAS_ENTITIES
atlas.notification.log.failed.messages=true
atlas.notification.consumer.retry.interval=500
atlas.notification.hook.retry.interval=1000
# Enable for Kerberized Kafka clusters
#atlas.notification.kafka.service.principal=kafka/_HOST@EXAMPLE.COM
#atlas.notification.kafka.keytab.location=/etc/security/keytabs/kafka.service.keytab

## Server port configuration
atlas.server.http.port=21000
#atlas.server.https.port=21443

#########  Security Properties  #########

# SSL config
atlas.enableTLS=false

#truststore.file=/path/to/truststore.jks
#cert.stores.credential.provider.path=jceks://file/path/to/credentialstore.jceks

#following only required for 2-way SSL
#keystore.file=/path/to/keystore.jks

# Authentication config
atlas.authentication.method=kerberos
atlas.authentication.keytab=/data/hive.keytab
atlas.authentication.principal=hive@TEST.COM

atlas.authentication.method.kerberos=true
atlas.authentication.method.kerberos.principal=hive@TEST.COM
atlas.authentication.method.kerberos.keytab=/data/hive.keytab
atlas.authentication.method.kerberos.name.rules=RULE:[2:$1@$0](hive@TEST.COM)s/.*/hive/
atlas.authentication.method.kerberos.token.validity=3600


#atlas.authentication.method.file=true

#### ldap.type= LDAP or AD
atlas.authentication.method.ldap.type=none

#### user credentials file
atlas.authentication.method.file.filename=${sys:atlas.home}/conf/users-credentials.properties

### groups from UGI
#atlas.authentication.method.ldap.ugi-groups=true

######## LDAP properties #########
#atlas.authentication.method.ldap.url=ldap://<ldap server url>:389
#atlas.authentication.method.ldap.userDNpattern=uid={0},ou=People,dc=example,dc=com
#atlas.authentication.method.ldap.groupSearchBase=dc=example,dc=com
#atlas.authentication.method.ldap.groupSearchFilter=(member=uid={0},ou=Users,dc=example,dc=com)
#atlas.authentication.method.ldap.groupRoleAttribute=cn
#atlas.authentication.method.ldap.base.dn=dc=example,dc=com
#atlas.authentication.method.ldap.bind.dn=cn=Manager,dc=example,dc=com
#atlas.authentication.method.ldap.bind.password=<password>
#atlas.authentication.method.ldap.referral=ignore
#atlas.authentication.method.ldap.user.searchfilter=(uid={0})
#atlas.authentication.method.ldap.default.role=<default role>


######### Active directory properties #######
#atlas.authentication.method.ldap.ad.domain=example.com
#atlas.authentication.method.ldap.ad.url=ldap://<AD server url>:389
#atlas.authentication.method.ldap.ad.base.dn=(sAMAccountName={0})
#atlas.authentication.method.ldap.ad.bind.dn=CN=team,CN=Users,DC=example,DC=com
#atlas.authentication.method.ldap.ad.bind.password=<password>
#atlas.authentication.method.ldap.ad.referral=ignore
#atlas.authentication.method.ldap.ad.user.searchfilter=(sAMAccountName={0})
#atlas.authentication.method.ldap.ad.default.role=<default role>

#########  JAAS Configuration ########

atlas.jaas.KafkaClient.loginModuleName=com.sun.security.auth.module.Krb5LoginModule
atlas.jaas.KafkaClient.loginModuleControlFlag=required
atlas.jaas.KafkaClient.option.useKeyTab=true
atlas.jaas.KafkaClient.option.storeKey=true
atlas.jaas.KafkaClient.option.serviceName=kafka
atlas.jaas.KafkaClient.option.keyTab=/data/atlas.service.keytab
atlas.jaas.KafkaClient.option.principal=atlas/s1.hadoop.com@TEST.COM

atlas.jaas.Client.loginModuleName=com.sun.security.auth.module.Krb5LoginModule
atlas.jaas.Client.loginModuleControlFlag=required
atlas.jaas.Client.option.useKeyTab=true
atlas.jaas.Client.option.storeKey=true
atlas.jaas.Client.option.keyTab=/data/atlas.service.keytab
atlas.jaas.Client.option.principal=atlas/s1.hadoop.com@TEST.COM

atlas.jaas.producer-1.loginModuleName=com.sun.security.auth.module.Krb5LoginModule
atlas.jaas.producer-1.loginModuleControlFlag=required
atlas.jaas.producer-1.option.useKeyTab=true
atlas.jaas.producer-1.option.storeKey=true
atlas.jaas.producer-1.option.keyTab=/data/atlas.service.keytab
atlas.jaas.producer-1.option.principal=atlas/s1.hadoop.com@TEST.COM
atlas.jaas.producer-1.option.security.protocol=SASL_PLAINTEXT
atlas.jaas.producer-1.option.sasl.mechanism=GSSAPI
atlas.jaas.producer-1.option.kerberos.service.name=kafka


#########  Server Properties  #########
atlas.rest.address=http://localhost:21000
# If enabled and set to true, this will run setup steps when the server starts
#atlas.server.run.setup.on.start=false

#########  Entity Audit Configs  #########
atlas.audit.hbase.tablename=apache_atlas_entity_audit
atlas.audit.zookeeper.session.timeout.ms=1000
atlas.audit.hbase.zookeeper.quorum=S0:2181,S1:2181,S2:2181

#########  High Availability Configuration ########
atlas.server.ha.enabled=false
#### Enabled the configs below as per need if HA is enabled #####
#atlas.server.ids=id1
#atlas.server.address.id1=localhost:21000
#atlas.server.ha.zookeeper.connect=localhost:2181
#atlas.server.ha.zookeeper.retry.sleeptime.ms=1000
#atlas.server.ha.zookeeper.num.retries=3
#atlas.server.ha.zookeeper.session.timeout.ms=20000
## if ACLs need to be set on the created nodes, uncomment these lines and set the values ##
#atlas.server.ha.zookeeper.acl=<scheme>:<id>
#atlas.server.ha.zookeeper.auth=<scheme>:<authinfo>



######### Atlas Authorization #########
atlas.authorizer.impl=simple
atlas.authorizer.simple.authz.policy.file=atlas-simple-authz-policy.json

#########  Type Cache Implementation ########
# A type cache class which implements
# org.apache.atlas.typesystem.types.cache.TypeCache.
# The default implementation is org.apache.atlas.typesystem.types.cache.DefaultTypeCache which is a local in-memory type cache.
#atlas.TypeCache.impl=

#########  Performance Configs  #########
#atlas.graph.storage.lock.retries=10
#atlas.graph.storage.cache.db-cache-time=120000

#########  CSRF Configs  #########
atlas.rest-csrf.enabled=true
atlas.rest-csrf.browser-useragents-regex=^Mozilla.*,^Opera.*,^Chrome.*
atlas.rest-csrf.methods-to-ignore=GET,OPTIONS,HEAD,TRACE
atlas.rest-csrf.custom-header=X-XSRF-HEADER

############ KNOX Configs ################
#atlas.sso.knox.browser.useragent=Mozilla,Chrome,Opera
#atlas.sso.knox.enabled=true
#atlas.sso.knox.providerurl=https://<knox gateway ip>:8443/gateway/knoxsso/api/v1/websso
#atlas.sso.knox.publicKey=

############ Atlas Metric/Stats configs ################
# Format: atlas.metric.query.<key>.<name>
atlas.metric.query.cache.ttlInSecs=900
#atlas.metric.query.general.typeCount=
#atlas.metric.query.general.typeUnusedCount=
#atlas.metric.query.general.entityCount=
#atlas.metric.query.general.tagCount=
#atlas.metric.query.general.entityDeleted=
#
#atlas.metric.query.entity.typeEntities=
#atlas.metric.query.entity.entityTagged=
#
#atlas.metric.query.tags.entityTags=

#########  Compiled Query Cache Configuration  #########

# The size of the compiled query cache.  Older queries will be evicted from the cache
# when we reach the capacity.

#atlas.CompiledQueryCache.capacity=1000

# Allows notifications when items are evicted from the compiled query
# cache because it has become full.  A warning will be issued when
# the specified number of evictions have occurred.  If the eviction
# warning threshold <= 0, no eviction warnings will be issued.

#atlas.CompiledQueryCache.evictionWarningThrottle=0


#########  Full Text Search Configuration  #########

#Set to false to disable full text search.
#atlas.search.fulltext.enable=true

#########  Gremlin Search Configuration  #########

#Set to false to disable gremlin search.
atlas.search.gremlin.enable=false


########## Add http headers ###########

#atlas.headers.Access-Control-Allow-Origin=*
#atlas.headers.Access-Control-Allow-Methods=GET,OPTIONS,HEAD,PUT,POST
#atlas.headers.<headerName>=<headerValue>


#########  UI Configuration ########

atlas.ui.default.version=v1

要改的配置很多。。务必仔细核对。很多默认配置都是有问题的,keytab 新建或者复用都可以，担心可能会涉及到权限问题所以我选择了hive的账户。hbase中应该也需要配置相应的权限。没测试过是否需要配置

kafka配置中的producer-1是默认的group id名称  多出来的三个配置是kafka在kerberos下procedure需要配置的参数

修改atlas-env.sh

#!/usr/bin/env bash

# The java implementation to use. If JAVA_HOME is not found we expect java and jar to be in path
export JAVA_HOME=/usr/java/default
export HBASE_CONF_DIR=/etc/hbase/conf
# any additional java opts you want to set. This will apply to both client and server operations
#export ATLAS_OPTS=

# any additional java opts that you want to set for client only
#export ATLAS_CLIENT_OPTS=

# java heap size we want to set for the client. Default is 1024MB
#export ATLAS_CLIENT_HEAP=

# any additional opts you want to set for atlas service.
#export ATLAS_SERVER_OPTS=

# indicative values for large number of metadata entities (equal or more than 10,000s)
export ATLAS_SERVER_OPTS="-server -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+CMSClassUnloadingEnabled -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:+PrintTenuringDistribution -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dumps/atlas_server.hprof -Xloggc:logs/gc-worker.log -verbose:gc -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=10 -XX:GCLogFileSize=1m -XX:+PrintGCDetails -XX:+PrintHeapAtGC -XX:+PrintGCTimeStamps -Djava.security.krb5.conf=/etc/krb5.conf
  -Djava.security.auth.login.config=/data/atlas2.2/conf/jaas.conf"

# java heap size we want to set for the atlas server. Default is 1024MB
#export ATLAS_SERVER_HEAP=

# indicative values for large number of metadata entities (equal or more than 10,000s) for JDK 8
export ATLAS_SERVER_HEAP="-Xms15360m -Xmx15360m -XX:MaxNewSize=5120m -XX:MetaspaceSize=100M -XX:MaxMetaspaceSize=512m"

# What is is considered as atlas home dir. Default is the base locaion of the installed software
export ATLAS_HOME_DIR=/opt/atlas2.2

# Where log files are stored. Defatult is logs directory under the base install location
#export ATLAS_LOG_DIR=

# Where pid files are stored. Defatult is logs directory under the base install location
#export ATLAS_PID_DIR=

# where the atlas titan db data is stored. Defatult is logs/data directory under the base install location
#export ATLAS_DATA_DIR=

# Where do you want to expand the war file. By Default it is in /server/webapp dir under the base install dir.
#export ATLAS_EXPANDED_WEBAPP_DIR=

# indicates whether or not a local instance of HBase should be started for Atlas
export MANAGE_LOCAL_HBASE=false

# indicates whether or not a local instance of Solr should be started for Atlas
export MANAGE_LOCAL_SOLR=false

# indicates whether or not cassandra is the embedded backend for Atlas
export MANAGE_EMBEDDED_CASSANDRA=false

# indicates whether or not a local instance of Elasticsearch should be started for Atlas
export MANAGE_LOCAL_ELASTICSEARCH=false

 env中的jaas.conf 需要增加一个jaas.conf

Client {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    KeyTab="/data/atlas.service.keytab"
    storeKey=true
    principal="atlas/s1.hadoop.com@TEST.COM"
    debug=false;
};

 集成hive

首先去CDH的hive上添加3处配置

HiveServer2 的 Java 配置选项   {{JAVA_GC_ARGS}} -Datlas.conf=/data/apache-atlas-2.2.0/conf/

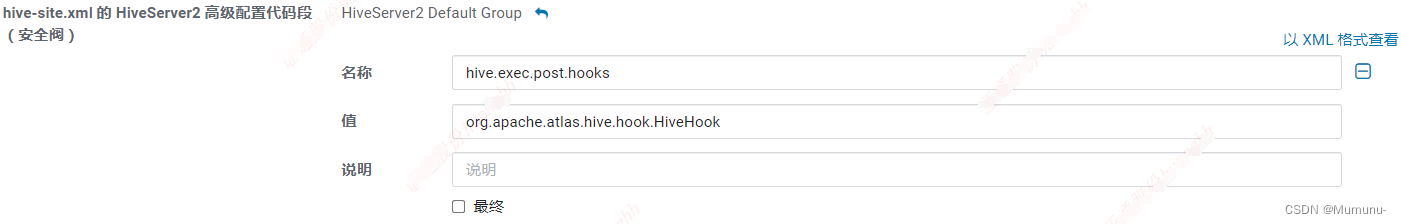

 hive-site.xml的HiveServer2 高级配置代码段 （安全阀）

名称： hive.exec.post.hooks
值： org.apache.atlas.hive.hook.HiveHook

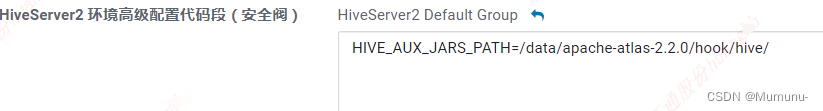

HiveServer2 环境高级配置片段（安全阀）

HIVE_AUX_JARS_PATH=/data/apache-atlas-2.2.0/hook/hive/

 复制一份atlas-application.properties到/etc/hive/conf下 。注意需要修改

改为false
atlas.authentication.method.kerberos=false
增加
atlas.client.readTimeoutMSecs=90000
atlas.client.connectTimeoutMSecs=90000
添加两个性能相关的参数
#Atlas代码在提交事务时尝试获取锁（以确保一致性）的次数。
#这应该与服务器预期支持的并发量有关。例如，在重试次数设置为10的情况下，多达100个线程可以在Atlas系统中同时创建类型。
#如果将其设置为低值（默认值为3），则并发操作可能会失败，并出现PermanentLockingException。
atlas.graph.storage.lock.reries=10

#在逐出缓存项之前等待的毫秒数。这应该是atlas.graph.storage.lock.wait-time atlas.gaph.storage.lock.retrys
#如果将其设置为较低的值（默认值为10000），Atlas应用程序日志中将出现有关耗时过长的事务的警告。

atlas.graph.storage.cache.db-cache-time=120000

最后两个配置的含义是读取连接时间，，默认的太短

https://repository.cloudera.com/repository/libs-staging-local/org/apache/hive/hive-contrib/2.1.1-cdh6.3.4/hive-contrib-2.1.1-cdh6.3.4.jar

下载这个jar包放到/opt/cloudera/parcels/CDH/lib/hive/lib下。导入hive数据时需要支持正则表达式的字段分隔方式

然后就可以启动了

bin/atlas-start.py

bin/atlas-stop.py

启动过程如下图所示

该过程会耗时较久，包含index创建、数据的初始化等操作，可能长达数小时，请耐心等待。
此时可以跟一下atlas的启动日志，直到日志不再刷新，再lsof或netstat查一下21000是否已经监听了，如已存在，则打开浏览器输入ip:21000登录atlas页面

千万不要相信他提示的Apache Atlas Server started!!!和jps显示的Atlas进程 ，因为启动脚本超过一定时间后一定会报成功，但此时21000端口还未被监听，服务是不可用的，真正可用还是以21000被成功监听，可以进到Atlas登录页面为准

然后开始正式使用

首先在/etc/profile中配置一下kafka和hive的信息

export HIVE_HOME=/opt/cloudera/parcels/CDH/lib/hive
export HIVE_CONF_DIR=/etc/hive/conf
export PATH=$HIVE_HOME/bin:$PATH

export KAFKA_HOME=/opt/cloudera/parcels/CDH/lib/kafka
export KAFKA_CONF_DIR=/etc/kafka/conf
export PATH=$KAFKA_HOME/bin:$PATH

导入hive数据

记得kinit
bin/import-hive.sh
也可以单独导入某个库
bin/import-hive.sh -d default
或者单独导入某个表
bin/import-hive.sh -d default  -t test
导入一批库/表
bin/import-hive.sh -f 文件名

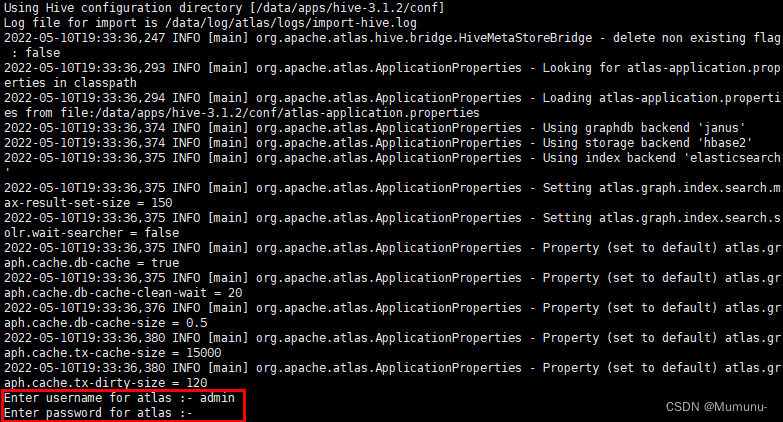

 过程中会提示输入atlas用户名和密码，都输入admin即可
成功后会提示

该过程时间视hive现有数据量大小而定

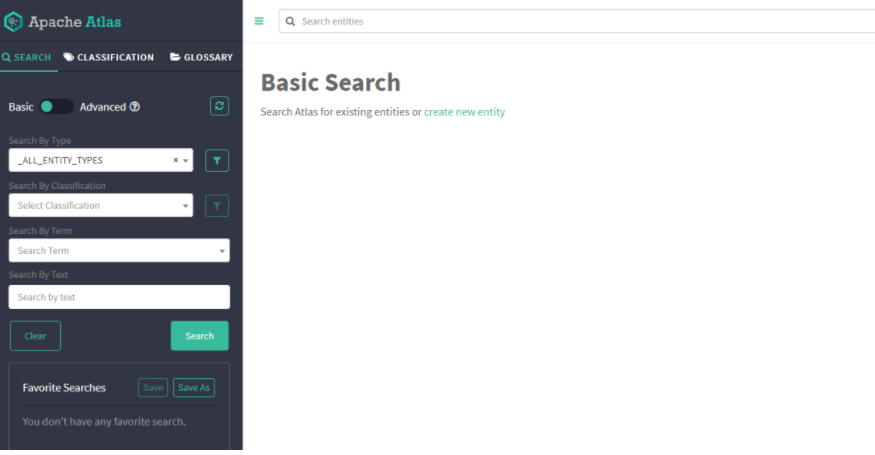

登录后如下图

此时可以点击右上角小图标

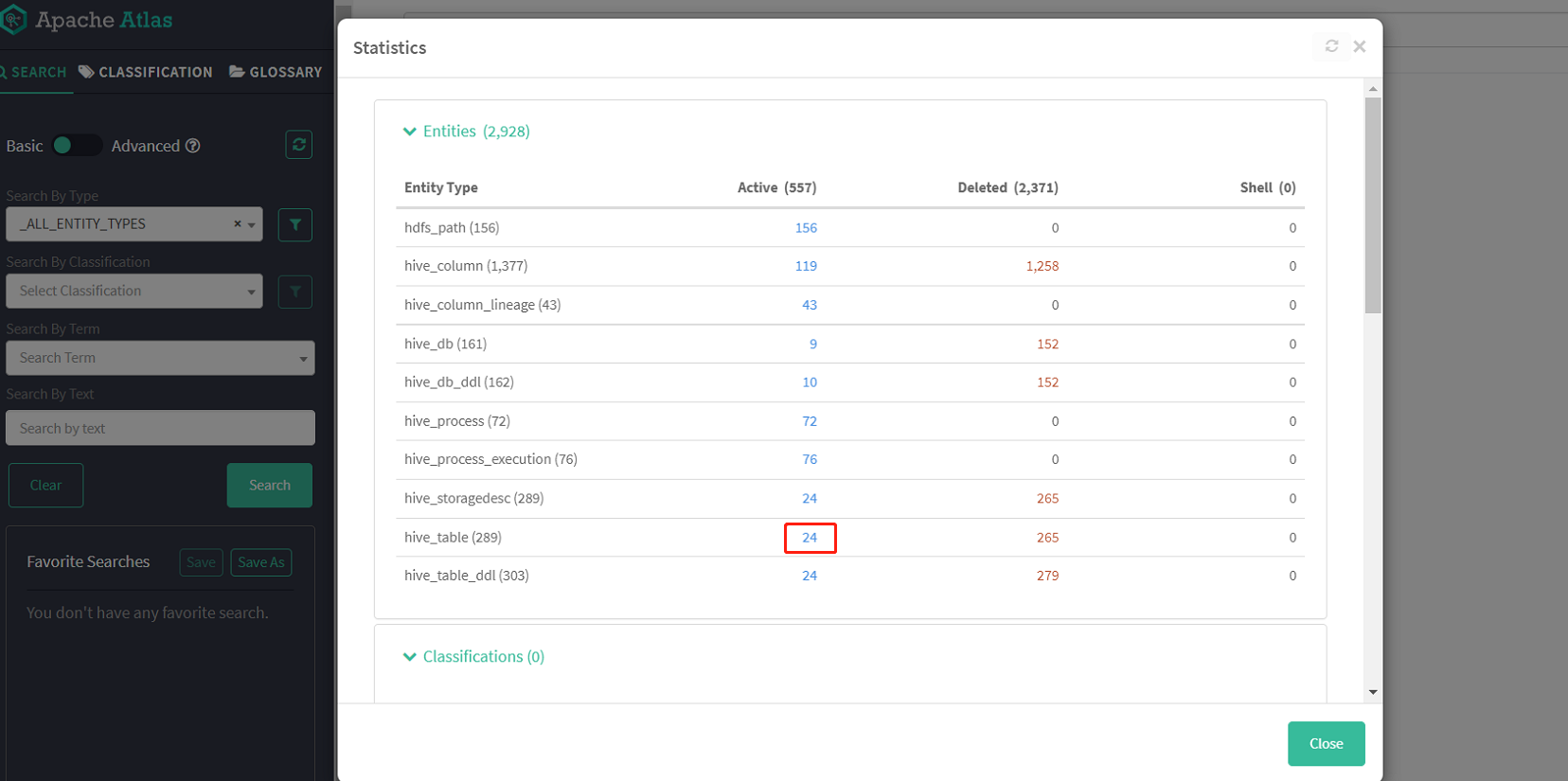

查看总体数据情况


 

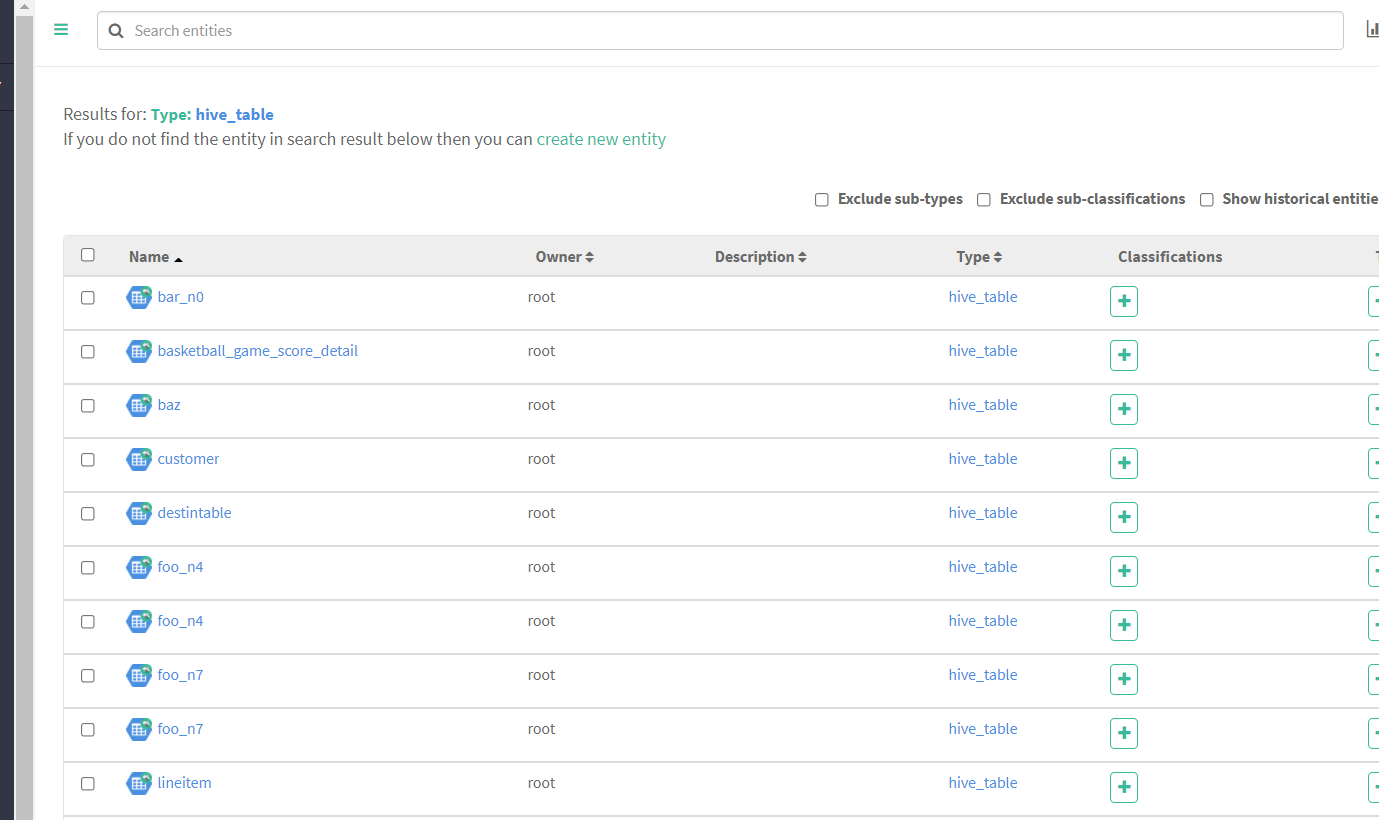

查看所有hive表


 

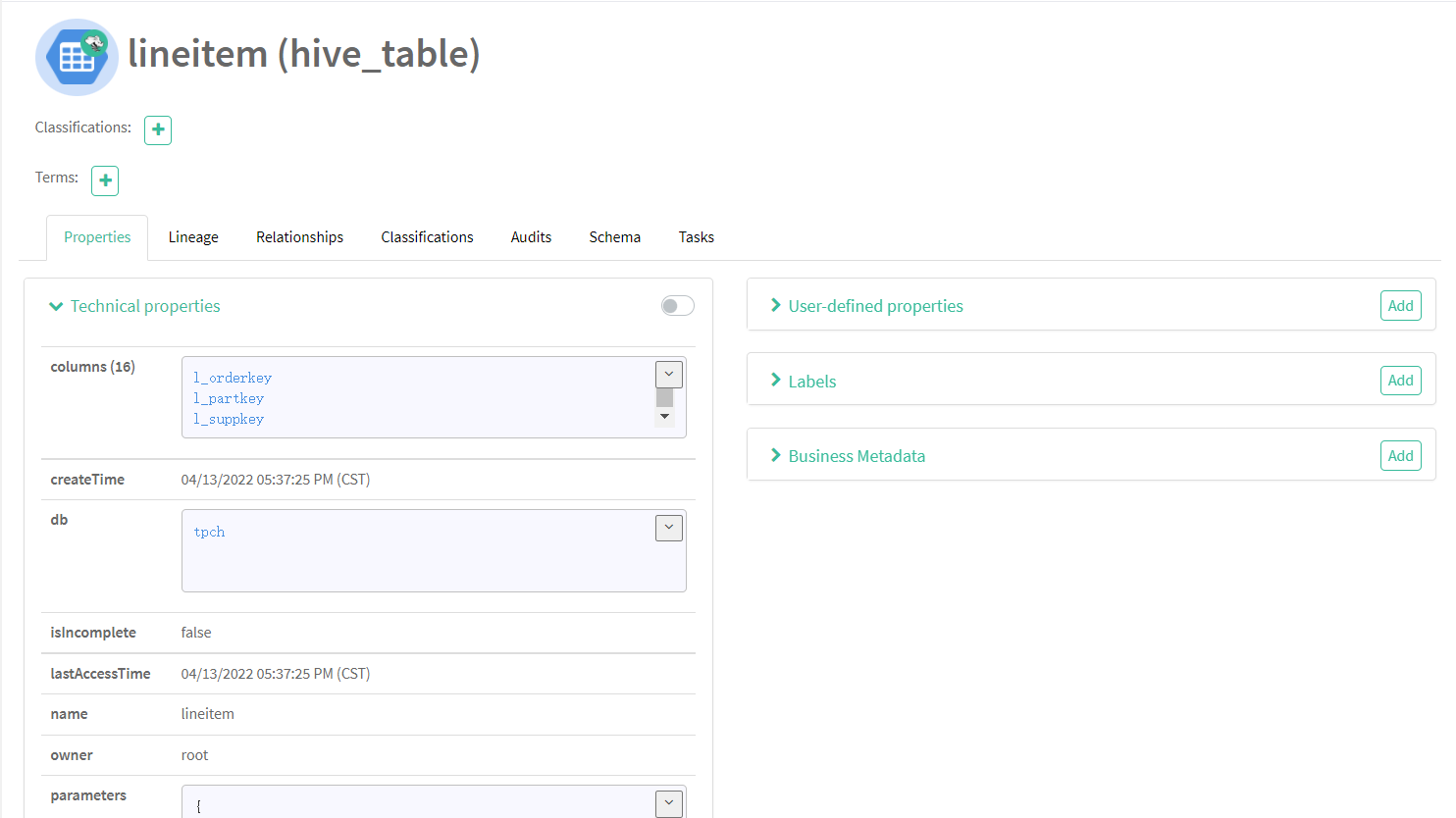

随便点击一个表查看详情

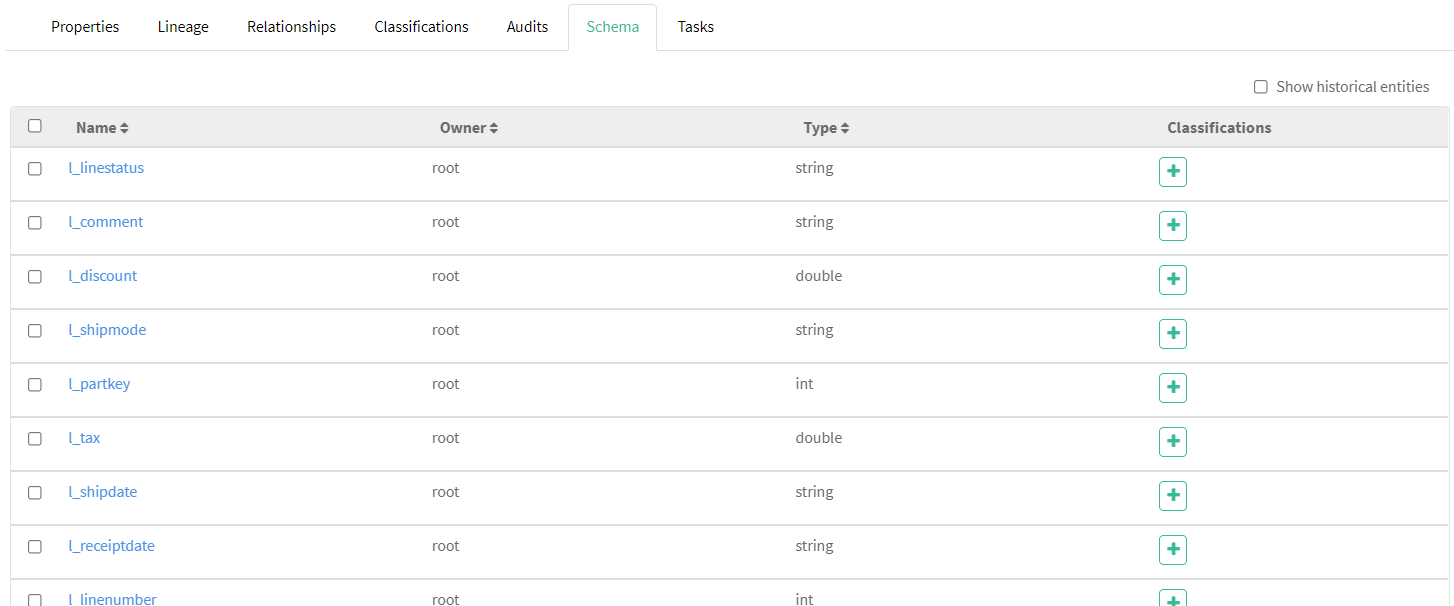

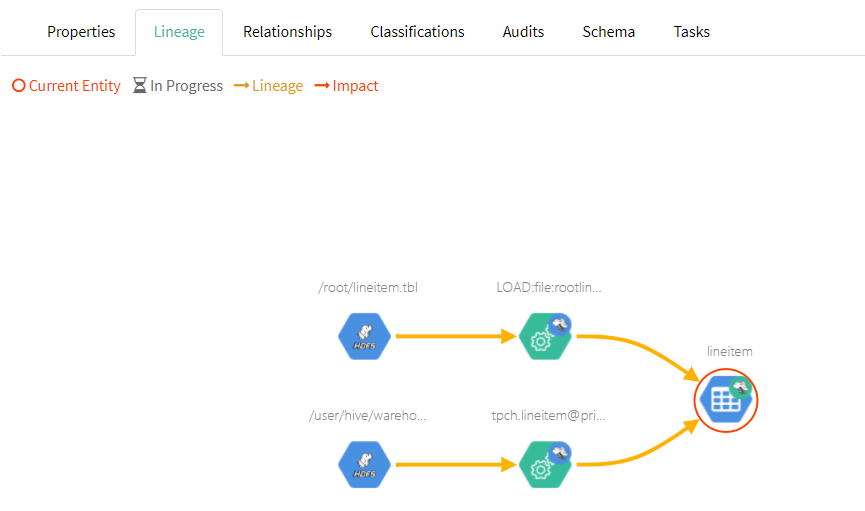

可以清楚地看到这个表的各项信息、字段及血缘图等
 

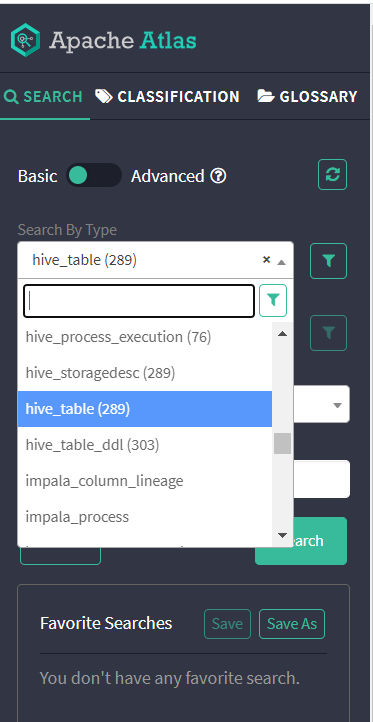

我们也可以通过左侧搜索栏检索过滤想要查找的项

有几个点需要注意：

1、Atlas 是根据 Hive 所执行的 SQL 语句获取表与表之间以及字段与字段之间的依赖关系的，例如执行 insert into table_a select * from table_b 语句，Atlas 就能获取 table_a 与 table_b 之间的依赖关系。如果并未执行任何 SQL语句，故还不能出现血缘依赖关系。所以初次导入是没有血缘数据的

2、 两个表之间必须要有真实的数据落地，才能解析出来表的血缘关系。例如：查询一条在a表中不存在的数据，然后插入b表。这样就无法解析ab表的血缘关系

3、如果sql中用到的表，使用 with as...当做临时表。这样Atlas也无法解析血缘关系。
4、在atlas中实体是独立的，因此当有业务变更涉及增删字段时，删除某字段实体会在相应表实体columns属性中移除，但表实体的Audits栏中并不会新增一条更新操作记录(可能是使用的版本存在bug)；
当新增字段实体时，仅且需要创建该字段实体即可，无需重新建表，我们可以观察到新增该字段实体的同时，表实体的columns的属性中新增了该字段，Audits栏中新增了一条更新操作记录。
当创建atlas中已存在的实体时，如果该实体所有属性均未发生改变，那么在atlas中不会看到任何变化，实体的Audits栏中也不会新增一条创建或更新的操作记录；若有部分属性发生变化，则会对该实体进行更新，可以观察到发生变化的属性，而且Audits栏中新增了一条更新操作记录。
