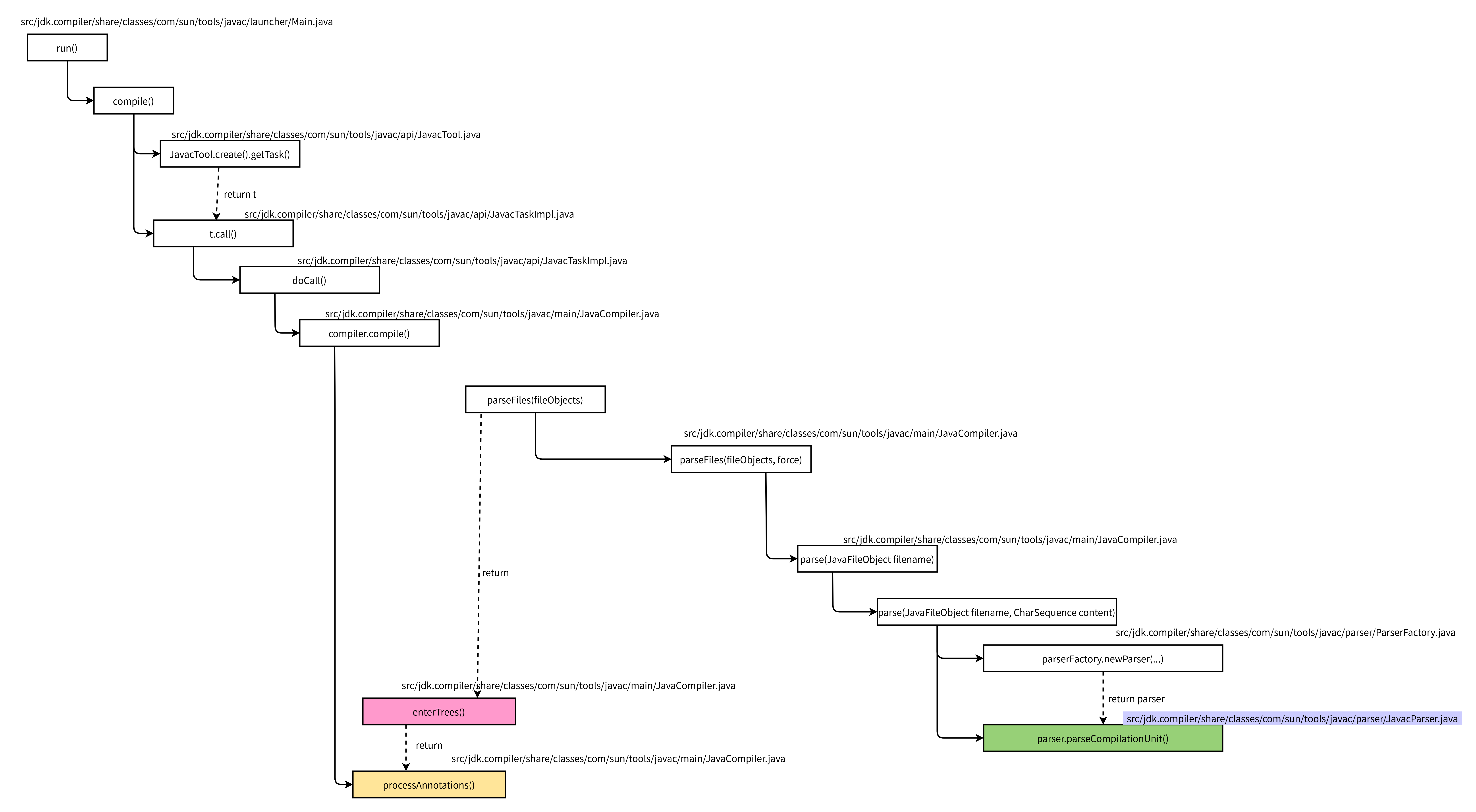

openjdk编译java源码入口函数调用栈

1. 启动入口launcher.main

// src/jdk.compiler/share/classes/com/sun/tools/javac/launcher/Main.java
   public static void main(String... args) throws Throwable {
        try {
            new Main(System.err).run(VM.getRuntimeArguments(), args);
        }
        ...
    }

public void run(String[] runtimeArgs, String[] args) throws Fault, InvocationTargetException {
        Path file = getFile(args);

        Context context = new Context(file.toAbsolutePath());
        String mainClassName = compile(file, getJavacOpts(runtimeArgs), context);

        String[] appArgs = Arrays.copyOfRange(args, 1, args.length);
        execute(mainClassName, appArgs, context);
    }

2. 创建JavacTaskImpl

// src/jdk.compiler/share/classes/com/sun/tools/javac/launcher/Main.java
private String compile(Path file, List<String> javacOpts, Context context) throws Fault {
  ...
        JavacTool javaCompiler = JavacTool.create();
      ...
        JavacTask t = javaCompiler.getTask(out, fm, null, javacOpts, null, List.of(fo));
   ...
        Boolean ok = t.call();
    	...
    }

// src/jdk.compiler/share/classes/com/sun/tools/javac/api/JavacTool.java
   @Override @DefinedBy(Api.COMPILER)
    public JavacTask getTask(Writer out,
                             JavaFileManager fileManager,
                             DiagnosticListener<? super JavaFileObject> diagnosticListener,
                             Iterable<String> options,
                             Iterable<String> classes,
                             Iterable<? extends JavaFileObject> compilationUnits) {
        Context context = new Context();
        return getTask(out, fileManager, diagnosticListener,
                options, classes, compilationUnits,
                context);
    }

    /* Internal version of getTask, allowing context to be provided. */
    public JavacTask getTask(Writer out,
                             JavaFileManager fileManager,
                             DiagnosticListener<? super JavaFileObject> diagnosticListener,
                             Iterable<String> options,
                             Iterable<String> classes,
                             Iterable<? extends JavaFileObject> compilationUnits,
                             Context context)
    {
    	...
            return new JavacTaskImpl(context);
      ...
    }

3. 执行编译任务

//  src/jdk.compiler/share/classes/com/sun/tools/javac/api/JavacTaskImpl.java
 @Override @DefinedBy(Api.COMPILER)
    public Boolean call() {
        return doCall().isOK();
    }

    /* Internal version of call exposing Main.Result. */
    public Main.Result doCall() {
      ...
                compiler.compile(args.getFileObjects(), args.getClassNames(), processors, addModules);
              ...
    }

4. 编译

// src/jdk.compiler/share/classes/com/sun/tools/javac/main/JavaCompiler.java
 public void compile(Collection<JavaFileObject> sourceFileObjects,
                        Collection<String> classnames,
                        Iterable<? extends Processor> processors,
                        Collection<String> addModules)
    {
        ...
            // These method calls must be chained to avoid memory leaks
            processAnnotations(
                enterTrees(
                        stopIfError(CompileState.ENTER,
                                initModules(stopIfError(CompileState.ENTER, parseFiles(sourceFileObjects))))
                ),
                classnames
            );
	...
    }

5. 解析源文件

// src/jdk.compiler/share/classes/com/sun/tools/javac/main/JavaCompiler.java
 public List<JCCompilationUnit> parseFiles(Iterable<JavaFileObject> fileObjects) {
       return parseFiles(fileObjects, false);
   }

   public List<JCCompilationUnit> parseFiles(Iterable<JavaFileObject> fileObjects, boolean force) {
     	...

        //parse all files
        ListBuffer<JCCompilationUnit> trees = new ListBuffer<>();
        Set<JavaFileObject> filesSoFar = new HashSet<>();
        for (JavaFileObject fileObject : fileObjects) {
            if (!filesSoFar.contains(fileObject)) {
                filesSoFar.add(fileObject);
                trees.append(parse(fileObject));
            }
        }
        return trees.toList();
    }

6. 解析文件内容

// src/jdk.compiler/share/classes/com/sun/tools/javac/main/JavaCompiler.java

    /** Parse contents of file.
     *  @param filename     The name of the file to be parsed.
     */
    public JCTree.JCCompilationUnit parse(JavaFileObject filename) {
        	...
            JCTree.JCCompilationUnit t = parse(filename, readSource(filename));
     ...
            return t;
      ...
    }

/** Try to open input stream with given name.
     *  Report an error if this fails.
     *  @param filename   The file name of the input stream to be opened.
     */
    public CharSequence readSource(JavaFileObject filename) {
     ...
            inputFiles.add(filename);
            return filename.getCharContent(false);
        ...
    }

    /** Parse contents of input stream.
     *  @param filename     The name of the file from which input stream comes.
     *  @param content      The characters to be parsed.
     */
    protected JCCompilationUnit parse(JavaFileObject filename, CharSequence content) {
      ...
            Parser parser = parserFactory.newParser(content, keepComments(), genEndPos,
            ...
            tree = parser.parseCompilationUnit();
	  ...
        return tree;
    }

7. 创建解析器

// src/jdk.compiler/share/classes/com/sun/tools/javac/parser/ParserFactory.java
public JavacParser newParser(CharSequence input, boolean keepDocComments, boolean keepEndPos, boolean keepLineMap) {
        return newParser(input, keepDocComments, keepEndPos, keepLineMap, false);
    }

    public JavacParser newParser(CharSequence input, boolean keepDocComments, boolean keepEndPos, boolean keepLineMap, boolean parseModuleInfo) {
        Lexer lexer = scannerFactory.newScanner(input, keepDocComments);
        return new JavacParser(this, lexer, keepDocComments, keepLineMap, keepEndPos, parseModuleInfo);
    }

8. 开始词法分析

// src/jdk.compiler/share/classes/com/sun/tools/javac/parser/JavacParser.java

    public JCTree.JCCompilationUnit parseCompilationUnit() {
        Token firstToken = token;
        JCModifiers mods = null;
        boolean consumedToplevelDoc = false;
        boolean seenImport = false;
        boolean seenPackage = false;
        ListBuffer<JCTree> defs = new ListBuffer<>();
        if (token.kind == MONKEYS_AT)
            mods = modifiersOpt();

        if (token.kind == PACKAGE) {
            int packagePos = token.pos;
            List<JCAnnotation> annotations = List.nil();
            seenPackage = true;
            if (mods != null) {
                checkNoMods(mods.flags & ~Flags.DEPRECATED);
                annotations = mods.annotations;
                mods = null;
            }
            nextToken();
            JCExpression pid = qualident(false);
            accept(SEMI);
            JCPackageDecl pd = toP(F.at(packagePos).PackageDecl(annotations, pid));
            attach(pd, firstToken.comment(CommentStyle.JAVADOC));
            consumedToplevelDoc = true;
            defs.append(pd);
        }

        boolean checkForImports = true;
        boolean firstTypeDecl = true;
        while (token.kind != EOF) {
            if (token.pos <= endPosTable.errorEndPos) {
                // error recovery
                skip(checkForImports, false, false, false);
                if (token.kind == EOF)
                    break;
            }
            if (checkForImports && mods == null && token.kind == IMPORT) {
                seenImport = true;
                defs.append(importDeclaration());
            } else {
                Comment docComment = token.comment(CommentStyle.JAVADOC);
                if (firstTypeDecl && !seenImport && !seenPackage) {
                    docComment = firstToken.comment(CommentStyle.JAVADOC);
                    consumedToplevelDoc = true;
                }
                if (mods != null || token.kind != SEMI)
                    mods = modifiersOpt(mods);
                if (firstTypeDecl && token.kind == IDENTIFIER) {
                    ModuleKind kind = ModuleKind.STRONG;
                    if (token.name() == names.open) {
                        kind = ModuleKind.OPEN;
                        nextToken();
                    }
                    if (token.kind == IDENTIFIER && token.name() == names.module) {
                        if (mods != null) {
                            checkNoMods(mods.flags & ~Flags.DEPRECATED);
                        }
                        defs.append(moduleDecl(mods, kind, docComment));
                        consumedToplevelDoc = true;
                        break;
                    } else if (kind != ModuleKind.STRONG) {
                        reportSyntaxError(token.pos, Errors.ExpectedModule);
                    }
                }
                JCTree def = typeDeclaration(mods, docComment);
                if (def instanceof JCExpressionStatement statement)
                    def = statement.expr;
                defs.append(def);
                if (def instanceof JCClassDecl)
                    checkForImports = false;
                mods = null;
                firstTypeDecl = false;
            }
        }
        JCTree.JCCompilationUnit toplevel = F.at(firstToken.pos).TopLevel(defs.toList());
        if (!consumedToplevelDoc)
            attach(toplevel, firstToken.comment(CommentStyle.JAVADOC));
        if (defs.isEmpty())
            storeEnd(toplevel, S.prevToken().endPos);
        if (keepDocComments)
            toplevel.docComments = docComments;
        if (keepLineMap)
            toplevel.lineMap = S.getLineMap();
        this.endPosTable.setParser(null); // remove reference to parser
        toplevel.endPositions = this.endPosTable;
        return toplevel;
    }
