Android Multimedia框架总结（十九）Camera2框架C/S模型之CameraService启动及与Client连接过程

转载请把头部出处链接和尾部二维码一起转载，本文出自逆流的鱼yuiop：http://blog.csdn.net/hejjunlin/article/details/53150322

Agenda:

• 一张图看Camera2框架类图
• CameraService启动
• ICameraService.cpp
• Camera2Client.h与Camera2Client.cpp
• ICamera.h与 ICamera.cpp

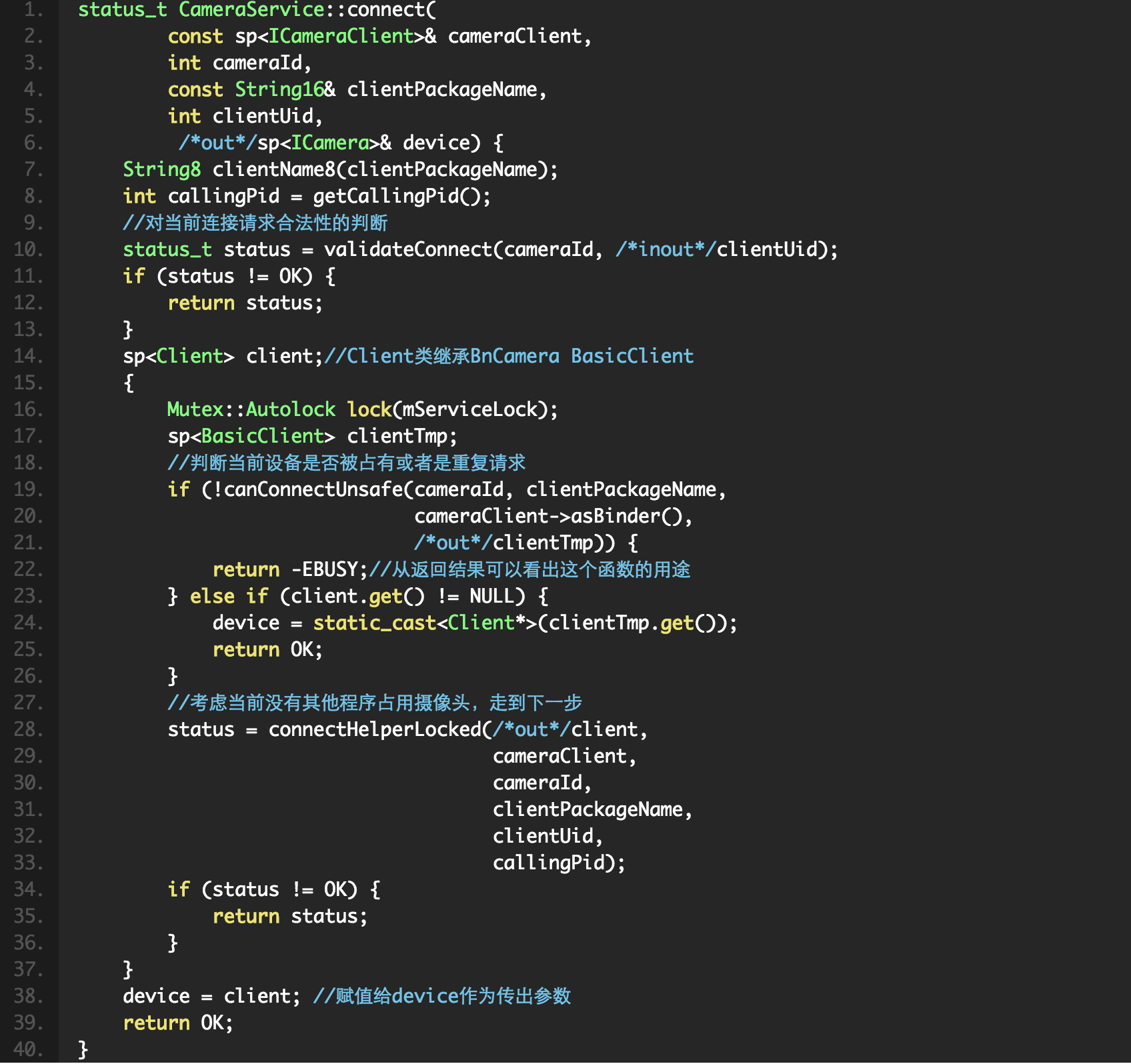

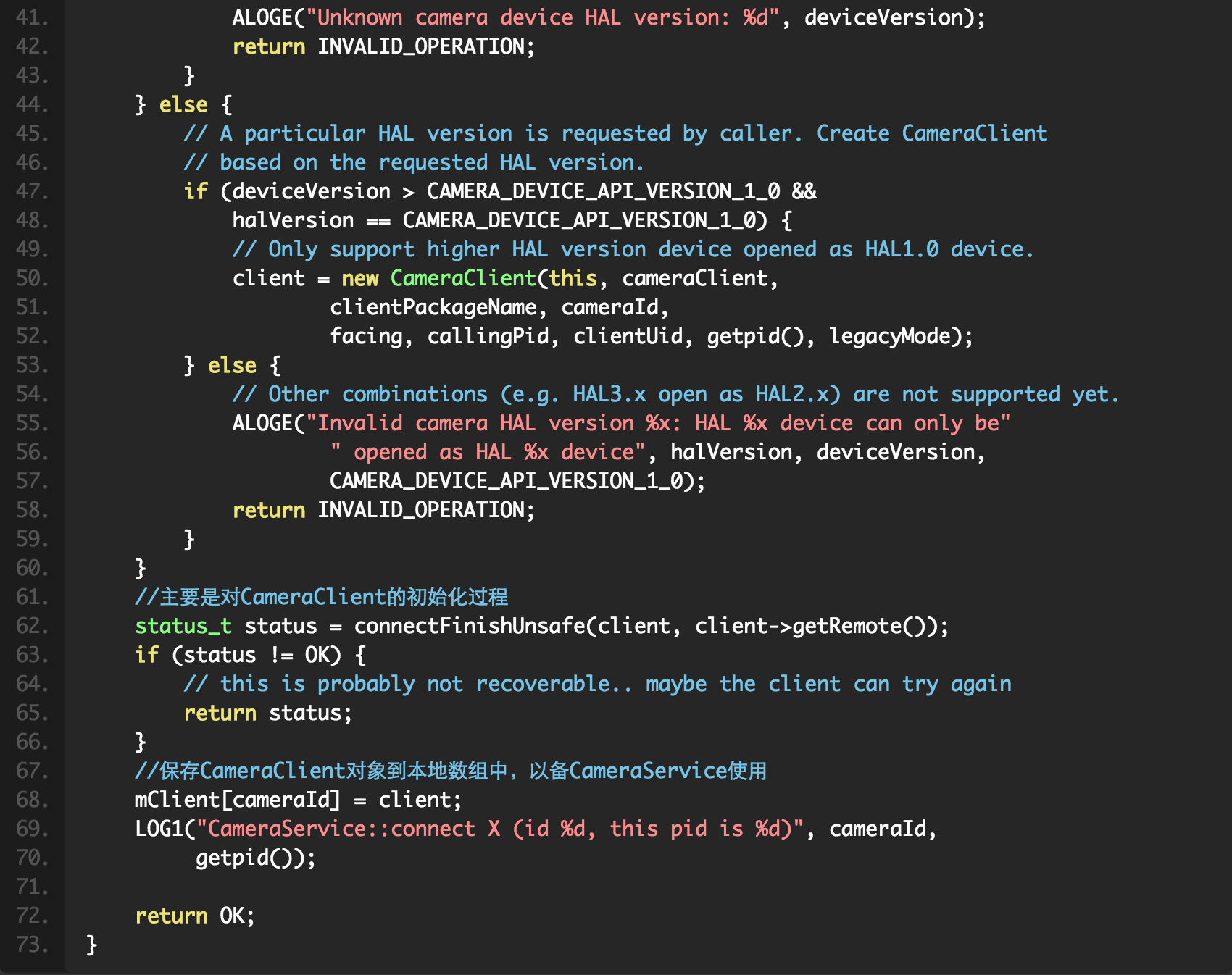

• Camera2Client与CameraService连接

一张图看Camera2框架类图：

CameraService启动

CameraService是在MediaServer启动过程中进行的
main_mediaserver.cpp (frameworks\av\media\mediaserver)

在 main函数中会执行到CameraService::instantiate()， CameraService 本身并没有实现这个方法
CameraService.h (frameworks\av\services\camera\libcameraservice)

BinderService.h (frameworks\native\include\binder)
在其父类中instantiate()函数，BinderService是一个模板类

CameraService.cpp (frameworks\av\services\camera\libcameraservice)

到这里，CameraService就启动了。

ICameraService.cpp

在\frameworks\av\services\camera
libcameraservice.so中相关文件
Camera2Client.h

namespace camera2 {

class StreamingProcessor;
class JpegProcessor;
class ZslProcessorInterface;
class CaptureSequencer;
class CallbackProcessor;

}

class IMemory;
/**
 * Interface between android.hardware.Camera API and Camera HAL device for versions
 * CAMERA_DEVICE_API_VERSION_2_0 and 3_0.
 */
class Camera2Client :
        public Camera2ClientBase<CameraService::Client>
{
public:
    /**
     * ICamera interface (see ICamera for details)
     */

    virtual void            disconnect();
    virtual status_t        connect(const sp<ICameraClient>& client);
    virtual status_t        lock();
    virtual status_t        unlock();
    virtual status_t        setPreviewTarget(
        const sp<IGraphicBufferProducer>& bufferProducer);
    virtual void            setPreviewCallbackFlag(int flag);
    virtual status_t        setPreviewCallbackTarget(
        const sp<IGraphicBufferProducer>& callbackProducer);

    virtual status_t        startPreview();
    virtual void            stopPreview();
    virtual bool            previewEnabled();
    virtual status_t        storeMetaDataInBuffers(bool enabled);
    virtual status_t        startRecording();
    virtual void            stopRecording();
    virtual bool            recordingEnabled();
    virtual void            releaseRecordingFrame(const sp<IMemory>& mem);
    virtual status_t        autoFocus();
    virtual status_t        cancelAutoFocus();
    virtual status_t        takePicture(int msgType);
    virtual status_t        setParameters(const String8& params);
    virtual String8         getParameters() const;
    virtual status_t        sendCommand(int32_t cmd, int32_t arg1, int32_t arg2);
    virtual void            notifyError(ICameraDeviceCallbacks::CameraErrorCode errorCode,
                                        const CaptureResultExtras& resultExtras);

    /**
     * Interface used by CameraService
     */

    Camera2Client(const sp<CameraService>& cameraService,
            const sp<ICameraClient>& cameraClient,
            const String16& clientPackageName,
            int cameraId,
            int cameraFacing,
            int clientPid,
            uid_t clientUid,
            int servicePid,
            bool legacyMode);

    virtual ~Camera2Client();

    status_t initialize(CameraModule *module);

    virtual status_t dump(int fd, const Vector<String16>& args);

    /**
     * Interface used by CameraDeviceBase
     */

    virtual void notifyAutoFocus(uint8_t newState, int triggerId);
    virtual void notifyAutoExposure(uint8_t newState, int triggerId);
    virtual void notifyShutter(const CaptureResultExtras& resultExtras,
                               nsecs_t timestamp);

    /**
     * Interface used by independent components of Camera2Client.
     */

    camera2::SharedParameters& getParameters();

    int getPreviewStreamId() const;
    int getCaptureStreamId() const;
    int getCallbackStreamId() const;
    int getRecordingStreamId() const;
    int getZslStreamId() const;

    status_t registerFrameListener(int32_t minId, int32_t maxId,
            wp<camera2::FrameProcessor::FilteredListener> listener,
            bool sendPartials = true);
    status_t removeFrameListener(int32_t minId, int32_t maxId,
            wp<camera2::FrameProcessor::FilteredListener> listener);

    status_t stopStream();

    // For the slowJpegMode to create jpeg stream when precapture sequence is done
    status_t createJpegStreamL(camera2::Parameters &params);

    static size_t calculateBufferSize(int width, int height,
            int format, int stride);

    static const int32_t kPreviewRequestIdStart = 10000000;
    static const int32_t kPreviewRequestIdEnd   = 20000000;

    static const int32_t kRecordingRequestIdStart  = 20000000;
    static const int32_t kRecordingRequestIdEnd    = 30000000;

    static const int32_t kCaptureRequestIdStart = 30000000;
    static const int32_t kCaptureRequestIdEnd   = 40000000;

    // Constant strings for ATRACE logging
    static const char* kAutofocusLabel;
    static const char* kTakepictureLabel;

    // Used with stream IDs
    static const int NO_STREAM = -1;

private:
    /** ICamera interface-related private members */
    typedef camera2::Parameters Parameters;

    status_t setPreviewWindowL(const sp<IBinder>& binder,
            sp<Surface> window);
    status_t startPreviewL(Parameters &params, bool restart);
    void     stopPreviewL();
    status_t startRecordingL(Parameters &params, bool restart);
    bool     recordingEnabledL();

    // Individual commands for sendCommand()
    status_t commandStartSmoothZoomL();
    status_t commandStopSmoothZoomL();
    status_t commandSetDisplayOrientationL(int degrees);
    status_t commandEnableShutterSoundL(bool enable);
    status_t commandPlayRecordingSoundL();
    status_t commandStartFaceDetectionL(int type);
    status_t commandStopFaceDetectionL(Parameters &params);
    status_t commandEnableFocusMoveMsgL(bool enable);
    status_t commandPingL();
    status_t commandSetVideoBufferCountL(size_t count);
    status_t commandSetVideoFormatL(int format, android_dataspace dataSpace);

    // Current camera device configuration
    camera2::SharedParameters mParameters;

    /** Camera device-related private members */

    void     setPreviewCallbackFlagL(Parameters &params, int flag);
    status_t updateRequests(Parameters &params);

    template <typename ProcessorT>
    status_t updateProcessorStream(sp<ProcessorT> processor, Parameters params);
    template <typename ProcessorT,
              status_t (ProcessorT::*updateStreamF)(const Parameters &)>
    status_t updateProcessorStream(sp<ProcessorT> processor, Parameters params);

    sp<camera2::FrameProcessor> mFrameProcessor;

    /* Preview/Recording related members */

    sp<IBinder> mPreviewSurface;
    sp<camera2::StreamingProcessor> mStreamingProcessor;

    /** Preview callback related members */

    sp<camera2::CallbackProcessor> mCallbackProcessor;

    /* Still image capture related members */

    sp<camera2::CaptureSequencer> mCaptureSequencer;
    sp<camera2::JpegProcessor> mJpegProcessor;
    sp<camera2::ZslProcessorInterface> mZslProcessor;
    sp<Thread> mZslProcessorThread;

    /** Notification-related members */

    bool mAfInMotion;

    /** Utility members */
    bool mLegacyMode;

    // Wait until the camera device has received the latest control settings
    status_t syncWithDevice();

    // Video snapshot jpeg size overriding helper function
    status_t overrideVideoSnapshotSize(Parameters &params);
};

}; // namespace android

\frameworks\av\services\camera\libcameraservice\api1
Camera2Client.cpp

//create by 逆流的鱼yuiop on 2016/11/13
//blog地址：http://blog.csdn.net/hejjunlin
status_t Camera2Client::startPreview() {
    ATRACE_CALL();
    ALOGV("%s: E", __FUNCTION__);
    Mutex::Autolock icl(mBinderSerializationLock);
    status_t res;
    if ( (res = checkPid(__FUNCTION__) ) != OK) return res;
    SharedParameters::Lock l(mParameters);
    return startPreviewL(l.mParameters, false);
}

status_t Camera2Client::startPreviewL(Parameters &params, bool restart) {
    ATRACE_CALL();
    status_t res;

    ALOGV("%s: state == %d, restart = %d", __FUNCTION__, params.state, restart);

    if ( (params.state == Parameters::PREVIEW ||
                    params.state == Parameters::RECORD ||
                    params.state == Parameters::VIDEO_SNAPSHOT)
            && !restart) {
        // Succeed attempt to re-enter a streaming state
        ALOGI("%s: Camera %d: Preview already active, ignoring restart",
                __FUNCTION__, mCameraId);
        return OK;
    }
    if (params.state > Parameters::PREVIEW && !restart) {
        ALOGE("%s: Can't start preview in state %s",
                __FUNCTION__,
                Parameters::getStateName(params.state));
        return INVALID_OPERATION;
    }

    if (!mStreamingProcessor->haveValidPreviewWindow()) {
        params.state = Parameters::WAITING_FOR_PREVIEW_WINDOW;
        return OK;
    }
    params.state = Parameters::STOPPED;
    int lastPreviewStreamId = mStreamingProcessor->getPreviewStreamId();

    res = mStreamingProcessor->updatePreviewStream(params);
    if (res != OK) {
        ALOGE("%s: Camera %d: Unable to update preview stream: %s (%d)",
                __FUNCTION__, mCameraId, strerror(-res), res);
        return res;
    }

    bool previewStreamChanged = mStreamingProcessor->getPreviewStreamId() != lastPreviewStreamId;

    // We could wait to create the JPEG output stream until first actual use
    // (first takePicture call). However, this would substantially increase the
    // first capture latency on HAL3 devices, and potentially on some HAL2
    // devices. So create it unconditionally at preview start. As a drawback,
    // this increases gralloc memory consumption for applications that don't
    // ever take a picture. Do not enter this mode when jpeg stream will slow
    // down preview.
    // TODO: Find a better compromise, though this likely would involve HAL
    // changes.
    int lastJpegStreamId = mJpegProcessor->getStreamId();
    // If jpeg stream will slow down preview, make sure we remove it before starting preview
    if (params.slowJpegMode) {
        mJpegProcessor->deleteStream();
    } else {
        res = updateProcessorStream(mJpegProcessor, params);
        if (res != OK) {
            ALOGE("%s: Camera %d: Can't pre-configure still image "
                    "stream: %s (%d)",
                    __FUNCTION__, mCameraId, strerror(-res), res);
            return res;
        }
    }
    bool jpegStreamChanged = mJpegProcessor->getStreamId() != lastJpegStreamId;

    Vector<int32_t> outputStreams;
    bool callbacksEnabled = (params.previewCallbackFlags &
            CAMERA_FRAME_CALLBACK_FLAG_ENABLE_MASK) ||
            params.previewCallbackSurface;

    if (callbacksEnabled) {
        // Can't have recording stream hanging around when enabling callbacks,
        // since it exceeds the max stream count on some devices.
        if (mStreamingProcessor->getRecordingStreamId() != NO_STREAM) {
            ALOGV("%s: Camera %d: Clearing out recording stream before "
                    "creating callback stream", __FUNCTION__, mCameraId);
            res = mStreamingProcessor->stopStream();
            if (res != OK) {
                ALOGE("%s: Camera %d: Can't stop streaming to delete "
                        "recording stream", __FUNCTION__, mCameraId);
                return res;
            }
            res = mStreamingProcessor->deleteRecordingStream();
            if (res != OK) {
                ALOGE("%s: Camera %d: Unable to delete recording stream before "
                        "enabling callbacks: %s (%d)", __FUNCTION__, mCameraId,
                        strerror(-res), res);
                return res;
            }
        }

        res = mCallbackProcessor->updateStream(params);
        if (res != OK) {
            ALOGE("%s: Camera %d: Unable to update callback stream: %s (%d)",
                    __FUNCTION__, mCameraId, strerror(-res), res);
            return res;
        }
        outputStreams.push(getCallbackStreamId());
    } else if (previewStreamChanged && mCallbackProcessor->getStreamId() != NO_STREAM) {
        /**
         * Delete the unused callback stream when preview stream is changed and
         * preview is not enabled. Don't need stop preview stream as preview is in
         * STOPPED state now.
         */
        ALOGV("%s: Camera %d: Delete unused preview callback stream.",  __FUNCTION__, mCameraId);
        res = mCallbackProcessor->deleteStream();
        if (res != OK) {
            ALOGE("%s: Camera %d: Unable to delete callback stream %s (%d)",
                    __FUNCTION__, mCameraId, strerror(-res), res);
            return res;
        }
    }

    if (params.zslMode && !params.recordingHint &&
            getRecordingStreamId() == NO_STREAM) {
        res = updateProcessorStream(mZslProcessor, params);
        if (res != OK) {
            ALOGE("%s: Camera %d: Unable to update ZSL stream: %s (%d)",
                    __FUNCTION__, mCameraId, strerror(-res), res);
            return res;
        }

        if (jpegStreamChanged) {
            ALOGV("%s: Camera %d: Clear ZSL buffer queue when Jpeg size is changed",
                    __FUNCTION__, mCameraId);
            mZslProcessor->clearZslQueue();
        }
        outputStreams.push(getZslStreamId());
    } else {
        mZslProcessor->deleteStream();
    }

    outputStreams.push(getPreviewStreamId());

    if (!params.recordingHint) {
        if (!restart) {
            res = mStreamingProcessor->updatePreviewRequest(params);
            if (res != OK) {
                ALOGE("%s: Camera %d: Can't set up preview request: "
                        "%s (%d)", __FUNCTION__, mCameraId,
                        strerror(-res), res);
                return res;
            }
        }
        res = mStreamingProcessor->startStream(StreamingProcessor::PREVIEW,
                outputStreams);
    } else {
        if (!restart) {
            res = mStreamingProcessor->updateRecordingRequest(params);
            if (res != OK) {
                ALOGE("%s: Camera %d: Can't set up preview request with "
                        "record hint: %s (%d)", __FUNCTION__, mCameraId,
                        strerror(-res), res);
                return res;
            }
        }
        res = mStreamingProcessor->startStream(StreamingProcessor::RECORD,
                outputStreams);
    }
    if (res != OK) {
        ALOGE("%s: Camera %d: Unable to start streaming preview: %s (%d)",
                __FUNCTION__, mCameraId, strerror(-res), res);
        return res;
    }

    params.state = Parameters::PREVIEW;
    return OK;
}

void Camera2Client::stopPreview() {
    ATRACE_CALL();
    ALOGV("%s: E", __FUNCTION__);
    Mutex::Autolock icl(mBinderSerializationLock);
    status_t res;
    if ( (res = checkPid(__FUNCTION__) ) != OK) return;
    stopPreviewL();
}

ICamera.h

//create by 逆流的鱼yuiop on 2016/11/13
//blog地址：http://blog.csdn.net/hejjunlin
namespace android {

class ICameraClient;
class IGraphicBufferProducer;
class Surface;

class ICamera: public IInterface
{
    /**
     * Keep up-to-date with ICamera.aidl in frameworks/base
     */
public:
    DECLARE_META_INTERFACE(Camera);

    virtual void            disconnect() = 0;

    // connect new client with existing camera remote
    virtual status_t        connect(const sp<ICameraClient>& client) = 0;

    // prevent other processes from using this ICamera interface
    virtual status_t        lock() = 0;

    // allow other processes to use this ICamera interface
    virtual status_t        unlock() = 0;

    // pass the buffered IGraphicBufferProducer to the camera service
    virtual status_t        setPreviewTarget(
            const sp<IGraphicBufferProducer>& bufferProducer) = 0;

    // set the preview callback flag to affect how the received frames from
    // preview are handled. Enabling preview callback flags disables any active
    // preview callback surface set by setPreviewCallbackTarget().
    virtual void            setPreviewCallbackFlag(int flag) = 0;
    // set a buffer interface to use for client-received preview frames instead
    // of preview callback buffers. Passing a valid interface here disables any
    // active preview callbacks set by setPreviewCallbackFlag(). Passing NULL
    // disables the use of the callback target.
    virtual status_t        setPreviewCallbackTarget(
            const sp<IGraphicBufferProducer>& callbackProducer) = 0;

    // start preview mode, must call setPreviewTarget first
    virtual status_t        startPreview() = 0;

    // stop preview mode
    virtual void            stopPreview() = 0;

    // get preview state
    virtual bool            previewEnabled() = 0;

    // start recording mode
    virtual status_t        startRecording() = 0;

    // stop recording mode
    virtual void            stopRecording() = 0;

    // get recording state
    virtual bool            recordingEnabled() = 0;

    // release a recording frame
    virtual void            releaseRecordingFrame(const sp<IMemory>& mem) = 0;

    // auto focus
    virtual status_t        autoFocus() = 0;

    // cancel auto focus
    virtual status_t        cancelAutoFocus() = 0;

    /*
     * take a picture.
     * @param msgType the message type an application selectively turn on/off
     * on a photo-by-photo basis. The supported message types are:
     * CAMERA_MSG_SHUTTER, CAMERA_MSG_RAW_IMAGE, CAMERA_MSG_COMPRESSED_IMAGE,
     * and CAMERA_MSG_POSTVIEW_FRAME. Any other message types will be ignored.
     */
    virtual status_t        takePicture(int msgType) = 0;

    // set preview/capture parameters - key/value pairs
    virtual status_t        setParameters(const String8& params) = 0;

    // get preview/capture parameters - key/value pairs
    virtual String8         getParameters() const = 0;

    // send command to camera driver
    virtual status_t        sendCommand(int32_t cmd, int32_t arg1, int32_t arg2) = 0;

    // tell the camera hal to store meta data or real YUV data in video buffers.
    virtual status_t        storeMetaDataInBuffers(bool enabled) = 0;
};

// ----------------------------------------------------------------------------

class BnCamera: public BnInterface<ICamera>
{
public:
    virtual status_t    onTransact( uint32_t code,
                                    const Parcel& data,
                                    Parcel* reply,
                                    uint32_t flags = 0);
};

}; // namespace android

#endif

ICamera.cpp

namespace android {

enum {
    DISCONNECT = IBinder::FIRST_CALL_TRANSACTION,
    SET_PREVIEW_TARGET,
    SET_PREVIEW_CALLBACK_FLAG,
    SET_PREVIEW_CALLBACK_TARGET,
    START_PREVIEW,
    STOP_PREVIEW,
    AUTO_FOCUS,
    CANCEL_AUTO_FOCUS,
    TAKE_PICTURE,
    SET_PARAMETERS,
    GET_PARAMETERS,
    SEND_COMMAND,
    CONNECT,
    LOCK,
    UNLOCK,
    PREVIEW_ENABLED,
    START_RECORDING,
    STOP_RECORDING,
    RECORDING_ENABLED,
    RELEASE_RECORDING_FRAME,
    STORE_META_DATA_IN_BUFFERS,
};

class BpCamera: public BpInterface<ICamera>
{
public:
    BpCamera(const sp<IBinder>& impl)
        : BpInterface<ICamera>(impl)
    {
    }

    // disconnect from camera service
    void disconnect()
    {
        ALOGV("disconnect");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(DISCONNECT, data, &reply);
        reply.readExceptionCode();
    }

    // pass the buffered IGraphicBufferProducer to the camera service
    status_t setPreviewTarget(const sp<IGraphicBufferProducer>& bufferProducer)
    {
        ALOGV("setPreviewTarget");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        sp<IBinder> b(IInterface::asBinder(bufferProducer));
        data.writeStrongBinder(b);
        remote()->transact(SET_PREVIEW_TARGET, data, &reply);
        return reply.readInt32();
    }

    // set the preview callback flag to affect how the received frames from
    // preview are handled. See Camera.h for details.
    void setPreviewCallbackFlag(int flag)
    {
        ALOGV("setPreviewCallbackFlag(%d)", flag);
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeInt32(flag);
        remote()->transact(SET_PREVIEW_CALLBACK_FLAG, data, &reply);
    }

    status_t setPreviewCallbackTarget(
            const sp<IGraphicBufferProducer>& callbackProducer)
    {
        ALOGV("setPreviewCallbackTarget");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        sp<IBinder> b(IInterface::asBinder(callbackProducer));
        data.writeStrongBinder(b);
        remote()->transact(SET_PREVIEW_CALLBACK_TARGET, data, &reply);
        return reply.readInt32();
    }

    // start preview mode, must call setPreviewTarget first
    status_t startPreview()
    {
        ALOGV("startPreview");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(START_PREVIEW, data, &reply);
        return reply.readInt32();
    }

    // start recording mode, must call setPreviewTarget first
    status_t startRecording()
    {
        ALOGV("startRecording");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(START_RECORDING, data, &reply);
        return reply.readInt32();
    }

    // stop preview mode
    void stopPreview()
    {
        ALOGV("stopPreview");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(STOP_PREVIEW, data, &reply);
    }

    // stop recording mode
    void stopRecording()
    {
        ALOGV("stopRecording");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(STOP_RECORDING, data, &reply);
    }

    void releaseRecordingFrame(const sp<IMemory>& mem)
    {
        ALOGV("releaseRecordingFrame");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeStrongBinder(IInterface::asBinder(mem));
        remote()->transact(RELEASE_RECORDING_FRAME, data, &reply);
    }

    status_t storeMetaDataInBuffers(bool enabled)
    {
        ALOGV("storeMetaDataInBuffers: %s", enabled? "true": "false");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeInt32(enabled);
        remote()->transact(STORE_META_DATA_IN_BUFFERS, data, &reply);
        return reply.readInt32();
    }

    // check preview state
    bool previewEnabled()
    {
        ALOGV("previewEnabled");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(PREVIEW_ENABLED, data, &reply);
        return reply.readInt32();
    }

    // check recording state
    bool recordingEnabled()
    {
        ALOGV("recordingEnabled");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(RECORDING_ENABLED, data, &reply);
        return reply.readInt32();
    }

    // auto focus
    status_t autoFocus()
    {
        ALOGV("autoFocus");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(AUTO_FOCUS, data, &reply);
        status_t ret = reply.readInt32();
        return ret;
    }

    // cancel focus
    status_t cancelAutoFocus()
    {
        ALOGV("cancelAutoFocus");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(CANCEL_AUTO_FOCUS, data, &reply);
        status_t ret = reply.readInt32();
        return ret;
    }

    // take a picture - returns an IMemory (ref-counted mmap)
    status_t takePicture(int msgType)
    {
        ALOGV("takePicture: 0x%x", msgType);
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeInt32(msgType);
        remote()->transact(TAKE_PICTURE, data, &reply);
        status_t ret = reply.readInt32();
        return ret;
    }

    // set preview/capture parameters - key/value pairs
    status_t setParameters(const String8& params)
    {
        ALOGV("setParameters");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeString8(params);
        remote()->transact(SET_PARAMETERS, data, &reply);
        return reply.readInt32();
    }

    // get preview/capture parameters - key/value pairs
    String8 getParameters() const
    {
        ALOGV("getParameters");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(GET_PARAMETERS, data, &reply);
        return reply.readString8();
    }
    virtual status_t sendCommand(int32_t cmd, int32_t arg1, int32_t arg2)
    {
        ALOGV("sendCommand");
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeInt32(cmd);
        data.writeInt32(arg1);
        data.writeInt32(arg2);
        remote()->transact(SEND_COMMAND, data, &reply);
        return reply.readInt32();
    }
    virtual status_t connect(const sp<ICameraClient>& cameraClient)
    {
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        data.writeStrongBinder(IInterface::asBinder(cameraClient));
        remote()->transact(CONNECT, data, &reply);
        return reply.readInt32();
    }
    virtual status_t lock()
    {
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(LOCK, data, &reply);
        return reply.readInt32();
    }
    virtual status_t unlock()
    {
        Parcel data, reply;
        data.writeInterfaceToken(ICamera::getInterfaceDescriptor());
        remote()->transact(UNLOCK, data, &reply);
        return reply.readInt32();
    }
};

IMPLEMENT_META_INTERFACE(Camera, "android.hardware.ICamera");

// ----------------------------------------------------------------------

status_t BnCamera::onTransact(
    uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
    switch(code) {
        case DISCONNECT: {
            ALOGV("DISCONNECT");
            CHECK_INTERFACE(ICamera, data, reply);
            disconnect();
            reply->writeNoException();
            return NO_ERROR;
        } break;
        case SET_PREVIEW_TARGET: {
            ALOGV("SET_PREVIEW_TARGET");
            CHECK_INTERFACE(ICamera, data, reply);
            sp<IGraphicBufferProducer> st =
                interface_cast<IGraphicBufferProducer>(data.readStrongBinder());
            reply->writeInt32(setPreviewTarget(st));
            return NO_ERROR;
        } break;
        case SET_PREVIEW_CALLBACK_FLAG: {
            ALOGV("SET_PREVIEW_CALLBACK_TYPE");
            CHECK_INTERFACE(ICamera, data, reply);
            int callback_flag = data.readInt32();
            setPreviewCallbackFlag(callback_flag);
            return NO_ERROR;
        } break;
        case SET_PREVIEW_CALLBACK_TARGET: {
            ALOGV("SET_PREVIEW_CALLBACK_TARGET");
            CHECK_INTERFACE(ICamera, data, reply);
            sp<IGraphicBufferProducer> cp =
                interface_cast<IGraphicBufferProducer>(data.readStrongBinder());
            reply->writeInt32(setPreviewCallbackTarget(cp));
            return NO_ERROR;
        }
        case START_PREVIEW: {
            ALOGV("START_PREVIEW");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(startPreview());
            return NO_ERROR;
        } break;
        case START_RECORDING: {
            ALOGV("START_RECORDING");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(startRecording());
            return NO_ERROR;
        } break;
        case STOP_PREVIEW: {
            ALOGV("STOP_PREVIEW");
            CHECK_INTERFACE(ICamera, data, reply);
            stopPreview();
            return NO_ERROR;
        } break;
        case STOP_RECORDING: {
            ALOGV("STOP_RECORDING");
            CHECK_INTERFACE(ICamera, data, reply);
            stopRecording();
            return NO_ERROR;
        } break;
        case RELEASE_RECORDING_FRAME: {
            ALOGV("RELEASE_RECORDING_FRAME");
            CHECK_INTERFACE(ICamera, data, reply);
            sp<IMemory> mem = interface_cast<IMemory>(data.readStrongBinder());
            releaseRecordingFrame(mem);
            return NO_ERROR;
        } break;
        case STORE_META_DATA_IN_BUFFERS: {
            ALOGV("STORE_META_DATA_IN_BUFFERS");
            CHECK_INTERFACE(ICamera, data, reply);
            bool enabled = data.readInt32();
            reply->writeInt32(storeMetaDataInBuffers(enabled));
            return NO_ERROR;
        } break;
        case PREVIEW_ENABLED: {
            ALOGV("PREVIEW_ENABLED");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(previewEnabled());
            return NO_ERROR;
        } break;
        case RECORDING_ENABLED: {
            ALOGV("RECORDING_ENABLED");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(recordingEnabled());
            return NO_ERROR;
        } break;
        case AUTO_FOCUS: {
            ALOGV("AUTO_FOCUS");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(autoFocus());
            return NO_ERROR;
        } break;
        case CANCEL_AUTO_FOCUS: {
            ALOGV("CANCEL_AUTO_FOCUS");
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(cancelAutoFocus());
            return NO_ERROR;
        } break;
        case TAKE_PICTURE: {
            ALOGV("TAKE_PICTURE");
            CHECK_INTERFACE(ICamera, data, reply);
            int msgType = data.readInt32();
            reply->writeInt32(takePicture(msgType));
            return NO_ERROR;
        } break;
        case SET_PARAMETERS: {
            ALOGV("SET_PARAMETERS");
            CHECK_INTERFACE(ICamera, data, reply);
            String8 params(data.readString8());
            reply->writeInt32(setParameters(params));
            return NO_ERROR;
         } break;
        case GET_PARAMETERS: {
            ALOGV("GET_PARAMETERS");
            CHECK_INTERFACE(ICamera, data, reply);
             reply->writeString8(getParameters());
            return NO_ERROR;
         } break;
        case SEND_COMMAND: {
            ALOGV("SEND_COMMAND");
            CHECK_INTERFACE(ICamera, data, reply);
            int command = data.readInt32();
            int arg1 = data.readInt32();
            int arg2 = data.readInt32();
            reply->writeInt32(sendCommand(command, arg1, arg2));
            return NO_ERROR;
         } break;
        case CONNECT: {
            CHECK_INTERFACE(ICamera, data, reply);
            sp<ICameraClient> cameraClient = interface_cast<ICameraClient>(data.readStrongBinder());
            reply->writeInt32(connect(cameraClient));
            return NO_ERROR;
        } break;
        case LOCK: {
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(lock());
            return NO_ERROR;
        } break;
        case UNLOCK: {
            CHECK_INTERFACE(ICamera, data, reply);
            reply->writeInt32(unlock());
            return NO_ERROR;
        } break;
        default:
            return BBinder::onTransact(code, data, reply, flags);
    }
}

ICameraService.cpp

接下来或执行到BnCameraService的onTransact()方法，主要就是switch_case，上面传入的是CONNECT

接下来看一下CameraService中的connect函数都干了啥

到connectHelperLocked()函数中

这里的client创建成功后会赋值给device，而device就是之前连接过程中的传入参数，到这里Camera的连接过程就基本完成了。

第一时间获得博客更新提醒，以及更多android干货，源码分析，欢迎关注我的微信公众号，扫一扫下方二维码或者长按识别二维码，即可关注。

如果你觉得好，随手点赞，也是对笔者的肯定，也可以分享此公众号给你更多的人，原创不易
