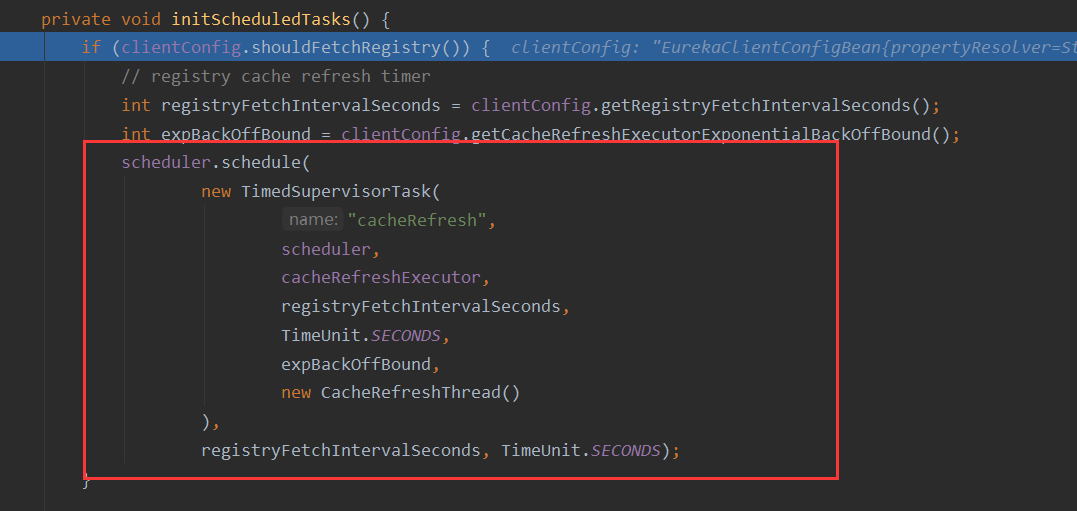

在Eureka Client启动流程一文讲到Client刚启动时会全量拉取一次，后面会开启一个定时任务，根据条件以及本地缓存情况全量拉取或增量拉取

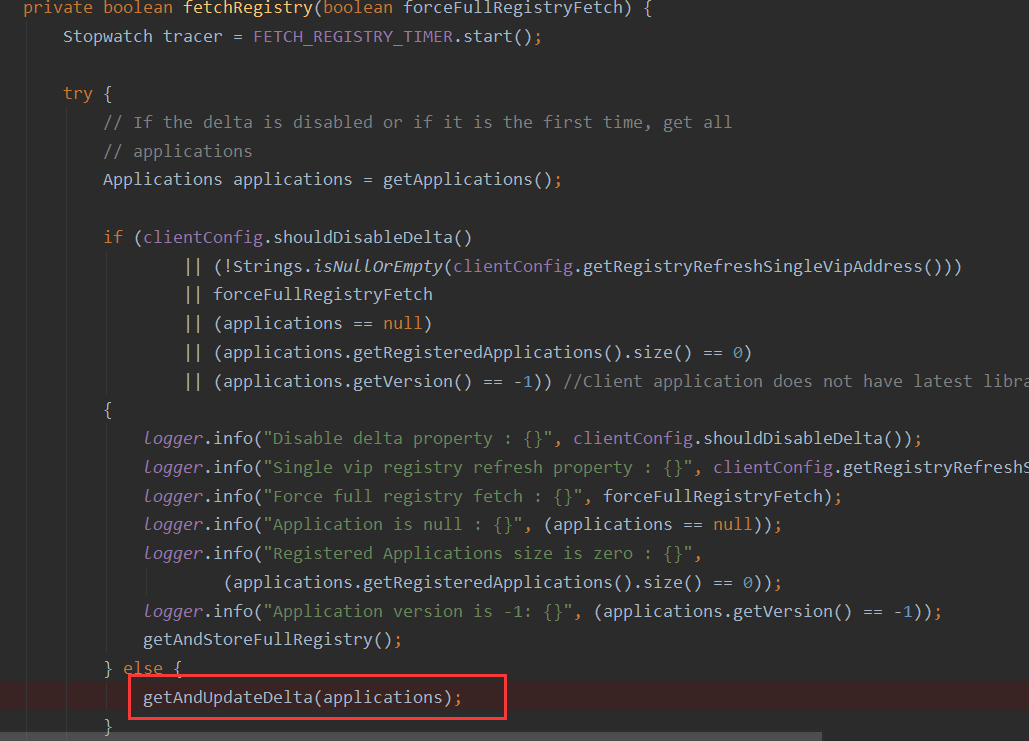

private boolean fetchRegistry(boolean forceFullRegistryFetch) {
Stopwatch tracer = FETCH_REGISTRY_TIMER.start();
try {
// 如果增量被禁用或者是第一次获取（本地缓存为空），则全量获取
Applications applications = getApplications();
if (clientConfig.shouldDisableDelta() // 禁用增量
|| (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
|| forceFullRegistryFetch // 强制全量
|| (applications == null) // 应用信息为空
|| (applications.getRegisteredApplications().size() == 0) // // 应用信息中实例为空
|| (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
{
logger.info("Disable delta property : {}", clientConfig.shouldDisableDelta());
logger.info("Single vip registry refresh property : {}", clientConfig.getRegistryRefreshSingleVipAddress());
logger.info("Force full registry fetch : {}", forceFullRegistryFetch);
logger.info("Application is null : {}", (applications == null));
logger.info("Registered Applications size is zero : {}",
(applications.getRegisteredApplications().size() == 0));
logger.info("Application version is -1: {}", (applications.getVersion() == -1));
// 全量拉取注册信息，并保存到本地缓存
getAndStoreFullRegistry();

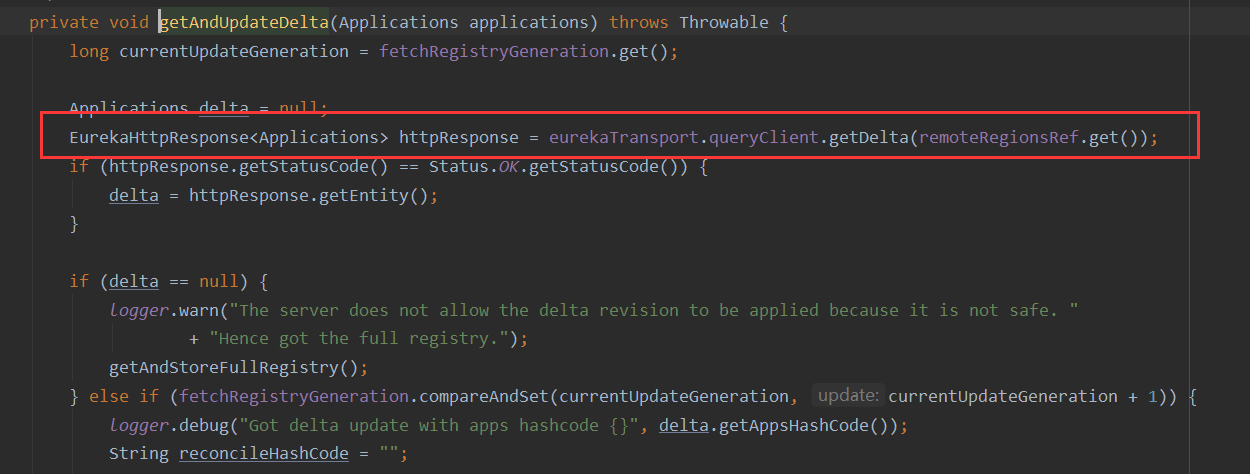

} else {

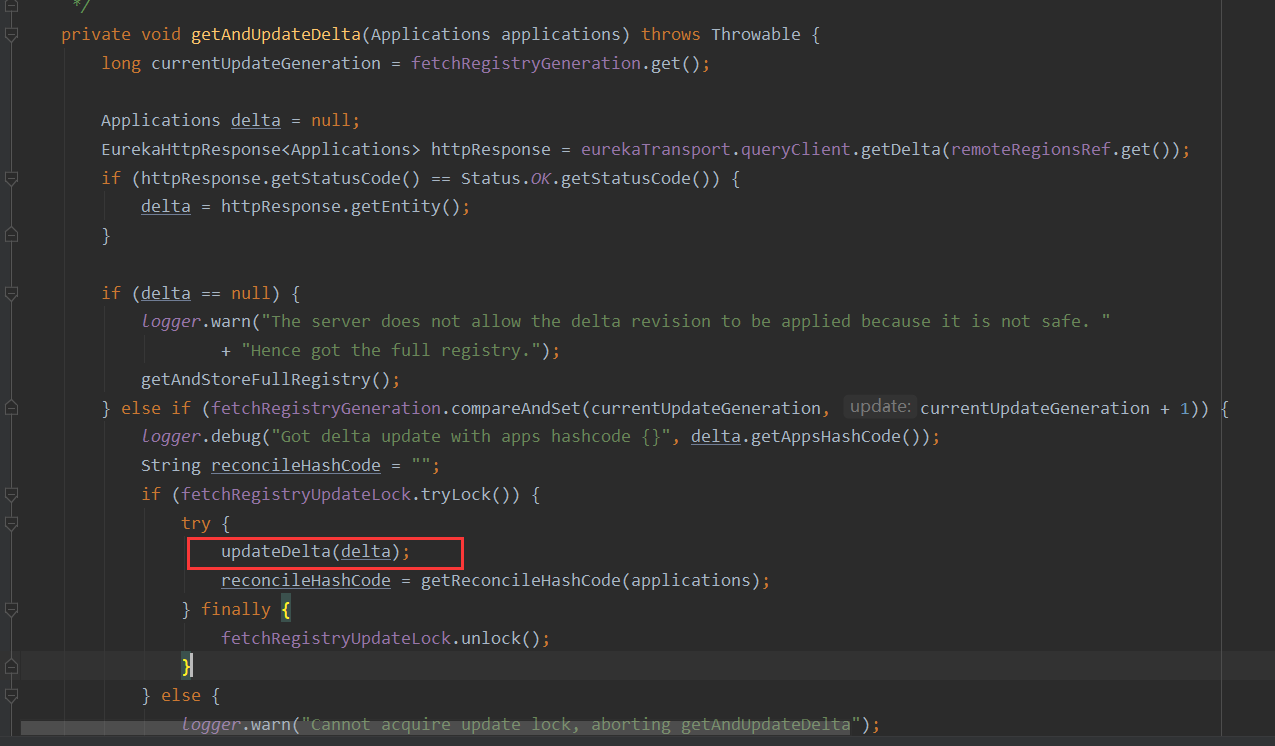

// 增量拉取
getAndUpdateDelta(applications);
}
applications.setAppsHashCode(applications.getReconcileHashCode());
logTotalInstances();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to refresh its cache! status = {}", appPathIdentifier, e.getMessage(), e);
return false;
} finally {
if (tracer != null) {
tracer.stop();
}
}
// Notify about cache refresh before updating the instance remote status
onCacheRefreshed();
// 更新状态
updateInstanceRemoteStatus();
// registry was fetched successfully, so return true
return true;
}
全量拉取
EurekaClient
private void getAndStoreFullRegistry() throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
logger.info("Getting all instance registry info from the eureka server");
Applications apps = null;
// 发起拉取请求
// 调用EurekaHttpClient接口，EurekaHttpClient是客户端与服务端通信的接口，通过Jersey框架完成。（Jersey是一个REST框架）
EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
: eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
apps = httpResponse.getEntity();
}
logger.info("The response status is {}", httpResponse.getStatusCode());
if (apps == null) {
logger.error("The application is null for some reason. Not storing this information");
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
// 由于是全量拉取，是完整的注册信息，所以直接将本地缓存替换成拉取到的信息
localRegionApps.set(this.filterAndShuffle(apps));
logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode());
} else {
logger.warn("Not updating applications as another thread is updating it already");
}
}
这里localRegionApps就是client中的本地缓存，是一个引用类型
private final AtomicReference<Applications> localRegionApps = new AtomicReference<Applications>();
EurekaServer
服务端controller接口是ApplicationsResource类的getContainers方法
@GET
public Response getContainers(@PathParam("version") String version,
@HeaderParam(HEADER_ACCEPT) String acceptHeader,
@HeaderParam(HEADER_ACCEPT_ENCODING) String acceptEncoding,
@HeaderParam(EurekaAccept.HTTP_X_EUREKA_ACCEPT) String eurekaAccept,
@Context UriInfo uriInfo,
@Nullable @QueryParam("regions") String regionsStr) {
boolean isRemoteRegionRequested = null != regionsStr && !regionsStr.isEmpty();
String[] regions = null;
if (!isRemoteRegionRequested) {
EurekaMonitors.GET_ALL.increment();
} else {
regions = regionsStr.toLowerCase().split(",");
Arrays.sort(regions); // So we don't have different caches for same regions queried in different order.
EurekaMonitors.GET_ALL_WITH_REMOTE_REGIONS.increment();
}
// Check if the server allows the access to the registry. The server can
// restrict access if it is not
// ready to serve traffic depending on various reasons.
if (!registry.shouldAllowAccess(isRemoteRegionRequested)) {
return Response.status(Status.FORBIDDEN).build();
}
CurrentRequestVersion.set(Version.toEnum(version));
KeyType keyType = Key.KeyType.JSON;
String returnMediaType = MediaType.APPLICATION_JSON;
if (acceptHeader == null || !acceptHeader.contains(HEADER_JSON_VALUE)) {
keyType = Key.KeyType.XML;
returnMediaType = MediaType.APPLICATION_XML;
}
Key cacheKey = new Key(Key.EntityType.Application,
ResponseCacheImpl.ALL_APPS,
keyType, CurrentRequestVersion.get(), EurekaAccept.fromString(eurekaAccept), regions
);
Response response;
if (acceptEncoding != null && acceptEncoding.contains(HEADER_GZIP_VALUE)) {
response = Response.ok(responseCache.getGZIP(cacheKey))
.header(HEADER_CONTENT_ENCODING, HEADER_GZIP_VALUE)
.header(HEADER_CONTENT_TYPE, returnMediaType)
.build();
} else {
response = Response.ok(responseCache.get(cacheKey))
.build();
}
return response;
}

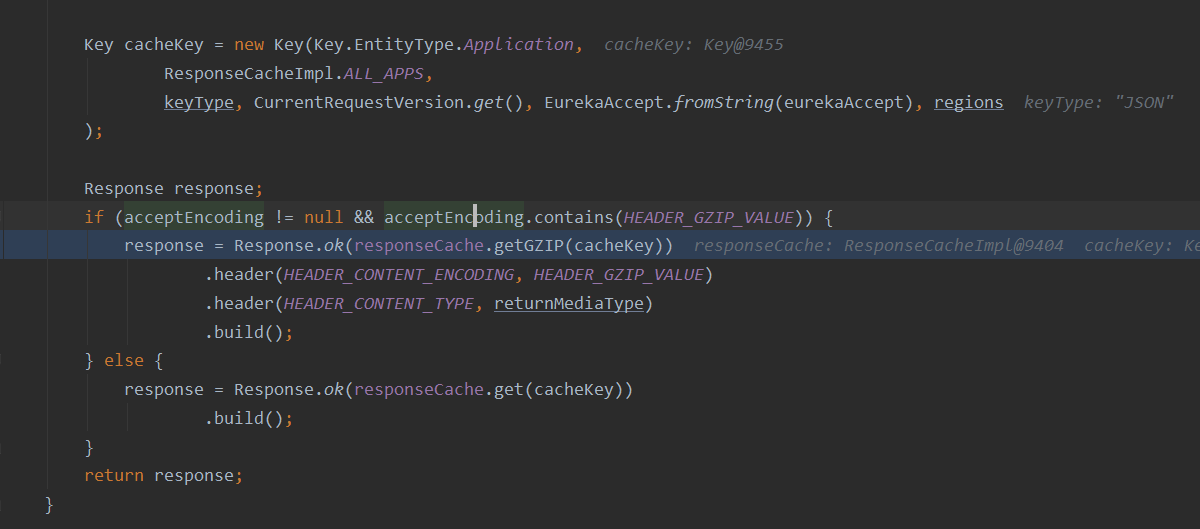

关键就是最下面几行代码
先创建一个缓存键
这几个参数都是固定的

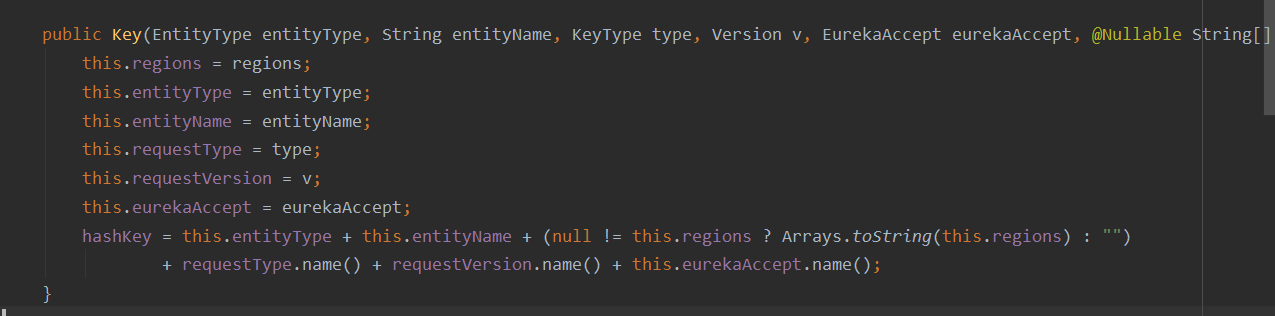

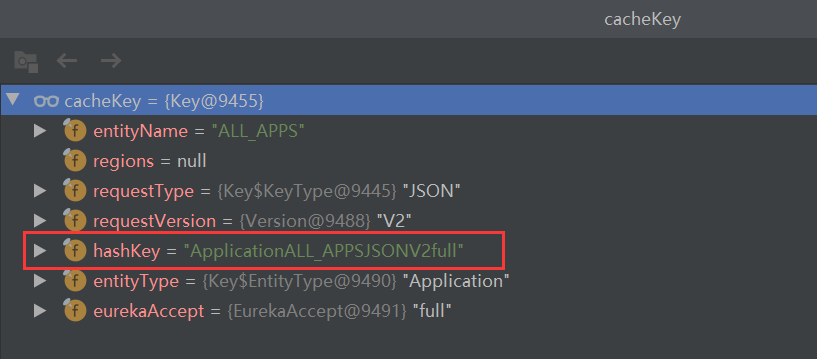

Key内部有一个hashKey，根据创建时传进去的参数生成的

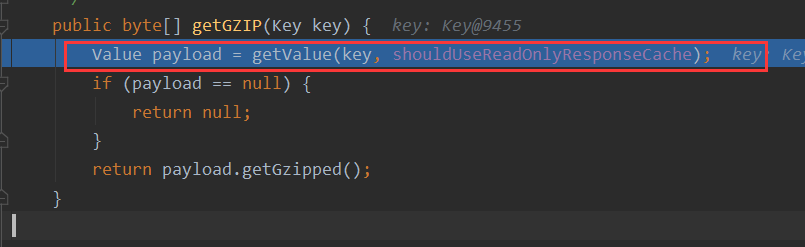

根据Key从响应缓存中读取数据，ResponseCacheImpl是ResponseCache的实现，负责缓存将由客户端查询的注册表信息的类
shouldUseReadOnlyResponseCache表示是否从只读缓存读取，默认是true
@VisibleForTesting
Value getValue(final Key key, boolean useReadOnlyCache) {
Value payload = null;
try {
// 默认从只读缓存读取
if (useReadOnlyCache) {
final Value currentPayload = readOnlyCacheMap.get(key);
if (currentPayload != null) {
payload = currentPayload;
} else {
// 只读缓存没读取到就到读写缓存读取，然后设置到只读缓存中
payload = readWriteCacheMap.get(key);
readOnlyCacheMap.put(key, payload);
}
} else {
payload = readWriteCacheMap.get(key);
}
} catch (Throwable t) {
logger.error("Cannot get value for key : {}", key, t);
}
return payload;
}

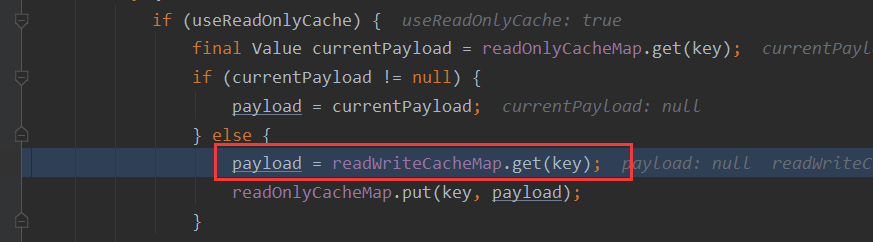

先从readOnlyCacheMap只读缓存，没读到再去readWriteCacheMap读写缓存读取，然后设置进readOnlyCacheMap。注意：如果读写缓存中该key不存在值，将调用CacheLoader的load方法加载新值到该key中

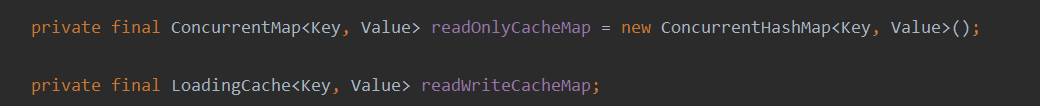

readOnlyCacheMap是使用java的ConcurrentMap，而readWriteCacheMap读写缓存使用了guava中的LoadingCache
readWriteCacheMap是在ResponseCacheImpl构造方法中构建的
ResponseCacheImpl(EurekaServerConfig serverConfig, ServerCodecs serverCodecs, AbstractInstanceRegistry registry) {
this.serverConfig = serverConfig;
this.serverCodecs = serverCodecs;
this.shouldUseReadOnlyResponseCache = serverConfig.shouldUseReadOnlyResponseCache();
this.registry = registry;
long responseCacheUpdateIntervalMs = serverConfig.getResponseCacheUpdateIntervalMs();
this.readWriteCacheMap =
// 初始大小1000
CacheBuilder.newBuilder().initialCapacity(1000)
// 默认写入后180s后过期
.expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
// 移除监听器
.removalListener(new RemovalListener<Key, Value>() {
@Override
public void onRemoval(RemovalNotification<Key, Value> notification) {
Key removedKey = notification.getKey();
if (removedKey.hasRegions()) {
Key cloneWithNoRegions = removedKey.cloneWithoutRegions();
regionSpecificKeys.remove(cloneWithNoRegions, removedKey);
}
}
})
.build(new CacheLoader<Key, Value>() {
// 获取key对应的value没值时执行的方法逻辑，加载值到cache中
@Override
public Value load(Key key) throws Exception {
if (key.hasRegions()) {
Key cloneWithNoRegions = key.cloneWithoutRegions();
regionSpecificKeys.put(cloneWithNoRegions, key);
}
// 去加载key对应的value到读写缓存中
Value value = generatePayload(key);
return value;
}
});

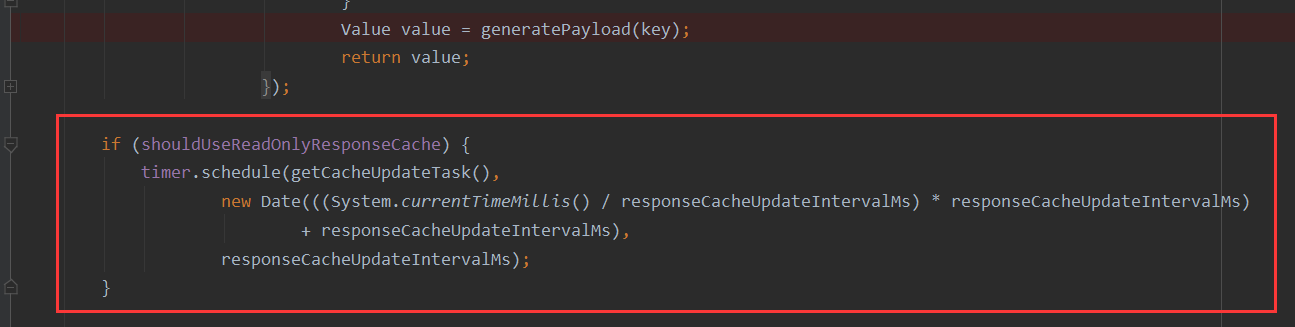

// 每隔30s从读写缓存同步到只读缓存
if (shouldUseReadOnlyResponseCache) {
timer.schedule(getCacheUpdateTask(),
new Date(((System.currentTimeMillis() / responseCacheUpdateIntervalMs) * responseCacheUpdateIntervalMs)
+ responseCacheUpdateIntervalMs),
responseCacheUpdateIntervalMs);
}
try {
Monitors.registerObject(this);
} catch (Throwable e) {
logger.warn("Cannot register the JMX monitor for the InstanceRegistry", e);
}
}
所以如果上面从读写缓存中也没获取到，会调用generatePayload(key)方法从registry缓存加载
private Value generatePayload(Key key) {
Stopwatch tracer = null;
try {
String payload;
// 获取注册表的类型，全量、增量或只获取某个应用的注册信息
switch (key.getEntityType()) {
case Application:
boolean isRemoteRegionRequested = key.hasRegions();
if (ALL_APPS.equals(key.getName())) { // 全量获取
if (isRemoteRegionRequested) {
tracer = serializeAllAppsWithRemoteRegionTimer.start();
payload = getPayLoad(key, registry.getApplicationsFromMultipleRegions(key.getRegions()));
} else {
tracer = serializeAllAppsTimer.start();
payload = getPayLoad(key, registry.getApplications());
}

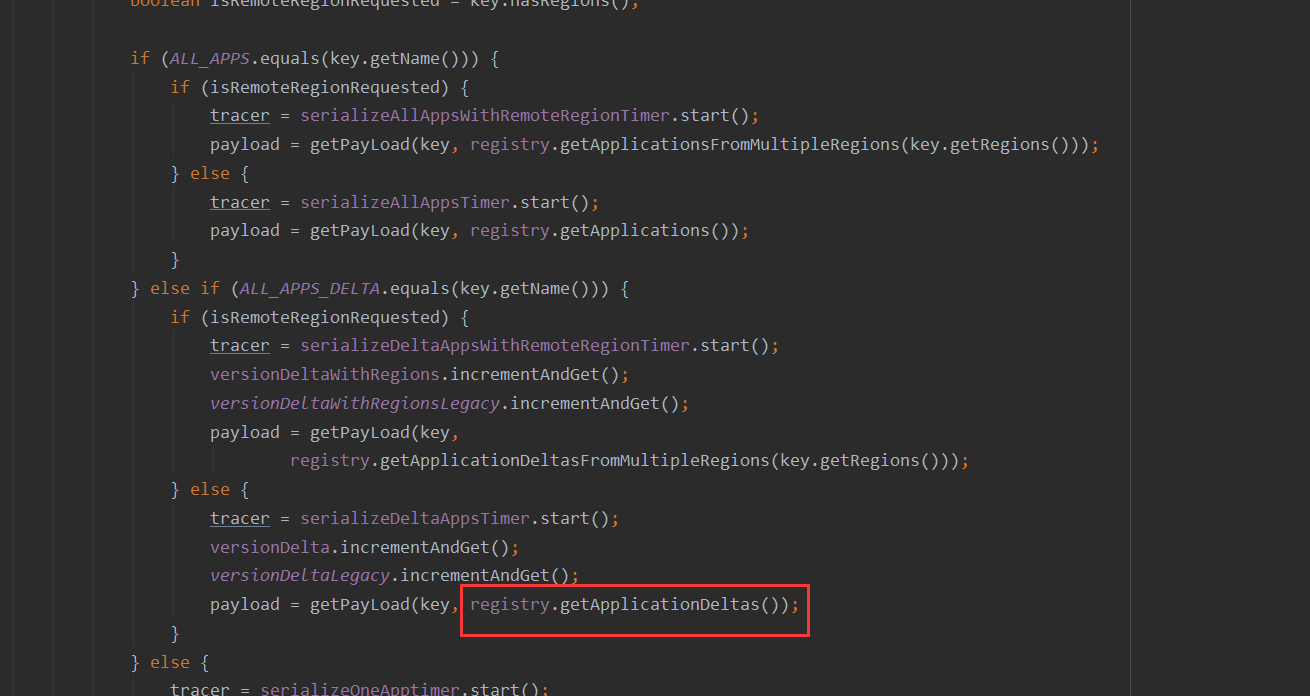

} else if (ALL_APPS_DELTA.equals(key.getName())) { // 增量获取
if (isRemoteRegionRequested) {
tracer = serializeDeltaAppsWithRemoteRegionTimer.start();
versionDeltaWithRegions.incrementAndGet();
versionDeltaWithRegionsLegacy.incrementAndGet();
payload = getPayLoad(key,
registry.getApplicationDeltasFromMultipleRegions(key.getRegions()));
} else {
tracer = serializeDeltaAppsTimer.start();
versionDelta.incrementAndGet();
versionDeltaLegacy.incrementAndGet();
payload = getPayLoad(key, registry.getApplicationDeltas());
}
} else { // 只获取某个应用的注册信息
tracer = serializeOneApptimer.start();
payload = getPayLoad(key, registry.getApplication(key.getName()));
}
break;
case VIP:
case SVIP:
tracer = serializeViptimer.start();
payload = getPayLoad(key, getApplicationsForVip(key, registry));
break;
default:
logger.error("Unidentified entity type: {} found in the cache key.", key.getEntityType());
payload = "";
break;
}
return new Value(payload);
} finally {
if (tracer != null) {
tracer.stop();
}
}
}

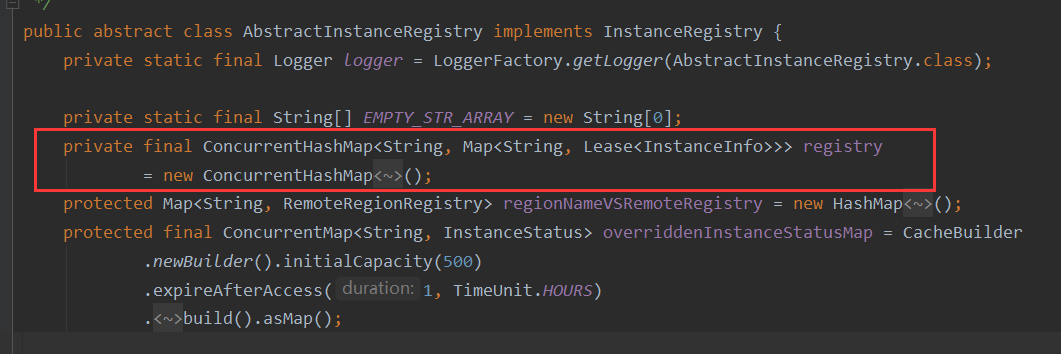

从AbstractInstanceRegistry中获取所有应用实例，AbstractInstanceRegistry缓存了所有的实例租约信息，实时更新，key是应用名，value就是每个应用对应的实例租约信息列表
其中InstanceInfo就是代表着EurekaClient实例，客户端向服务端请求注册时就会携带着这个实例，这个实例中包含了客户端的一些基本信息，Lease是服务端用来保存客户端的租约信息的，其中holder中持有的就是InstanceInfo对象
public class Lease<T> {
enum Action {
Register, Cancel, Renew
};
// 租约过期时间
public static final int DEFAULT_DURATION_IN_SECS = 90;
// 持有的实例
private T holder;
// 服务下线时间
private long evictionTimestamp;
// 注册起始时间
private long registrationTimestamp;
private long serviceUpTimestamp;
// Make it volatile so that the expiration task would see this quicker
// 最后更新时间
private volatile long lastUpdateTimestamp;
// 租约持续时间
private long duration;
}

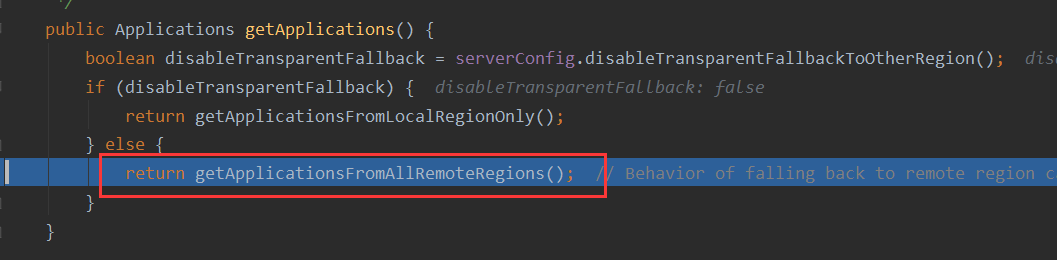

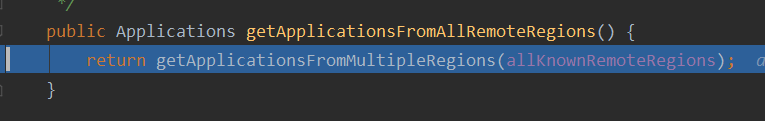

接着上面的方法，走全量拉取分支中的registry.getApplications()
public Applications getApplicationsFromMultipleRegions(String[] remoteRegions) {
boolean includeRemoteRegion = null != remoteRegions && remoteRegions.length != 0;
logger.debug("Fetching applications registry with remote regions: {}, Regions argument {}",
includeRemoteRegion, remoteRegions);
if (includeRemoteRegion) {
GET_ALL_WITH_REMOTE_REGIONS_CACHE_MISS.increment();
} else {
GET_ALL_CACHE_MISS.increment();
}
Applications apps = new Applications();
apps.setVersion(1L);
// 循环所有应用对应的租约信息
for (Entry<String, Map<String, Lease<InstanceInfo>>> entry : registry.entrySet()) {
Application app = null;
if (entry.getValue() != null) {
// 将相同应用下的服务实例封装为Application
for (Entry<String, Lease<InstanceInfo>> stringLeaseEntry : entry.getValue().entrySet()) {
Lease<InstanceInfo> lease = stringLeaseEntry.getValue();
if (app == null) {
app = new Application(lease.getHolder().getAppName());
}
app.addInstance(decorateInstanceInfo(lease));
}
}
// 将每个Application添加到Applications中
if (app != null) {
apps.addApplication(app);
}
}
if (includeRemoteRegion) {
// 从远程获取。。。
}
// 设置hashcode为所有注册表信息计算出来的hashcode值，主要给增量拉取使用，在全量这边没什么用
apps.setAppsHashCode(apps.getReconcileHashCode());
return apps;
}
在ResponseCacheImpl构造方法的最后eureka启动了一个定时任务，每隔30s从读写缓存更新数据到只读缓存
private TimerTask getCacheUpdateTask() {
return new TimerTask() {
@Override
public void run() {
logger.debug("Updating the client cache from response cache");
// 循环只读缓存，与读写缓存做比较，不相同则更新
for (Key key : readOnlyCacheMap.keySet()) {
if (logger.isDebugEnabled()) {
logger.debug("Updating the client cache from response cache for key : {} {} {} {}",
key.getEntityType(), key.getName(), key.getVersion(), key.getType());
}
try {
CurrentRequestVersion.set(key.getVersion());
Value cacheValue = readWriteCacheMap.get(key);
Value currentCacheValue = readOnlyCacheMap.get(key);
if (cacheValue != currentCacheValue) {
readOnlyCacheMap.put(key, cacheValue);
}
} catch (Throwable th) {
logger.error("Error while updating the client cache from response cache for key {}", key.toStringCompact(), th);
}
}
}
};
}
增量拉取
EurekaClient
Eureka Client启动时会创建一个每隔30s刷新本地缓存的定时任务
@VisibleForTesting
void refreshRegistry() {
try {
boolean isFetchingRemoteRegionRegistries = isFetchingRemoteRegionRegistries();
boolean remoteRegionsModified = false;
// 省略。。。
// 增量拉取
boolean success = fetchRegistry(remoteRegionsModified);
if (success) {
registrySize = localRegionApps.get().size();
lastSuccessfulRegistryFetchTimestamp = System.currentTimeMillis();
}
if (logger.isDebugEnabled()) {
StringBuilder allAppsHashCodes = new StringBuilder();
allAppsHashCodes.append("Local region apps hashcode: ");
allAppsHashCodes.append(localRegionApps.get().getAppsHashCode());
allAppsHashCodes.append(", is fetching remote regions? ");
allAppsHashCodes.append(isFetchingRemoteRegionRegistries);
for (Map.Entry<String, Applications> entry : remoteRegionVsApps.entrySet()) {
allAppsHashCodes.append(", Remote region: ");
allAppsHashCodes.append(entry.getKey());
allAppsHashCodes.append(" , apps hashcode: ");
allAppsHashCodes.append(entry.getValue().getAppsHashCode());
}
logger.debug("Completed cache refresh task for discovery. All Apps hash code is {} ",
allAppsHashCodes);
}
} catch (Throwable e) {
logger.error("Cannot fetch registry from server", e);
}
}
接下来看服务端
EurekaServer
@Path("delta")
@GET
public Response getContainerDifferential(
@PathParam("version") String version,
@HeaderParam(HEADER_ACCEPT) String acceptHeader,
@HeaderParam(HEADER_ACCEPT_ENCODING) String acceptEncoding,
@HeaderParam(EurekaAccept.HTTP_X_EUREKA_ACCEPT) String eurekaAccept,
@Context UriInfo uriInfo, @Nullable @QueryParam("regions") String regionsStr) {
boolean isRemoteRegionRequested = null != regionsStr && !regionsStr.isEmpty();
// If the delta flag is disabled in discovery or if the lease expiration
// has been disabled, redirect clients to get all instances
if ((serverConfig.shouldDisableDelta()) || (!registry.shouldAllowAccess(isRemoteRegionRequested))) {
return Response.status(Status.FORBIDDEN).build();
}
String[] regions = null;
if (!isRemoteRegionRequested) {
EurekaMonitors.GET_ALL_DELTA.increment();
} else {
regions = regionsStr.toLowerCase().split(",");
Arrays.sort(regions); // So we don't have different caches for same regions queried in different order.
EurekaMonitors.GET_ALL_DELTA_WITH_REMOTE_REGIONS.increment();
}
CurrentRequestVersion.set(Version.toEnum(version));
KeyType keyType = Key.KeyType.JSON;
String returnMediaType = MediaType.APPLICATION_JSON;
if (acceptHeader == null || !acceptHeader.contains(HEADER_JSON_VALUE)) {
keyType = Key.KeyType.XML;
returnMediaType = MediaType.APPLICATION_XML;
}
// 这里跟全量拉取的区别只是这里EntityType传的是ResponseCacheImpl.ALL_APPS_DELTA，
// 代表增量拉取，其它参数都一样
Key cacheKey = new Key(Key.EntityType.Application,
ResponseCacheImpl.ALL_APPS_DELTA,
keyType, CurrentRequestVersion.get(), EurekaAccept.fromString(eurekaAccept), regions
);
if (acceptEncoding != null
&& acceptEncoding.contains(HEADER_GZIP_VALUE)) {
return Response.ok(responseCache.getGZIP(cacheKey))
.header(HEADER_CONTENT_ENCODING, HEADER_GZIP_VALUE)
.header(HEADER_CONTENT_TYPE, returnMediaType)
.build();
} else {
return Response.ok(responseCache.get(cacheKey))
.build();
}
}
跟全量拉取一样，也是先创建该实例的Key，Key中的EntityType是ResponseCacheImpl.ALL_APPS_DELTA，代表是增量拉取，根据Key从响应缓存responseCache中获取，接下来的流程跟全量拉取一样，也是从只读缓存到读写缓存，只是如果读写缓存没有的话，会去最近变更记录队列recentlyChangedQueue读取加载
ResponseCacheImpl.generatePayload
public Applications getApplicationDeltas() {
GET_ALL_CACHE_MISS_DELTA.increment();
// 返回的应用，会将最近变更的实例设置到该apps中
Applications apps = new Applications();
apps.setVersion(responseCache.getVersionDelta().get());
Map<String, Application> applicationInstancesMap = new HashMap<String, Application>();
try {
// 获得写锁
write.lock();
// 循环最近变更队列
Iterator<RecentlyChangedItem> iter = this.recentlyChangedQueue.iterator();
logger.debug("The number of elements in the delta queue is : {}",
this.recentlyChangedQueue.size());
while (iter.hasNext()) {
// 租约信息
Lease<InstanceInfo> lease = iter.next().getLeaseInfo();
// 租约中的实例
InstanceInfo instanceInfo = lease.getHolder();
logger.debug(
"The instance id {} is found with status {} and actiontype {}",
instanceInfo.getId(), instanceInfo.getStatus().name(), instanceInfo.getActionType().name());
Application app = applicationInstancesMap.get(instanceInfo
.getAppName());
if (app == null) {
app = new Application(instanceInfo.getAppName());
applicationInstancesMap.put(instanceInfo.getAppName(), app);
apps.addApplication(app);
}
app.addInstance(decorateInstanceInfo(lease));
}
boolean disableTransparentFallback = serverConfig.disableTransparentFallbackToOtherRegion();
if (!disableTransparentFallback) {
Applications allAppsInLocalRegion = getApplications(false);
for (RemoteRegionRegistry remoteRegistry : this.regionNameVSRemoteRegistry.values()) {
Applications applications = remoteRegistry.getApplicationDeltas();
for (Application application : applications.getRegisteredApplications()) {
Application appInLocalRegistry =
allAppsInLocalRegion.getRegisteredApplications(application.getName());
if (appInLocalRegistry == null) {
apps.addApplication(application);
}
}
}
}
// 设置hashcode为所有注册表信息计算出来的hashcode值
// 用来给client端判断增量更新本地缓存后的注册表信息是否跟server端的注册表信息是否一致，
// 若不一致，则需要重新全量拉取一次
Applications allApps = getApplications(!disableTransparentFallback);
apps.setAppsHashCode(allApps.getReconcileHashCode());
return apps;
} finally {
write.unlock();
}
}
处理增量拉取结果
更新从EurekaServer获取到的增量信息到本地缓存
private void updateDelta(Applications delta) {
int deltaCount = 0;
for (Application app : delta.getRegisteredApplications()) {
for (InstanceInfo instance : app.getInstances()) {
// 本地缓存
Applications applications = getApplications();
String instanceRegion = instanceRegionChecker.getInstanceRegion(instance);
if (!instanceRegionChecker.isLocalRegion(instanceRegion)) {
Applications remoteApps = remoteRegionVsApps.get(instanceRegion);
if (null == remoteApps) {
remoteApps = new Applications();
remoteRegionVsApps.put(instanceRegion, remoteApps);
}
applications = remoteApps;
}
// 记录获取到的全部实例数
++deltaCount;
// 新注册的服务
if (ActionType.ADDED.equals(instance.getActionType())) {
Application existingApp = applications.getRegisteredApplications(instance.getAppName());
if (existingApp == null) {
applications.addApplication(app);
}
logger.debug("Added instance {} to the existing apps in region {}", instance.getId(), instanceRegion);
applications.getRegisteredApplications(instance.getAppName()).addInstance(instance);
} else if (ActionType.MODIFIED.equals(instance.getActionType())) { // 修改的服务
Application existingApp = applications.getRegisteredApplications(instance.getAppName());
if (existingApp == null) {
applications.addApplication(app);
}
logger.debug("Modified instance {} to the existing apps ", instance.getId());
applications.getRegisteredApplications(instance.getAppName()).addInstance(instance);
} else if (ActionType.DELETED.equals(instance.getActionType())) { // 已删除的服务
Application existingApp = applications.getRegisteredApplications(instance.getAppName());
if (existingApp == null) {
applications.addApplication(app);
}
logger.debug("Deleted instance {} to the existing apps ", instance.getId());
applications.getRegisteredApplications(instance.getAppName()).removeInstance(instance);
}
}
}
logger.debug("The total number of instances fetched by the delta processor : {}", deltaCount);
getApplications().setVersion(delta.getVersion());
getApplications().shuffleInstances(clientConfig.shouldFilterOnlyUpInstances());
for (Applications applications : remoteRegionVsApps.values()) {
applications.setVersion(delta.getVersion());
applications.shuffleInstances(clientConfig.shouldFilterOnlyUpInstances());
}
}

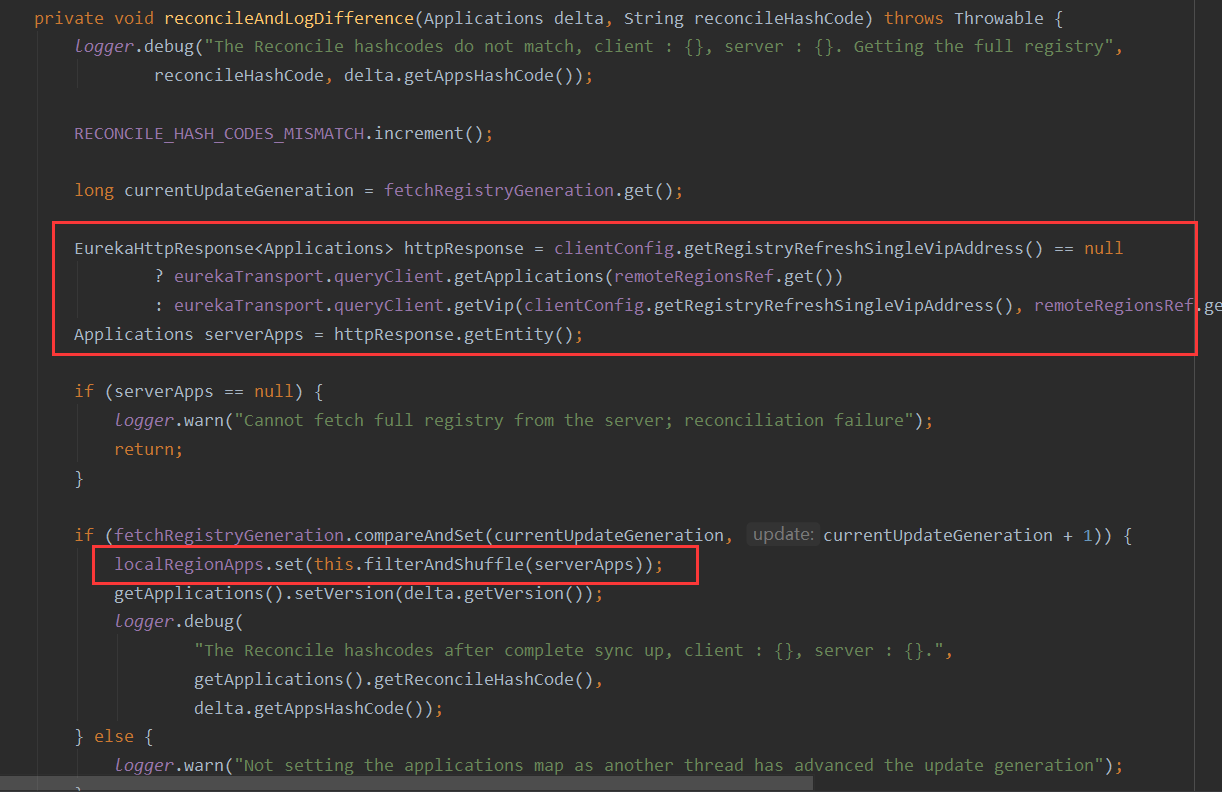

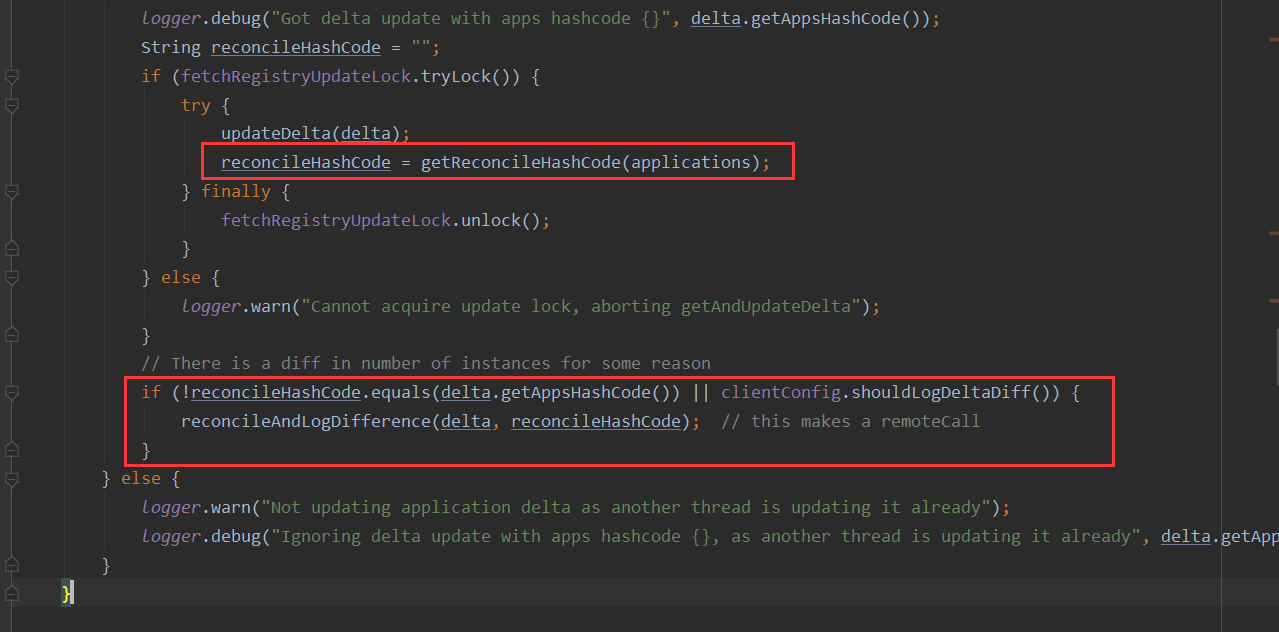

最后比对本地所有的注册表数据与server端所有注册数据的hash值，如果哈希值不一致，则通过这个reconcileAndLogDifference()来进行一次全量同步。因为Eureka client的增量更新，其实获取的是Eureka server最近三分钟内的变更，如果Eureka client有超过三分钟没有做增量更新的话（例如网络问题），这就造成了Eureka server和Eureka client之间的数据不一致。正常情况下，Eureka client每次增量更新后，最终的服务列表数据应该跟Eureka server保持一致，但如果期间发生异常，可能导致和Eureka server的数据不一致，为了暴露这个问题，Eureka server每次返回的增量更新数据中，会带有一致性哈希码，Eureka client用本地服务列表数据算出的一致性哈希码应该和Eureka server返回的一致，若不一致就证明增量更新出了问题导致Eureka client和Eureka server上的服务列表信息不一致了，此时需要全量更新。
全量拉取到后就直接赋值给本地缓存
扫一扫
572
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
