校园O2O商铺平台-实体类设计与表创建

实体类解析

区域类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 区域信息
 * @author HenryLei
 *
 */
public class Area {
	// 主键ID
	private Integer areaId;
	// 名称
	private String areaName;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 更新时间
	private Date lastEditTime;

	public Integer getAreaId() {
		return areaId;
	}

	public void setAreaId(Integer areaId) {
		this.areaId = areaId;
	}

	public String getAreaName() {
		return areaName;
	}

	public void setAreaName(String areaName) {
		this.areaName = areaName;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

}

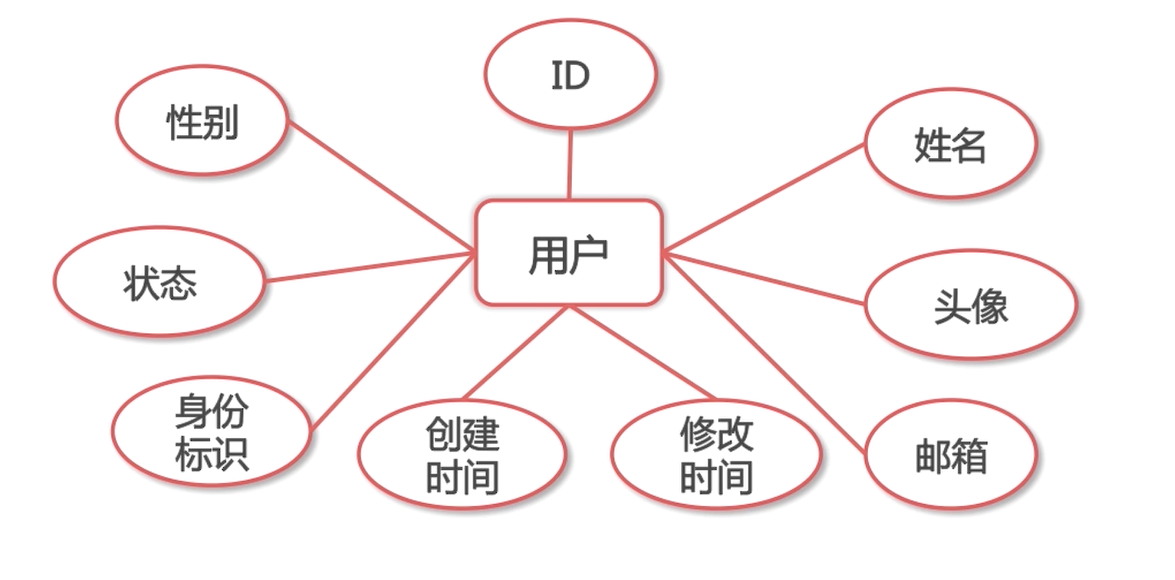

用户类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 个人信息实体类
 *
 * @author HenryLei
 *
 */
public class PersonInfo {
	// 主键ID
	private Long userId;
	// 用户名称
	private String name;
	// 用户头像
	private String profileImg;
	// 用户邮箱
	private String email;
	// 用户性别
	private String gender;
	// 可用状态：0、被禁止 1、可用
	private Integer enableStatus;
	// 1.顾客 2.店家 3.超级管理员
	private Integer userType;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;

	public Long getUserId() {
		return userId;
	}

	public void setUserId(Long userId) {
		this.userId = userId;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getProfileImg() {
		return profileImg;
	}

	public void setProfileImg(String profileImg) {
		this.profileImg = profileImg;
	}

	public String getEmail() {
		return email;
	}

	public void setEmail(String email) {
		this.email = email;
	}

	public String getGender() {
		return gender;
	}

	public void setGender(String gender) {
		this.gender = gender;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public Integer getUserType() {
		return userType;
	}

	public void setUserType(Integer userType) {
		this.userType = userType;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

}

本地账号类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 本地验证实体类，主要用来做帐号密码的登录
 *
 * @author HenryLei
 *
 */
public class LocalAuth {
	// 主键ID
	private Long localAuthId;
	// 帐号
	private String username;
	// 密码
	private String password;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;
	// 个人信息，关系为一一对应
	private PersonInfo personInfo;

	public Long getLocalAuthId() {
		return localAuthId;
	}

	public void setLocalAuthId(Long localAuthId) {
		this.localAuthId = localAuthId;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public PersonInfo getPersonInfo() {
		return personInfo;
	}

	public void setPersonInfo(PersonInfo personInfo) {
		this.personInfo = personInfo;
	}

}

头条类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 头条实体类
 *
 * @author HenryLei
 *
 */
public class HeadLine {
	// 主键ID
	private Long lineId;
	// 头条名字
	private String lineName;
	// 头条链接，点击头条会进入相应链接中
	private String lineLink;
	// 头条图片
	private String lineImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 0.不可用 1.可用
	private Integer enableStatus;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;

	public Long getLineId() {
		return lineId;
	}

	public void setLineId(Long lineId) {
		this.lineId = lineId;
	}

	public String getLineName() {
		return lineName;
	}

	public void setLineName(String lineName) {
		this.lineName = lineName;
	}

	public String getLineLink() {
		return lineLink;
	}

	public void setLineLink(String lineLink) {
		this.lineLink = lineLink;
	}

	public String getLineImg() {
		return lineImg;
	}

	public void setLineImg(String lineImg) {
		this.lineImg = lineImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

}

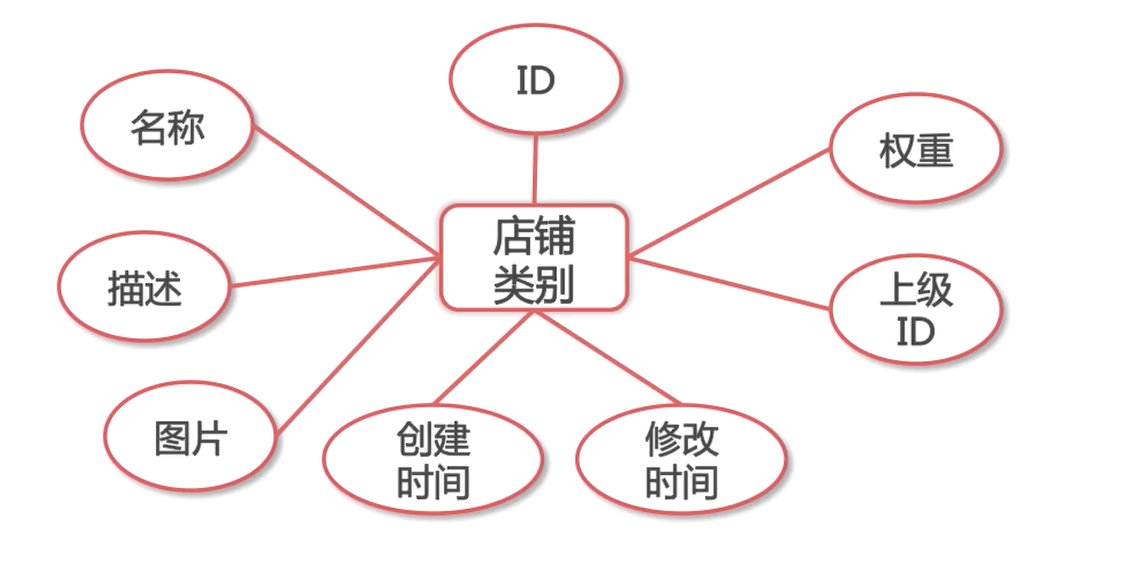

店铺类别类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 店铺类别实体类
 *
 * @author HenryLei
 *
 */
public class ShopCategory {

	// 主键ID
	private Long shopCategoryId;
	// 类别名
	private String shopCategoryName;
	// 类别描述
	private String shopCategoryDesc;
	// 类别图片地址(针对一级类别)
	private String shopCategoryImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 最近的更新时间
	private Date lastEditTime;
	// 父类别
	private ShopCategory parent;

	public Long getShopCategoryId() {
		return shopCategoryId;
	}

	public void setShopCategoryId(Long shopCategoryId) {
		this.shopCategoryId = shopCategoryId;
	}

	public String getShopCategoryName() {
		return shopCategoryName;
	}

	public void setShopCategoryName(String shopCategoryName) {
		this.shopCategoryName = shopCategoryName;
	}

	public String getShopCategoryDesc() {
		return shopCategoryDesc;
	}

	public void setShopCategoryDesc(String shopCategoryDesc) {
		this.shopCategoryDesc = shopCategoryDesc;
	}

	public String getShopCategoryImg() {
		return shopCategoryImg;
	}

	public void setShopCategoryImg(String shopCategoryImg) {
		this.shopCategoryImg = shopCategoryImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public ShopCategory getParent() {
		return parent;
	}

	public void setParent(ShopCategory parent) {
		this.parent = parent;
	}
}

店铺类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 店铺实体类
 *
 * @author HenryLei
 *
 */
public class Shop {
	// 主键ID
	private Long shopId;
	// 店铺名称
	private String shopName;
	// 店铺简介
	private String shopDesc;
	// 店铺地址
	private String shopAddr;
	// 店铺号码
	private String phone;
	// 店铺门面图片地址
	private String shopImg;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 最近一次更新的时间
	private Date lastEditTime;
	// -1.不可用 0.审核中 1.可用
	private Integer enableStatus;
	// 超级管理员给店家的提醒，包括为什么审核不通过等
	private String advice;
	// 店铺所属区域
	private Area area;
	// 店铺是属于哪个店家的
	private PersonInfo owner;
	// 店铺类别
	private ShopCategory shopCategory;

	public Long getShopId() {
		return shopId;
	}

	public void setShopId(Long shopId) {
		this.shopId = shopId;
	}

	public String getShopName() {
		return shopName;
	}

	public void setShopName(String shopName) {
		this.shopName = shopName;
	}

	public String getShopDesc() {
		return shopDesc;
	}

	public void setShopDesc(String shopDesc) {
		this.shopDesc = shopDesc;
	}

	public String getShopAddr() {
		return shopAddr;
	}

	public void setShopAddr(String shopAddr) {
		this.shopAddr = shopAddr;
	}

	public String getPhone() {
		return phone;
	}

	public void setPhone(String phone) {
		this.phone = phone;
	}

	public String getShopImg() {
		return shopImg;
	}

	public void setShopImg(String shopImg) {
		this.shopImg = shopImg;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public String getAdvice() {
		return advice;
	}

	public void setAdvice(String advice) {
		this.advice = advice;
	}

	public Area getArea() {
		return area;
	}

	public void setArea(Area area) {
		this.area = area;
	}

	public PersonInfo getOwner() {
		return owner;
	}

	public void setOwner(PersonInfo owner) {
		this.owner = owner;
	}

	public ShopCategory getShopCategory() {
		return shopCategory;
	}

	public void setShopCategory(ShopCategory shopCategory) {
		this.shopCategory = shopCategory;
	}

}

商品类别类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 商品类别实体类
 *
 * @author HenryLei
 *
 */
public class ProductCategory {
	// 主键ID
	private Long productCategoryId;
	// 该类别是属于哪个店铺的
	private Long shopId;
	// 类别名
	private String productCategoryName;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;

	public Long getProductCategoryId() {
		return productCategoryId;
	}

	public void setProductCategoryId(Long productCategoryId) {
		this.productCategoryId = productCategoryId;
	}

	public Long getShopId() {
		return shopId;
	}

	public void setShopId(Long shopId) {
		this.shopId = shopId;
	}

	public String getProductCategoryName() {
		return productCategoryName;
	}

	public void setProductCategoryName(String productCategoryName) {
		this.productCategoryName = productCategoryName;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

}

商品详情图片类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 商品详情图实体类
 *
 * @author HenryLei
 *
 */
public class ProductImg {
	// 主键ID
	private Long productImgId;
	// 图片地址
	private String imgAddr;
	// 图片简介
	private String imgDesc;
	// 权重，越大越排前显示
	private Integer priority;
	// 创建时间
	private Date createTime;
	// 标明是属于哪个商品的图片
	private Long productId;

	public Long getProductImgId() {
		return productImgId;
	}

	public void setProductImgId(Long productImgId) {
		this.productImgId = productImgId;
	}

	public String getImgAddr() {
		return imgAddr;
	}

	public void setImgAddr(String imgAddr) {
		this.imgAddr = imgAddr;
	}

	public String getImgDesc() {
		return imgDesc;
	}

	public void setImgDesc(String imgDesc) {
		this.imgDesc = imgDesc;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Long getProductId() {
		return productId;
	}

	public void setProductId(Long productId) {
		this.productId = productId;
	}

}

商品类设计

package com.hbut.o2o.entity;

import java.util.Date;
import java.util.List;

/**
 * 商品实体类
 *
 * @author HenryLei
 *
 */
public class Product {
	// 主键ID
	private Long productId;
	// 商品名
	private String productName;
	// 商品简介
	private String productDesc;
	// 简略图
	private String imgAddr;
	// 原价
	private String normalPrice;
	// 现价(推广价格)
	private String promotionPrice;
	// 权重，越大越排前显示
	private Integer priority;
	// 商品积分
	private Integer point;
	// 创建时间
	private Date createTime;
	// 最近一次的更新时间
	private Date lastEditTime;
	// 0.下架 1.在前端展示系统展示
	private Integer enableStatus;

	// 图片详情图列表，跟商品是多对一的关系
	private List<ProductImg> productImgList;
	// 商品类别，一件商品仅属于一个商品类别
	private ProductCategory productCategory;
	// 店铺实体类，标明商品属于哪个店铺
	private Shop shop;

	public Long getProductId() {
		return productId;
	}

	public void setProductId(Long productId) {
		this.productId = productId;
	}

	public String getProductName() {
		return productName;
	}

	public void setProductName(String productName) {
		this.productName = productName;
	}

	public String getProductDesc() {
		return productDesc;
	}

	public void setProductDesc(String productDesc) {
		this.productDesc = productDesc;
	}

	public String getImgAddr() {
		return imgAddr;
	}

	public void setImgAddr(String imgAddr) {
		this.imgAddr = imgAddr;
	}

	public String getNormalPrice() {
		return normalPrice;
	}

	public void setNormalPrice(String normalPrice) {
		this.normalPrice = normalPrice;
	}

	public String getPromotionPrice() {
		return promotionPrice;
	}

	public void setPromotionPrice(String promotionPrice) {
		this.promotionPrice = promotionPrice;
	}

	public Integer getPriority() {
		return priority;
	}

	public void setPriority(Integer priority) {
		this.priority = priority;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public Date getLastEditTime() {
		return lastEditTime;
	}

	public void setLastEditTime(Date lastEditTime) {
		this.lastEditTime = lastEditTime;
	}

	public Integer getEnableStatus() {
		return enableStatus;
	}

	public void setEnableStatus(Integer enableStatus) {
		this.enableStatus = enableStatus;
	}

	public Integer getPoint() {
		return point;
	}

	public void setPoint(Integer point) {
		this.point = point;
	}

	public List<ProductImg> getProductImgList() {
		return productImgList;
	}

	public void setProductImgList(List<ProductImg> productImgList) {
		this.productImgList = productImgList;
	}

	public ProductCategory getProductCategory() {
		return productCategory;
	}

	public void setProductCategory(ProductCategory productCategory) {
		this.productCategory = productCategory;
	}

	public Shop getShop() {
		return shop;
	}

	public void setShop(Shop shop) {
		this.shop = shop;
	}
}

微信登录实体类设计

package com.hbut.o2o.entity;

import java.util.Date;

/**
 * 微信登录实体类
 *
 * @author HenryLei
 *
 */
public class WechatAuth {
	// 主键ID
	private Long wechatAuthId;
	// 微信获取用户信息的凭证，对于某个公众号具有唯一性
	private String openId;
	// 创建时间
	private Date createTime;
	// 用户信息
	private PersonInfo personInfo;

	public Long getWechatAuthId() {
		return wechatAuthId;
	}

	public void setWechatAuthId(Long wechatAuthId) {
		this.wechatAuthId = wechatAuthId;
	}

	public String getOpenId() {
		return openId;
	}

	public void setOpenId(String openId) {
		this.openId = openId;
	}

	public Date getCreateTime() {
		return createTime;
	}

	public void setCreateTime(Date createTime) {
		this.createTime = createTime;
	}

	public PersonInfo getPersonInfo() {
		return personInfo;
	}

	public void setPersonInfo(PersonInfo personInfo) {
		this.personInfo = personInfo;
	}

}
