最近,我在编写一款自娱自乐的单词对比记忆的软件NITIAN WORD,这里选取它的一部分逻辑,利用白盒方法进行测试,算是理论联系实际吧。
主要逻辑代码:
String wordsArray[] = new String[Global.input_words_ceiling];
NTDictionary dict = new NTDictionary();
while(!endFlag) {
System.out.println("----------------------------------------------------------");
System.out.println("please input a group of English words");
System.out.println("words separated by a space, and end up with the key Enter");
System.out.println("and enter q to quit");
sc = new Scanner(System.in);
String st = sc.nextLine().trim(); // wipe out the head and the tall space
if(st.equals("q")) {
endFlag = true;
System.out.println("you have exit normally");
} else if(st.equals("")) {
System.out.println("the input should not be empty");
} else {
//use regular expression to make sure that the string only consists of English characters
Pattern pattern = Pattern.compile("^[A-Za-z\\s]+$");
Matcher matcher = pattern.matcher(st);
boolean isAllEngFlag = matcher.matches();
if(isAllEngFlag == true) {
wordsArray = st.split("\\s+"); // wipe out more spaces and get each word
int isExist = dict.judgeExistence(wordsArray); //judge whether there is the identical entry
if(isExist == 0) {
dict.collectWords(wordsArray);//if not exist, collect the entry
System.out.println("yeah, SUCCESS");
} else {
System.out.println("there is already entry");
System.out.println("the line num is-----> " + isExist);
}
} else {
System.out.println("your input shoud only be composed of English characters");
}
}

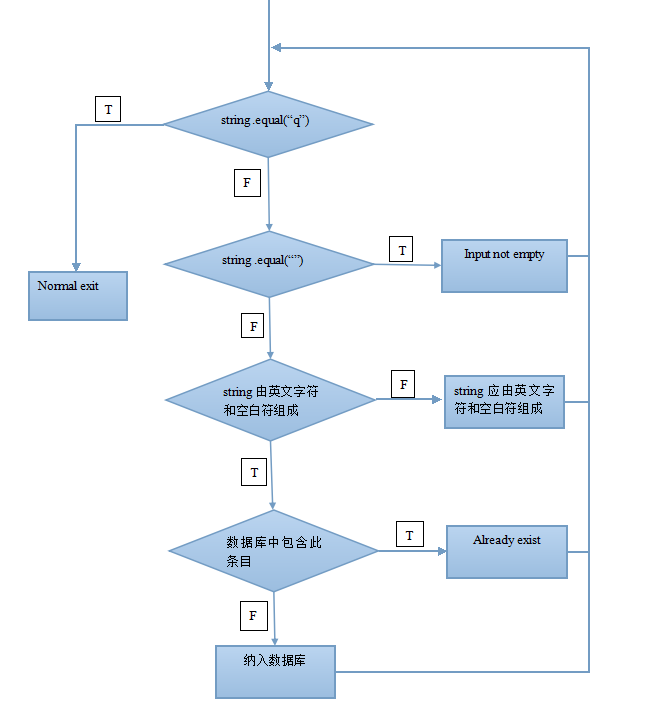

程序流程图:

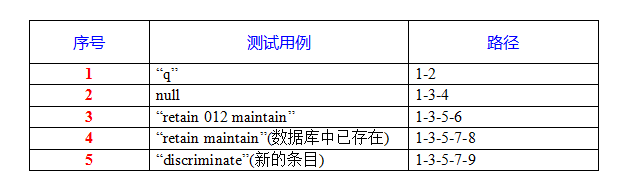

白盒测试之语句覆盖:

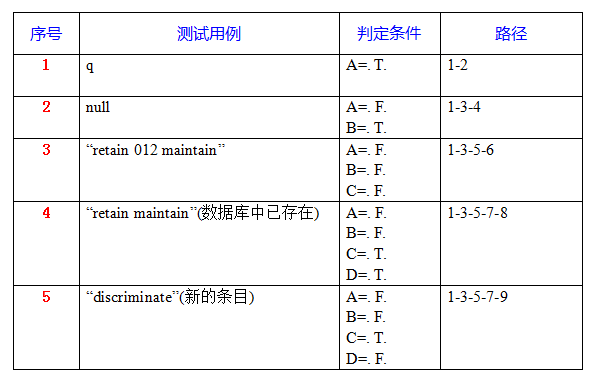

白盒测试之判定覆盖:

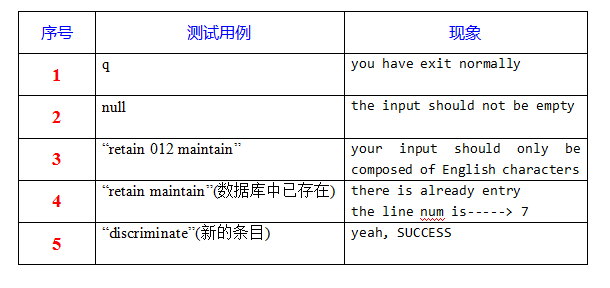

测试情况:
总结:
这里语句覆盖和判定覆盖所用的最少测试用例一模一样,这是因为只要执行到一个可执行语句,就意味着结束,所以有多少个执行语句,就有多少个测试用例,从而达到语句覆盖的目的。而在判定覆盖中,只要用例能全部执行到可执行代码实际上就涵盖了所有的分支,同样一个用例只能执行一个可执行语句。所以二者的用例一模一样,证明完毕。
