Setting下的自定义控件LinearColorBar

版本：1.0

日期：2014.3.21

版权：© 2013，2014 kince 转载注明出处

Setting应用下使用了不少自定义控件，比如这些效果：

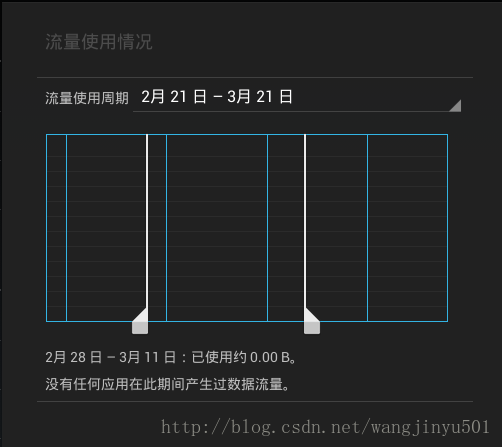

流量显示

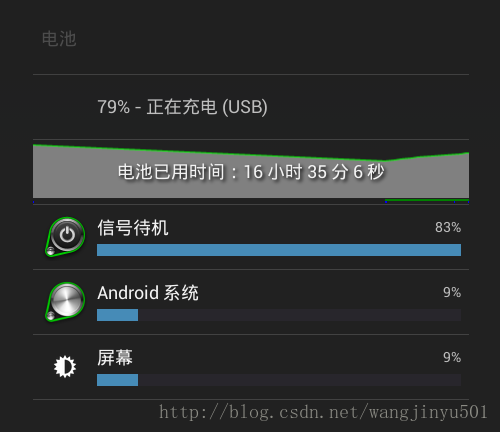

电量显示

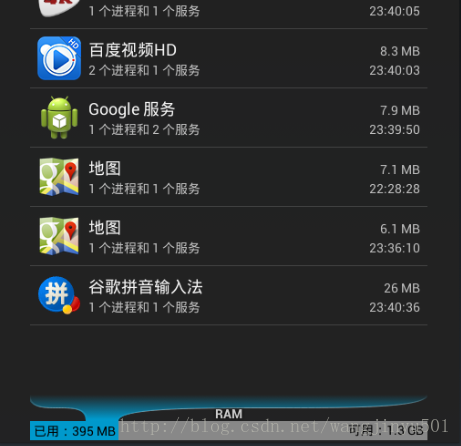

存储空间显示

先介绍最后这个 存储空间显示的LinearColorBar，通过名字就可以看出是是继承于LinearLayout，确实也是如此。分析一下这个效果，在控件的左边显示已经使用了多少空间，右边是所有可用空间。上面还有所显示的类别，RAM。当然最主要的还是那个环形的效果。看一下 LinearColorBar的实现代码：

/**
*
*/
package com.example.settingscustomviewdemo.widget;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.LinearGradient;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.Rect;
import android.graphics.Shader;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.widget.LinearLayout;

public class LinearColorBar extends LinearLayout {

    static final int LEFT_COLOR = 0xff0099cc;
    static final int MIDDLE_COLOR = 0xff0099cc;
    static final int RIGHT_COLOR = 0xff888888;

    private float mRedRatio;
    private float mYellowRatio;
    private float mGreenRatio;

    private boolean mShowingGreen;

    final Rect mRect = new Rect();
    final Paint mPaint = new Paint();

    int mLastInterestingLeft, mLastInterestingRight;
    int mLineWidth;

    final Path mColorPath = new Path();
    final Path mEdgePath = new Path();
    final Paint mColorGradientPaint = new Paint();
    final Paint mEdgeGradientPaint = new Paint();

    public LinearColorBar(Context context, AttributeSet attrs) {
        super(context, attrs);
        setWillNotDraw(false);
        mPaint.setStyle(Paint.Style.FILL);
        mColorGradientPaint.setStyle(Paint.Style.FILL);
        mColorGradientPaint.setAntiAlias(true);
        mEdgeGradientPaint.setStyle(Paint.Style.STROKE);
        mLineWidth = getResources().getDisplayMetrics().densityDpi >= DisplayMetrics.DENSITY_HIGH
                ? 2 : 1;
        mEdgeGradientPaint.setStrokeWidth(mLineWidth);
        mEdgeGradientPaint.setAntiAlias(true);

    }

    public void setRatios(float red, float yellow, float green) {
        mRedRatio = red;
        mYellowRatio = yellow;
        mGreenRatio = green;
        invalidate();
    }

    public void setShowingGreen(boolean showingGreen) {
        if (mShowingGreen != showingGreen) {
            mShowingGreen = showingGreen;
            updateIndicator();
            invalidate();
        }
    }

    private void updateIndicator() {
        int off = getPaddingTop() - getPaddingBottom();
        if (off < 0) off = 0;
        mRect.top = off;
        mRect.bottom = getHeight();
        if (mShowingGreen) {
            mColorGradientPaint.setShader(new LinearGradient(
                    0, 0, 0, off-2, RIGHT_COLOR&0xffffff, RIGHT_COLOR, Shader.TileMode.CLAMP));
        } else {
            mColorGradientPaint.setShader(new LinearGradient(
                    0, 0, 0, off-2, MIDDLE_COLOR&0xffffff, MIDDLE_COLOR, Shader.TileMode.CLAMP));
        }
        mEdgeGradientPaint.setShader(new LinearGradient(
                0, 0, 0, off/2, 0x00a0a0a0, 0xffa0a0a0, Shader.TileMode.CLAMP));
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        updateIndicator();
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        int width = getWidth();

        int left = 0;

        int right = left + (int)(width*mRedRatio);
        int right2 = right + (int)(width*mYellowRatio);
        int right3 = right2 + (int)(width*mGreenRatio);

        int indicatorLeft, indicatorRight;
        if (mShowingGreen) {
            indicatorLeft = right2;
            indicatorRight = right3;
        } else {
            indicatorLeft = right;
            indicatorRight = right2;
        }

        if (mLastInterestingLeft != indicatorLeft || mLastInterestingRight != indicatorRight) {
            mColorPath.reset();
            mEdgePath.reset();
            if (indicatorLeft < indicatorRight) {
                final int midTopY = mRect.top;
                final int midBottomY = 0;
                final int xoff = 2;
                mColorPath.moveTo(indicatorLeft, mRect.top);
                mColorPath.cubicTo(indicatorLeft, midBottomY,
                        -xoff, midTopY,
                        -xoff, 0);
                mColorPath.lineTo(width+xoff-1, 0);
                mColorPath.cubicTo(width+xoff-1, midTopY,
                        indicatorRight, midBottomY,
                        indicatorRight, mRect.top);
                mColorPath.close();
                final float lineOffset = mLineWidth+.5f;
                mEdgePath.moveTo(-xoff+lineOffset, 0);
                mEdgePath.cubicTo(-xoff+lineOffset, midTopY,
                        indicatorLeft+lineOffset, midBottomY,
                        indicatorLeft+lineOffset, mRect.top);
                mEdgePath.moveTo(width+xoff-1-lineOffset, 0);
                mEdgePath.cubicTo(width+xoff-1-lineOffset, midTopY,
                        indicatorRight-lineOffset, midBottomY,
                        indicatorRight-lineOffset, mRect.top);
            }
            mLastInterestingLeft = indicatorLeft;
            mLastInterestingRight = indicatorRight;
        }

        if (!mEdgePath.isEmpty()) {
            canvas.drawPath(mEdgePath, mEdgeGradientPaint);
            canvas.drawPath(mColorPath, mColorGradientPaint);
        }

        if (left < right) {
            mRect.left = left;
            mRect.right = right;
            mPaint.setColor(LEFT_COLOR);
            canvas.drawRect(mRect, mPaint);
            width -= (right-left);
            left = right;
        }

        right = right2;

        if (left < right) {
            mRect.left = left;
            mRect.right = right;
            mPaint.setColor(MIDDLE_COLOR);
            canvas.drawRect(mRect, mPaint);
            width -= (right-left);
            left = right;
        }


        right = left + width;
        if (left < right) {
            mRect.left = left;
            mRect.right = right;
            mPaint.setColor(RIGHT_COLOR);
            canvas.drawRect(mRect, mPaint);
        }
    }
}

读完源码看一下它的变量，画笔Paint不说了，用于设置笔触的样式。除此之外就是Rect和Path了，关于这两个类的功能，其实从字面意思大体可以猜得出来。Rect是用于绘制矩形的，Path则用于画线，包括直线、二次曲线、三次曲线等。那从这两个类的用途就不难猜出它们各自在LinaerColorBar中的作用了，Rect用于绘制使用了多少空间的进度条，Path则是用于绘制那个二次型图案。

然后直接进入Draw()方法，开始初始化一些变量，这些变量之后会使用到。

          int width = getWidth();//获取组件宽度

          int left = 0;
          //
          int right = left + (int) (width * mRedRatio);//
          int right2 = right + (int) (width * mYellowRatio);//
          int right3 = right2 + (int) (width * mGreenRatio);//

          int indicatorLeft, indicatorRight;
          if (mShowingGreen) {
               indicatorLeft = right2;
               indicatorRight = right3;
          } else {
               indicatorLeft = right;
               indicatorRight = right2;
          }

这几个right值就是根据设置的空间使用大小转换而来的，其实就是控件宽度的比例值，在画Rect的时候传入即可。接着往下看，

                    mColorPath.moveTo(indicatorLeft, mRect.top);

                    mColorPath.cubicTo(indicatorLeft, midBottomY, -xoff, midTopY,
                              -xoff, 0);
                    mColorPath.lineTo(width + xoff - 1, 0);
                    mColorPath.cubicTo(width + xoff - 1, midTopY, indicatorRight,
                              midBottomY, indicatorRight, mRect.top);

                    mColorPath.close();

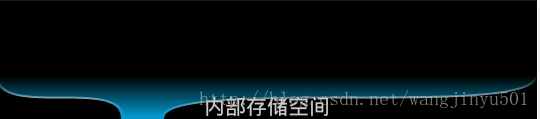

这段代码就是用于画这个弧形的，首先moveTo()方法，将画笔移动到这个点，然后使用cubicTo方法画一个二次曲线，因为画笔设置了Paint.Style.FILL，所以看起来像是一片的效果，而不是直线。

                    final float lineOffset = mLineWidth + .5f;
                    mEdgePath.moveTo(-xoff + lineOffset, 0);
                    mEdgePath.cubicTo(-xoff + lineOffset, midTopY, indicatorLeft
                              + lineOffset, midBottomY, indicatorLeft + lineOffset,
                              mRect.top);
                    mEdgePath.moveTo(width + xoff - 1 - lineOffset, 0);
                    mEdgePath.cubicTo(width + xoff - 1 - lineOffset, midTopY,
                              indicatorRight - lineOffset, midBottomY, indicatorRight
                                        - lineOffset, mRect.top);

这段代码用于在之前的基础上描边，

这样，弧形效果就实现了。然后就是下面的矩形了，

if (left < right) {
               mRect.left = left;
               mRect.right = right;
               mPaint.setColor(LEFT_COLOR);
               canvas.drawRect(mRect, mPaint);
               width -= (right - left);
               left = right;
          }

          right = right2;

          if (left < right) {
               mRect.left = left;
               mRect.right = right;
               mPaint.setColor(MIDDLE_COLOR);
               canvas.drawRect(mRect, mPaint);
               width -= (right - left);
               left = right;
          }

          right = left + width;
          if (left < right) {
               mRect.left = left;
               mRect.right = right;
               mPaint.setColor(RIGHT_COLOR);
               canvas.drawRect(mRect, mPaint);
          }

这个就相对简单了，用Rect直接画就行了。

总结：这个自定义的控件是继承于系统原有的容器控件LinearLayout，为什么要选择 LinearLayout呢，其实也可以是RelativeLayout,容器控件都可以，只要把那三个TextView安放好位置就行。然后就是绘图了，这里结合了Paint、Path、Rect以及Canvas的使用，其实自定义控件很多时候就是使用这几个类，所以对这几个类的掌握尤为重要。那最后就是逻辑，这也是很重要的一个部分，对于效果我们可能想到使用什么类去实现，那对于效果的控制与变化就需要依靠逻辑了。

demo下载
