FontMetrics与TextView.textSize的关系

确定FontMetrics与TextView.textSize的关系

 {
            //test mode
            Paint testPaint = new Paint();
            for (int i = 10; i < 100; i += 10) {
                testPaint.setTextSize(i);
                Paint.FontMetrics fontMetrics = testPaint.getFontMetrics();
                Log.e("jaesoon", i + " ascent -top : " + (fontMetrics.ascent - fontMetrics.top) + "  buttom - top:" + (fontMetrics.bottom - fontMetrics.top));
            }
 }

输出：

04-28 10:13:35.905 4058-4058/? E/jaesoon: 10 ascent -top : 1.2841797  buttom - top:13.271484
04-28 10:13:35.905 4058-4058/? E/jaesoon: 20 ascent -top : 2.5683594  buttom - top:26.542969
04-28 10:13:35.905 4058-4058/? E/jaesoon: 30 ascent -top : 3.852539  buttom - top:39.814453
04-28 10:13:35.905 4058-4058/? E/jaesoon: 40 ascent -top : 5.1367188  buttom - top:53.085938
04-28 10:13:35.905 4058-4058/? E/jaesoon: 50 ascent -top : 6.4208984  buttom - top:66.35742
04-28 10:13:35.905 4058-4058/? E/jaesoon: 60 ascent -top : 7.705078  buttom - top:79.62891
04-28 10:13:35.905 4058-4058/? E/jaesoon: 70 ascent -top : 8.989258  buttom - top:92.90039
04-28 10:13:35.905 4058-4058/? E/jaesoon: 80 ascent -top : 10.2734375  buttom - top:106.171875
04-28 10:13:35.905 4058-4058/? E/jaesoon: 90 ascent -top : 11.557617  buttom - top:119.44336
04-28 10:13:35.922 4058-4058/? E/jaesoon: 10 ascent -top : 1.2841797  buttom - top:13.271484
04-28 10:13:35.922 4058-4058/? E/jaesoon: 20 ascent -top : 2.5683594  buttom - top:26.542969
04-28 10:13:35.922 4058-4058/? E/jaesoon: 30 ascent -top : 3.852539  buttom - top:39.814453
04-28 10:13:35.922 4058-4058/? E/jaesoon: 40 ascent -top : 5.1367188  buttom - top:53.085938
04-28 10:13:35.922 4058-4058/? E/jaesoon: 50 ascent -top : 6.4208984  buttom - top:66.35742
04-28 10:13:35.922 4058-4058/? E/jaesoon: 60 ascent -top : 7.705078  buttom - top:79.62891
04-28 10:13:35.922 4058-4058/? E/jaesoon: 70 ascent -top : 8.989258  buttom - top:92.90039
04-28 10:13:35.922 4058-4058/? E/jaesoon: 80 ascent -top : 10.2734375  buttom - top:106.171875
04-28 10:13:35.922 4058-4058/? E/jaesoon: 90 ascent -top : 11.557617  buttom - top:119.44336

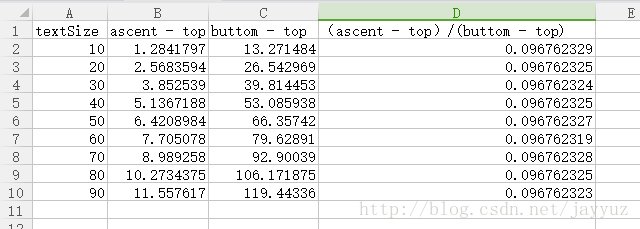

excel计算关系式:

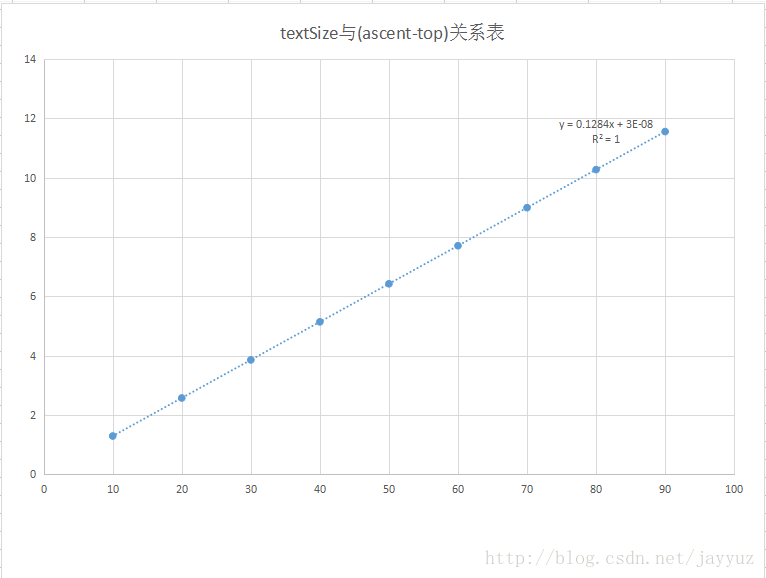

显示图表，并拟合公式：

可以得到公式：y=0.1284x+3*10^-8
最后还要注意一点，FontMetrics与TextView的typeface也有关系哦。确定方式可以按照上述思路进行。
好的，打完收工。继续撸代码。
