【语义分割】7、OCRNet：Object-Context Representations for Semantic Segmentation

一、文章出发点

每个像素点的类别（label）应该是它所属目标（object）的类别。

所以这篇文章对像素的上下文信息建模

建模方法：求每个像素点和每个类别的相关性

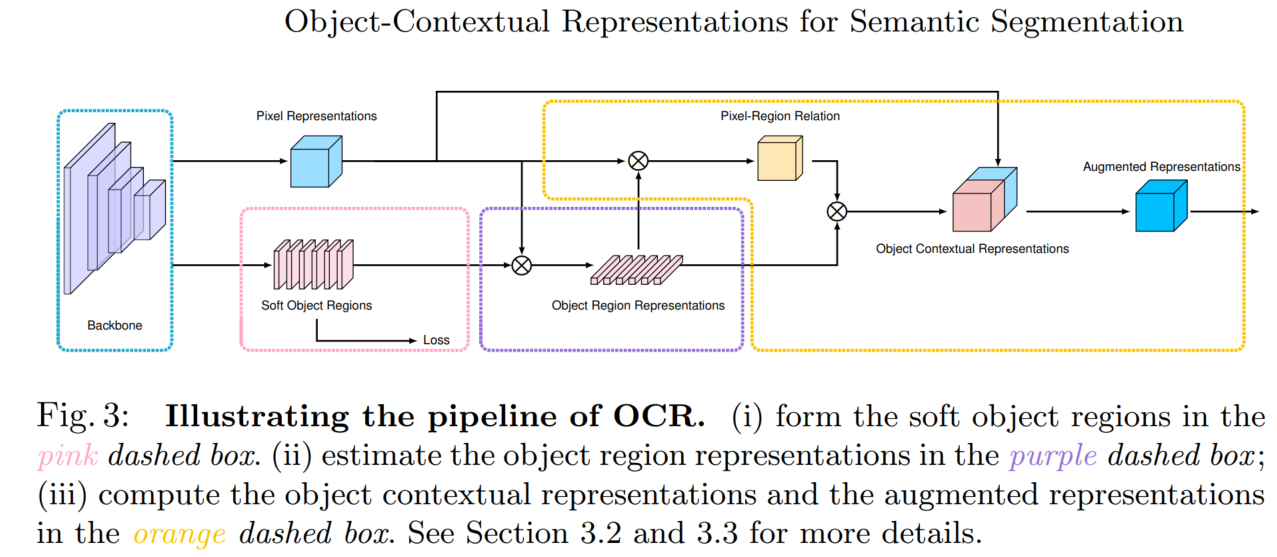

二、方法

方法（以 cityscapes 19类为例）：这里最终的加权可以看做是像素和类别之间的加权

• 首先，得到普通的初始分割结果（19类）
• 然后，计算每个特征图（512）和初始分割结果（19）的相关性，得到 512x19 的矩阵
• 之后，用该 512x19 的矩阵，对特征图（512）加权，得到加权后的特征图
• 最后，对加权后的特征图进行特征抽取，得到加权后的最终分割结果（19类）

# prev_output: 19d的粗糙预测结果
# feats：将hrnet输出的720d的变成512d
# context：每个类别图和每个特征图的关系(19x512)
# object_context：self-attention

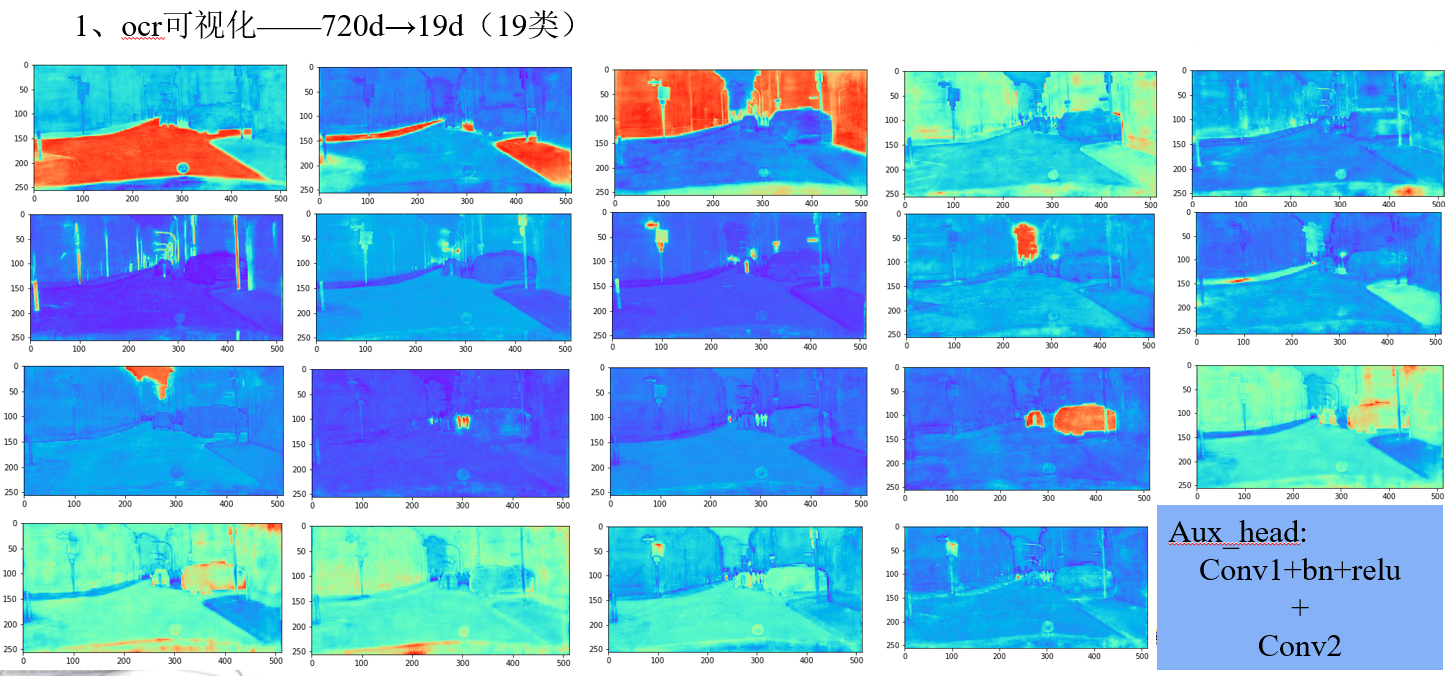

1、prev_output：

2、feats获得

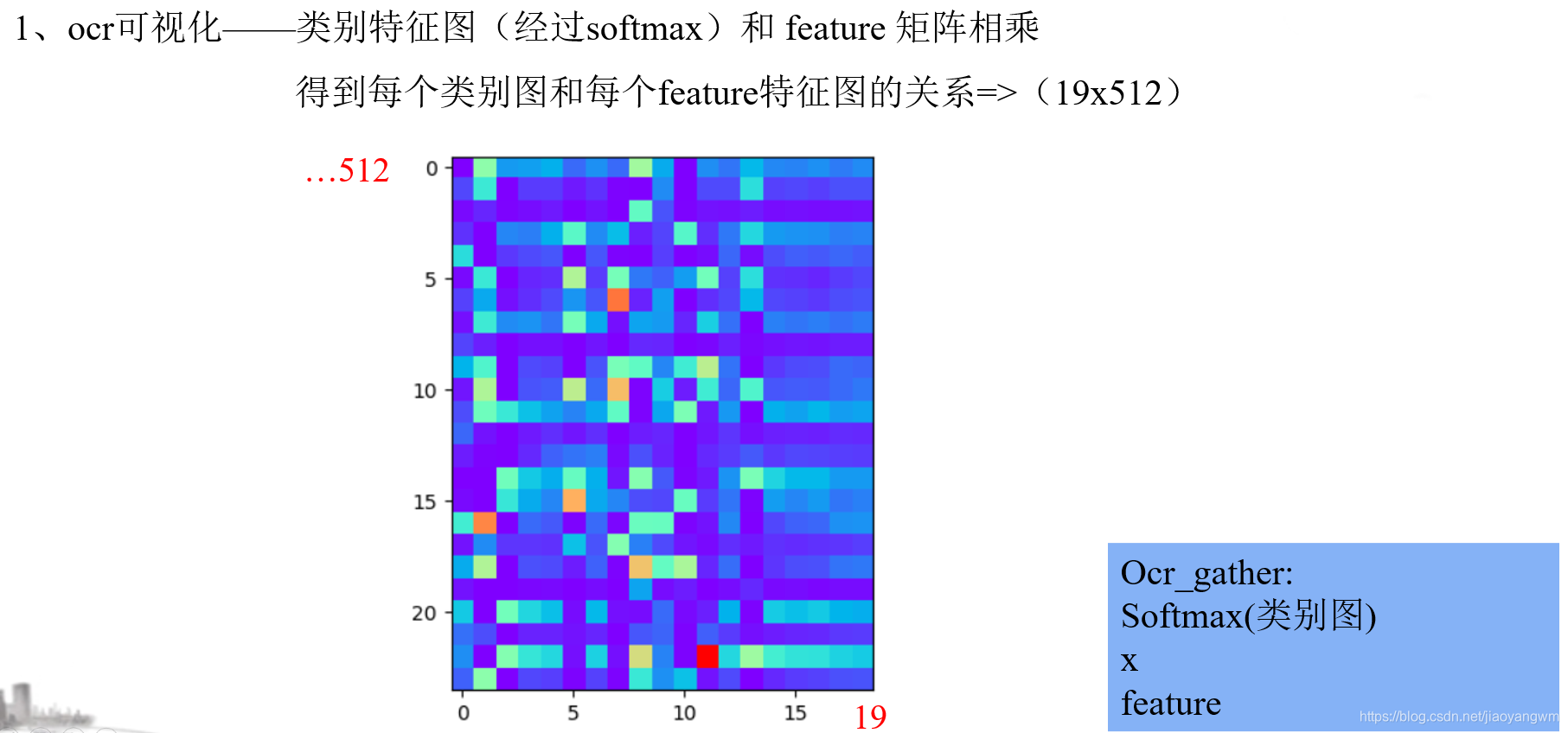

3、context获得

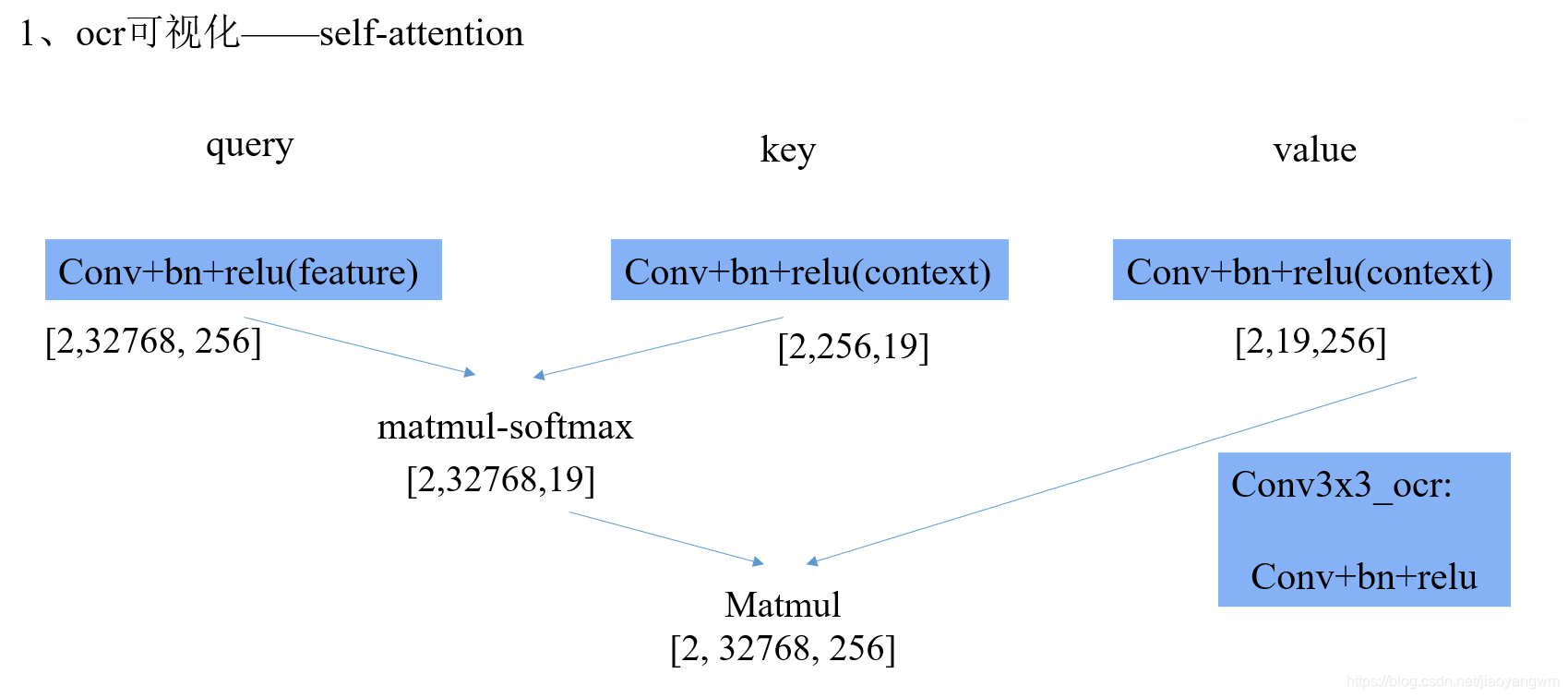

4、self-attention

import torch
import torch.nn as nn
import torch.nn.functional as F
from mmcv.cnn import ConvModule

from mmseg.ops import resize
from ..builder import HEADS
from ..utils import SelfAttentionBlock as _SelfAttentionBlock
from .cascade_decode_head import BaseCascadeDecodeHead
# from .Attention_layer import HardClassAttention as HCA


class SpatialGatherModule(nn.Module):
    """Aggregate the context features according to the initial predicted
    probability distribution.

    Employ the soft-weighted method to aggregate the context.
    """

    def __init__(self, scale):
        super(SpatialGatherModule, self).__init__()
        self.scale = scale

    def forward(self, feats, probs):
        """Forward function."""
        batch_size, num_classes, height, width = probs.size()
        channels = feats.size(1)
        probs = probs.view(batch_size, num_classes, -1)
        feats = feats.view(batch_size, channels, -1)
        # [batch_size, height*width, num_classes]
        feats = feats.permute(0, 2, 1)
        # [batch_size, channels, height*width]
        probs = F.softmax(self.scale * probs, dim=2)
        # [batch_size, channels, num_classes]
        ocr_context = torch.matmul(probs, feats)
        ocr_context = ocr_context.permute(0, 2, 1).contiguous().unsqueeze(3)
        return ocr_context
class ClassRelationGatherModule(nn.Module):
    """Aggregate the context features according to the initial predicted
    probability distribution.

    Employ the soft-weighted method to aggregate the context.
    """

    def __init__(self, scale):
        super(ClassRelationGatherModule, self).__init__()
        self.scale = scale

    def forward(self, feats, probs):
        """Forward function."""
        batch_size, num_classes, height, width = probs.size()
        channels = feats.size(1)
        probs_1 = probs.view(batch_size, num_classes, -1)
        probs_2 = probs.view(batch_size, num_classes, -1)
        # [batch_size, height*width, num_classes]
        probs_2 = probs_2.permute(0, 2, 1)
        # [batch_size, channels, height*width]
        probs_1 = F.softmax(self.scale * probs_1, dim=2)
        # [batch_size, channels, num_classes]
        class_gather = torch.matmul(probs_1, probs_2)
        class_gather = class_gather.permute(0, 2, 1).contiguous().unsqueeze(3)
        return class_gather

class ObjectAttentionBlock(_SelfAttentionBlock):
    """Make a OCR used SelfAttentionBlock."""

    def __init__(self, in_channels, channels, scale, conv_cfg, norm_cfg,
                 act_cfg):
        if scale > 1:
            query_downsample = nn.MaxPool2d(kernel_size=scale)
        else:
            query_downsample = None
        super(ObjectAttentionBlock, self).__init__(
            key_in_channels=in_channels,
            query_in_channels=in_channels,
            channels=channels,
            out_channels=in_channels,
            share_key_query=False,
            query_downsample=query_downsample,
            key_downsample=None,
            key_query_num_convs=2,
            key_query_norm=True,
            value_out_num_convs=1,
            value_out_norm=True,
            matmul_norm=True,
            with_out=True,
            conv_cfg=conv_cfg,
            norm_cfg=norm_cfg,
            act_cfg=act_cfg)
        self.bottleneck = ConvModule(
            in_channels * 2,
            in_channels,
            1,
            conv_cfg=self.conv_cfg,
            norm_cfg=self.norm_cfg,
            act_cfg=self.act_cfg)

    def forward(self, query_feats, key_feats):
        """Forward function."""
        context = super(ObjectAttentionBlock, self).forward(query_feats, key_feats)
        output = self.bottleneck(torch.cat([context, query_feats], dim=1))
        if self.query_downsample is not None:
            output = resize(query_feats)

        return output


@HEADS.register_module()
class OCRHead(BaseCascadeDecodeHead):
    """Object-Contextual Representations for Semantic Segmentation.

    This head is the implementation of `OCRNet
    <https://arxiv.org/abs/1909.11065>`_.

    Args:
        ocr_channels (int): The intermediate channels of OCR block.
        scale (int): The scale of probability map in SpatialGatherModule in
            Default: 1.
    """

    def __init__(self, ocr_channels, scale=1, **kwargs):
        super(OCRHead, self).__init__(**kwargs)
        self.ocr_channels = ocr_channels
        self.scale = scale
        self.object_context_block = ObjectAttentionBlock(
            self.channels,
            self.ocr_channels,
            self.scale,
            conv_cfg=self.conv_cfg,
            norm_cfg=self.norm_cfg,
            act_cfg=self.act_cfg)
        self.spatial_gather_module = SpatialGatherModule(self.scale)
        self.class_relation_gather_module = ClassRelationGatherModule(self.scale)
        self.bottleneck = ConvModule(
            self.in_channels,
            self.channels,
            3,
            padding=1,
            conv_cfg=self.conv_cfg,
            norm_cfg=self.norm_cfg,
            act_cfg=self.act_cfg)

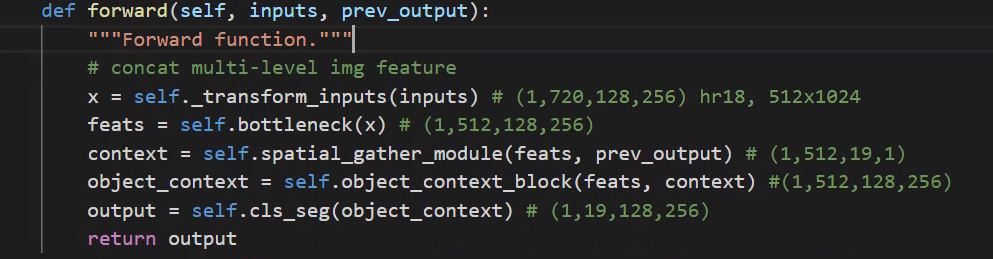

    def forward(self, inputs, prev_output):
        """Forward function."""
        # concat multi-level img feature
        x = self._transform_inputs(inputs) # (1,720,128,256) hr18, 512x1024

        feats = self.bottleneck(x) # (1,512,128,256)

        context = self.spatial_gather_module(feats, prev_output) # (1,512,19,1)
        object_context = self.object_context_block(feats, context) #(1,512,128,256)
        output = self.cls_seg(object_context) # (1,19,128,256)

        return output

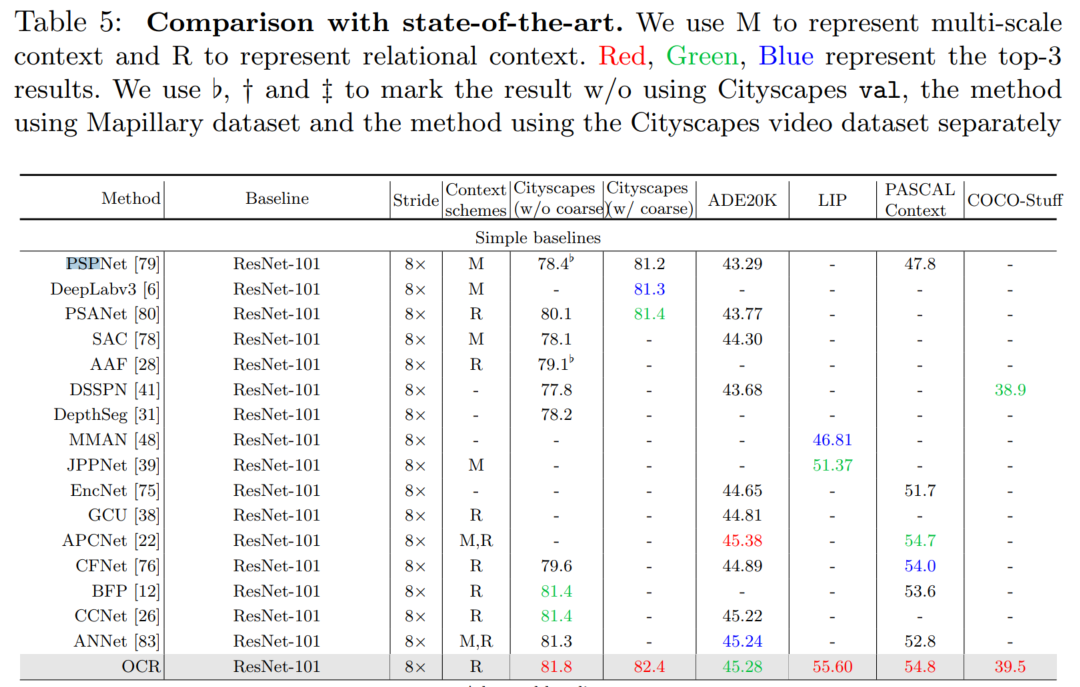

三、效果

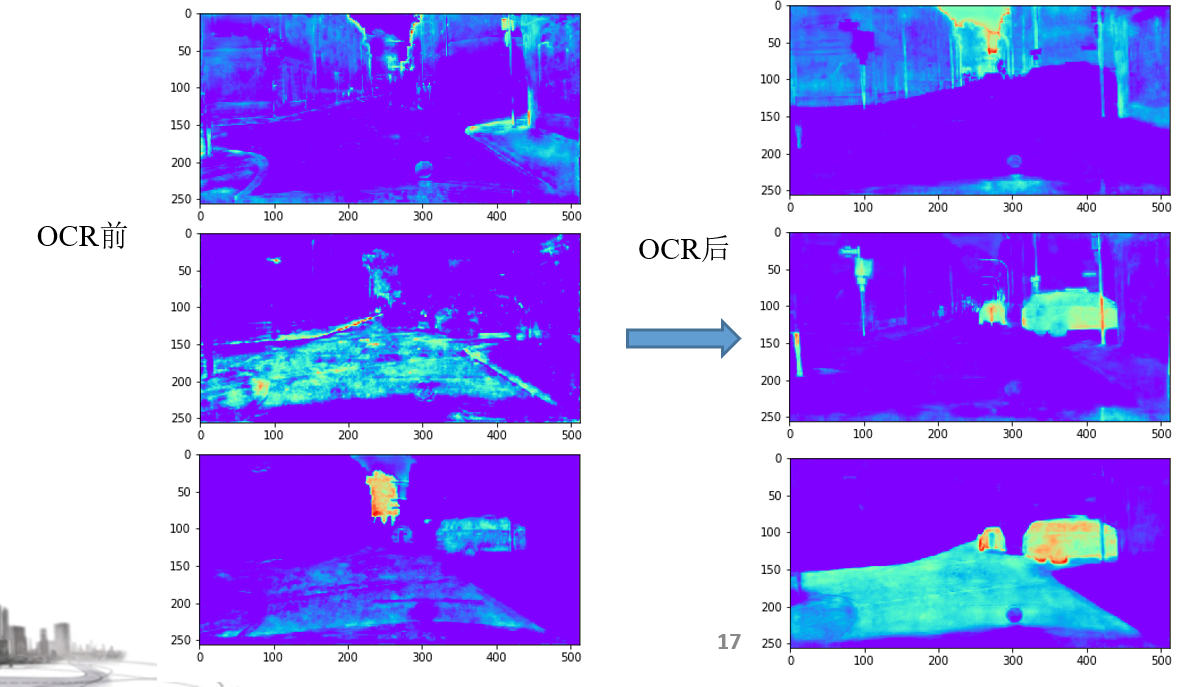

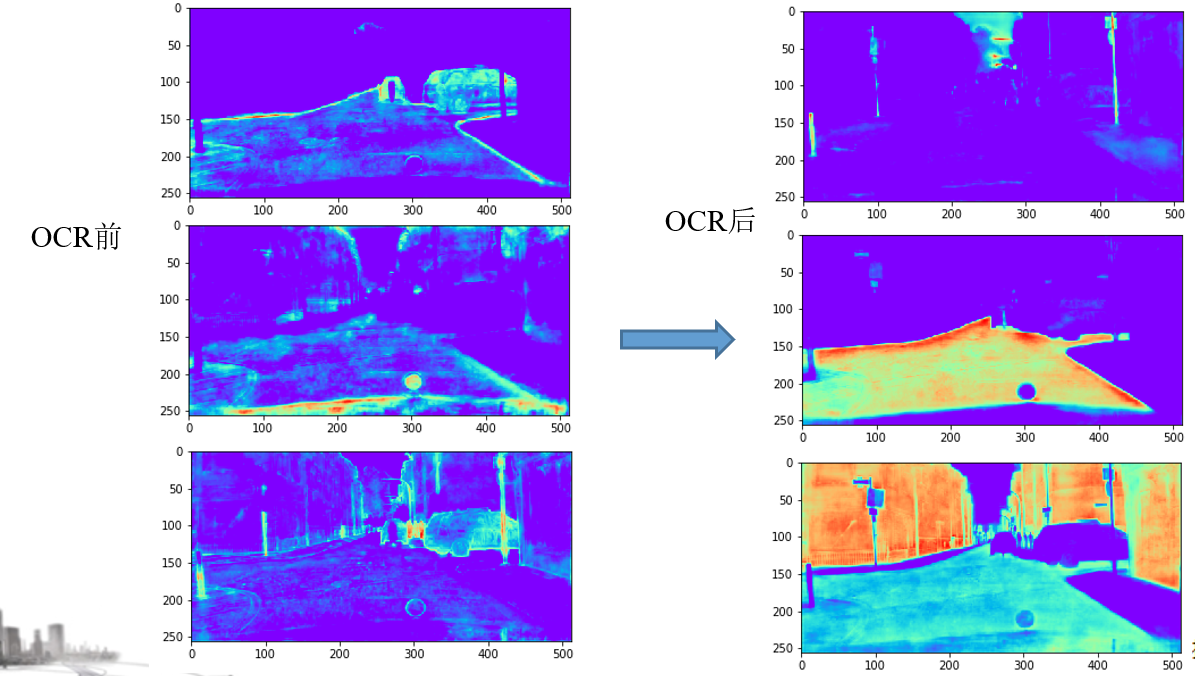

经过OCR头后的效果对比如下图，每个类别的响应比较全面且稳定。

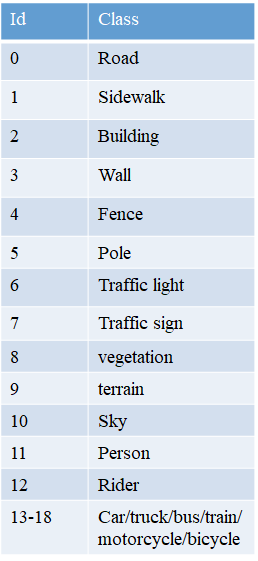

cityscape类别和通道的对应：
