ThreeBSP的下载

https://github.com/sshirokov/ThreeBSP

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title></title>
    <style>
        body { margin: 0; }
        canvas { width: 100%; height: 100%; }
    </style>
</head>
<body>
    <script src="js/three.js"></script>
    <script src="js/controls/OrbitControls.js"></script>
    <script src="js/threeBSP.js"></script>
    <script>
        var scene;
		var renderer;
		var camera;
        function initScene(){
            scene = new THREE.Scene();
        }


        function initCamera(){
            camera = new THREE.PerspectiveCamera( 60, window.innerWidth/window.innerHeight, 0.1, 1000);
            camera.position.z = 40;
            camera.position.y = 40;
            camera.position.x = 20;
            camera.lookAt({x:0,y:0,z:1});
            controls = new THREE.OrbitControls( camera );
        }


        function initRender(){
            renderer = new THREE.WebGLRenderer({antialias: true});
            renderer.setSize( window.innerWidth, window.innerHeight );
            document.body.appendChild( renderer.domElement );
            renderer.setClearColor(0xFFFFFF, 1.0);
        }


        function initObject(){

            // 墙面3
            var cubeGeometry = new THREE.BoxGeometry(1, 10, 30);
            var cube = new THREE.Mesh( cubeGeometry );            // 设置墙面位置


            // 窗户
            var door = new THREE.BoxGeometry(1, 8, 15);
            var doorMesh = new THREE.Mesh( door);
            doorMesh.position.z = 5

            var cubeBSP = new ThreeBSP(cube);
            var doorBSP = new ThreeBSP(doorMesh);

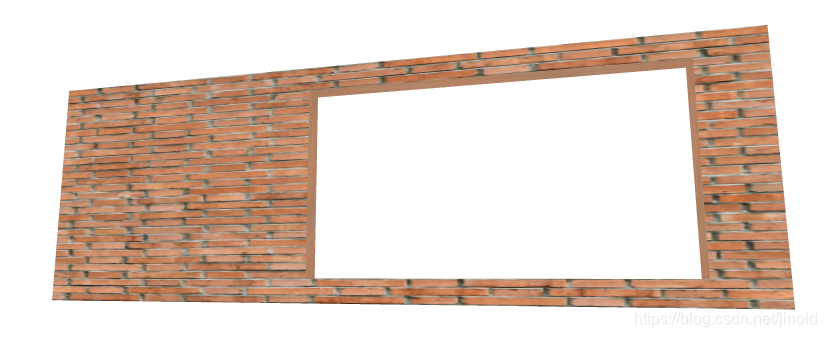

            resultBSP = cubeBSP.subtract(doorBSP); // 墙体挖窗户
            result = resultBSP.toMesh();


            var cubeGeometry = result.geometry

            var cubeMaterial = new THREE.MeshBasicMaterial({
            	map:THREE.ImageUtils.loadTexture('module/1.jpg')
            })

            qiangTiMesh = new THREE.Mesh(cubeGeometry,cubeMaterial);
            scene.add(qiangTiMesh);
        }

        function render() {
            requestAnimationFrame( render );
            renderer.render( scene, camera );
        }
        init();
        render();

        function init(){
            initRender();
            initScene();
            initCamera();
            initObject();
        }
    </script>
</body>
</html>

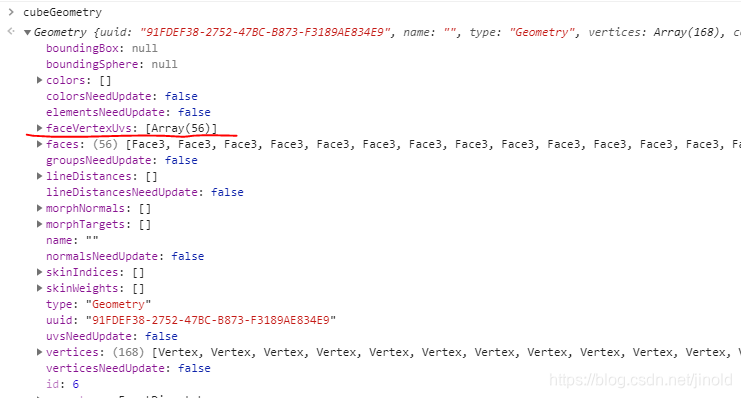

我们看下cubeGeometry的内容，原来用的也是face操作

关于face、faceVertexUvs的理解的说明参考

https://blog.csdn.net/jinold/article/details/97831606

其他参考文件：

http://www.yanhuangxueyuan.com/three.js_course/boolean.html

http://www.mamicode.com/info-detail-1649440.html

https://www.wjceo.com/blog/threejs/2018-02-12/53.html
