自学项目时,有时会需要使用域名直接访问对应的网址或者执行负载均衡操作,这个时候可以使用nginx反向代理。

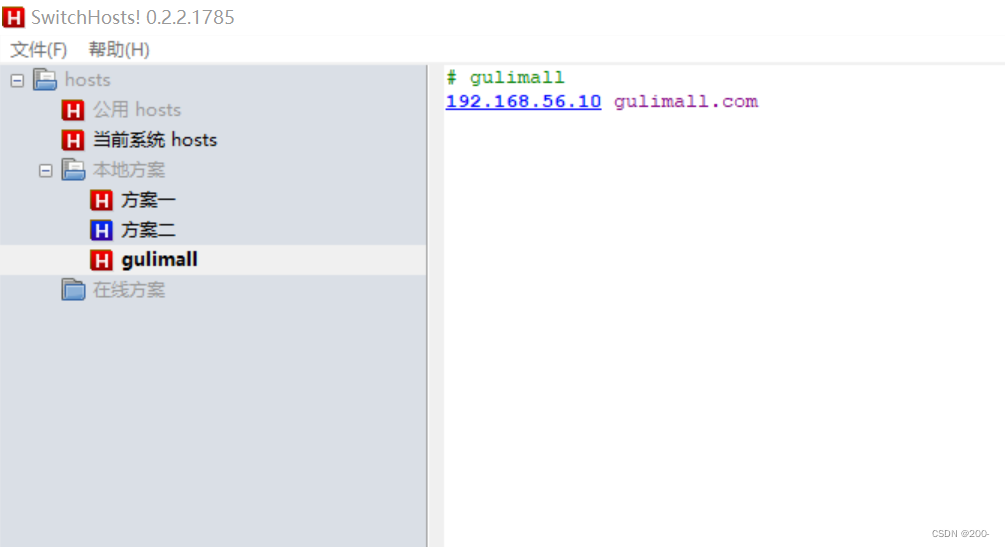

1.可以使用SwitchHost配置Host文件,方便在不同的环境进行测试。配置文件如下。
当访问gulimall.com时,SwitchHost会在当前环境下的配置方案转发请求到192.168.56.10ip地址。
2.
########nginx.conf#############
user nginx;
worker_processes 1;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
#tcp_nopush on;
keepalive_timeout 65;
#gzip on;
#负载均衡模块,会接收到上游传过来的网址信息转发到对应的网关服务或者直接访问服务
upstream gulimall{
server 192.168.119.1:88;
}
include /etc/nginx/conf.d/*.conf;
}

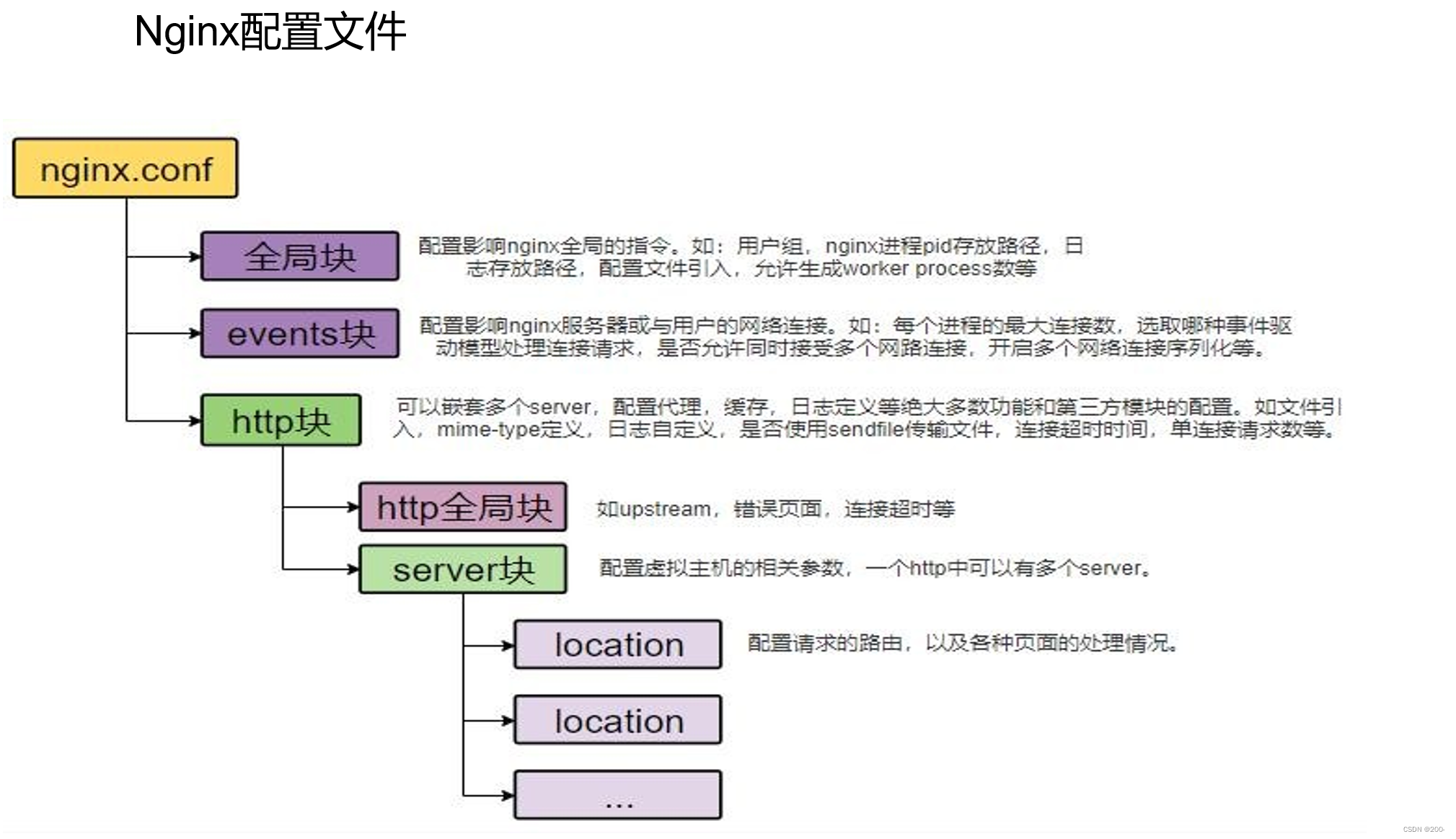

在反向代理中主要关心的是htttp模块,并且在最下方的include中指定了在那个地方读取配置文件。
3.在Nginx的conf.d文件夹中创建gulimall.conf文件,进行关于gullmall.com相关配置。
###########gulimall.conf##########
server {
#监听80端口是否访问对应的网址,监听到了会代理给对应网关。
listen 80;
server_name gulimall.com;
#charset koi8-r;
#access_log /var/log/nginx/log/host.access.log main;
location / {
#设置header是否携带信息,默认在转发http请求时会丢失host信息。
proxy_set_header Host $host;
#Nginx反向代理到gulimall,上面的nginx.conf的upstream模块可以继续配置。
proxy_pass http://gulimall;
}
#error_page 404 /404.html;
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /usr/share/nginx/html;
}
# proxy the PHP scripts to Apache listening on 127.0.0.1:80
#
#location ~ \.php$ {
# proxy_pass http://127.0.0.1;
#}
# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
#
#location ~ \.php$ {
# root html;
# fastcgi_pass 127.0.0.1:9000;
# fastcgi_index index.php;
# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
# include fastcgi_params;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
}
##application.yml文件配置,类似**.gulimall.com适配性广的表达式配置最好放在最后以免影响其他路由转发
spring:
cloud:
gateway:
routes:
- id: gulimall_host_route
uri: lb://gulimall-product
predicates:
- Host=**.gulimall.com
predicates的Host会解析http请求头中的Host信息,并且转发到uri指定的服务中。
总结
在配置反向代理中主要考虑Nginx文件中的nginx.conf文件和在conf.d文件夹中自定义的配置文件。
1.当Nginx监测到端口中有发送网址信息时,会根据conf.d文件夹中自定义的配置文件转发,此时这是上游服务。
2.配置的nginx.conf在配置upstream模块接收到请求后转发到对应的ip地址。从而完成反向代理。
在阿里云上配置的代理不适用于本教程,可以考虑购买网址和穿透技术在云服务器进行反向代理。
