MyCat 学习笔记 第十九篇 . mycat 监控工具 mycat web

mycat 自带了一个简单的监控工具 mycat eye（自带了 jetty 的一个web 应用）。可以支持 mycat 环境参数、mycat 运行状态、 mysql 同步状态、高瓶 sql 等数据的实时查询。相对于mycat server来说，mycat web 发展的非常缓慢，目前可以定义为是mycat运行情况的辅助查询工具，可以替代少数 9066 管理端口做的事务。

mycat web 使用了 zookeeper 命名服务功能，把相关的mycat 配置信息存放到 zk 一部分，另一部分存放在mycat web本地的sql lite中，估计是当初设计不充分~~~

mycat web 下载地址

github 入口

另外有四个相对重要的文件

文件	用处
mycat_home\bin\xml_to_yaml.sh	根据mycat配置生成 zookeeper yaml 配置工具
mycat_home\bin\init_zk_data.sh	将生成的yaml配置文件导入远程zookeeper
mycat_home\conf\myid.properties	zookeeper 路径配置参数信息
mycat_home\conf\zk-create.yaml	自动生成的zk配置

安装顺序

1）确认安装好zookeeper 环境（此步略，网上教程一大把）。
2）启动mycat服务，确认本地服务一切正常。
3）执行xml_to_yaml.sh脚本（确认本地配置过 JAVA_HOME 和 MYCAT_HOME环境变量，没有的话参考下文）

/etc/profile配置

export JAVA_HOME=/usr/java/jdk1.7.0_79/
export CLASSPATH=.:%JAVA_HOME%/lib/dt.jar:%JAVA_HOME%/lib/tools.jar
export PATH=$PATH:$JAVA_HOME/bin

export MYCAT_HOME=/usr/local/mycat/mycat-server-1.5/

4）查看yaml配置是否正确（基本看不出问题，因为配置有点重杂了~~）

zkURL: 127.0.0.1:2181
mycat-mysqlgroup:
  host_183:
    name: host_183
    repType: '0'
    zone: fz
    servers:
    - host_183
    cur-write-server: host_183
    auto-write-switch: true
    heartbeatSQL: select user()
  host_185:
    name: host_185
    repType: '0'
    zone: fz
    servers:
    - host_185
    cur-write-server: host_185
    auto-write-switch: true
    heartbeatSQL: select user()
mycat-mysqls:
  host_183:
    name: host_183
    ip: 192.168.13.191
    port: '3307'
    user: root
    password: root123
    hostId: host
    zone: fz
  host_185:
    name: host_185
    ip: 192.168.13.185
    port: '3307'
    user: root
    password: root123
    hostId: host
    zone: fz
mycat-cluster:
  mycat-cluster-1:
    user:
      test:
        name: test
        password: test
        schemas:
        - TESTDB
      user:
        name: user
        password: user
        schemas:
        - TESTDB
        readOnly: 'true'
    rule:
      sharding-by-date:
        name: partbymonth
        functionName: org.opencloudb.route.function.PartitionByMonth
        column: date_str
        dateFormat: yyyy-MM-dd
        sBeginDate: '2015-01-01'
      rule1:
        name: func1
        functionName: org.opencloudb.route.function.PartitionByLong
        column: id
        partitionCount: '8'
        partitionLength: '128'
      rule2:
        name: func1
        functionName: org.opencloudb.route.function.PartitionByLong
        column: user_id
        partitionCount: '8'
        partitionLength: '128'
      sharding-by-intfile:
        name: hash-int
        functionName: org.opencloudb.route.function.PartitionByFileMap
        column: sharding_id
        config:
          '10000': '0'
          '10010': '1'
      auto-sharding-long:
        name: rang-long
        functionName: org.opencloudb.route.function.AutoPartitionByLong
        column: id
        config:
          0-500M: '0'
          500M-1000M: '1'
          1000M-1500M: '2'
      mod-long-userId:
        name: mod-long
        functionName: org.opencloudb.route.function.PartitionByMod
        column: user_id
        count: '3'
      mod-long:
        name: mod-long
        functionName: org.opencloudb.route.function.PartitionByMod
        column: id
        count: '3'
      sharding-by-murmur:
        name: murmur
        functionName: org.opencloudb.route.function.PartitionByMurmurHash
        column: id
        seed: '0'
        count: '2'
        virtualBucketTimes: '160'
      sharding-by-month:
        name: partbymonth
        functionName: org.opencloudb.route.function.PartitionByMonth
        column: create_date
        dateFormat: yyyy-MM-dd
        sBeginDate: '2015-01-01'
      latest-month-calldate:
        name: latestMonth
        functionName: org.opencloudb.route.function.LatestMonthPartion
        column: calldate
        splitOneDay: '24'
      auto-sharding-rang-mod:
        name: rang-mod
        functionName: org.opencloudb.route.function.PartitionByRangeMod
        column: id
        config:
          0-200M: '5'
          200M1-400M: '1'
          400M1-600M: '4'
          600M1-800M: '4'
          800M1-1000M: '6'
      jch:
        name: jump-consistent-hash
        functionName: org.opencloudb.route.function.PartitionByJumpConsistentHash
        column: id
        totalBuckets: '3'
      mod-sharding-long:
        name: mod-long
        functionName: org.opencloudb.route.function.PartitionByMod
        column: sharding_mod_id
        count: '3'
    schema:
      TESTDB:
        name: TESTDB
        checkSQLSchema: true
        defaultMaxLimit: 100
        new_table:
          name: new_table
          datanode: dn1,dn2,dn3,dn4,dn5,dn6,dn7,dn8,dn9,dn10,dn11,dn12
          ruleName: sharding-by-date
        t_user:
          name: t_user
          datanode: dn1,dn2,dn3
          ruleName: mod-long-userId
        t_order:
          name: t_order
          datanode: dn1,dn2,dn3
          ruleName: mod-long-userId
        t_order_fee:
          name: t_order_fee
          datanode: dn1,dn2,dn3
          ruleName: mod-long-userId
    datanode:
      dn1:
        name: dn1
        database: ds1
        dataHost: '13_183'
      dn2:
        name: dn2
        database: ds2
        dataHost: '13_183'
      dn3:
        name: dn3
        database: ds3
        dataHost: '13_183'
      dn4:
        name: dn4
        database: ds4
        dataHost: '13_183'
      dn5:
        name: dn5
        database: ds5
        dataHost: '13_183'
      dn6:
        name: dn6
        database: ds6
        dataHost: '13_183'
      dn7:
        name: dn7
        database: ds7
        dataHost: '13_183'
      dn8:
        name: dn8
        database: ds8
        dataHost: '13_183'
      dn9:
        name: dn9
        database: ds9
        dataHost: '13_183'
      dn10:
        name: dn10
        database: ds10
        dataHost: '13_183'
      dn11:
        name: dn11
        database: ds11
        dataHost: '13_185'
      dn12:
        name: dn12
        database: ds12
        dataHost: '13_185'
    datahost:
      '13_183':
        name: '13_183'
        balance: 0
        maxcon: 1000
        mincon: 10
        dbtype: mysql
        dbDriver: native
        writeType: 0
        switchType: 1
        slaveThreshold: 100
        heartbeatSQL: select user()
        mysqlGroup: host_183
      '13_185':
        name: '13_185'
        balance: 0
        maxcon: 1000
        mincon: 10
        dbtype: mysql
        dbDriver: native
        writeType: 0
        switchType: 1
        slaveThreshold: 100
        heartbeatSQL: select user()
        mysqlGroup: host_185
mycat-nodes:
  mycat_fz_01:
    name: mycat_fz_01
    cluster: mycat-cluster-1
    systemParams:
      defaultSqlParser: druidparser

5 ) 执行 init_zk_data.sh 脚本 , 注意下默认情况下脚本会将zookeeper定位在同一台服务器上面，如有需要可以调整下 ZK 的 IP : PORT

demo.catlets.ZkCreate

 public static void main(String[] args) {
        String url;
        if (args != null && args.length > 0) {
            ZK_CONFIG_FILE_NAME = args[0];
            url = args[1];
        } else {
            url = zkConfig.containsKey(CONFIG_URL_KEY) ?
                (String) zkConfig.get(CONFIG_URL_KEY) :
                "127.0.0.1:2181"; ----- 这里居然写死掉了 ^=^
        }

        zkConfig = loadZkConfig();
        framework = createConnection(url);

        createConfig(MYCAT_HOST_KEY, false, MYCAT_HOST_KEY);
        createConfig(MYCAT_ZONE_KEY, false, MYCAT_ZONE_KEY);
        createConfig(MYCAT_NODES_KEY, false, MYCAT_NODES_KEY);
        createConfig(MYCAT_CLUSTER_KEY, true, MYCAT_CLUSTER_KEY);
        createConfig(MYCAT_MYSQLS_KEY, true, MYCAT_MYSQLS_KEY);
        createConfig(MYCAT_MYSQL_GROUP_KEY, true, MYCAT_MYSQL_GROUP_KEY);
        createConfig(MYCAT_LBS, true, MYCAT_LBS);
    }

6 ) 配置 mycat-web 中 zk 的地址
/usr/local/mycat/mycat-web/mycat-web/WEB-INF/classes

#
#Mon Jan 16 15:37:36 CST 2012
show.period=3000000
zookeeper=192.168.13.185:2181


##sql\u4E0A\u7EBF\u76F8\u5173\u914D\u7F6E
sqlonline.server=192.168.13.187
sqlonline.user=root
sqlonline.passwd=123456

7 ) 启动 mycat web ，这里为了方便查询日志就直接通脚本启动

java -Xms1024m -Xmx1024m -Xmn128m -XX:PermSize=64m -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:CMSFullGCsBeforeCompaction=0 -XX:CMSInitiatingOccupancyFraction=70 -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.port=8999 -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -jar start.jar

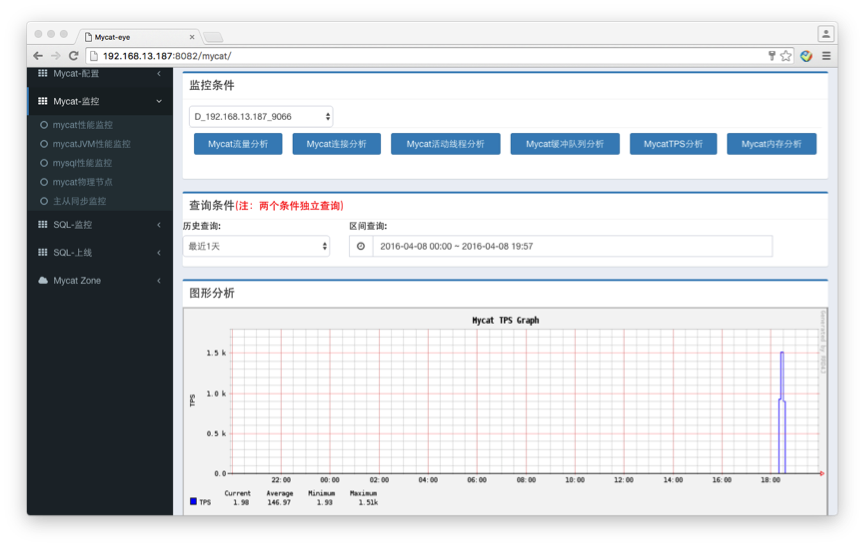

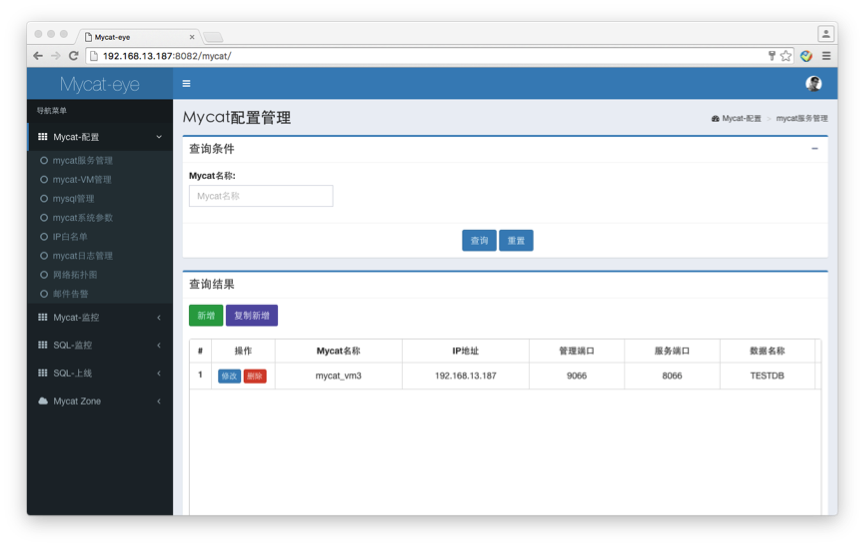

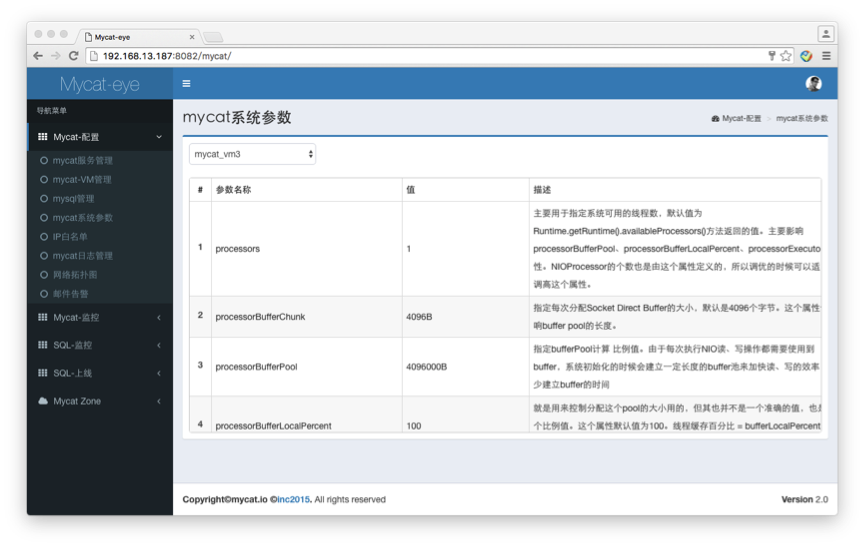

部分功能效果图

为了看下mycat web的效果，压了100万条记录，可以比较真观的看到所有SQL的执行情况和较慢的SQL的运行时长，不能算是太鸡肋吧，但要全面运维一个服务来说，mycat web 还有比较长的路需要走。

OK，今天就先到这里~~
