您有一份AndroidX升级指南未领取

转载请注明出处:https://blog.csdn.net/kong_gu_you_lan/article/details/84224536

本文出自 容华谢后的博客

1.介绍

相信大家对Android Support Libray都不陌生,随着Android版本的快速迭代,Google推出了Support Libray用以兼容低版本的Android设备。但是随着版本越来越多,支持库的维护和使用也变得越来越复杂,于是AndroidX应运而生,接下来我们一起来学习下如何迁移到AndroidX吧!

AndroidX基于Android Support Libray 28.0.0版本进行迭代开发。

环境要求:

  • Android Studio 3.2.0及以上版本

  • compileSdkVersion 28及以上版本

2.迁移到AndroidX

在AS工具栏中点击Refactor——>Migrate to AndroidX选项,出现下面的提示框:

Migrate to AndroidX

意思是说,在迁移之前建议先备份一下当前的项目,勾选【Backup project as Zip File】选项备份,然后点击【MIGRATE】按钮会提示选择一个备份路径,选择完成后会出现如下提示:

Migrate to AndroidX

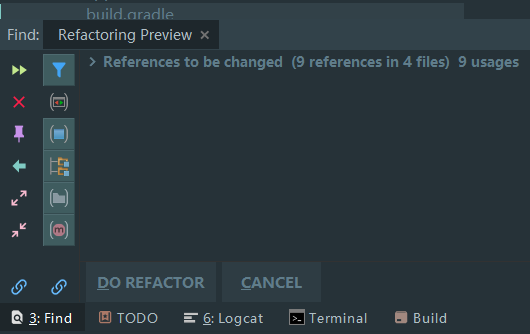

点击【DO REFACTOR】按钮,继续往下看:

Migrate to AndroidX

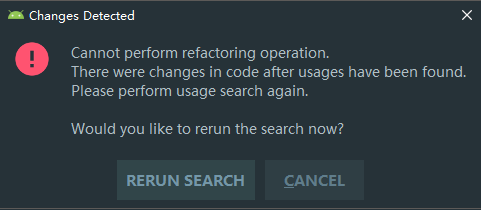

出现一个警告,说没有搜索到要修改的代码,没关系,点击搜索之后,再次点击【DO REFACTOR】按钮就可以了,一阵编译过后迁移完成,此时编译一下整个工程,可能会提示一些类找不到的问题,重新导入一下就可以了。

注意:由于支持库升级到了AndroidX,一些使用了支持库的第三方库也需要升级到最新版本,比如rxlifecycle等,目前大部分主流第三方库都已经支持AndroidX了。

3.对比

看下和原来的项目有哪些区别:

dependencies

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'com.android.support:appcompat-v7:28.0.0'
    implementation 'com.android.support.constraint:constraint-layout:1.1.3'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.2'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'
}

被修改成了:

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'androidx.appcompat:appcompat:1.0.2'
    implementation 'androidx.constraintlayout:constraintlayout:2.0.0-alpha2'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test:runner:1.1.0'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.1.0'
}

可以看到com.android.support全部被修改成了androidx,版本号也改变了,同时项目中此依赖的引用包名也会被同时修改。

gradle.properties

增加了以下两个配置:

  • android.useAndroidX=true

    设置true为时,Android插件会使用相应的AndroidX库而不是支持库,默认为false。

  • android.enableJetifier=true

    设置true为时,Android插件会自动迁移现有的第三方库,通过重写其二进制文件来使用AndroidX,默认为false。

4.支持库迁移AndroidX速查表

Old build artifactAndroidX build artifact
android.arch.core:commonandroidx.arch.core:core-common:2.0.0-rc01
android.arch.core:coreandroidx.arch.core:core:2.0.0-rc01
android.arch.core:core-testingandroidx.arch.core:core-testing:2.0.0-rc01
android.arch.core:runtimeandroidx.arch.core:core-runtime:2.0.0-rc01
android.arch.lifecycle:commonandroidx.lifecycle:lifecycle-common:2.0.0-rc01
android.arch.lifecycle:common-java8androidx.lifecycle:lifecycle-common-java8:2.0.0-rc01
android.arch.lifecycle:compilerandroidx.lifecycle:lifecycle-compiler:2.0.0-rc01
android.arch.lifecycle:extensionsandroidx.lifecycle:lifecycle-extensions:2.0.0-rc01
android.arch.lifecycle:livedataandroidx.lifecycle:lifecycle-livedata:2.0.0-rc01
android.arch.lifecycle:livedata-coreandroidx.lifecycle:lifecycle-livedata-core:2.0.0-rc01
android.arch.lifecycle:reactivestreamsandroidx.lifecycle:lifecycle-reactivestreams:2.0.0-rc01
android.arch.lifecycle:runtimeandroidx.lifecycle:lifecycle-runtime:2.0.0-rc01
android.arch.lifecycle:viewmodelandroidx.lifecycle:lifecycle-viewmodel:2.0.0-rc01
android.arch.paging:commonandroidx.paging:paging-common:2.0.0-rc01
android.arch.paging:runtimeandroidx.paging:paging-runtime:2.0.0-rc01
android.arch.paging:rxjava2androidx.paging:paging-rxjava2:2.0.0-rc01
android.arch.persistence.room:commonandroidx.room:room-common:2.0.0-rc01
android.arch.persistence.room:compilerandroidx.room:room-compiler:2.0.0-rc01
android.arch.persistence.room:guavaandroidx.room:room-guava:2.0.0-rc01
android.arch.persistence.room:migrationandroidx.room:room-migration:2.0.0-rc01
android.arch.persistence.room:runtimeandroidx.room:room-runtime:2.0.0-rc01
android.arch.persistence.room:rxjava2androidx.room:room-rxjava2:2.0.0-rc01
android.arch.persistence.room:testingandroidx.room:room-testing:2.0.0-rc01
android.arch.persistence:dbandroidx.sqlite:sqlite:2.0.0-rc01
android.arch.persistence:db-frameworkandroidx.sqlite:sqlite-framework:2.0.0-rc01
com.android.support.constraint:constraint-layoutandroidx.constraintlayout:constraintlayout:1.1.2
com.android.support.constraint:constraint-layout-solverandroidx.constraintlayout:constraintlayout-solver:1.1.2
com.android.support.test.espresso.idling:idling-concurrentandroidx.test.espresso.idling:idling-concurrent:3.1.0
com.android.support.test.espresso.idling:idling-netandroidx.test.espresso.idling:idling-net:3.1.0
com.android.support.test.espresso:espresso-accessibilityandroidx.test.espresso:espresso-accessibility:3.1.0
com.android.support.test.espresso:espresso-contribandroidx.test.espresso:espresso-contrib:3.1.0
com.android.support.test.espresso:espresso-coreandroidx.test.espresso:espresso-core:3.1.0
com.android.support.test.espresso:espresso-idling-resourceandroidx.test.espresso:espresso-idling-resource:3.1.0
com.android.support.test.espresso:espresso-intentsandroidx.test.espresso:espresso-intents:3.1.0
com.android.support.test.espresso:espresso-remoteandroidx.test.espresso:espresso-remote:3.1.0
com.android.support.test.espresso:espresso-webandroidx.test.espresso:espresso-web:3.1.0
com.android.support.test.janktesthelper:janktesthelperandroidx.test.jank:janktesthelper:1.0.1
com.android.support.test.services:test-servicesandroidx.test:test-services:1.1.0
com.android.support.test.uiautomator:uiautomatorandroidx.test.uiautomator:uiautomator:2.2.0
com.android.support.test:monitorandroidx.test:monitor:1.1.0
com.android.support.test:orchestratorandroidx.test:orchestrator:1.1.0
com.android.support.test:rulesandroidx.test:rules:1.1.0
com.android.support.test:runnerandroidx.test?1.1.0
com.android.support:animated-vector-drawableandroidx.vectordrawable:vectordrawable-animated:1.0.0
com.android.support:appcompat-v7androidx.appcompat:appcompat:1.0.0
com.android.support:asynclayoutinflaterandroidx.asynclayoutinflater:asynclayoutinflater:1.0.0
com.android.support:carandroidx.car?1.0.0-alpha5
com.android.support:cardview-v7androidx.cardview:cardview:1.0.0
com.android.support:collectionsandroidx.collection:collection:1.0.0
com.android.support:coordinatorlayoutandroidx.coordinatorlayout:coordinatorlayout:1.0.0
com.android.support:cursoradapterandroidx.cursoradapter:cursoradapter:1.0.0
com.android.support:customtabsandroidx.browser:browser:1.0.0
com.android.support:customviewandroidx.customview:customview:1.0.0
com.android.support:designcom.google.android.material:material:1.0.0-rc01
com.android.support:documentfileandroidx.documentfile:documentfile:1.0.0
com.android.support:drawerlayoutandroidx.drawerlayout:drawerlayout:1.0.0
com.android.support:exifinterfaceandroidx.exifinterface:exifinterface:1.0.0
com.android.support:gridlayout-v7androidx.gridlayout:gridlayout:1.0.0
com.android.support:heifwriterandroidx.heifwriter:heifwriter:1.0.0
com.android.support:interpolatorandroidx.interpolator:interpolator:1.0.0
com.android.support:leanback-v17androidx.leanback:leanback:1.0.0
com.android.support:loaderandroidx.loader:loader:1.0.0
com.android.support:localbroadcastmanagerandroidx.localbroadcastmanager:localbroadcastmanager:1.0.0
com.android.support:media2androidx.media2:media2:1.0.0-alpha03
com.android.support:media2-exoplayerandroidx.media2:media2-exoplayer:1.0.0-alpha01
com.android.support:mediarouter-v7androidx.mediarouter:mediarouter:1.0.0
com.android.support:multidexandroidx.multidex:multidex:2.0.0
com.android.support:multidex-instrumentationandroidx.multidex:multidex-instrumentation:2.0.0
com.android.support:palette-v7androidx.palette:palette:1.0.0
com.android.support:percentandroidx.percentlayout:percentlayout:1.0.0
com.android.support:preference-leanback-v17androidx.leanback:leanback-preference:1.0.0
com.android.support:preference-v14androidx.legacy:legacy-preference-v14:1.0.0
com.android.support:preference-v7androidx.preference:preference:1.0.0
com.android.support:printandroidx.print:print:1.0.0
com.android.support:recommendationandroidx.recommendation:recommendation:1.0.0
com.android.support:recyclerview-selectionandroidx.recyclerview:recyclerview-selection:1.0.0
com.android.support:recyclerview-v7androidx.recyclerview:recyclerview:1.0.0
com.android.support:slices-buildersandroidx.slice:slice-builders:1.0.0
com.android.support:slices-coreandroidx.slice:slice-core:1.0.0
com.android.support:slices-viewandroidx.slice:slice-view:1.0.0
com.android.support:slidingpanelayoutandroidx.slidingpanelayout:slidingpanelayout:1.0.0
com.android.support:support-annotationsandroidx.annotation:annotation:1.0.0
com.android.support:support-compatandroidx.core:core:1.0.0
com.android.support:support-contentandroidx.contentpager:contentpager:1.0.0
com.android.support:support-core-uiandroidx.legacy:legacy-support-core-ui:1.0.0
com.android.support:support-core-utilsandroidx.legacy:legacy-support-core-utils:1.0.0
com.android.support:support-dynamic-animationandroidx.dynamicanimation:dynamicanimation:1.0.0
com.android.support:support-emojiandroidx.emoji:emoji:1.0.0
com.android.support:support-emoji-appcompatandroidx.emoji:emoji-appcompat:1.0.0
com.android.support:support-emoji-bundledandroidx.emoji:emoji-bundled:1.0.0
com.android.support:support-fragmentandroidx.fragment:fragment:1.0.0
com.android.support:support-media-compatandroidx.media:media:1.0.0
com.android.support:support-tv-providerandroidx.tvprovider:tvprovider:1.0.0
com.android.support:support-v13androidx.legacy:legacy-support-v13:1.0.0
com.android.support:support-v4androidx.legacy:legacy-support-v4:1.0.0
com.android.support:support-vector-drawableandroidx.vectordrawable:vectordrawable:1.0.0
com.android.support:swiperefreshlayoutandroidx.swiperefreshlayout:swiperefreshlayout:1.0.0
com.android.support:textclassifierandroidx.textclassifier:textclassifier:1.0.0
com.android.support:transitionandroidx.transition:transition:1.0.0
com.android.support:versionedparcelableandroidx.versionedparcelable:versionedparcelable:1.0.0
com.android.support:viewpagerandroidx.viewpager:viewpager:1.0.0
com.android.support:wearandroidx.wear:wear:1.0.0
com.android.support:webkitandroidx.webkit:webkit:1.0.0

5.一些问题

升级到AS 3.2版本后,Android Lint增加了一些代码检测项,其中最为明显的就是AndroidManifest.xml中的警告:

App is not indexable by Google Search; consider adding at least one Activity with an ACTION-VIEW intent filter. See issue explanation for more details.

意思是当前APP不支持Google搜索,需要至少在一个Activity中添加intent filter,没问题,满足你:

<action android:name="android.intent.action.VIEW" />

但是因为万里长城的原因,添加了这个filter也没什么用,不添加的话满页的黄色波浪又看着闹心,我们还可以这样做:

在app的build.gradle中添加一个警告忽略:

android {
    ...

    lintOptions {
        disable 'GoogleAppIndexingWarning'
    }
}

或者在AndroidManifest.xml中的application项中添加一下忽略也可以:

tools:ignore="GoogleAppIndexingWarning"

6.写在最后

到这里,AndroidX升级相关的内容就学习完了,希望对你能够有所帮助,如果你在升级AndroidX的过程中,遇到了一些其他的问题,欢迎给我留言。
