NDK on evmc6678l err : ti.sysbios.heaps.HeapMem: line 354: assertion failure: A_invalidFree: Invalid

NC_NetStart abort

问题：

Hi, I am running a client example in NDK on evmc6678l. The project abort and the console print:

QMSS successfully initialized
CPPI successfully initialized
PA successfully initialized

TCP/IP Stack Example Client
PASS successfully initialized
Ethernet subsystem successfully initialized
Ethernet eventId : 48 and vectId (Interrupt) : 7
Timeout waiting for reply from PA to Pa_addMac command
ti.sysbios.heaps.HeapMem: line 354: assertion failure: A_invalidFree: Invalid free
xdc.runtime.Error.raise: terminating execution

I debuged and found it's abort at NC_NetStart(), as show below:

do
{
rc = NC_NetStart( hCfg, NetworkOpen, NetworkClose, NetworkIPAddr );
} while( rc > 0 );

I never modify the source code which TI provide.

解决方法：

Can you try the following:

pause the core(s) running the code
Do a system reset
Run global default setup from the GEL script
reload and re-run your program

This will do a SOC reset in-between runs. Without doing an SOC reset, the next program run will take on the previously-initialized hardware settings.

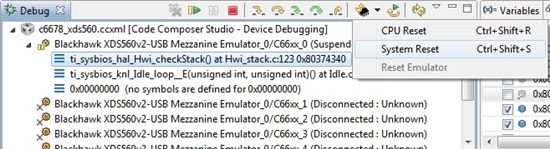

System Reset:

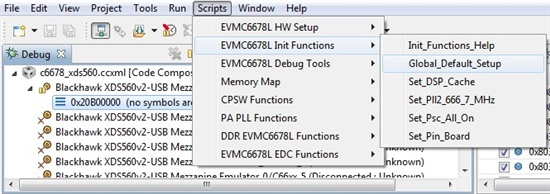

Global Default Setup (note that you must have loaded the GEL script beforehand. Refer to "Loading and Setting up the EVM with the Gel File" section in the GSG http://processors.wiki.ti.com/index.php/BIOS_MCSDK_2.0_Getting_Started_Guide#Use_JTAG_to_Load_the_Application)

Let me know if this works.
