Lance老师UI系列教程第七课->自定义spinner下拉框实现的实现

UI系列教程第七课:自定义spinner下拉框实现的实现

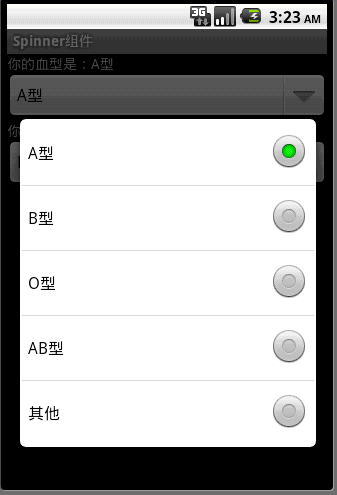

说道android下拉框spineer,框架中虽有现成的控件,但实际效果可能并不是我们所需要的那种,如下图:

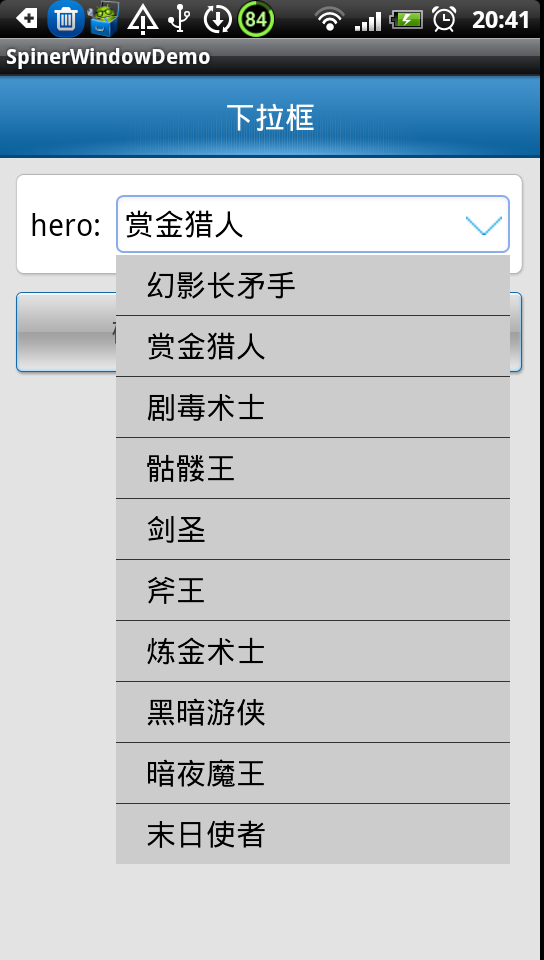

其实我们更需要的是像WEB那种风格,如图所示:

其实实现也很简单,就是自定义个popwindow就可以了

下面贴上代码片段:

public class SpinerPopWindow extends PopupWindow implements OnItemClickListener{

	private Context mContext;
	private ListView mListView;
	private NormalSpinerAdapter mAdapter;
	private IOnItemSelectListener mItemSelectListener;


	public SpinerPopWindow(Context context)
	{
		super(context);

		mContext = context;
		init();
	}


	public void setItemListener(IOnItemSelectListener listener){
		mItemSelectListener = listener;
	}


	private void init()
	{
		View view = LayoutInflater.from(mContext).inflate(R.layout.spiner_window_layout, null);
		setContentView(view);
		setWidth(LayoutParams.WRAP_CONTENT);
		setHeight(LayoutParams.WRAP_CONTENT);

		setFocusable(true);
    	ColorDrawable dw = new ColorDrawable(0x00);
		setBackgroundDrawable(dw);


		mListView = (ListView) view.findViewById(R.id.listview);


		mAdapter = new NormalSpinerAdapter(mContext);
		mListView.setAdapter(mAdapter);
		mListView.setOnItemClickListener(this);
	}


	public void refreshData(List<String> list, int selIndex)
	{
		if (list != null && selIndex  != -1)
		{
			mAdapter.refreshData(list, selIndex);
		}
	}


	@Override
	public void onItemClick(AdapterView<?> arg0, View view, int pos, long arg3) {
		dismiss();
		if (mItemSelectListener != null){
			mItemSelectListener.onItemClick(pos);
		}
	}



}
主界面调用代码:

public class SpinerWindowDemoActivity extends Activity implements OnClickListener, AbstractSpinerAdapter.IOnItemSelectListener{
    /** Called when the activity is first created. */

	private View mRootView;
	private TextView mTView;
	private ImageButton mBtnDropDown;
	private List<String> nameList = new ArrayList<String>();


    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        setupViews();
    }


    private void setupViews(){
    	mRootView = findViewById(R.id.rootView);

    	mTView = (TextView) findViewById(R.id.tv_value);
		mBtnDropDown = (ImageButton) findViewById(R.id.bt_dropdown);
		mBtnDropDown.setOnClickListener(this);


		String[] names = getResources().getStringArray(R.array.hero_name);
		for(int i = 0; i < names.length; i++){
			nameList.add(names[i]);
		}


		mSpinerPopWindow = new SpinerPopWindow(this);
		mSpinerPopWindow.refreshData(nameList, 0);
		mSpinerPopWindow.setItemListener(this);
    }


	@Override
	public void onClick(View view) {
		switch(view.getId()){
		case R.id.bt_dropdown:
			showSpinWindow();
			break;
		}
	}


	private void setHero(int pos){
		if (pos >= 0 && pos <= nameList.size()){
			String value = nameList.get(pos);

			mTView.setText(value);
		}
	}


	private SpinerPopWindow mSpinerPopWindow;
	private void showSpinWindow(){
		Log.e("", "showSpinWindow");
		mSpinerPopWindow.setWidth(mTView.getWidth());
		mSpinerPopWindow.showAsDropDown(mTView);
	}


	@Override
	public void onItemClick(int pos) {
		setHero(pos);
	}

}

就这么简单,具体UI美化大家再修改下xml就可以了

下面附上工程链接:

http://download.csdn.net/detail/geniuseoe2012/5184664


welcome to join android-develop group:298044305

more brilliant,Please pay attention to my CSDN blog -->http://blog.csdn.net/geniuseoe2012



上一课Lance老师UI系列教程第六课->微信聊天气泡界面的实现

/*=============================================================================*/

为使SpinerPopWindow更为通用,特修改或增加以下几个类

AbstractSpinerAdapter

public abstract class AbstractSpinerAdapter<T> extends BaseAdapter {

	public static interface IOnItemSelectListener{
		public void onItemClick(int pos);
	};

	 private Context mContext;
	 private List<T> mObjects = new ArrayList<T>();
	 private int mSelectItem = 0;

	 private LayoutInflater mInflater;

	 public  AbstractSpinerAdapter(Context context){
		 init(context);
	 }

	 public void refreshData(List<T> objects, int selIndex){
		 mObjects = objects;
		 if (selIndex < 0){
			 selIndex = 0;
		 }
		 if (selIndex >= mObjects.size()){
			 selIndex = mObjects.size() - 1;
		 }

		 mSelectItem = selIndex;
	 }

	 private void init(Context context) {
	        mContext = context;
	        mInflater = (LayoutInflater)context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
	 }


	@Override
	public int getCount() {

		return mObjects.size();
	}

	@Override
	public Object getItem(int pos) {
		return mObjects.get(pos).toString();
	}

	@Override
	public long getItemId(int pos) {
		return pos;
	}

	@Override
	public View getView(int pos, View convertView, ViewGroup arg2) {
		 ViewHolder viewHolder;

	     if (convertView == null) {
	    	 convertView = mInflater.inflate(R.layout.spiner_item_layout, null);
	         viewHolder = new ViewHolder();
	         viewHolder.mTextView = (TextView) convertView.findViewById(R.id.textView);
	         convertView.setTag(viewHolder);
	     } else {
	         viewHolder = (ViewHolder) convertView.getTag();
	     }


	     Object item =  getItem(pos);
		 viewHolder.mTextView.setText(item.toString());

	     return convertView;
	}

	public static class ViewHolder
	{
	    public TextView mTextView;
    }


}






SpinerPopWindow

public class SpinerPopWindow extends PopupWindow implements OnItemClickListener{

	private Context mContext;
	private ListView mListView;
	private AbstractSpinerAdapter mAdapter;
	private IOnItemSelectListener mItemSelectListener;


	public SpinerPopWindow(Context context)
	{
		super(context);

		mContext = context;
		init();
	}


	public void setItemListener(IOnItemSelectListener listener){
		mItemSelectListener = listener;
	}

	public void setAdatper(AbstractSpinerAdapter adapter){
		mAdapter = adapter;
		mListView.setAdapter(mAdapter);
	}


	private void init()
	{
		View view = LayoutInflater.from(mContext).inflate(R.layout.spiner_window_layout, null);
		setContentView(view);
		setWidth(LayoutParams.WRAP_CONTENT);
		setHeight(LayoutParams.WRAP_CONTENT);

		setFocusable(true);
    	ColorDrawable dw = new ColorDrawable(0x00);
		setBackgroundDrawable(dw);


		mListView = (ListView) view.findViewById(R.id.listview);
		mListView.setOnItemClickListener(this);
	}


	public <T> void refreshData(List<T> list, int selIndex)
	{
		if (list != null && selIndex  != -1)
		{
			if (mAdapter != null){
				mAdapter.refreshData(list, selIndex);
			}
		}
	}


	@Override
	public void onItemClick(AdapterView<?> arg0, View view, int pos, long arg3) {
		dismiss();
		if (mItemSelectListener != null){
			mItemSelectListener.onItemClick(pos);
		}
	}



}


CustemObject

public class CustemObject {

	public String data = "";

	@Override
	public String toString() {
		// TODO Auto-generated method stub
		return data;
	}


}



CustemSpinerAdapter

public class CustemSpinerAdapter extends AbstractSpinerAdapter<CustemObject>{

	public CustemSpinerAdapter(Context context) {
		super(context);
	}

}



SpinerWindowDemoActivity

public class SpinerWindowDemoActivity extends Activity implements OnClickListener, AbstractSpinerAdapter.IOnItemSelectListener{
    /** Called when the activity is first created. */

	private View mRootView;
	private TextView mTView;
	private ImageButton mBtnDropDown;
	private List<CustemObject> nameList = new ArrayList<CustemObject>();
	private AbstractSpinerAdapter mAdapter;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        setupViews();
    }


    private void setupViews(){
    	mRootView = findViewById(R.id.rootView);

    	mTView = (TextView) findViewById(R.id.tv_value);
		mBtnDropDown = (ImageButton) findViewById(R.id.bt_dropdown);
		mBtnDropDown.setOnClickListener(this);


		String[] names = getResources().getStringArray(R.array.hero_name);
		for(int i = 0; i < names.length; i++){
			CustemObject object = new CustemObject();
			object.data = names[i];
			nameList.add(object);
		}


		mAdapter = new CustemSpinerAdapter(this);
		mAdapter.refreshData(nameList, 0);

		mSpinerPopWindow = new SpinerPopWindow(this);
		mSpinerPopWindow.setAdatper(mAdapter);
		mSpinerPopWindow.setItemListener(this);
    }


	@Override
	public void onClick(View view) {
		switch(view.getId()){
		case R.id.bt_dropdown:
			showSpinWindow();
			break;
		}
	}


	private void setHero(int pos){
		if (pos >= 0 && pos <= nameList.size()){
			CustemObject value = nameList.get(pos);

			mTView.setText(value.toString());
		}
	}


	private SpinerPopWindow mSpinerPopWindow;
	private void showSpinWindow(){
		Log.e("", "showSpinWindow");
		mSpinerPopWindow.setWidth(mTView.getWidth());
		mSpinerPopWindow.showAsDropDown(mTView);
	}


	@Override
	public void onItemClick(int pos) {
		setHero(pos);
	}

}


自定义一个类重写toString方法(CustemObject),自定义一个继承自AbstractSpinerAdapter的类确定对象类型(CustemSpinerAdapter)

构造具体的AbstractSpinerAdapter类对象(CustemSpinerAdapter)

通过refreshData填充数据,然后调用SpinerPopWindow的setAdatper设置数据源,OK大功告成!

 新工程链接如下:http://download.csdn.net/detail/geniuseoe2012/5412647





OK,本节课到此为止!欲知更多Android-UI技巧,请关注窝的下一堂课~
