本文详细介绍了随机负载均衡、轮询负载均衡和加权轮询算法在服务器选中的实现方式，包括如何添加服务器地址、获取下一个节点以及配置和更新配置。

随机负载均衡

// 随机负载均衡
type RandomBalance struct {
	curIndex int
	rss      []string
	//观察主体
	conf LoadBalanceConf
}

// 添加服务器地址
func (r *RandomBalance) Add(params ...string) error {
	if len(params) == 0 {
		return errors.New("param len 1 at least")
	}
	addr := params[0]
	r.rss = append(r.rss, addr)
	return nil
}

// 下一个服务器地址
func (r *RandomBalance) Next() string {
	if len(r.rss) == 0 {
		return ""
	}
	r.curIndex = rand.Intn(len(r.rss))
	return r.rss[r.curIndex]
}

//  获取服务器地址
func (r *RandomBalance) Get(key string) (string, error) {
	return r.Next(), nil
}

// 配置设置
func (r *RandomBalance) SetConf(conf LoadBalanceConf) {
	r.conf = conf
}

// 更新服务器配置
func (r *RandomBalance) Update() {
	//更新配置
	if conf, ok := r.conf.(*LoadBalanceZkConf); ok {
		fmt.Println("Update get conf:", conf.GetConf())
		r.rss = []string{}
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
	//更新配置
	if conf, ok := r.conf.(*LoadBalanceCheckConf); ok {
		fmt.Println("Update get conf:", conf.GetConf())
		r.rss = nil
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
}

轮询负载均衡

// 轮询负载均衡
type RoundRobinBalance struct {
	curIndex int
	rss      []string
	//观察主体
	conf LoadBalanceConf
}

// 增加服务器节点
func (r *RoundRobinBalance) Add(params ...string) error {
	if len(params) == 0 {
		return errors.New("param len 1 at least")
	}
	addr := params[0]
	r.rss = append(r.rss, addr)
	return nil
}

// 查询下一个服务器节点
func (r *RoundRobinBalance) Next() string {
	if len(r.rss) == 0 {
		return ""
	}
	lens := len(r.rss) //5
	if r.curIndex >= lens {
		r.curIndex = 0
	}
	curAddr := r.rss[r.curIndex]
	r.curIndex = (r.curIndex + 1) % lens
	return curAddr
}

// 获取服务器节点
func (r *RoundRobinBalance) Get(key string) (string, error) {
	return r.Next(), nil
}

// 设置配置信息
func (r *RoundRobinBalance) SetConf(conf LoadBalanceConf) {
	r.conf = conf
}

// 更新配置信息
func (r *RoundRobinBalance) Update() {
	if conf, ok := r.conf.(*LoadBalanceZkConf); ok {
		fmt.Println("Update get conf:", conf.GetConf())
		r.rss = []string{}
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
	if conf, ok := r.conf.(*LoadBalanceCheckConf); ok {
		fmt.Println("Update get conf:", conf.GetConf())
		r.rss = nil
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
}

加权负载均衡

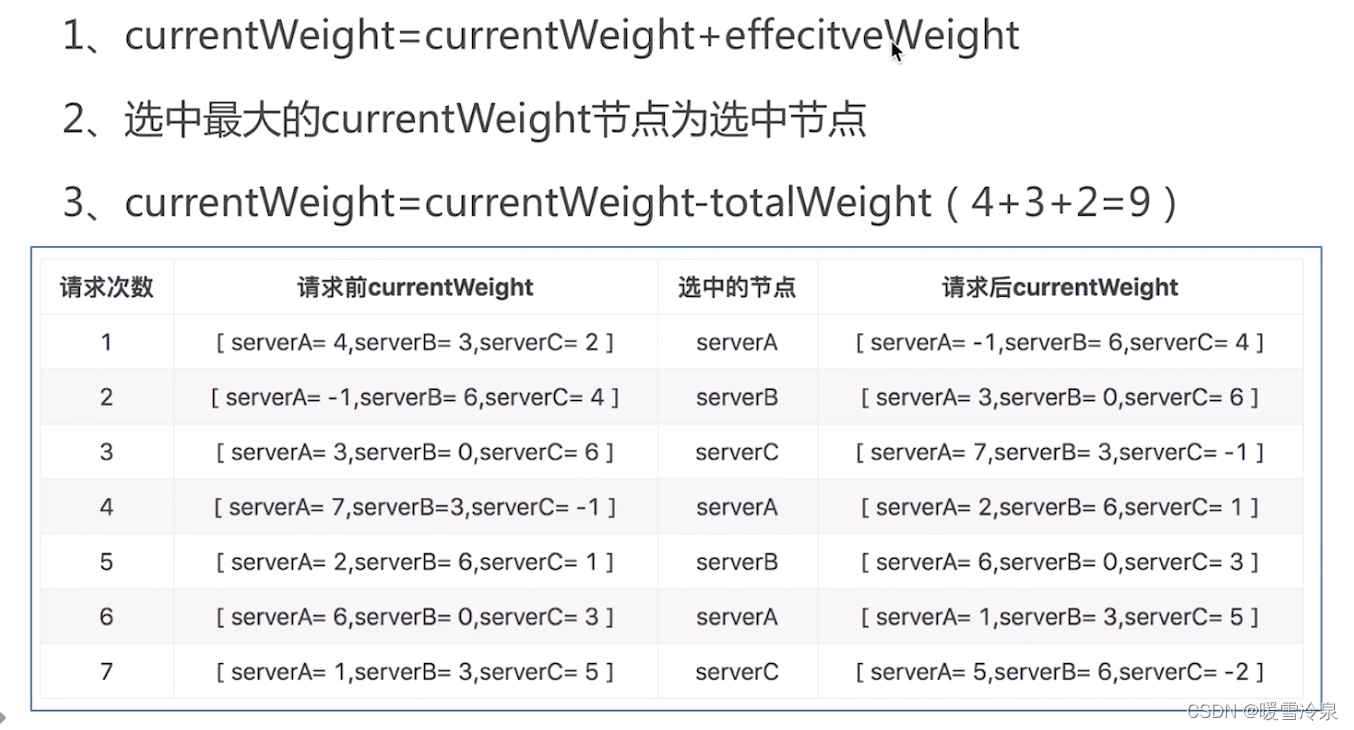

在这里插入图片描述

// 加权负载均衡
type WeightRoundRobinBalance struct {
	curIndex int
	rss      []*WeightNode
	rsw      []int
	//观察主体
	conf LoadBalanceConf
}

// 加权节点用到的相关参数
type WeightNode struct {
	addr            string
	weight          int //权重值
	currentWeight   int //节点当前权重
	effectiveWeight int //有效权重
}

// 增加节点
func (r *WeightRoundRobinBalance) Add(params ...string) error {
	if len(params) != 2 {
		return errors.New("param len need 2")
	}
	parInt, err := strconv.ParseInt(params[1], 10, 64)
	if err != nil {
		return err
	}
	node := &WeightNode{addr: params[0], weight: int(parInt)}
	node.effectiveWeight = node.weight
	r.rss = append(r.rss, node)
	return nil
}

// 获取下一个服务器
func (r *WeightRoundRobinBalance) Next() string {
	total := 0
	var best *WeightNode
	for i := 0; i < len(r.rss); i++ {
		w := r.rss[i]
		//step 1 统计所有有效权重之和
		total += w.effectiveWeight

		//step 2 变更节点临时权重为的节点临时权重+节点有效权重
		w.currentWeight += w.effectiveWeight

		//step 3 有效权重默认与权重相同，通讯异常时-1, 通讯成功+1，直到恢复到weight大小
		if w.effectiveWeight < w.weight {
			w.effectiveWeight++
		}
		//step 4 选择最大临时权重点节点
		if best == nil || w.currentWeight > best.currentWeight {
			best = w
		}
	}
	if best == nil {
		return ""
	}
	//step 5 变更临时权重为 临时权重-有效权重之和
	best.currentWeight -= total
	return best.addr
}

// 获取服务器节点
func (r *WeightRoundRobinBalance) Get(key string) (string, error) {
	return r.Next(), nil
}

// 设置配置信息
func (r *WeightRoundRobinBalance) SetConf(conf LoadBalanceConf) {
	r.conf = conf
}

// 更新配置信息
func (r *WeightRoundRobinBalance) Update() {
	if conf, ok := r.conf.(*LoadBalanceZkConf); ok {
		fmt.Println("WeightRoundRobinBalance get conf:", conf.GetConf())
		r.rss = nil
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
	if conf, ok := r.conf.(*LoadBalanceCheckConf); ok {
		fmt.Println("WeightRoundRobinBalance get conf:", conf.GetConf())
		r.rss = nil
		for _, ip := range conf.GetConf() {
			r.Add(strings.Split(ip, ",")...)
		}
	}
}
