0.GitHub项目连接：

Flink CEP 人员离场超时预警案例

1. 案例-离厂超时预警实现思路

利用Flink CEP 的实现思路，暂时没考虑其他的干扰条件。假定只刷卡出进一次。

/**
解决思路：
	利用Flink CEP进行时间流的模式匹配，并设定超时时间（90 minutes）。
具体如下（简单思路，只考虑员工 出 进一次，即door_status从2变为1）：
	按照某个员工的id聚合的某日的刷卡进出事件：
    员工入厂，进，door_status=1
    员工中途离厂，出，door_status=2
    员工再次进厂，进，door_status=1
    员工中途离厂，出，door_status=2,如果距离上次刷卡出厂的时间超过90minutes仍未检测到员工刷卡入厂，则进行超时预警。
*/

/**
 *  从员工刷卡出门开始，与当前时间做比较，相差90分钟以上时，则检测此员工的刷卡进入状态，如果没有检测到，则进行离厂预警。
 *  *****
 *  1.CEP 复杂事件处理
 *  *****
 *  1.1	定义一个Pattern，匹配出Pattern里in door与out door间隔大于90分钟的事件
 *  1.2	对这些进行输出预警，获取超时未匹配的流
 *  *****

1.1 定义一个刷卡事件类

1.IN: DataSource -> DataStream -> Transformations -> DataStream -> keyBy ->KeyedStream
2.Pattern：Pattern.begin.where.next.where…within(Time windowTime)
3.PatternStream：CEP.pattern(KeyedStream,Pattern)
4.OutputTag:new OutputTag(…)
5.SingleOutputStreamOperator： PatternStream.flatSelect(OutputTag,PatternFlatTimeoutFunction,PatternFlatSelectFunction)
6.DataStream：SingleOutputStreamOperator.getSideOutput(OutputTag)
7.OUT：DataStream -> Transformations -> DataStream -> DataSink

//AccessEvent，刷卡访问事件
package com.events;

import lombok.NoArgsConstructor;

import java.io.Serializable;
import java.util.Objects;

/**
 *  AccessEvent 刷卡访问事件的实体类对象
 * */
//@Data
//@AllArgsConstructor
@NoArgsConstructor
public class AccessEvent implements Serializable {
    public Integer id;
    public Integer door_id;
    public String door_status;
    public Integer event_type;
    public String employee_sys_no;
    public String datetime;

    public AccessEvent(AccessEvent indoor) {
    }


    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public int getDoor_id() {
        return door_id;
    }

    public void setDoor_id(int door_id) {
        this.door_id = door_id;
    }

    public String getDoor_status() {
        return door_status;
    }

    public void setDoor_status(String door_status) {
        this.door_status = door_status;
    }

    public int getEvent_type() {
        return event_type;
    }

    public void setEvent_type(int event_type) {
        this.event_type = event_type;
    }

    public String getEmployee_sys_no() {
        return employee_sys_no;
    }

    public void setEmployee_sys_no(String employee_sys_no) {
        this.employee_sys_no = employee_sys_no;
    }

    public String getDatetime() {
        return datetime;
    }

    public void setDatetime(String datetime) {
        this.datetime = datetime;
    }

    public AccessEvent(int id, int door_id, String door_status, int event_type, String employee_sys_no, String datetime) {
        this.id = id;
        this.door_id = door_id;
        this.door_status = door_status;
        this.event_type = event_type;
        this.employee_sys_no = employee_sys_no;
        this.datetime = datetime;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) return true;
        if (o == null || getClass() != o.getClass()) return false;
        AccessEvent that = (AccessEvent) o;
        return id == that.id &&
                door_id == that.door_id &&
                door_status == that.door_status &&
                event_type == that.event_type &&
                employee_sys_no == that.employee_sys_no &&
                Objects.equals(datetime, that.datetime);
    }

    @Override
    public int hashCode() {
        return Objects.hash(id, door_id, door_status, event_type, employee_sys_no, datetime);
    }
    @Override
    public String toString() {
        return "AccessEvent{" +
                "id=" + id +
                ", door_id=" + door_id +
                ", door_status=" + door_status +
                ", event_type=" + event_type +
                ", employee_sys_no=" + employee_sys_no +
                ", datetime='" + datetime + '\'' +
                '}';
    }
}

1.2 定义一个事件模式（Pattern）

        /**
         * 定义一个事件模式（Pattern）
         * */
        Pattern<AccessEvent,AccessEvent> warningPattern=Pattern.<AccessEvent>begin("outdoor")
                .where(new SimpleCondition<AccessEvent>() {
                    private static final long serialVersionUID = -6847788055093903603L;

                    @Override
                    public boolean filter(AccessEvent accessEvent) throws Exception {
                        return accessEvent.getDoor_status().equals("2");
                    }
                })
                .next("indoor").where(new SimpleCondition<AccessEvent>() {
                    @Override
                    public boolean filter(AccessEvent accessEvent) throws Exception {
                        return accessEvent.getDoor_status().equals("1");
                    }
                })
                .within(Time.seconds(10)).times(1);//为方便测试，这里将间隔时间设置为10s
/**
可以设置Pattern模式的属性，固定次数（times）、匹配发生一次以上（oneOrMore）、匹配发生多次以上（timesOrMore）
*/

1.3 Build pattern stream，模式匹配输出

PatternStream<AccessEvent> accessEventPatternStream=CEP.pattern(dataStreamKeyBy,warningPattern);;//按照员工ID去匹配

1.4 Use side output get timeout stream，获取超时输出流

/**
	创建OutputTag利用side output 获取超时未匹配的流
*/
        OutputTag<AccessEvent> outputTag=new OutputTag<AccessEvent>("timedout"){
            private static final long serialVersionUID = 773503794597666247L;
        };
        SingleOutputStreamOperator<AccessEvent> timeout=accessEventPatternStream.flatSelect(
                outputTag,
                new AccessTimedOut(),
                new FlatSelect()
        );
    /**
     * 把超时的事件收集起来
     * */
    public static class AccessTimedOut implements PatternFlatTimeoutFunction<AccessEvent,AccessEvent> {
        private static final long serialVersionUID = -4214641891396057732L;
        @Override
        public void timeout(Map<String, List<AccessEvent>> pattern, long timeStamp, Collector<AccessEvent> out) throws Exception {
            if (null!=pattern.get("outdoor")){
                for (AccessEvent accessEvent:pattern.get("outdoor")){
                    System.out.println("timeout outdoor:"+accessEvent.getEmployee_sys_no());
                    out.collect(accessEvent);
                }
            }
            //因为indoor 超时了，还没有收到indoor,所以这里是拿不到 indoor 的
            System.out.println("timeout end"+pattern.get("indoor"));
        }
    }

案例 Demo

package com;
import com.events.AccessEvent;
import com.utils.JsonFilter;
import com.utils.KafkaConfigUtil;
import org.apache.flink.api.common.functions.FilterFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.cep.*;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.AssignerWithPeriodicWatermarks;
import org.apache.flink.streaming.api.functions.IngestionTimeExtractor;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;
import org.apache.flink.util.OutputTag;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import scala.Tuple6;
import java.util.List;
import java.util.Map;
import java.util.Properties;

public class Test2 {
    private static Logger log = LoggerFactory.getLogger(Test2.class);

    public static void main(String[] args) throws Exception {
        /**
         * Flink 配置
         * */
        StreamExecutionEnvironment env=StreamExecutionEnvironment.getExecutionEnvironment();
//        env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);

        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);//设置事件时间
        env.enableCheckpointing(1000);非常关键，一定要设置启动检查点

        env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
        env.getConfig().disableSysoutLogging();//设置此可以屏蔽掉日记打印情况
        env.getConfig().setRestartStrategy(RestartStrategies.fixedDelayRestart(5, 10000));

        // 不使用POJO的时间
        final AssignerWithPeriodicWatermarks extractor =new IngestionTimeExtractor<AccessEvent>();

        /**
         *   Kafka配置
         * */
        Properties properties = KafkaConfigUtil.buildKafkaProps();//kafka参数配置
        FlinkKafkaConsumer<String> consumer = new FlinkKafkaConsumer<>(KafkaConfigUtil.topic, new SimpleStringSchema(), properties);

        DataStream<AccessEvent> accessEventDataStream=env.addSource(consumer)
                .filter(new FilterFunction<String>() {
                    @Override
                    public boolean filter(String jsonVal) throws Exception {
                        return new JsonFilter().getJsonFilter(jsonVal);
                    }
                }).map(new MapFunction<String, String>() {
                    @Override
                    public String map(String jsonvalue) throws Exception {
                        return new JsonFilter().dataMap(jsonvalue);
                    }
                }).map(new MapFunction<String, Tuple6<Integer,Integer,String,Integer,String,String>>() {
                    //将json解析为Tuple6类型
                    @Override
                    public Tuple6<Integer,Integer,String,Integer,String,String> map(String dataField) throws Exception {
                        return new JsonFilter().fieldMap(dataField);
                    }
                }).map(new MapFunction<Tuple6<Integer, Integer, String, Integer, String, String>, AccessEvent>() {
                    //将Tuple6类型解析为AccessEvent
                    @Override
                    public AccessEvent map(Tuple6<Integer, Integer, String, Integer, String, String> tuple6) throws Exception {
                        return new JsonFilter().mapToAccessEvent(tuple6);
                    }
                }).assignTimestampsAndWatermarks(extractor);
//        accessEventDataStream.print();

        //根据 employee_sys_no 进行分组
//        DataStream<AccessEvent> dataStreamKeyBy =accessEventDataStream.keyBy("employee_sys_no");
        DataStream<AccessEvent> dataStreamKeyBy=accessEventDataStream.keyBy(AccessEvent::getEmployee_sys_no);
        /**
         * 定义一个事件模式（Pattern）
         * */
        Pattern<AccessEvent,AccessEvent> warningPattern=Pattern.<AccessEvent>begin("outdoor")
                .where(new SimpleCondition<AccessEvent>() {
                    private static final long serialVersionUID = -6847788055093903603L;

                    @Override
                    public boolean filter(AccessEvent accessEvent) throws Exception {
                        return accessEvent.getDoor_status().equals("2");
                    }
                })
                .next("indoor").where(new SimpleCondition<AccessEvent>() {
                    @Override
                    public boolean filter(AccessEvent accessEvent) throws Exception {
                        return accessEvent.getDoor_status().equals("1");
                    }
                })
                .within(Time.seconds(10)).times(1);//时间自行选择，这里为了测试，设置为10s


        PatternStream<AccessEvent> accessEventPatternStream=CEP.pattern(dataStreamKeyBy,warningPattern);
        /**
         * 匹配事件处理
         * */

         /**
		测试 最简单的accessEventPatternStream.select,测试ok
        SingleOutputStreamOperator<AccessEvent> singleOutputStreamOperator=accessEventPatternStream.select(new PatternSelectFunction<AccessEvent,AccessEvent>() {
            @Override
            public AccessEvent select(Map<String, List<AccessEvent>> map) throws Exception {
                return (AccessEvent) map.get("indoor").get(0);
            }
        });
        singleOutputStreamOperator.print();
		*/

		/**
		设置输出超时标志
		*/
        OutputTag<AccessEvent> outputTag=new OutputTag<AccessEvent>("timedout"){
            private static final long serialVersionUID = 773503794597666247L;
        };
        SingleOutputStreamOperator<AccessEvent> timeout=accessEventPatternStream.flatSelect(
                outputTag,
                new AccessTimedOut(),
                new FlatSelect()
        );
                //打印输出超时的AccessEvent
        timeout.getSideOutput(outputTag).print();
        timeout.print();

        env.execute(Test2.class.getSimpleName());
    }
    /**
     * 把超时的事件收集起来
     * */
    public static class AccessTimedOut implements PatternFlatTimeoutFunction<AccessEvent,AccessEvent> {
        private static final long serialVersionUID = -4214641891396057732L;
        @Override
        public void timeout(Map<String, List<AccessEvent>> pattern, long timeStamp, Collector<AccessEvent> out) throws Exception {
            if (null!=pattern.get("outdoor")){
                for (AccessEvent accessEvent:pattern.get("outdoor")){
                    System.out.println("timeout outdoor:"+accessEvent.getEmployee_sys_no());
                    out.collect(accessEvent);
                }
            }
            //因为indoor 超时了，还没有收到indoor,所以这里是拿不到 indoor 的
            System.out.println("timeout end"+pattern.get("indoor"));
        }
    }

    /**
     * 未超时的事件
     * */
    public static class  FlatSelect implements PatternFlatSelectFunction<AccessEvent,AccessEvent> {
        private static final long serialVersionUID = -3029589950677623844L;
        @Override
        public void flatSelect(Map<String, List<AccessEvent>> pattern, Collector<AccessEvent> collector) throws Exception {
            System.out.println("flatSelect"+pattern.get("indoor"));
            collector.collect(new AccessEvent());
        }
    }
}

2. 其他可参考案例

2.1 案例-订单超时统计

超时统计遇到的问题：

流计算： 是属于消息触发计算，没有消息到达无法进行运算
超时汇总指标： 汇总未到达的消息，eg“发货超6小时未揽收的订单量”

解决思路： 没有消息到达—>制造消息

利用双流Join

在这里插入图片描述

解决方案：

基于消息队列
1. 延迟读取
2. 延迟下发（增加运维工作量）

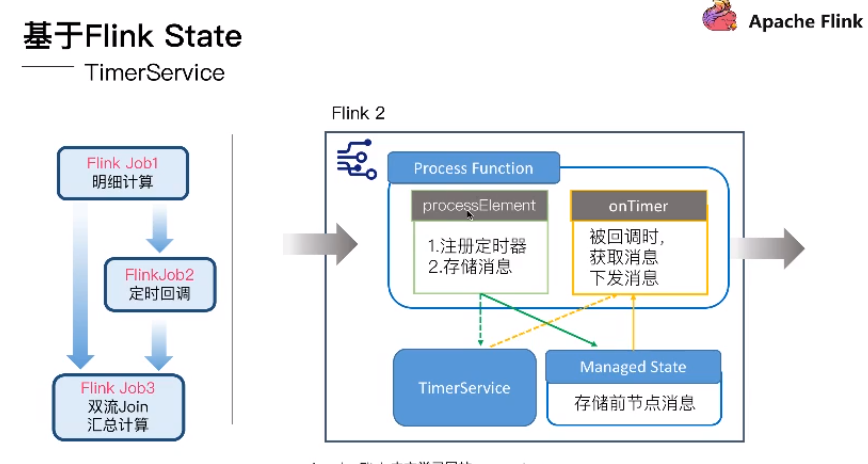

基于Flink State
1. TimerService

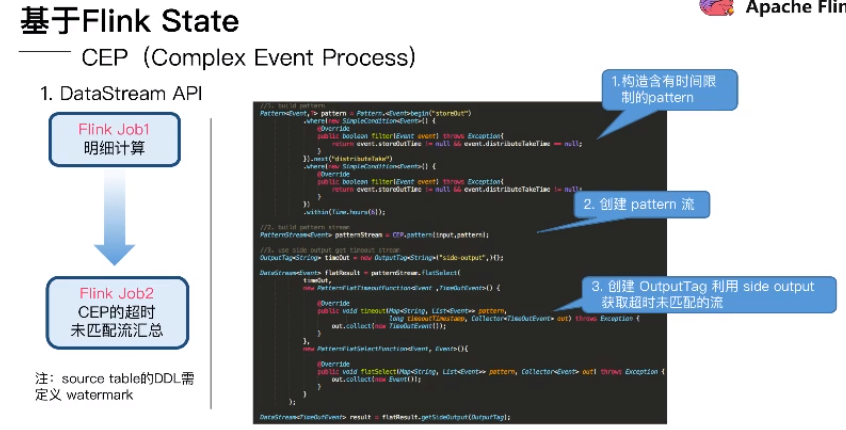

2. CEP（类似时间序列的正则匹配）

Example

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import com.suning.flink.function.MessageHandle;
import com.suning.flink.util.Configuration;
import org.apache.commons.lang.StringUtils;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternSelectFunction;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.PatternTimeoutFunction;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.IterativeCondition;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.AssignerWithPeriodicWatermarks;
import org.apache.flink.streaming.api.watermark.Watermark;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer08;
import org.apache.flink.streaming.util.serialization.SimpleStringSchema;
import org.apache.flink.util.OutputTag;

import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.Map;
import java.util.Properties;

/**
 * @author 18074935 XU.MIN
 * @date 2020/4/7 11:00
 */
public class LogisticsAbnormalCEPdeal {
    public static void main(String[] args) throws Exception {

        final long delay = 5 * 1000L;
        final OutputTag<String> outputTag = new OutputTag<String>("side-output") {
        };
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(2);
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        Properties orderProp = new Properties();
        orderProp.setProperty("bootstrap.servers", Configuration.getString("order.bootstrap.servers"));
        orderProp.setProperty("zookeeper.connect", Configuration.getString("order.zookeeper.connect"));
        orderProp.setProperty("fetch.message.max.bytes", "10485760");
        orderProp.setProperty("group.id", Configuration.getString("order.group.id"));
        FlinkKafkaConsumer08<String> source = new FlinkKafkaConsumer08<>(Configuration.getString("dtm.order.links"), new SimpleStringSchema(), orderProp);

        source.setStartFromLatest();

        DataStream<Event> input = env
                .addSource(source)
                .filter(new MessageHandle.DataFilter())
                .map((MapFunction<String, Event>) message -> {

                    Event event = new Event();
                    JSONObject pointMsg = JSON.parseObject(message);

                    String id = pointMsg.getString("id");
                    JSONObject data = pointMsg.getJSONObject("data");
                    String asomOrderItemId = data.getString("asomOrderItemId");
                    String srvType = data.getString("srv_type");
                    String serviceTime = data.getString("serviceTime");

                    event.setAsomOrderItemId(asomOrderItemId);
                    event.setServiceTime(serviceTime);
                    event.setSrvType(srvType);
                    event.setId(id);

                    return event;

                });

        KeyedStream<Event, String> watermark = input
                .assignTimestampsAndWatermarks(
//                        new AscendingTimestampExtractor<Event>() {
//                            @Override
//                            public long extractAscendingTimestamp(Event event) {
//                                String serviceTime = event.getServiceTime();
//                                SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss SSS");
//                                long timestamp = 0L;
//                                try {
//                                    Date date = format.parse(serviceTime);
//                                    timestamp = date.getTime();
//                                } catch (ParseException e) {
//                                    e.printStackTrace();
//                                }
//                                return timestamp;
//                            }
//                        }
                        new AssignerWithPeriodicWatermarks<Event>() {
                            private final long maxOutOfOrderness = delay;
                            private long currentMaxTimestamp = 0L;

                            @Override
                            public Watermark getCurrentWatermark() {
                                return new Watermark(currentMaxTimestamp - maxOutOfOrderness);
                            }

                            @Override
                            public long extractTimestamp(Event element, long previousElementTimestamp) {
                                String serviceTime = element.getServiceTime() + " 000";
                                SimpleDateFormat format = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss SSS");
                                long timestamp = 0L;
                                try {
                                    Date date = format.parse(serviceTime);
                                    timestamp = date.getTime();
                                    currentMaxTimestamp = Math.max(timestamp, currentMaxTimestamp);
                                    System.out.println("***" + format.format(getCurrentWatermark().getTimestamp()) + "****" + element.getId() + "***");
                                } catch (ParseException e) {
                                    e.printStackTrace();
                                }
                                return timestamp;
                            }
                        })
                .keyBy((KeySelector<Event, String>) Event::getAsomOrderItemId);


        Pattern<Event, ?> pattern = Pattern.<Event>begin("start").where(
                new SimpleCondition<Event>() {
                    @Override
                    public boolean filter(Event event) {
                        System.out.println("start" + event.getId());
                        return (StringUtils.equals(event.getSrvType(), "ZS04") && StringUtils.equals(event.getId(), "20000020"));
                    }
                }
        ).followedBy("middle").where(
                new SimpleCondition<Event>() {
                    @Override
                    public boolean filter(Event event) {
                        System.out.println("middle" + event.getId());
                        return (StringUtils.equals(event.getId(), "20000028") || StringUtils.equals(event.getId(), "20000029"));
                    }
                }
        ).followedBy("end").where(
                new IterativeCondition<Event>() {
                    @Override
                    public boolean filter(Event event, Context<Event> context) throws Exception {

                        if (StringUtils.equals(event.getId(), "20000031") || StringUtils.equals(event.getId(), "20000033")) {
                            System.out.println("end" + event.getId());
                            String finishTime = event.getServiceTime();
                            String changeTime = "";

                            for (Event e : context.getEventsForPattern("middle")) {
                                if (e.getServiceTime().compareTo(changeTime) > 0) {
                                    changeTime = e.getServiceTime();
                                }
                            }

                            return finishTime.compareTo(changeTime) > 0;
                        }
                        return false;
                    }
                }
        ).within(Time.minutes(30L));


        watermark.map((MapFunction<Event, JSONObject>) event -> {

            JSONObject result = new JSONObject();
            result.put("id", event.getId());
            result.put("asomOrderItemId", event.getAsomOrderItemId());
            result.put("serviceTime", event.getServiceTime());
            result.put("srvType", event.getSrvType());
            result.put("第二次", "打印");
            return result;
        }).print();

        PatternStream<Event> patternStream = CEP.pattern(watermark, pattern);
//        DataStream<String> result = patternStream.process(
//                new PatternProcessFunction<Event, String>() {
//                    @Override
//                    public void processMatch(
//                            Map<String, List<Event>> pattern,
//                            Context ctx,
//                            Collector<String> out) throws Exception {
//
//
//                        out.collect(pattern.toString());
//                    }
//                });
        SingleOutputStreamOperator<String> flatResult = patternStream.select(
                outputTag,
                new PatternTimeoutFunction<Event, String>() {
                    @Override
                    public String timeout(Map<String, List<Event>> map, long l) throws Exception {
                        JSONObject output = new JSONObject();
                        for (String key : map.keySet()) {

                            JSONArray collect = new JSONArray();
                            for (Event event : map.get(key)) {

                                collect.add(event.getId());
                            }
                            output.put(key, collect);
                        }
                        return output.toString();
                    }
                },
                new PatternSelectFunction<Event, String>() {
                    @Override
                    public String select(Map<String, List<Event>> map) throws Exception {

                        JSONObject output = new JSONObject();

                        for (String key : map.keySet()) {
                            JSONArray collect = new JSONArray();
                            for (Event event : map.get(key)) {

                                collect.add(event.getId());
                            }
                            output.put(key, collect);
                        }
                        return output.toString();
                    }
                }
        );


        DataStream<String> timeoutFlatResult = flatResult.getSideOutput(outputTag);
        timeoutFlatResult.print();
        flatResult.print();

        env.execute("Flink CEP");
    }
}

2.2 案例-CEP 实现空气质量检测

假设一个数据流，持续写入各地空气质量信息，如果某地连续两次空气质量超过6和7或是小于3和2，就认为其控制质量异常，将记录这条预警，并且将记录再进行处理，如果前后两次样本差值的绝对值小于2，则认为是空气质量超标，否则是空气异常波动。

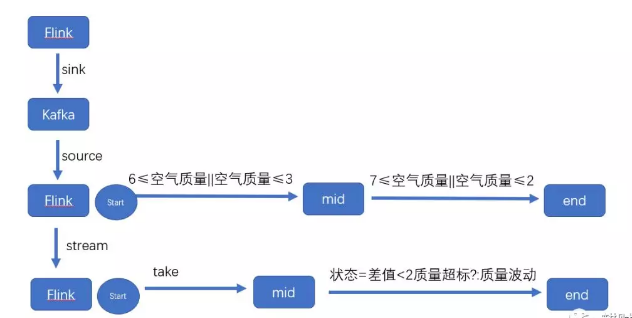

代码流程如下：
在这里插入图片描述

首先定义空气质量对象，包括ID，城市，空气质量，记录时间和时间戳。

public class AirQualityRecoder implements Serializable{
    private String id;
    private String city;
    private Integer airQuality;
    private Date emmit;
    private Long et;
}

在讲解CEP之前，定义两个POJO，来做数据存储

//一个用于存放前后数据的对比记录
public class AirWarningRecoder{
    private String city;
    private AirQualityRecoder first;
    private AirQualityRecoder second;
    public String getCity() {
        return city;
    }

    public void setCity(String city) {
        this.city = city;
    }

    public AirQualityRecoder getFirst() {
        return first;
    }

    public void setFirst(AirQualityRecoder first) {
        this.first = first;
    }

    public AirQualityRecoder getSecond() {
        return second;
    }

    public void setSecond(AirQualityRecoder second) {
        this.second = second;
    }

    public AirWarningRecoder(AirQualityRecoder first, AirQualityRecoder second) {
        this.first = first;
        this.second = second;
    }

    @Override
    public String toString() {
        return "AirWarningRecoder{" +
                "city='" + city + '\'' +
                ", first=" + first +
                ", second=" + second +
                '}';
    }

    public AirWarningRecoder(String city, AirQualityRecoder first, AirQualityRecoder second) {
        this.city = city;
        this.first = first;
        this.second = second;
    }
}

//另外一个用于存放空气预警类型
public class AirWarningTypeRecoder{
    private String city;
    private String wtype;
    private Integer first;
    private Integer second;
    @Override
    public String toString() {
        return "AirWarningTypeRecoder{" +
                "city='" + city + '\'' +
                ", wtype='" + wtype + '\'' +
                ", first=" + first +
                ", second=" + second +
                '}';
    }

    public Integer getFirst() {
        return first;
    }

    public void setFirst(Integer first) {
        this.first = first;
    }

    public Integer getSecond() {
        return second;
    }

    public void setSecond(Integer second) {
        this.second = second;
    }

    public String getCity() {
        return city;
    }

    public void setCity(String city) {
        this.city = city;
    }

    public String getWtype() {
        return wtype;
    }

    public void setWtype(String wtype) {
        this.wtype = wtype;
    }
}

/**
下面就是具体的CEP细节流程，首先我们需要定义Pattern，用于识别预警数据，第二个Pattern则没做操作，直接将数据交个下一个处理步骤。
然后将pattern和数据流注册给CEP，再对起进行select和map操作
*/
public class CepApp{
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        Map properties= new HashMap();
        properties.put("bootstrap.servers", "localhost:9092");
        properties.put("group.id", "test");
        properties.put("enable.auto.commit", "true");
        properties.put("auto.commit.interval.ms", "1000");
        properties.put("auto.offset.reset", "earliest");
        properties.put("session.timeout.ms", "30000");
//        properties.put("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
//        properties.put("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
        properties.put("topic", "test1");
        ParameterTool parameterTool = ParameterTool.fromMap(properties);
        FlinkKafkaConsumer010 consumer010 = new FlinkKafkaConsumer010(
                parameterTool.getRequired("topic"), new WriteIntoKafka.SimpleAirQualityRecoderSchema(), parameterTool.getProperties());
        DataStream<AirQualityRecoder> aqrStream = env.addSource(consumer010);

       //定义好数据源，开始
        Pattern<AirQualityRecoder,?> warningPattern=Pattern.<AriQualityRecoder>begin("first")
            .subtype(AirQualityRecoder.class)
            .where(new IterativeCondition<AirQualityRecoder>(){
                @Override
                public boolean filter(AirQualityRecoder value,Context<AirQualityRecoder> ctx) throws Exception{
                    return value.getAirQuality()>=6;
                }
            }).or(new IterativeCondition<AirQualityRecoder>(){
            	@Override
            	public boolean filter(AirQualityRecoder value,Context<AirQualityRecoder> ctx) throws Exception{
                    return value.getAirQuality()<=3;
                }
        })
            .next("second")
            .where(new IterativeCondition<AirQualityRecoder>(){
                @Override
                public boolean filter(AirQualityRecoder value,Context<AirQualityRecoder> ctx) throws Exception{
                    return value.getAirQuality()<=2;
                }
            })
            .within(Time.seconds(60));
    PatternStream<AirQualityRecoder> warningPatternStream=CEP.pattern(
        aqrStream.keyBy("city"),//"city"
        warningPattern);

    DataStream<AirWarnningRecoder> warnings=warningPatternStream.select(
        (Map<String,List<AirQualityRecode>> pattern) ->{
            AirQualityRecoder first=(AirQualityRecoder) pattern.get("first").get(0);
            AirQualityRecoder second=(AirQualityRecoder) pattern.get("second").get(0);
            return new AirWarnningRecoder(first.getCity(),first,second);
        }

    );
    Pattern<AirWarnningRecoder,?> typePattern=Pattern.<AirWarnningRecoder>begin("pass")
        .subtype(AirWarnningRecoder.class);
    PatternStream<AirWarnningRecoder> typePatternStream=CEP.pattern(
        warnings.keyBy(AirWarnningRecoder::getCity),
        typePattern
    );
    DataStream<AirWarnningTypeRecoder> awt=typePatternStream.select(
        (Map<String,List<AirWarnningRecoder>> pattern) ->{
            AirWarnningRecoder awr=(AirWarnningRecoder) pattern.get("pass").get(0);
            AirWarnningTypeRecoder awtr=new AirWarnningTypeRecoder();
            awtr.setCity(awr.getCity());
            awtr.setFirst(awr.getFirst().getAirQuality());
            awtr.setSecond(awr.getSecond().getAirQuality());
            int res=Math.abs(awr.getFirst()-awtr.getSecond());
            if(res<=2){
                awtr.setWtype("质量超标");
            }else{
                awtr.setWtype("波动较大");
            }
            return awtr;
        }
    );
     warnings.print();
     awt.print();
     env.execute("cep run!!!");
}

2.3 案例-Flink CEP实现超时状态监控

/**
    CEP - Complex Event Processing复杂事件处理。
    订单下单后超过多久还未进行支付确认。
    打车订单生成后超过多长时间没有确认上车。
    外卖超过预定送达时间多久还没有确认送达。
*/
/**
	以订单为例：
	1.订单在初始化之后，长时间处于处理中[可能由于网络、第三方处理耗时故障等原因]，从初始化状态开始后超过一定时间没有出现终态则发出告警。
	2.初始化 02 --->终态，成功：00
			   --->终态，失败：01
			   --->时间一过，检测不到成功Or失败的状态，则告警
	3.注意不要使用数据本身的时间和水印去推动事件时间
*/

Flink CEP实现步骤

1.IN:DataSource -> DataStream ->Transformations ->DataStream
2.Pattern:Pattern.begin.where.next.where…times…
3.PatternStream:CEP.pattern(DataStream,Pattern)
4.DataStream: PatternStream.select(PatternSelectFunction)

PatternStream.flatselect(PatternSelectFunction)
5.OUT: DataStream -> Transformations ->DataStream -> DataSink

FlinkCEP匹配超时实现步骤

TimeoutCEP的流需要keyBy，即KeyedStream，如果inputStream不是KeyedStream，会new 一个0字节的Key。

KeySelector<IN, Byte> keySelector = new NullByteKeySelector<>();

Pattern最后调用within设置窗口时间。

如果对主键进行分组，一个时间窗口内最多只会匹配出一个超时事件，使用PatternStream.select(…)就可以。

1.IN: DataSource -> DataStream -> Transformations -> DataStream -> keyBy ->KeyedStream
2.Pattern：Pattern.begin.where.next.where…within(Time windowTime)
3.PatternStream：CEP.pattern(KeyedStream,Pattern)
4.OutputTag:new OutputTag(…)
5.SingleOutputStreamOperator： PatternStream.flatSelect(OutputTag,PatternFlatTimeoutFunction,PatternFlatSelectFunction)
6.DataStream：SingleOutputStreamOperator.getSideOutput(OutputTag)
7.OUT：DataStream -> Transformations -> DataStream -> DataSink

Flink CEP超时不足

和Flink窗口聚合类似，如果使用事件时间和依赖事件生成的水印向前推进，需要后续事件到达，才会触发窗口进行计算和输出结果。

完整Demo

public class CEPTimeoutEventJob{
    private static final String LOCAL_KAFKA_BROKER = "localhost:9092";
    private static final String GROUP_ID = CEPTimeoutEventJob.class.getSimpleName();
    private static final String GROUP_TOPIC = GROUP_ID;
    public static void main(String[] args) throws Exception{
        // 参数
        ParameterTool params = ParameterTool.fromArgs(args);
        StreamExecutionEnvironment env = 		                                      StreamExecutionEnvironment.getExecutionEnvironment();
        // 使用事件时间
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        env.enableCheckpointing(5000);

        env.getCheckpointConfig().enableExternalizedCheckpoints
        (CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
        env.getConfig().disableSysoutLogging();
        env.getConfig().setRestartStrategy(RestartStrategies.fixedDelayRestart(5,10000));
        // 不使用POJO的时间
        final AssignerWithPeriodicWatermarks extractor=new IngestionTimeExtractor<POJO();

        // 与Kafka Topic的Partition保持一致
        env.setParallelism(3);
        Properties kafkaProps = new Properties();
        kafkaProps.setProperty("bootstrap.servers", LOCAL_KAFKA_BROKER);
        kafkaProps.setProperty("group.id", GROUP_ID);

        // 接入Kafka的消息
        FlinkKafkaConsumer011<POJO> consumer =
            new FlinkKafkaConsumer011<>(GROUP_TOPIC, new POJOSchema(), kafkaProps);
        DataStream<POJO> pojoDataStream = env.addSource(consumer)
                .assignTimestampsAndWatermarks(extractor);
        pojoDataStream.print();

        //根据主键id分组，即对每一个POJO时间进行匹配检测[不同类型的POJO,可以采用不同的within时间]
        //1.
        DataStream<POJO> keyedPojos=pojoDataStream.keyBy("aid");
        //从初始化到终态，一个完整的POJO事件序列
        //2.
        Pattern<Pojo,POJO> completedPojo=Pattern.<POJO>begin("init")
            .where(new SimpleCondition<POJO>(){
                private static final long serialVersionUID = -6847788055093903603L;
                @Override
                public boolean filter(POJO pojo) throws Exception{
                    return "02".equals(pojo.getAstatus());//只筛选状态为02的数据（初始化）
                }
            })
            .followedBy("end")
            .where(new SimpleCondition<POJO>(){
                private static final long serialVersionUID = -2655089736460847552L;

                @Override
                public boolean filter(POJO pojo) throws Exception{
                    //筛选状态为成功 00或者状态为失败	01的数据。
                   return "00".equals(pojo.getAstatus())||"01".equals(pojo.getAstatus());
                }
            });
        //找出一分钟内[便于测试]都没有到终态的事件aid
        //如果针对不同类型有不同within时间，比如有的是超时1分钟，有的是超时一个小时，则生成多个PatternStream
        PatternStream<POJO> patternStream=CEP.pattern(keyedPojos,completedPojo.within(Time.minutes(1)));
        //定义侧面输出timeout
        //4.
        OutputTag<POJO> timedout=new OutputTag<POJO>("timedout"){
            private static final long serialVersionUID = 773503794597666247L;
        };
         // OutputTag<L> timeoutOutputTag,
        //PatternFlatTimeoutFunction<T, L> patternFlatTimeoutFunction,
        //PatternFlatSelectFunction<T, R> patternFlatSelectFunction
        //5.
        SingleOutputStreamOperator<POJO> timeoutPojos=patternStream.flatSelect(
            timedout,
            new POJOTimedOut(),
            new FlatSelectNothing()
        );
        //打印输出超时的POJO
        //6,7
        timeoutPojos.getSideOutput(timeOut).print();
        timeoutPojos.print();

        env.execute(CEPTimeoutEventJob.class.getSimpleName());
    }
    /**
    把超时的事件收集起来
    */
    public static class POJOTimedOut implements PatternFlatTimeout<POJO,POJO>{
        private static final long serialVersionUID = -4214641891396057732L;
        @Override
        public void timeout(Map<String,List<POJO>> pattern,long timeStamp,Collector<POJO> out) throws Exception{
            if(null != pattern.get("init")){
                for(POJO pojoint:pattern.get("init")){
                    System.out.println("timeout init:"+pojoInit.getAid());
                    out.collect(pojoint);
                }
            }
            //因为end 超时了，还没有收到end,所以这里是拿不到 end 的
            System.out.println("timeout end"+map.get("end"));
        }
    }
    /**
    通常什么都不做，但也可以把所有匹配到的事件发往下游；如果是宽松邻近，被忽略或者穿透的事件就没办法选中发往下游了
    一分钟时间内走完init和end的数据
    */
    public static class FlatSelectNothing<T> implements PatternFlatSelectFunction<T,T>{
        private static final long serialVersionUID = -3029589950677623844L;
        @Override
        public void flatSelect(Map<String,List<T>> pattern,Collector<T> collector){
            System.out.println("flatSelect"+pattern);
        }
    }
}

leaeason

关注

1
点赞
踩
23

收藏

觉得还不错? 一键收藏
打赏
8
评论
Flink CEP 超时预警实现案例

文章目录1. 案例-离厂超时预警实现思路1.1 定义一个刷卡事件类1.2 定义一个事件模式（Pattern）1.3 Build pattern stream，模式匹配输出1.4 Use side output get timeout stream，获取超时输出流2. 其他可参考案例2.1 案例-订单超时统计2.2 案例-CEP 实现空气质量检测2.3 案例-Flink CEP实现超时状态监控1. 案例-离厂超时预警实现思路利用Flink CEP 的实现思路，暂时没考虑其他的干扰条件。假定只刷卡出
复制链接

扫一扫
