Hadoop是一个由Apache基金会所开发的分布式系统基础架构。
用户可以在不了解分布式底层细节的情况下，开发分布式程序。充分利用集群的威力进行高速运算和存储。
Hadoop实现了一个分布式文件系统（Hadoop Distributed File System），简称HDFS。HDFS有高容错性的特点，并且设计用来部署在低廉的（low-cost）硬件上；而且它提供高吞吐量（highthroughput）来访问应用程序的数据，适合那些有着超大数据集（large dataset）的应用程序。HDFS放宽了（relax）POSIX的要求，可以以流的形式访问（streaming access）文件系统中的数据。
Hadoop的框架最核心的设计就是：HDFS和MapReduce。HDFS为海量的数据提供了存储，则MapReduce为海量的数据提供了计算。
单点
新建用户hadoop并切换到hadoop用户：
[root@server1 ~]# useradd -u 800 hadoop
[root@server1 ~]# su - hadoop
[hadoop@server1 ~]$ ls
hadoop-2.7.3.tar.gz jdk-7u79-linux-x64.tar.gz
解压jdk并制作软链接：
[hadoop@server1 ~]$ tar zxf jdk-7u79-linux-x64.tar.gz
[hadoop@server1 ~]$ ln -s jdk1.7.0_79/ java
解压hadoop并设定变量：
[hadoop@server1 ~]$ tar zxf hadoop-2.7.3.tar.gz
[hadoop@server1 ~]$ cd hadoop-2.7.3

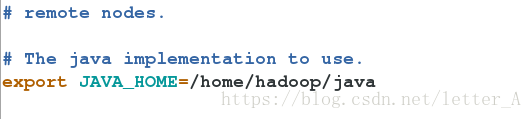

[hadoop@server1 hadoop-2.7.3]$ vim etc/hadoop/hadoop-env.sh

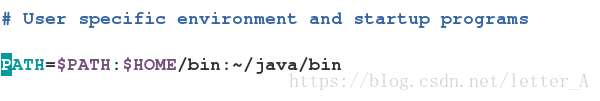

设定全局变量：
[hadoop@server1 ~]$ vim .bash_profile
[hadoop@server1 ~]$ source .bash_profile
创建input目录：
[hadoop@server1 ~]$ cd hadoop-2.7.3
[hadoop@server1 hadoop-2.7.3]$ cp etc/hadoop/*.xml input/
[hadoop@server1 hadoop-2.7.3]$ bin/hadoop jar share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.3.jar grep input output 'dfs[a-z.]+'
[hadoop@server1 input]$ cd ..
[hadoop@server1 hadoop-2.7.3]$ cd output/
[hadoop@server1 output]$ ls
part-r-00000 _SUCCESS
[hadoop@server1 output]$ cat part-r-00000
1 dfsadmin
hadoop配置文件的设定：

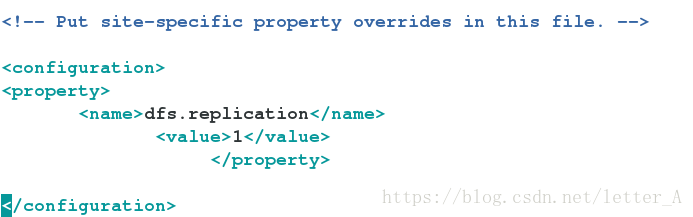

[hadoop@server1 hadoop-2.7.3]$ vim etc/hadoop/hdfs-site.xml

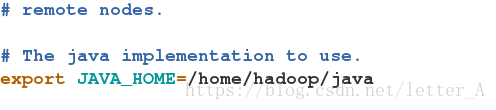

[hadoop@server1 hadoop-2.7.3]$ vim etc/hadoop/hadoop-env.sh
[hadoop@server1 hadoop]$ cd etc/hadoop/

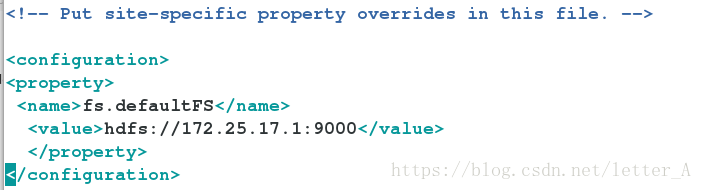

[hadoop@server1 hadoop]$ vim core-site.xml
[hadoop@server1 hadoop]$ vim slaves
设定免密连接：
[hadoop@server1 ~]$ ssh-keygen
[hadoop@server1 ~]$ cd .ssh/
[hadoop@server1 .ssh]$ cp id_rsa.pub authorized_keys
测试免密：
[hadoop@server1 .ssh]$ ssh 172.25.17.1
[hadoop@server1 .ssh]$ ssh localhost
[hadoop@server1 .ssh]$ ssh server1
[hadoop@server1 .ssh]$ ssh 0.0.0.0
初始化：
[hadoop@server1 .ssh]$ cd
[hadoop@server1 ~]$ cd hadoop
[hadoop@server1 hadoop]$ bin/hdfs namenode -format
开启服务：
[hadoop@server1 hadoop]$ sbin/start-dfs.sh
Starting namenodes on [server1]
server1: starting namenode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-namenode-server1.out
172.25.17.1: starting datanode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-datanode-server1.out
Starting secondary namenodes [0.0.0.0]
0.0.0.0: starting secondarynamenode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-secondarynamenode-server1.out
查看服务状态：
[hadoop@server1 hadoop]$ jps
1882 NameNode
1975 DataNode
2267 Jps
2158 SecondaryNameNode

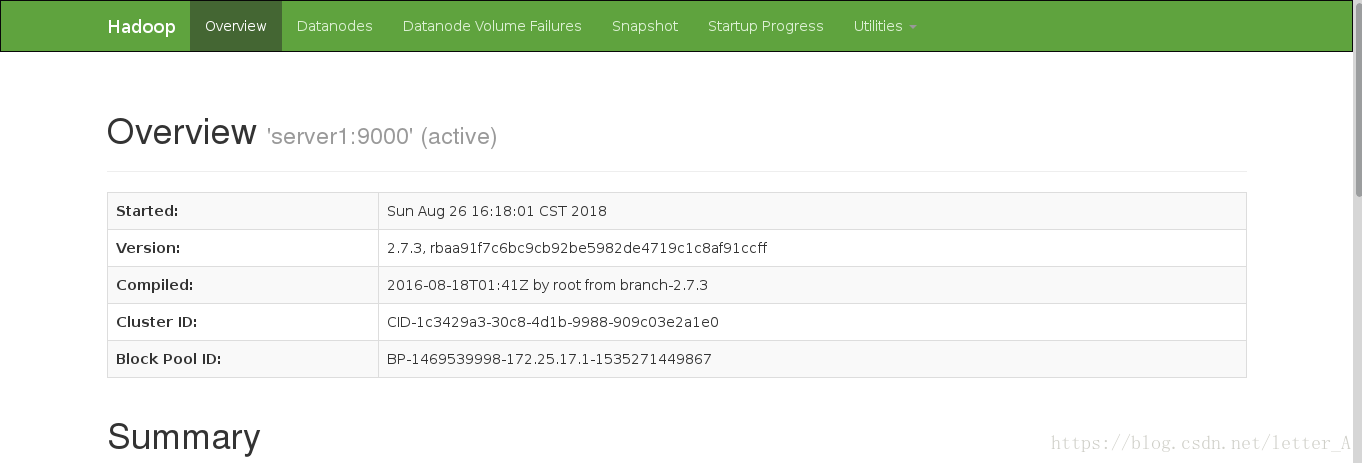

浏览器访问：
设定共享目录：
[hadoop@server1 hadoop]$ bin/hdfs dfs -mkdir /user
[hadoop@server1 hadoop]$ bin/hdfs dfs -mkdir /user/hadoop
[hadoop@server1 hadoop]$ bin/hdfs dfs -put input/
[hadoop@server1 hadoop]$ bin/hdfs dfs -ls
Found 1 items
drwxr-xr-x - hadoop supergroup 0 2018-08-26 15:35 input

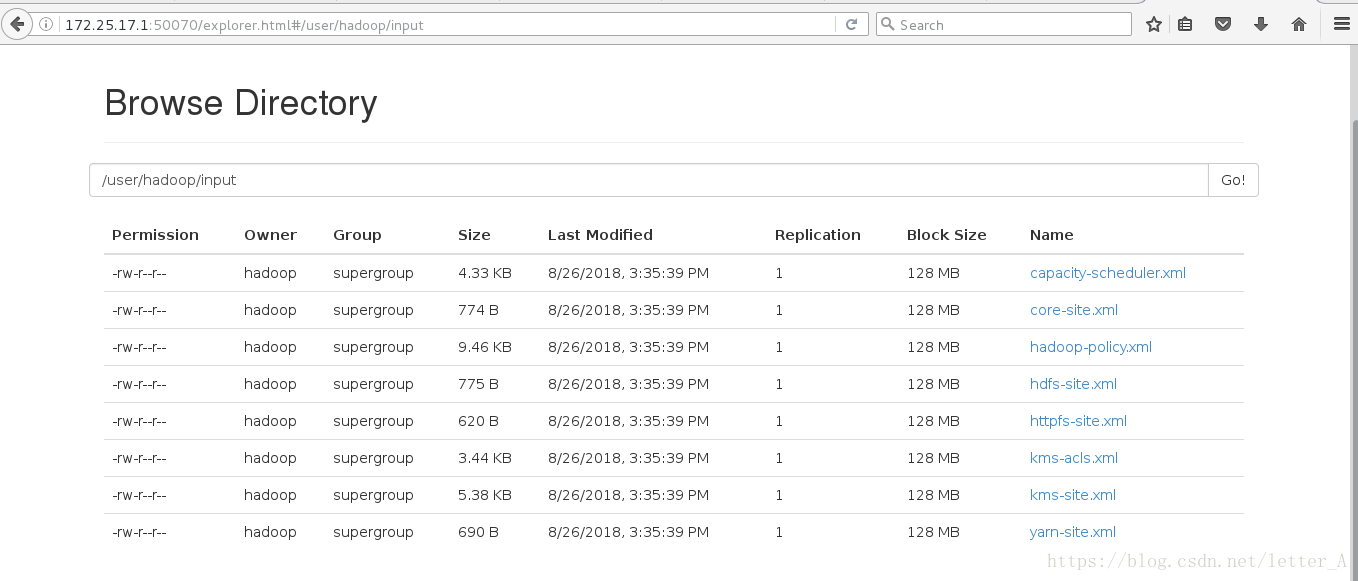

浏览器访问：
设定主从集群
server1停掉服务并切换到超级用户
[hadoop@server1 hadoop]$ sbin/stop-dfs.sh
Stopping namenodes on [server1]
server1: stopping namenode
172.25.17.1: stopping datanode
Stopping secondary namenodes [0.0.0.0]
0.0.0.0: stopping secondarynamenode
[hadoop@server1 hadoop]$ exit
logout
在server1，server2和servre3端安装nfs-utils服务：
[root@server1 ~]# yum install nfs-utils -y

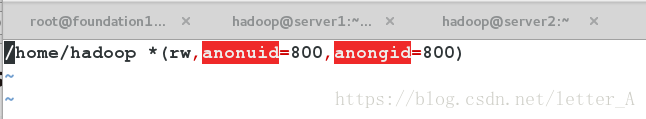

编辑文件：
[root@server1 ~]# vim /etc/exports
开启服务：
[root@server1 ~]# /etc/init.d/rpcbind start
Starting rpcbind: [ OK ]
[root@server1 ~]# /etc/init.d/nfs start
Starting NFS services: [ OK ]
Starting NFS mountd: [ OK ]
Starting NFS daemon: [ OK ]
Starting RPC idmapd: [ OK ]
刷新挂载：
[root@server1 ~]# showmount -e
Export list for server1:
/home/hadoop *
同样在server2和server3端安装服务并建立用户，之后开启服务，将servre1端的目录挂载：
[root@server2 ~]# yum install nfs-utils rpc-bind -y
[root@server2 ~]# /etc/init.d/rpcbind start
Starting rpcbind: [ OK ]
[root@server2 ~]# /etc/init.d/nfs start
Starting NFS services: [ OK ]
Starting NFS mountd: [ OK ]
Starting NFS daemon: [ OK ]
Starting RPC idmapd: [ OK ]
[root@server2 ~]# useradd -u 800 hadoop
[root@server2 ~]# id hadoop
uid=800(hadoop) gid=800(hadoop) groups=800(hadoop)
[root@server2 ~]# mount 172.25.17.1:/home/hadoop /home/hadoop
[root@server2 ~]# su - hadoop
[hadoop@server2 ~]$ ls
hadoop hadoop-2.7.3 hadoop-2.7.3.tar.gz java jdk1.7.0_79 jdk-7u79-linux-x64.tar.gz
ssh测试：
[hadoop@server1 ~]$ ssh 172.25.17.2
[hadoop@server1 ~]$ ssh 172.25.17.3
sevrer1端切换到hadoop用户并编辑文件：
[hadoop@server1 ~]$ cd hadoop/etc/hadoop/
[hadoop@server1 hadoop]$ vim hdfs-site.xml
设定从设备：
[hadoop@server1 hadoop]$ vim slaves
重新进行服务初始化：
[hadoop@server1 ~]$ cd hadoop
[hadoop@server1 hadoop]$ bin/hdfs namenode -format
开启服务：
[hadoop@server1 hadoop]$ sbin/start-dfs.sh
Starting namenodes on [server1]
server1: starting namenode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-namenode-server1.out
172.25.17.2: starting datanode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-datanode-server2.out
172.25.17.3: starting datanode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-datanode-server3.out
Starting secondary namenodes [0.0.0.0]
0.0.0.0: starting secondarynamenode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-secondarynamenode-server1.out
查看服务状态：
[hadoop@server1 hadoop]$ jps
3626 Jps
3329 NameNode
3517 SecondaryNameNode
重新初始化后就要重新建立共享目录：
[hadoop@server1 hadoop]$ bin/hdfs dfs -mkdir /user
[hadoop@server1 hadoop]$ bin/hdfs dfs -mkdir /user/hadoop
[hadoop@server1 hadoop]$ bin/hdfs dfs -put input/
[hadoop@server1 hadoop]$ bin/hadoop jar share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.3.jar wordcount input output
查看：
[hadoop@server1 hadoop]$ bin/hdfs dfs -cat output/*
节点的添加
要给集群添加节点server4，需要在server4端同样地安装nsf-utils，开启服务，建立用户并挂载目录：
[root@server4 ~]# yum install nfs-utils -y
[root@server4 ~]# /etc/init.d/rpcbind start
[root@server4 ~]# /etc/init.d/nfs start
Starting NFS services: [ OK ]
Starting NFS quotas: [ OK ]
Starting NFS mountd: [ OK ]
Starting NFS daemon: [ OK ]
Starting RPC idmapd: [ OK ]
[root@server4 ~]# useradd -u 800 hadoop
[root@server4 ~]# mount 172.25.17.1:/home/hadoop/ /home/hadoop/
切换到hadoop用户并编辑文件slave：
[root@server4 ~]# su - hadoop
[hadoop@server4 ~]$ ls
hadoop hadoop-2.7.3 hadoop-2.7.3.tar.gz java jdk1.7.0_79 jdk-7u79-linux-x64.tar.gz
[hadoop@server4 ~]$ cd hadoop/etc/hadoop/
[hadoop@server4 hadoop]$ vim slaves
将节点server4写入：
开启数据节点：
[hadoop@server4 ~]$ cd hadoop
[hadoop@server4 hadoop]$ sbin/hadoop-daemon.sh start datanode
starting datanode, logging to /home/hadoop/hadoop-2.7.3/logs/hadoop-hadoop-datanode-server4.out
**效果查看：**成功添加server4
[hadoop@server4 hadoop]$ bin/hdfs dfsadmin -report
Configured Capacity: 58780667904 (54.74 GB)
Present Capacity: 52842000384 (49.21 GB)
DFS Remaining: 52841705472 (49.21 GB)
DFS Used: 294912 (288 KB)
DFS Used%: 0.00%
Under replicated blocks: 0
Blocks with corrupt replicas: 0
Missing blocks: 0
Missing blocks (with replication factor 1): 0
-------------------------------------------------
Live datanodes (3):
Name: 172.25.17.2:50010 (server2)
Hostname: server2
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 135168 (132 KB)
Non DFS Used: 1958719488 (1.82 GB)
DFS Remaining: 17634701312 (16.42 GB)
DFS Used%: 0.00%
DFS Remaining%: 90.00%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:02:10 CST 2018
Name: 172.25.17.3:50010 (server3)
Hostname: server3
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 135168 (132 KB)
Non DFS Used: 1954742272 (1.82 GB)
DFS Remaining: 17638678528 (16.43 GB)
DFS Used%: 0.00%
DFS Remaining%: 90.02%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:02:07 CST 2018
Name: 172.25.17.4:50010 (server4)
Hostname: server4 <----------------在这里
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 24576 (24 KB)
Non DFS Used: 2025205760 (1.89 GB)
DFS Remaining: 17568325632 (16.36 GB)
DFS Used%: 0.00%
DFS Remaining%: 89.66%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:02:09 CST 2018
在浏览器中也可以查看到节点数量变为3个：
节点删除
为了测试效果，在server1端将一个大文加加到文件系统中：
[hadoop@server1 hadoop]$ pwd
/home/hadoop/hadoop
[hadoop@server1 hadoop]$ dd if=/dev/zero of=bigfile bs=1M count=300
300+0 records in
300+0 records out
314572800 bytes (315 MB) copied, 2.26836 s, 139 MB/s
[hadoop@server1 hadoop]$ bin/hdfs dfs -put bigfile
浏览器查看文件成功加入到文件系统：
查看节点信息：
可以发现server3端存有302.49M的数据
[hadoop@server1 hadoop]$ bin/hdfs dfsadmin -report
Configured Capacity: 58780667904 (54.74 GB)
Present Capacity: 52842024974 (49.21 GB)
DFS Remaining: 52207644672 (48.62 GB)
DFS Used: 634380302 (604.99 MB)
DFS Used%: 1.20%
Under replicated blocks: 0
Blocks with corrupt replicas: 0
Missing blocks: 0
Missing blocks (with replication factor 1): 0
-------------------------------------------------
Live datanodes (3):
Name: 172.25.17.2:50010 (server2)
Hostname: server2
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 46637056 (44.48 MB)
Non DFS Used: 1958719488 (1.82 GB)
DFS Remaining: 17588199424 (16.38 GB)
DFS Used%: 0.24%
DFS Remaining%: 89.77%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:09:19 CST 2018
Name: 172.25.17.3:50010 (server3)
Hostname: server3
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 317181952 (302.49 MB) <--------------在这里
Non DFS Used: 1954742272 (1.82 GB)
DFS Remaining: 17321631744 (16.13 GB)
DFS Used%: 1.62%
DFS Remaining%: 88.40%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:09:19 CST 2018
Name: 172.25.17.4:50010 (server4)
Hostname: server4
Decommission Status : Normal
Configured Capacity: 19593555968 (18.25 GB)
DFS Used: 270561294 (258.03 MB)
Non DFS Used: 2025181170 (1.89 GB)
DFS Remaining: 17297813504 (16.11 GB)
DFS Used%: 1.38%
DFS Remaining%: 88.28%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Sun Aug 26 17:09:18 CST 2018

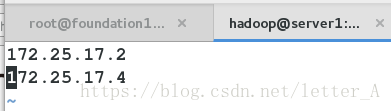

编辑slave文件将sevrer3删除：
新建文件hosta-exclude：
[hadoop@server1 hadoop]$ vim hosts-exclude

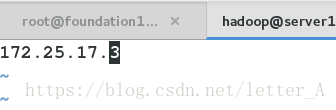

写入被删除的节点ip：
编辑文件etc/hadoop/hdfs-site.xml：
[hadoop@server1 hadoop]$ vim etc/hadoop/hdfs-site.xml
<!-- Put site-specific property overrides in this file. -->
<configuration>
<property>
<name>dfs.replication</name>
<value>2</value>
</property>
<property>
<name>dfs.hosts.exclude</name>
<value>/home/hadoop/hadoop/etc/hadoop/hosts-exclude</value>
</property>
</configuration>
刷新：
[hadoop@server1 hadoop]$ bin/hdfs dfsadmin -refreshNodes
Refresh nodes successful
查看集群状态：
[hadoop@server1 hadoop]$ bin/hdfs dfsadmin -report

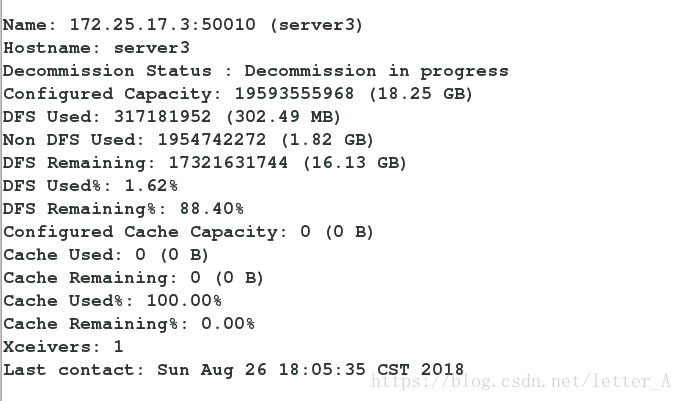

server3正在迁移：

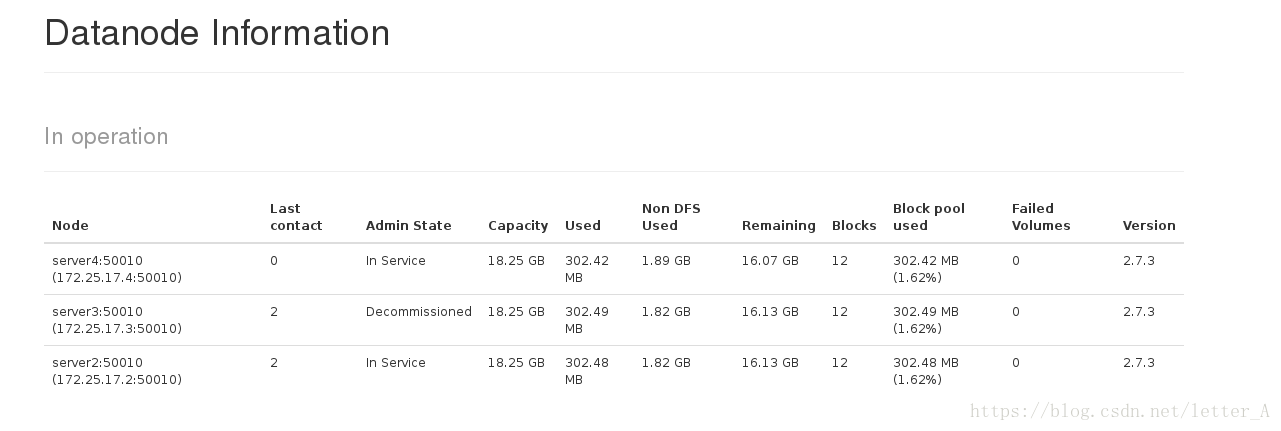

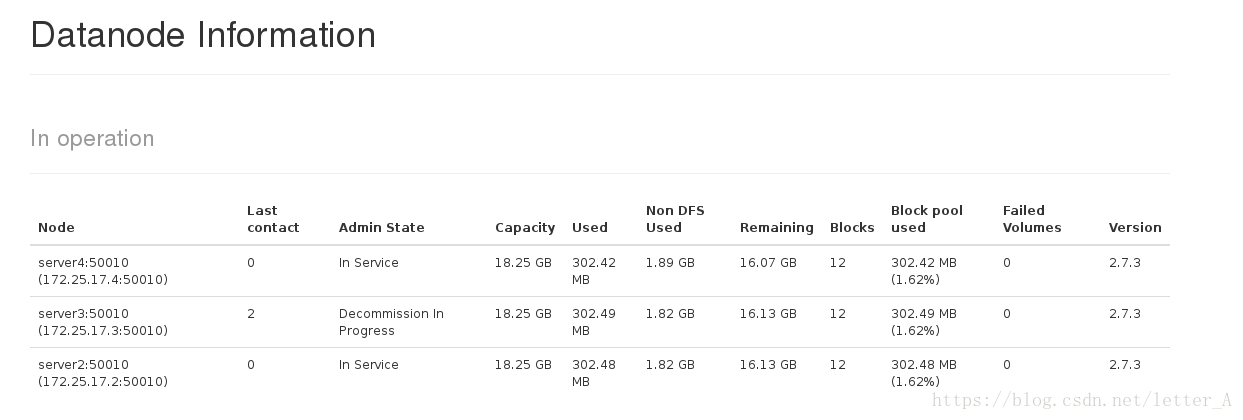

迁移完成，并且server3的数据转移到server4上：
之后在server3端停掉服务：
[hadoop@server3 hadoop]$ sbin/hadoop-daemon.sh stop datanode
stopping datanode
