前两星期刚学了1.44寸TFT彩屏，总结一下，不好勿喷，欢迎交流。

先附上效果图

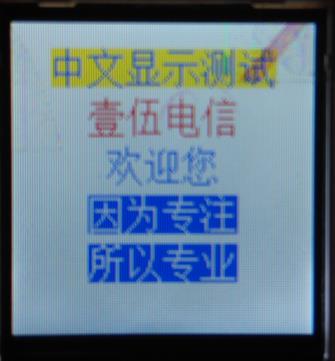

中文测试

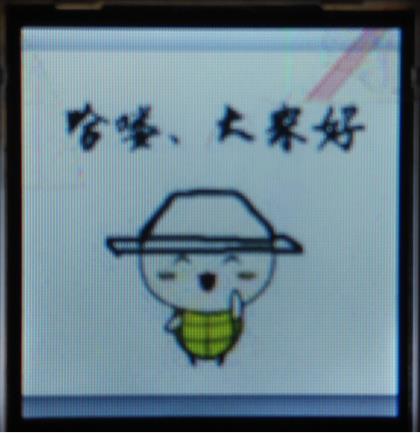

图片测试

以上就是两张测试图了，由于STM32F013内存较小，加了图片的*.hex文件还挺大的，就没有弄英文字母和数字的显示测试了，但是在代码中会展示出来。

1.44寸彩屏的基础资料

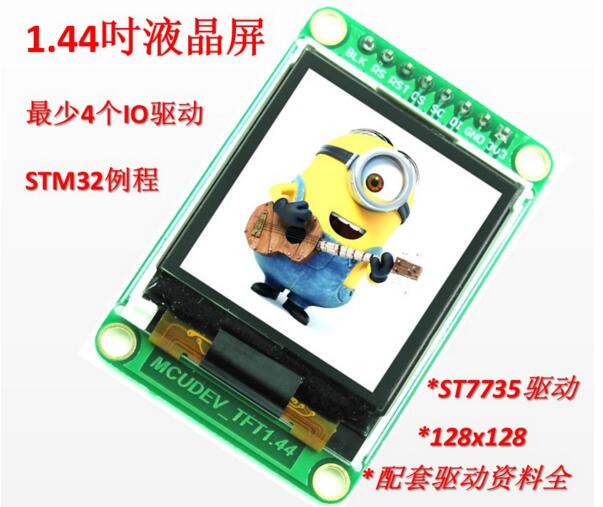

实物图

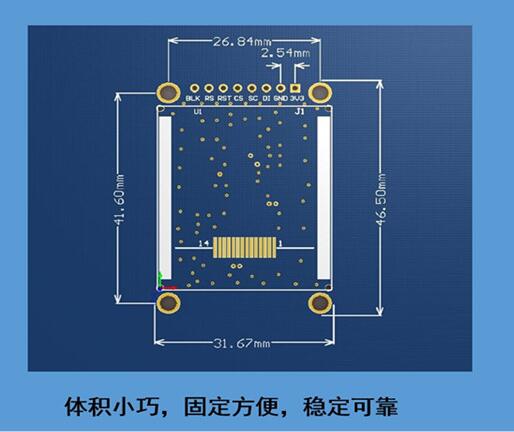

尺寸图

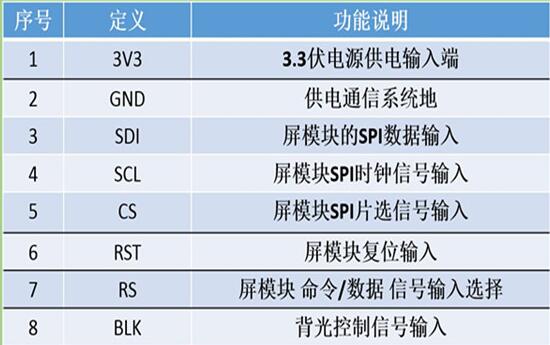

引脚接口定义

在彩屏引脚上都有引脚标识，所以很容易知道各个管脚的用途，TFT彩屏工作电压为3.3V，虽然可能接5V也可以使用，但对液晶不好，所以1引脚最好还是接3.3V。

2引脚为GND，直接接地就好了。

3引脚SDI为屏模块的SPI数据输入引脚，与STM32芯片IO口相接即可，本程序接的是C6；

4引脚SCL为屏模块的SPI时钟信号输入引脚，与STM32芯片IO口相接即可，本程序接的是C7；

5引脚CS为屏模块的SPI片选信号输入引脚，与STM32芯片IO口相接即可，本程序接的是C8；

6引脚RST为屏模块复位输入引脚，与STM32芯片IO口相接即可，本程序接的是C9；

7引脚为屏模块命令 /数据信号输入选择引脚，与STM32芯片IO口相接即可，本程序接的是C10；

部分程序

main.c 主程序拷贝了部分，具体见附件

#include "stm32f10x.h"
#include "lcd.h"
#include "led.h"
#include "delay.h"

int main(void)
{
	tft_pin_init();
	lcd_init();
	led_init();
  while(1)
  {
		GPIO_ResetBits(GPIOC,GPIO_Pin_1);
		Font_Test();
    //delay_ms(3500);
		//Display_Desc();
		delay_ms(2000);
		showimage1(gImage_tp1);
		delay_ms(3000);
		//Display_ASCII8X16(10,50,"I love you");
		//delay_ms(1000);
    }
 }

LCD.C主程序拷贝了部分，具体见附件

LCD设置初始化

//向SPI总线传输一个8位数据
void  SPI_WriteData(uchar Data)
{
	unsigned char i=0;
	for(i=8;i>0;i--)
	{
		if(Data&0x80)
		sda=1; //输出数据
		else sda=0;
		scl=0;
		scl=1;
		Data<<=1;
	}
}
//向液晶屏写一个8位指令
void  Lcd_WriteIndex(uchar Data)
{

		cs=0;
		rs=0;
		SPI_WriteData(Data);
		cs=1;
}
//向液晶屏写一个8位数据
void  Lcd_WriteData(uchar Data)
{
		unsigned char i=0;
		cs=0;
		rs=1;
		SPI_WriteData(Data);
		cs=1;
}
//向液晶屏写一个16位数据
void  LCD_WriteData_16Bit(unsigned int Data)
{
	unsigned char i=0;
	cs=0;
	rs=1;
	SPI_WriteData(Data>>8); 	//写入高8位数据
	SPI_WriteData(Data); 			//写入低8位数据
	cs=1;

}

void Reset()
{
    reset=0;
    delay_ms(100);
    reset=1;
    delay_ms(100);
}
//
//液晶屏初始化 for S6D02A1
void lcd_initial()
{	Reset();//Reset before LCD Init.

	//LCD Init For 1.44Inch LCD Panel with ST7735R.
	Lcd_WriteIndex(0x11);//Sleep exit
	delay_ms (120);

	//ST7735R Frame Rate
	Lcd_WriteIndex(0xB1);
	Lcd_WriteData(0x01);
	Lcd_WriteData(0x2C);
	Lcd_WriteData(0x2D);

	Lcd_WriteIndex(0xB2);
	Lcd_WriteData(0x01);
	Lcd_WriteData(0x2C);
	Lcd_WriteData(0x2D);

	Lcd_WriteIndex(0xB3);
	Lcd_WriteData(0x01);
	Lcd_WriteData(0x2C);
	Lcd_WriteData(0x2D);
	Lcd_WriteData(0x01);
	Lcd_WriteData(0x2C);
	Lcd_WriteData(0x2D);

	Lcd_WriteIndex(0xB4); //Column inversion
	Lcd_WriteData(0x07);

	//ST7735R Power Sequence
	Lcd_WriteIndex(0xC0);
	Lcd_WriteData(0xA2);
	Lcd_WriteData(0x02);
	Lcd_WriteData(0x84);
	Lcd_WriteIndex(0xC1);
	Lcd_WriteData(0xC5);

	Lcd_WriteIndex(0xC2);
	Lcd_WriteData(0x0A);
	Lcd_WriteData(0x00);

	Lcd_WriteIndex(0xC3);
	Lcd_WriteData(0x8A);
	Lcd_WriteData(0x2A);
	Lcd_WriteIndex(0xC4);
	Lcd_WriteData(0x8A);
	Lcd_WriteData(0xEE);

	Lcd_WriteIndex(0xC5); //VCOM
	Lcd_WriteData(0x0E);

	Lcd_WriteIndex(0x36); //MX, MY, RGB mode
#ifdef USE_LANDSCAPE
	Lcd_WriteData(0xA8); //竖屏C8 横屏08 A8
#else
	Lcd_WriteData(0xC8); //竖屏C8 横屏08 A8
#endif
	//ST7735R Gamma Sequence
	Lcd_WriteIndex(0xe0);
	Lcd_WriteData(0x0f);
	Lcd_WriteData(0x1a);
	Lcd_WriteData(0x0f);
	Lcd_WriteData(0x18);
	Lcd_WriteData(0x2f);
	Lcd_WriteData(0x28);
	Lcd_WriteData(0x20);
	Lcd_WriteData(0x22);
	Lcd_WriteData(0x1f);
	Lcd_WriteData(0x1b);
	Lcd_WriteData(0x23);
	Lcd_WriteData(0x37);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x07);
	Lcd_WriteData(0x02);
	Lcd_WriteData(0x10);

	Lcd_WriteIndex(0xe1);
	Lcd_WriteData(0x0f);
	Lcd_WriteData(0x1b);
	Lcd_WriteData(0x0f);
	Lcd_WriteData(0x17);
	Lcd_WriteData(0x33);
	Lcd_WriteData(0x2c);
	Lcd_WriteData(0x29);
	Lcd_WriteData(0x2e);
	Lcd_WriteData(0x30);
	Lcd_WriteData(0x30);
	Lcd_WriteData(0x39);
	Lcd_WriteData(0x3f);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x07);
	Lcd_WriteData(0x03);
	Lcd_WriteData(0x10);

	Lcd_WriteIndex(0x2a);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x00+2);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x80+2);

	Lcd_WriteIndex(0x2b);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x00+3);
	Lcd_WriteData(0x00);
	Lcd_WriteData(0x80+3);

	Lcd_WriteIndex(0xF0); //Enable test command
	Lcd_WriteData(0x01);
	Lcd_WriteIndex(0xF6); //Disable ram power save mode
	Lcd_WriteData(0x00);

	Lcd_WriteIndex(0x3A); //65k mode
	Lcd_WriteData(0x05);


	Lcd_WriteIndex(0x29);//Display on

}



/*************************************************
函数名：LCD_Set_Region
功能：设置lcd显示区域，在此区域写点数据自动换行
入口参数：xy起点和终点
返回值：无
*************************************************/
void Lcd_SetRegion(unsigned int x_start,unsigned int y_start,unsigned int x_end,unsigned int y_end)
{
#ifdef USE_LANDSCAPE//使用横屏模式
	Lcd_WriteIndex(0x2a);
	Lcd_WriteData(0x00);
	Lcd_WriteData(x_start+3);
	Lcd_WriteData(0x00);
	Lcd_WriteData(x_end+3);

	Lcd_WriteIndex(0x2b);
	Lcd_WriteData(0x00);
	Lcd_WriteData(y_start+2);
	Lcd_WriteData(0x00);
	Lcd_WriteData(y_end+2);

#else//竖屏模式
	Lcd_WriteIndex(0x2a);
	Lcd_WriteData(0x00);
	Lcd_WriteData(x_start+2);
	Lcd_WriteData(0x00);
	Lcd_WriteData(x_end+2);

	Lcd_WriteIndex(0x2b);
	Lcd_WriteData(0x00);
	Lcd_WriteData(y_start+3);
	Lcd_WriteData(0x00);
	Lcd_WriteData(y_end+3);
#endif
	Lcd_WriteIndex(0x2c);
}

彩屏管脚初始化

void tft_pin_init()
{
	GPIO_InitTypeDef GPIO_InitStruct;
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOC,ENABLE);
	GPIO_InitStruct.GPIO_Mode=GPIO_Mode_Out_PP;
	GPIO_InitStruct.GPIO_Pin=GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8|GPIO_Pin_9|GPIO_Pin_10;
	GPIO_InitStruct.GPIO_Speed=GPIO_Speed_50MHz;
	GPIO_Init(GPIOC,&GPIO_InitStruct);
}

中文显示函数

void Fast_DrawFont_GBK16(uint x, uint y, uint fc, uint bc, uchar *s)
{
	unsigned char i,j;
	unsigned short k;
	uint HZnum;
	HZnum=sizeof(hz16)/sizeof(typFNT_GBK16);
	while(*s)
	{
		if((*s) >= 128)
		{
			for (k=0;k<HZnum;k++)
			{
			  if ((hz16[k].Index[0]==*(s))&&(hz16[k].Index[1]==*(s+1)))
			  { 	Lcd_SetRegion(x,y,x+16-1,y+16-1);
				    for(i=0;i<16*2;i++)
				    {
						for(j=0;j<8;j++)
				    	{
							if(hz16[k].Msk[i]&(0x80>>j))	LCD_WriteData_16Bit(fc);
							else
							{
							if (fc!=bc) LCD_WriteData_16Bit(bc);
							}
						}
					}


				}
			}
		s+=2;x+=16;
		}


		else
		s+=1;

	}
}

英文数字显示函数

void Display_ASCII8X16(uint x0,uint y0,uchar *s)
{
	int i,j,k,x,y,xx;

	unsigned char qm;

	long int ulOffset;

	char  ywbuf[32],temp[2];

	for(i = 0; i<strlen((char*)s);i++)
	{
		if(((unsigned char)(*(s+i))) >= 161)
		{
			temp[0] = *(s+i);
			temp[1] = '\0';
			return;
		}

		else
		{
			qm = *(s+i);

			ulOffset = (long int)(qm) * 16;

      for (j = 0; j < 16; j ++)
      {
				ywbuf[j]=Zk_ASCII8X16[ulOffset+j];
      }

      for(y = 0;y < 16;y++)
      {
	        for(x=0;x<8;x++)
	        {
             k=x % 8;

				  	if(ywbuf[y]&(0x80 >> k))
				   	{
				  		xx=x0+x+i*8;
				    	PutPixel(xx,y+y0,RED);
				  	}

			   	}
      }

		}
	}
}

图片显示函数

void showimage1(const unsigned char *p)
{
  	int i;
	unsigned char picH,picL;
	dsp_single_colour(WHITE); //??

		Lcd_SetRegion(0,0,127,127);
			for(i=0;i<128*128;i++)
		 {
			picL=*(p+i*2);	//??????
			picH=*(p+i*2+1);
			LCD_WriteData_16Bit(picH<<8|picL);
		 }
}

刷屏函数

void dsp_single_colour(int color)
{
 	uchar i,j;
	Lcd_SetRegion(0,0,128-1,128-1);
 	for (i=0;i<128;i++)
    	for (j=0;j<128;j++)
        	LCD_WriteData_16Bit(color);
}

完整程序链接https://download.csdn.net/download/life_yangzi/10409239

欢迎各位下载学习，有不懂之处可以下方留言与我沟通，欢迎骚扰
