iOS Masonry约束自定义TableViewCell自适应行高的约束冲突的问题

纯代码使用Masonry进行子控件约束的时候(尤其是tableViewCell的子控件自动适应行高),经常会出现下面约束警告

2017-12-29 16:24:42.645364+0800 project[3804:770025] [LayoutConstraints] Unable to simultaneously satisfy constraints.
    Probably at least one of the constraints in the following list is one you don't want.
    Try this:
        (1) look at each constraint and try to figure out which you don't expect;
        (2) find the code that added the unwanted constraint or constraints and fix it.
[
    <MASLayoutConstraint:0x6040002b7d60 UILabel:0x7fa5e0c5c490.top == UITableViewCellContentView:0x7fa5e0c5c280.top + 10>,
    <MASLayoutConstraint:0x6040002b85a0 UILabel:0x7fa5e0c5c770.top == UILabel:0x7fa5e0c5c490.bottom + 10>,
    <MASLayoutConstraint:0x6040002b8f00 UILabel:0x7fa5e0c5d010.top == UILabel:0x7fa5e0c5c770.bottom + 5>,
    <MASLayoutConstraint:0x6040002b94a0 UILabel:0x7fa5e0c5d5d0.top == UILabel:0x7fa5e0c5d010.bottom + 5>,
    <MASLayoutConstraint:0x6040002b9800 UILabel:0x7fa5e0c5d8b0.top == UILabel:0x7fa5e0c5d5d0.bottom + 5>,
    <MASLayoutConstraint:0x6040002b9aa0 UILabel:0x7fa5e0c5d8b0.bottom == UITableViewCellContentView:0x7fa5e0c5c280.bottom - 10>,
    <NSLayoutConstraint:0x600000290810 UITableViewCellContentView:0x7fa5e0c5c280.height == 43.6667>
]

Will attempt to recover by breaking constraint
<MASLayoutConstraint:0x6040002b85a0 UILabel:0x7fa5e0c5c770.top == UILabel:0x7fa5e0c5c490.bottom + 10>

Make a symbolic breakpoint at UIViewAlertForUnsatisfiableConstraints to catch this in the debugger.
The methods in the UIConstraintBasedLayoutDebugging category on UIView listed in <UIKit/UIView.h> may also be helpful.

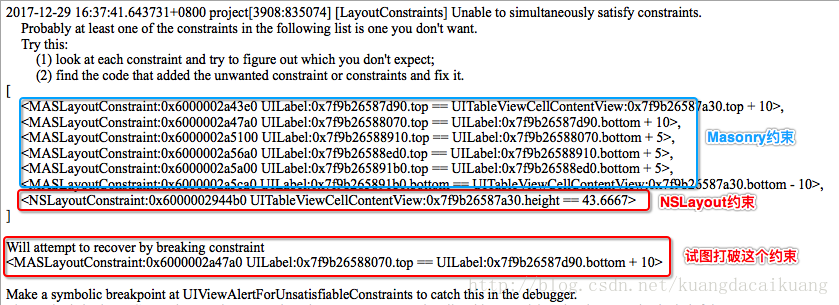

如上图所示:提示

Will attempt to recover by breaking constraint
<MASLayoutConstraint:0x7fef047b95c0 UILabel:0x7fef047f5fe0.top == UILabel:0x7fef06824c80.bottom + 10>

• 1
• 2

网上查的解决方案都是下面这种…………

cell.contentView的约束没有处理,走的是默认的autoresizingMask约束模式,
查看自己写的约束,发现cell的contentView没有用massonry处理(用massonry处理约束的控件,子控件.translatesAutoresizingMaskIntoConstraints = NO;子控件的这个属性自动被设置为NO);

所以只需要在

- (instancetype)initWithStyle:(UITableViewCellStyle)style reuseIdentifier:(NSString *)reuseIdentifier{
    if (self = [super initWithStyle:style reuseIdentifier:reuseIdentifier]) {
        self.contentView.translatesAutoresizingMaskIntoConstraints = NO;

    }
return self;
}

• 1
• 2
• 3
• 4
• 5
• 6
• 7

就可以解决约束冲突的问题

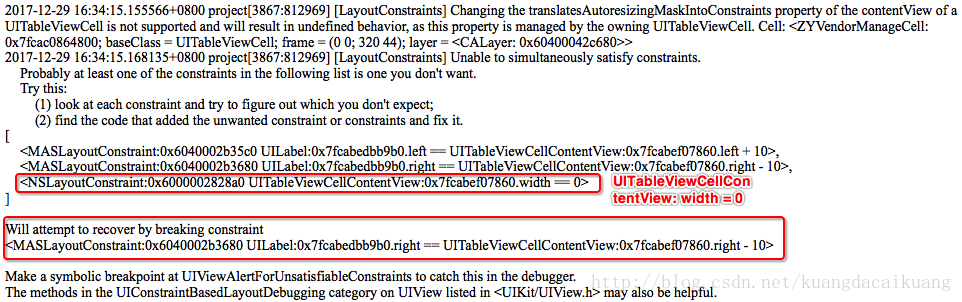

然而尝试了下,并没有什么卵用!!!!! 继续报下面的警告

2017-12-29 16:34:15.155566+0800 project[3867:812969] [LayoutConstraints] Changing the translatesAutoresizingMaskIntoConstraints property of the contentView of a UITableViewCell is not supported and will result in undefined behavior, as this property is managed by the owning UITableViewCell. Cell: <ZYVendorManageCell: 0x7fcac0864800; baseClass = UITableViewCell; frame = (0 0; 320 44); layer = <CALayer: 0x60400042c680>>
2017-12-29 16:34:15.168135+0800 project[3867:812969] [LayoutConstraints] Unable to simultaneously satisfy constraints.
    Probably at least one of the constraints in the following list is one you don't want.
    Try this:
        (1) look at each constraint and try to figure out which you don't expect;
        (2) find the code that added the unwanted constraint or constraints and fix it.
[
    <MASLayoutConstraint:0x6040002b35c0 UILabel:0x7fcabedbb9b0.left == UITableViewCellContentView:0x7fcabef07860.left + 10>,
    <MASLayoutConstraint:0x6040002b3680 UILabel:0x7fcabedbb9b0.right == UITableViewCellContentView:0x7fcabef07860.right - 10>,
    <NSLayoutConstraint:0x6000002828a0 UITableViewCellContentView:0x7fcabef07860.width == 0>
]

Will attempt to recover by breaking constraint
<MASLayoutConstraint:0x6040002b3680 UILabel:0x7fcabedbb9b0.right == UITableViewCellContentView:0x7fcabef07860.right - 10>

Make a symbolic breakpoint at UIViewAlertForUnsatisfiableConstraints to catch this in the debugger.
The methods in the UIConstraintBasedLayoutDebugging category on UIView listed in <UIKit/UIView.h> may also be helpful.

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17

前提控制器写下如下代码,会自动计算行高

- (void)viewDidLoad {
    [super viewDidLoad];
    self.tableView.rowHeight = UITableViewAutomaticDimension;
    self.tableView.estimatedRowHeight = 300;
}

• 1
• 2
• 3
• 4
• 5

解决方案

//这句代码并没有起什么作用
self.contentView.translatesAutoresizingMaskIntoConstraints = NO;

• 1
• 2

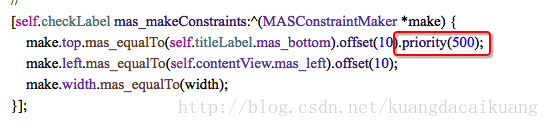

//真正的问题出现在这里 --  最终发现其实是这个约束出现了问题,需要调整约束级别
Will attempt to recover by breaking constraint
<MASLayoutConstraint:0x7fef047b95c0 UILabel:0x7fef047f5fe0.top == UILabel:0x7fef06824c80.bottom + 10>

• 1
• 2
• 3

约束警告问题,完美解决!!!!
