图像分析:LBP特征解析与代码

版权声明:本文为博主原创文章,未经博主允许不得转载。 https://blog.csdn.net/Linoi/article/details/10497615

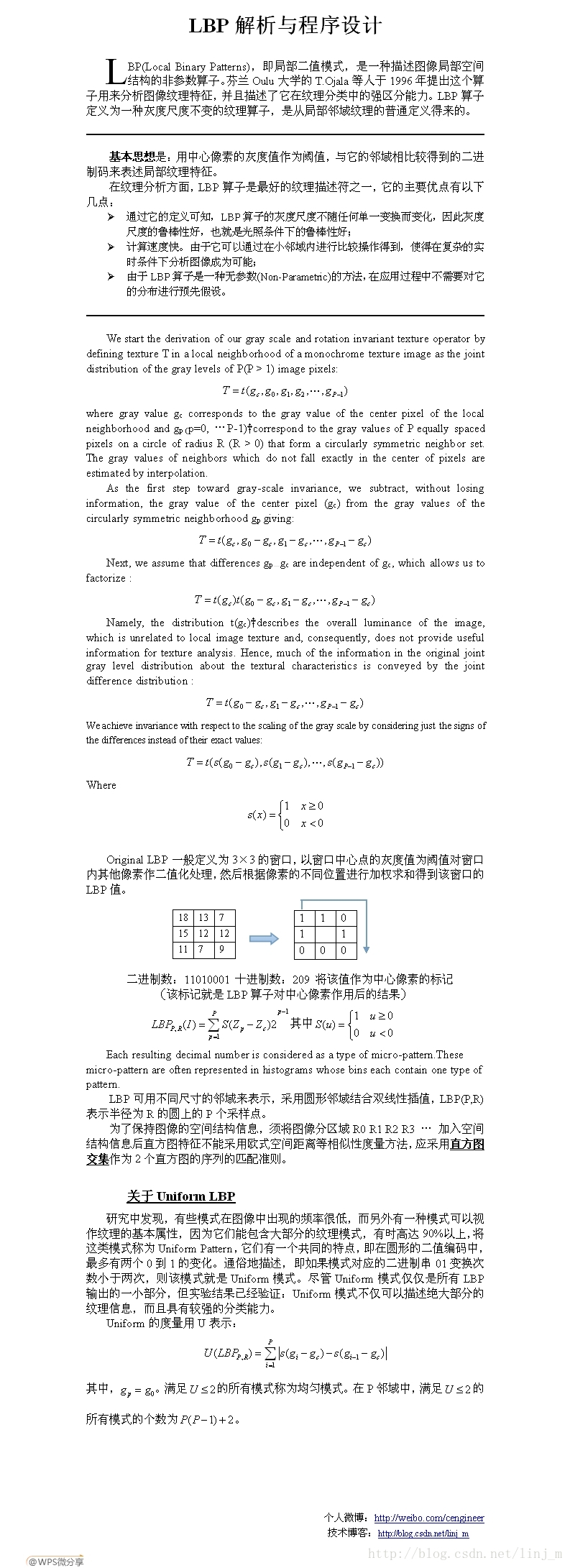

LBP(Local Binary Patterns),即局部二值模式,是一种描述图像局部空间结构的非参数算子。芬兰Oulu大学的T.Ojala等人于1996年提出这个算子用来分析图像纹理特征,并且描述了它在纹理分类中的强区分能力。LBP算子定义为一种灰度尺度不变的纹理算子,是从局部邻域纹理的普通定义得来的。

基本思想是:用中心像素的灰度值作为阈值,与它的邻域相比较得到的二进制码来表述局部纹理特征。

在纹理分析方面,LBP算子是最好的纹理描述符之一,它的主要优点有以下几点:

Ø 通过它的定义可知,LBP算子的灰度尺度不随任何单一变换而变化,因此灰度尺度的鲁棒性好,也就是光照条件下的鲁棒性好;

Ø 计算速度快。由于它可以通过在小邻域内进行比较操作得到,使得在复杂的实时条件下分析图像成为可能;

Ø 由于LBP算子是一种无参数(Non-Parametric)的方法,在应用过程中不需要对它的分布进行预先假设。

_____________________________________________________________________________________


%LBP returns the local binary pattern image or LBP histogram of an image.
%  J = LBP(I,R,N,MAPPING,MODE) returns either a local binary pattern
%  coded image or the local binary pattern histogram of an intensity
%  image I. The LBP codes are computed using N sampling points on a
%  circle of radius R and using mapping table defined by MAPPING.
%  See the getmapping function for different mappings and use 0 for
%  no mapping. Possible values for MODE are
%       'h' or 'hist'  to get a histogram of LBP codes
%       'nh'           to get a normalized histogram
%  Otherwise an LBP code image is returned.
%
%  J = LBP(I) returns the original (basic) LBP histogram of image I
%
%  J = LBP(I,SP,MAPPING,MODE) computes the LBP codes using n sampling
%  points defined in (n * 2) matrix SP. The sampling points should be
%  defined around the origin (coordinates (0,0)).
%
%  Examples
%  --------
%       I=imread('rice.png');
%       mapping=getmapping(8,'u2');
%       H1=LBP(I,1,8,mapping,'h'); %LBP histogram in (8,1) neighborhood
%                                  %using uniform patterns
%       subplot(2,1,1),stem(H1);
%
%       H2=LBP(I);
%       subplot(2,1,2),stem(H2);
%
%       SP=[-1 -1; -1 0; -1 1; 0 -1; -0 1; 1 -1; 1 0; 1 1];
%       I2=LBP(I,SP,0,'i'); %LBP code image using sampling points in SP
%                           %and no mapping. Now H2 is equal to histogram
%                           %of I2.

function result = lbp(varargin) % image,radius,neighbors,mapping,mode)
% Version 0.3.2
% Authors: Marko Heikkil�and Timo Ahonen

% Changelog
% Version 0.3.2: A bug fix to enable using mappings together with a
% predefined spoints array
% Version 0.3.1: Changed MAPPING input to be a struct containing the mapping
% table and the number of bins to make the function run faster with high number
% of sampling points. Lauge Sorensen is acknowledged for spotting this problem.


% Check number of input arguments.
error(nargchk(1,5,nargin));

image=varargin{1};
d_image=double(image);

if nargin==1
    spoints=[-1 -1; -1 0; -1 1; 0 -1; -0 1; 1 -1; 1 0; 1 1];
    neighbors=8;
    mapping=0;
    mode='h';
end

if (nargin == 2) && (length(varargin{2}) == 1)
    error('Input arguments');
end

if (nargin > 2) && (length(varargin{2}) == 1)
    radius=varargin{2};
    neighbors=varargin{3};

    spoints=zeros(neighbors,2);

    % Angle step.
    a = 2*pi/neighbors;

    for i = 1:neighbors
        spoints(i,1) = -radius*sin((i-1)*a);
        spoints(i,2) = radius*cos((i-1)*a);
    end

    if(nargin >= 4)
        mapping=varargin{4};
        if(isstruct(mapping) && mapping.samples ~= neighbors)
            error('Incompatible mapping');
        end
    else
        mapping=0;
    end

    if(nargin >= 5)
        mode=varargin{5};
    else
        mode='h';
    end
end

if (nargin > 1) && (length(varargin{2}) > 1)
    spoints=varargin{2};
    neighbors=size(spoints,1);

    if(nargin >= 3)
        mapping=varargin{3};
        if(isstruct(mapping) && mapping.samples ~= neighbors)
            error('Incompatible mapping');
        end
    else
        mapping=0;
    end

    if(nargin >= 4)
        mode=varargin{4};
    else
        mode='h';
    end
end

% Determine the dimensions of the input image.
[ysize xsize] = size(image);



miny=min(spoints(:,1));
maxy=max(spoints(:,1));
minx=min(spoints(:,2));
maxx=max(spoints(:,2));

% Block size, each LBP code is computed within a block of size bsizey*bsizex
bsizey=ceil(max(maxy,0))-floor(min(miny,0))+1;
bsizex=ceil(max(maxx,0))-floor(min(minx,0))+1;

% Coordinates of origin (0,0) in the block
origy=1-floor(min(miny,0));
origx=1-floor(min(minx,0));

% Minimum allowed size for the input image depends
% on the radius of the used LBP operator.
if(xsize < bsizex || ysize < bsizey)
  error('Too small input image. Should be at least (2*radius+1) x (2*radius+1)');
end

% Calculate dx and dy;
dx = xsize - bsizex;
dy = ysize - bsizey;

% Fill the center pixel matrix C.
C = image(origy:origy+dy,origx:origx+dx);
d_C = double(C);

bins = 2^neighbors;

% Initialize the result matrix with zeros.
result=zeros(dy+1,dx+1);

%Compute the LBP code image

for i = 1:neighbors
  y = spoints(i,1)+origy;
  x = spoints(i,2)+origx;
  % Calculate floors, ceils and rounds for the x and y.
  fy = floor(y); cy = ceil(y); ry = round(y);
  fx = floor(x); cx = ceil(x); rx = round(x);
  % Check if interpolation is needed.
  if (abs(x - rx) < 1e-6) && (abs(y - ry) < 1e-6)
    % Interpolation is not needed, use original datatypes
    N = image(ry:ry+dy,rx:rx+dx);
    D = N >= C;
  else
    % Interpolation needed, use double type images
    ty = y - fy;
    tx = x - fx;

    % Calculate the interpolation weights.
    w1 = (1 - tx) * (1 - ty);
    w2 =      tx  * (1 - ty);
    w3 = (1 - tx) *      ty ;
    w4 =      tx  *      ty ;
    % Compute interpolated pixel values
    N = w1*d_image(fy:fy+dy,fx:fx+dx) + w2*d_image(fy:fy+dy,cx:cx+dx) + ...
        w3*d_image(cy:cy+dy,fx:fx+dx) + w4*d_image(cy:cy+dy,cx:cx+dx);
    D = N >= d_C;
  end
  % Update the result matrix.
  v = 2^(i-1);
  result = result + v*D;
end

%Apply mapping if it is defined
if isstruct(mapping)
    bins = mapping.num;
    for i = 1:size(result,1)
        for j = 1:size(result,2)
            result(i,j) = mapping.table(result(i,j)+1);
        end
    end
end

if (strcmp(mode,'h') || strcmp(mode,'hist') || strcmp(mode,'nh'))
    % Return with LBP histogram if mode equals 'hist'.
    result=hist(result(:),0:(bins-1));
    if (strcmp(mode,'nh'))
        result=result/sum(result);
    end
else
    %Otherwise return a matrix of unsigned integers
    if ((bins-1)<=intmax('uint8'))
        result=uint8(result);
    elseif ((bins-1)<=intmax('uint16'))
        result=uint16(result);
    else
        result=uint32(result);
    end
end

end




%GETMAPPING returns a structure containing a mapping table for LBP codes.
%  MAPPING = GETMAPPING(SAMPLES,MAPPINGTYPE) returns a structure containing a mapping table for
%  LBP codes in a neighbourhood of SAMPLES sampling  points. Possible values for MAPPINGTYPE are
%       'u2'   for uniform LBP
%       'ri'   for rotation-invariant LBP
%       'riu2' for uniform rotation-invariant LBP.
%
%  Example:
%       I=imread('rice.tif');
%       MAPPING=getmapping(16,'riu2');
%       LBPHIST=lbp(I,2,16,MAPPING,'hist');
%  Now LBPHIST contains a rotation-invariant uniform LBP  histogram in a (16,2) neighbourhood.
%

function mapping = getmapping(samples,mappingtype)
% Version 1.0 beta
% Authors: Marko Heikkil?and Timo Ahonen
% Editor: LinJianmin - Huaqiao University
% Email:    jianmin1990@outlook.com

table = 0:2^samples-1;
newMax  = 0; %number of patterns in the resulting LBP code
index   = 0;

if strcmp(mappingtype,'u2') %Uniform 2
  newMax = samples*(samples-1) + 3;

  for i = 0:2^samples-1
    j = bitset(bitshift(i,1,samples),1,bitget(i,samples)); %rotate left
    numt = sum(bitget(bitxor(i,j),1:samples)); %number of 1->0 and 0->1 transitions in binary string
                                               %x is equal to the number of 1-bits in XOR(x,Rotate left(x))
    if numt <= 2
      table(i+1) = index;
      index = index + 1;
    else
      table(i+1) = newMax - 1;
    end
  end
end

if strcmp(mappingtype,'ri') %Rotation invariant
  tmpMap = zeros(2^samples,1) - 1;
  for i = 0:2^samples-1
    rm = i;
    r  = i;
    for j = 1:samples-1
      r = bitset(bitshift(r,1,samples),1,bitget(r,samples)); %rotate
                                                             %left
      if r < rm
        rm = r;
      end
    end
    if tmpMap(rm+1) < 0
      tmpMap(rm+1) = newMax;
      newMax = newMax + 1;
    end
    table(i+1) = tmpMap(rm+1);
  end
end

if strcmp(mappingtype,'riu2') %Uniform & Rotation invariant
  newMax = samples + 2;
  for i = 0:2^samples - 1
    j = bitset(bitshift(i,1,samples),1,bitget(i,samples)); %rotate left
    numt = sum(bitget(bitxor(i,j),1:samples));
    if numt <= 2
      table(i+1) = sum(bitget(i,1:samples));
    else
      table(i+1) = samples+1;
    end
  end
end

mapping.table=table;
mapping.samples=samples;
mapping.num=newMax;
