EDSFF学习总结-1

EDSFF 学习

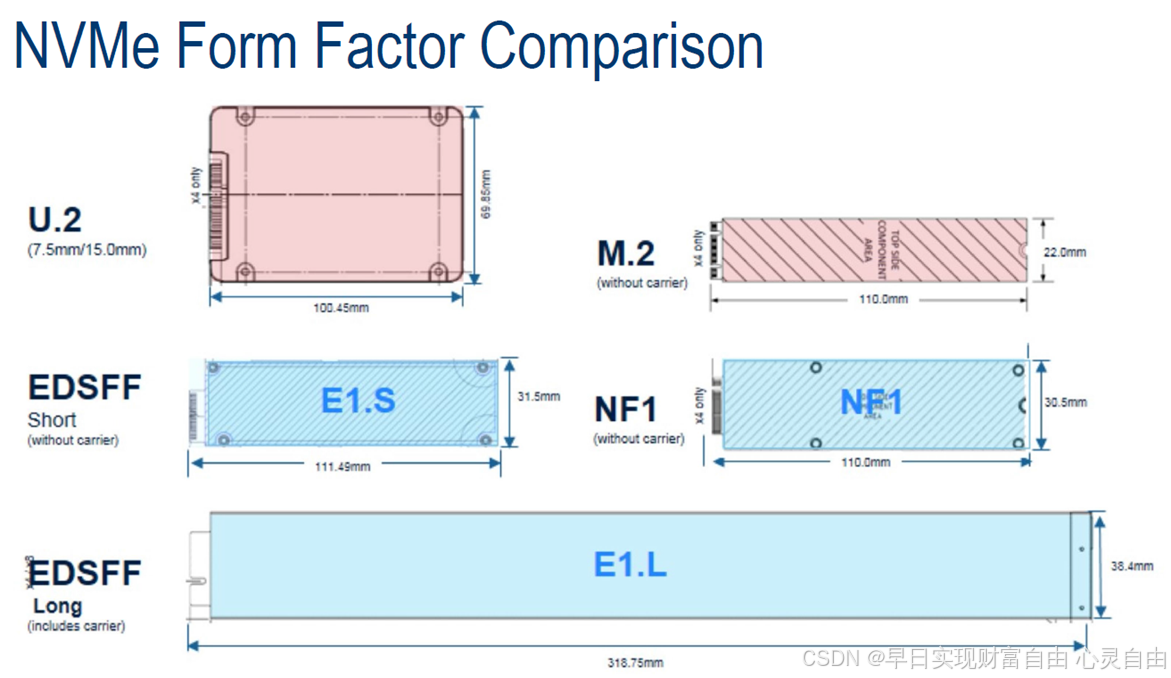

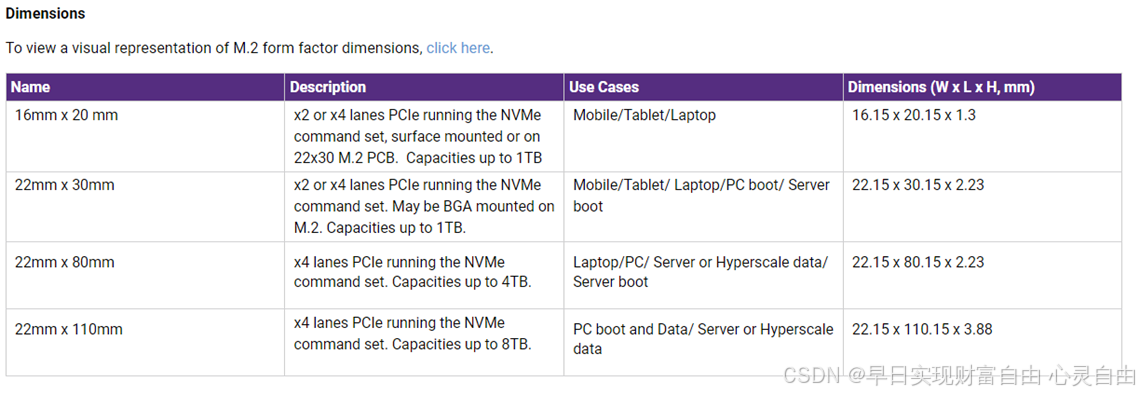

M.2 is a form factor specification for internally mounted SSDs.  Formerly known as Next Generation Form Factor (NGFF), M.2 supports PCIe, SATA and USB interfaces and comes in various widths and lengths.  It also has keying notches on the edge connector to designate various interface or PCIe lane configurations.  M.2 is smaller than the typical 2.5” form factor SSD and is typically removable, except Type 1620 (BGA), which offers a ball grid array chip package and it typically mounted on the main system board.

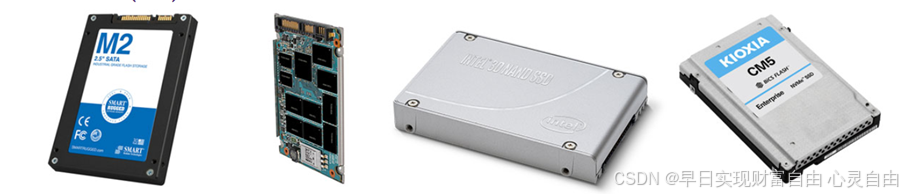

The 2.5-inch form factor is the most common deployment of an SSD, and is offered with PCIe (with NVMe), SAS
