iOS中,UIScrollView是可以滚动的视图,其中最常用的UITableView就是继承了UIScrollView。
contentSize、contentInset和contentOffset 是scrollView三个基本的属性。
contentSize:即内容,就是scrollview可以滚动的区域,比如frame = (0 ,0 ,100 ,200) contentSize = (100 ,400),代表你的scrollview可以上下滚动,滚动区域为frame大小的两倍。其中常用的是contentSize.height = 内容的高度。
contentOffset:即偏移量,其中分为contentOffset.y=内容的顶部和frame顶部的差值,contentOffset.x=内容的左边和frame左边的差值,下面重点阐述contentOffset.y,因为contentOffset.y最为常用。
contentInset:即内边距,contentInset = 在内容周围增加的间距(粘着内容),contentInset的单位是UIEdgeInsets,默认值为UIEdgeInsetsZero。
说完了三者的定义,下面介绍contentSize到底包含哪几部分,tableView的内容(即contentSize)仅包含下面三部分:
tableView的内容(即contentSize):
1> cell
2> tableHeaderView\tableFooterView
3> sectionHeader\sectionFooter
其中
contentSize.height = 内容的高度
contentOffset.y = 内容的顶部 和 frame顶部 的差值
contentInset = 在内容周围增加的间距(粘着内容)
请读者牢记上面的概念介绍,对理解下面的情形有一定的帮助。

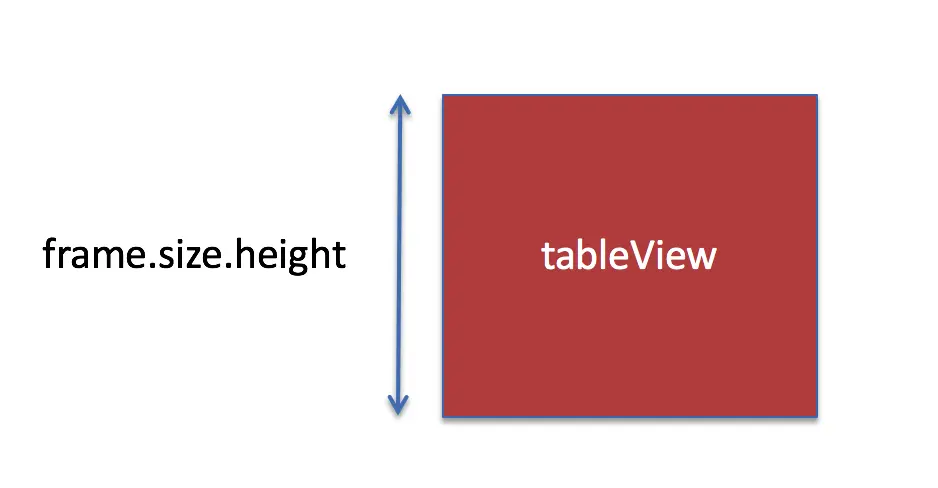

情形1:
•没有cell
•没有contentInset
•没有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/f033c9c86b6c5e547742fef0de8f7de7.webp?x-image-process=image/format,png)

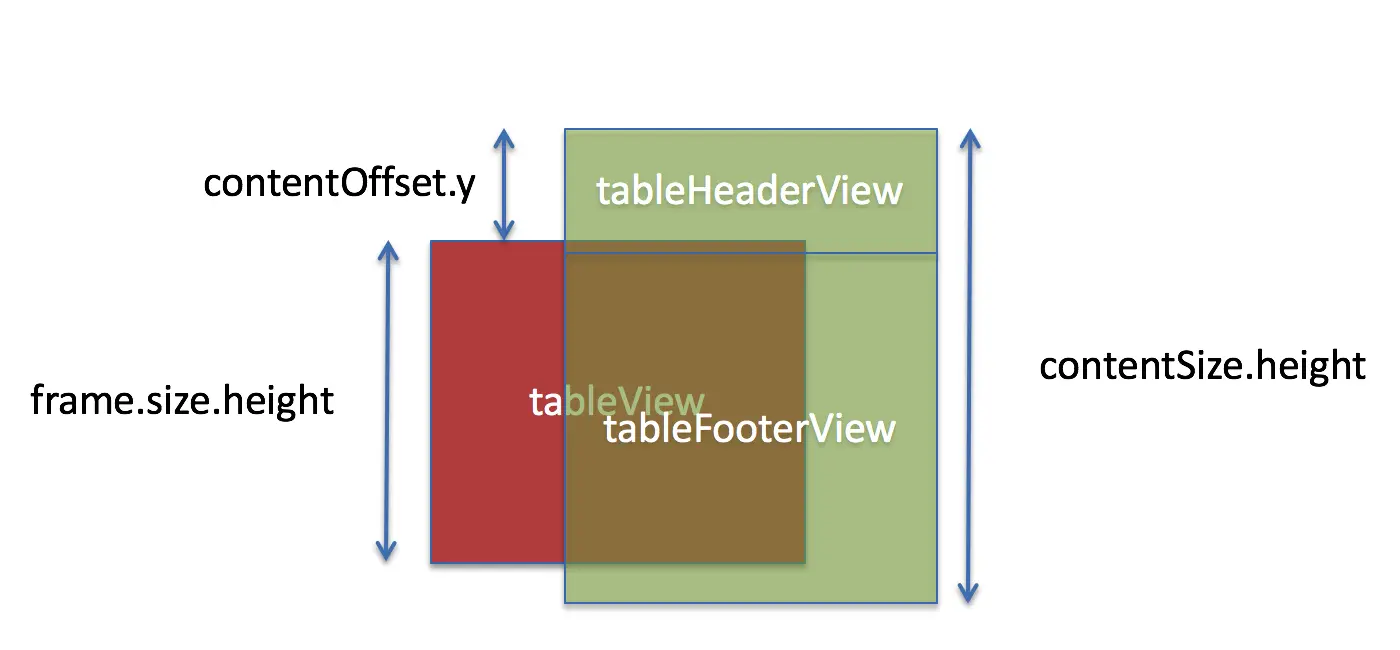

情形2:
•没有cell
•没有contentInset
•有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/cb8720eb1f62c824ba88ee88bff97321.webp?x-image-process=image/format,png)

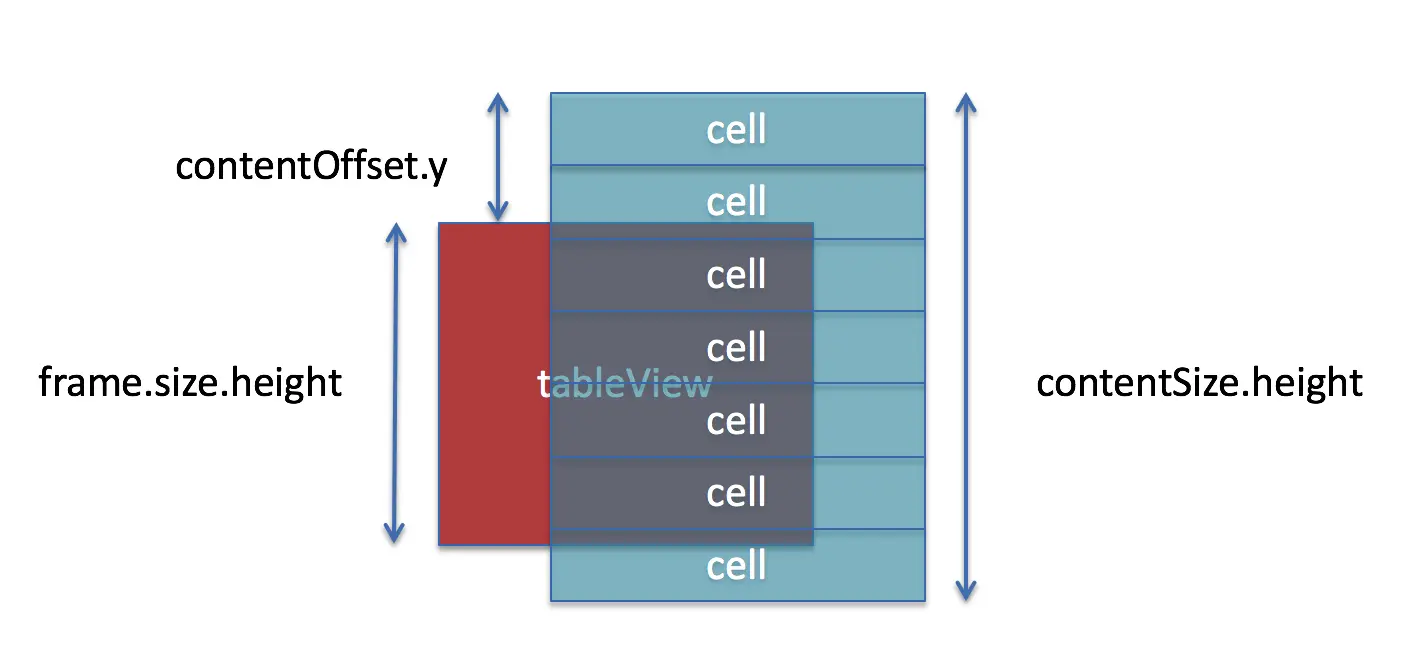

情形3:
•有cell
•没有contentInset
•没有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/db1e6146022ccb4b5e29332a3ead8b2c.webp?x-image-process=image/format,png)
情形4:
•有cell
•有contentInset
•没有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/f23b255f6cdc3269323794c584020fe1.webp?x-image-process=image/format,png)
情形5:
•有cell
•没有contentInset
•有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/563b1dbd5cd8088fb49bfaafa18bc667.webp?x-image-process=image/format,png)
情形6:
•有cell
•有contentInset
•有tableHeaderView\tableFooterView
![](https://i-blog.csdnimg.cn/blog_migrate/88df48299cf1cac93ae118ce33e0f358.webp?x-image-process=image/format,png)

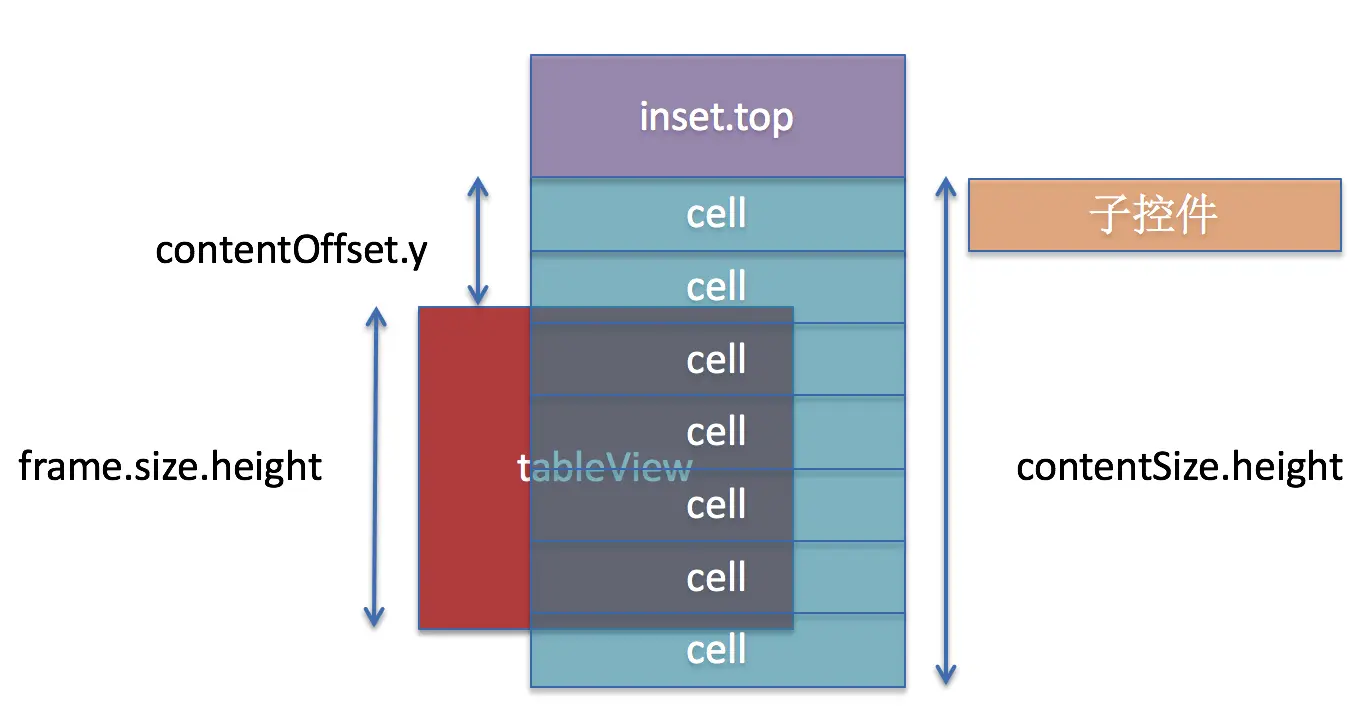

情形7:
•有cell
•有contentInset
•没有tableHeaderView\tableFooterView
•添加了一个子控件,frame是CGRectMake(0, 0, 300, 50)
•子控件的frame以父控件内容左上角为坐标原点{0,0}
![](https://i-blog.csdnimg.cn/blog_migrate/8496391de71cff29296a43fcf9e6cb2d.webp?x-image-process=image/format,png)
![](https://i-blog.csdnimg.cn/blog_migrate/05b6ac858eb06d2204edaa64feb0cedc.webp?x-image-process=image/format,png)

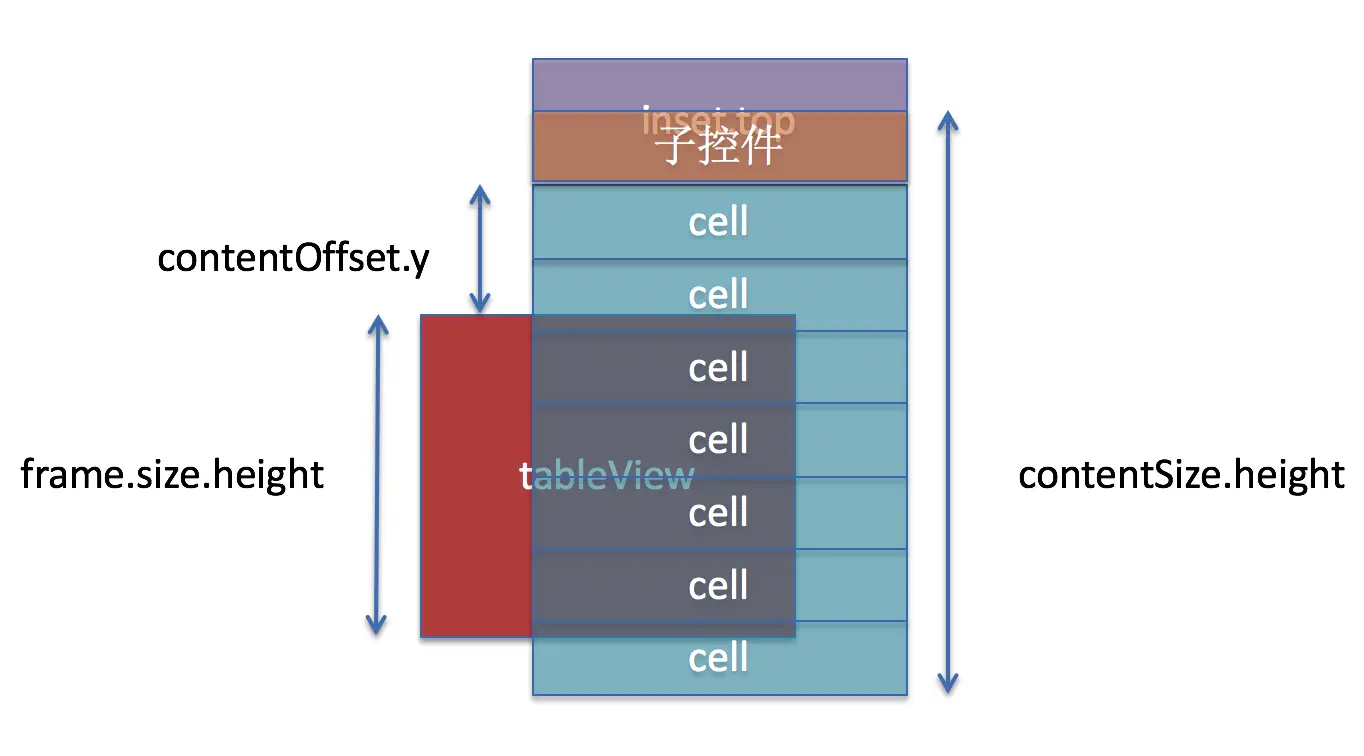

情形8:
•有cell
•有contentInset
•没有tableHeaderView\tableFooterView
•添加了一个子控件,frame是CGRectMake(0,-50, 300, 50)
•子控件的frame以父控件内容左上角为坐标原点{0,0}
![](https://i-blog.csdnimg.cn/blog_migrate/6ae033d396a6767190440b312fb87a28.webp?x-image-process=image/format,png)
![](https://i-blog.csdnimg.cn/blog_migrate/59f62bfd62a37cf48063275c7702a97f.webp?x-image-process=image/format,png)

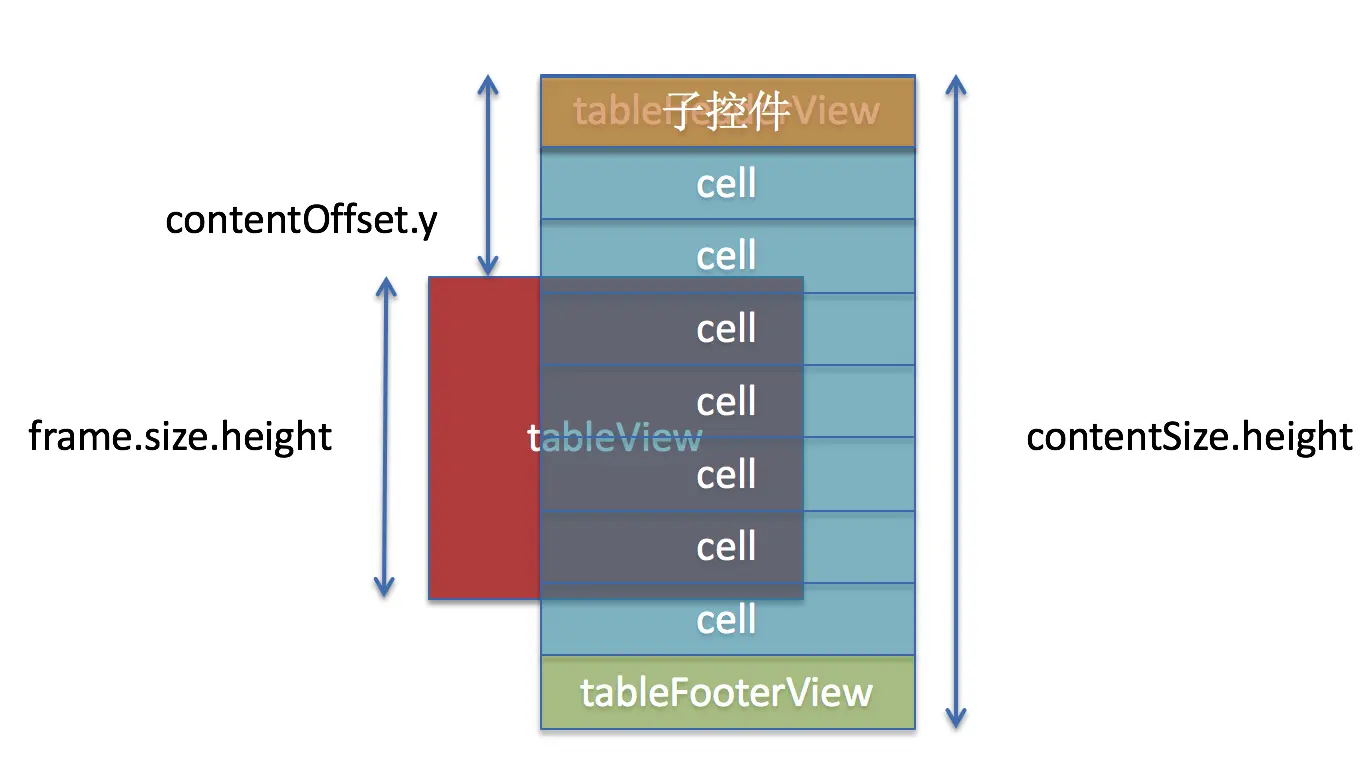

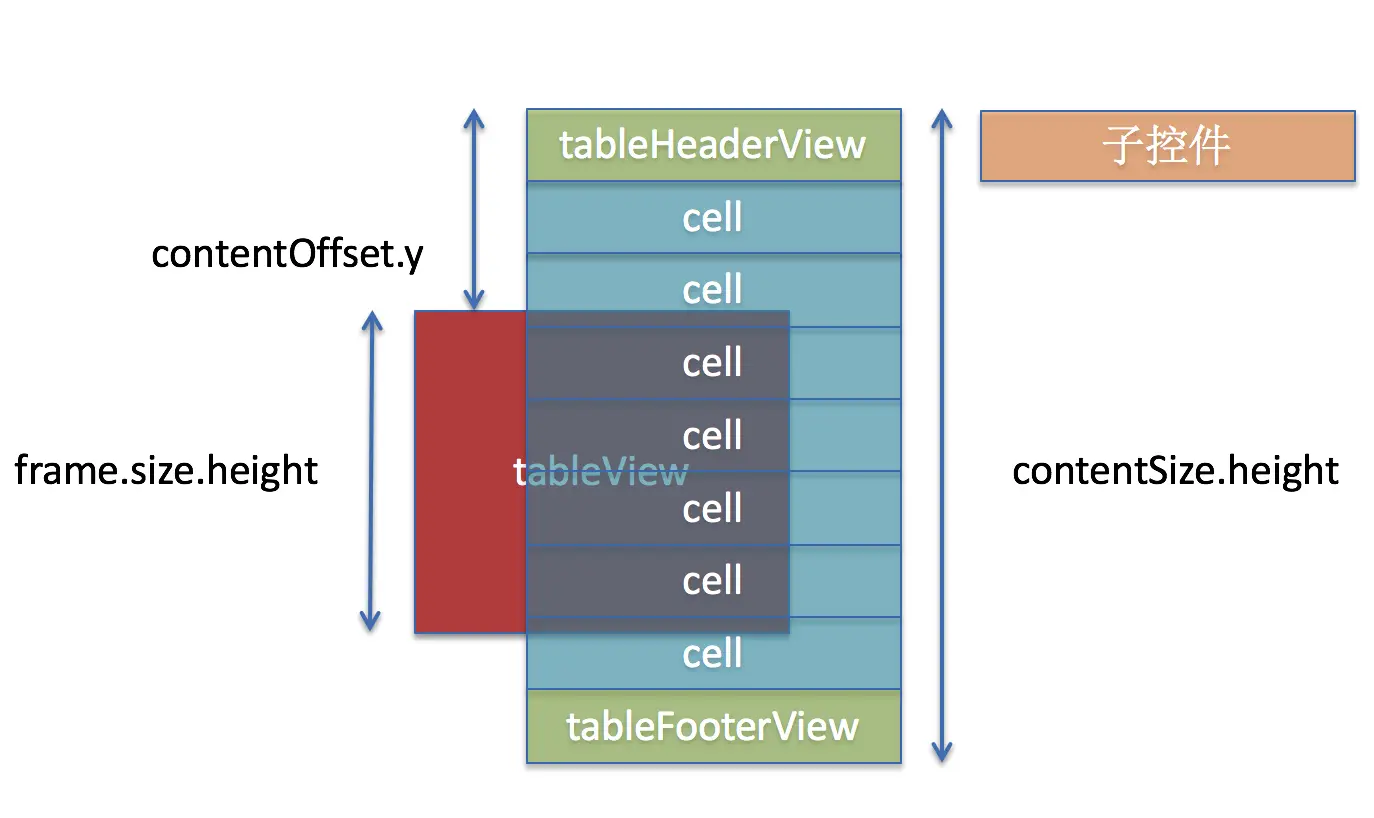

情形9:
•有cell
•没有contentInset
•有tableHeaderView\tableFooterView
•添加了一个子控件,frame是CGRectMake(0, 0, 300, 50)
![](https://i-blog.csdnimg.cn/blog_migrate/f29849980b7dbf4f29bb85f6f1c36695.webp?x-image-process=image/format,png)
![](https://i-blog.csdnimg.cn/blog_migrate/b4484cc3e171b38cdaf8736fefbeb521.webp?x-image-process=image/format,png)
