绘制损失函数

文件夹下内容:

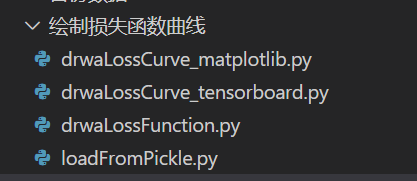

文件夹布局:

—— 绘制损失函数曲线
—— —— drwaLossFunction.py
—— —— loadFromPickle.py
—— —— drwaLossCurve_tensorboard.py
—— —— drwaLossCurve_matplotlib.py

文件: drwaLossFunction.py

# 获取训练世代和相应损失值
import os
import pickle

def createPickleFiles():
    '''用于生成三个pickle文件,分别用于保存训练世代数、置信度损失和定位损失'''
    myFolderPath = r'logs'
    files = os.listdir(myFolderPath)  # 列表类型 元素是文件名 字符串类型

    files.sort(
        key=lambda x:int(x[5:x.index('-')]),
        reverse=False)  # 按照训练世代排序

    loss4loc = list()  # 记录定位损失
    loss4cof = list()  # 记录置信度损失
    record4epoch = list()  # 记录训练世代数

    for item  in files:
        info = item.split('-')
        record4epoch.append(int(info[0][5:]))
        loss4loc.append(float(info[1][3:]))
        loss4cof.append(float(info[2][4:-4]))

    with open('绘制损失函数曲线/临时文件-EPOCH.pickle','wb') as file4epoch:
        pickle.dump(record4epoch,file4epoch)  # 保存世代信息

    with open('绘制损失函数曲线/临时文件-LOSS4CONFIDENT.pickle','wb') as file4conf:
        pickle.dump(loss4cof,file4conf)  # 保存置信度损失信息

    with open('绘制损失函数曲线/临时文件-LOSS4LOCATION.pickle','wb') as file4loc:
        pickle.dump(loss4loc,file4loc)  # 保存定位损失信息

if __name__ == '__main__':
    createPickleFiles()

文件: loadFromPickle.py

# 从pickle文件中加载世代数和相应损失
import pickle

def getInfo():
    '''返回三个列表,分别用于保存世代、置信度损失和定位损失'''
    info = list()
    fileNames = [
        '绘制损失函数曲线/临时文件-EPOCH.pickle',
        '绘制损失函数曲线/临时文件-LOSS4CONFIDENT.pickle',
        '绘制损失函数曲线/临时文件-LOSS4LOCATION.pickle']  # 三个文件的名字
    for name in fileNames:
        with open(name, 'rb') as f:
            item = pickle.load(f)
            info.append(item)
    return info


if __name__ == '__main__':
    info = getInfo()
    # print(info[0])  # 世代
    # print(info[1])  # 置信度损失
    # print(info[2])  # 定位损失

文件: drwaLossCurve_tensorboard.py

from torch.utils.tensorboard import SummaryWriter
import loadFromPickle
import drwaLossFunction

drwaLossFunction.createPickleFiles()
info = loadFromPickle.getInfo()

writer = SummaryWriter('绘制损失函数曲线/单独绘制')
for epoch, conf, loc in zip(*info):
    writer.add_scalar('置信度损失', conf, epoch)
    writer.add_scalar('定位损失', loc, epoch)
writer.close()



writer = SummaryWriter('绘制损失函数曲线/三者对比')
for epoch, conf, loc in zip(*info):
    writer.add_scalars('损失函数', {'conf':conf,
                                    'loc':loc,
                                    'conf + loc': conf + loc}, epoch)
writer.close()

# '''
# tensorboard --logdir=绘制损失函数曲线
# '''

文件: drwaLossCurve_matplotlib.py

# 使用matplotlib绘制损失函数曲线

import drwaLossFunction
import loadFromPickle
import matplotlib
import matplotlib.pyplot as plt
matplotlib.rcParams['font.family'] = 'SimHei' # 'SimHei'  # 'STSong'
matplotlib.rcParams['font.size'] = 15  # 修改字体大小
plt.rcParams['axes.unicode_minus'] = False # 用来正常显示负号

drwaLossFunction.createPickleFiles()
info = loadFromPickle.getInfo()


epoch, conf, loc = info

plt.plot(epoch, loc,'rx-.', label='定位损失')
plt.plot(epoch, conf, 'go-', label='置信度损失')

plt.xlabel('训练世代: epoch')
plt.ylabel('损失值: loss')

plt.legend(loc='upper right', frameon=True)
plt.show()
