C#中二维码生成器ZXing.net使用
1.ZXing.net下载及C#中引用

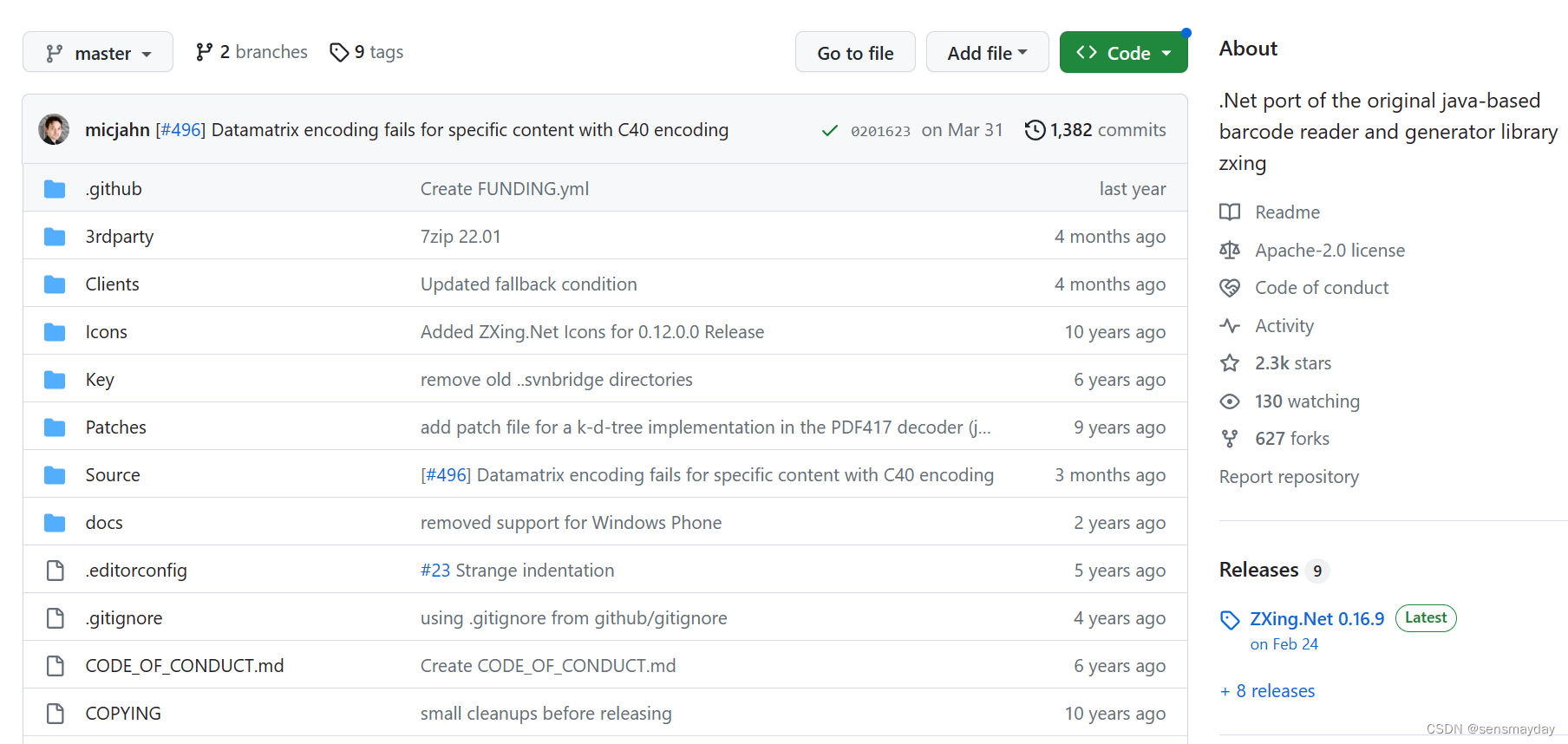

1.1下载地址:
https://github.com/micjahn/ZXing.Net
单击右下角Reseases中引用
选择列表中第一个文件
1.2.C#中ZXing.Net引用

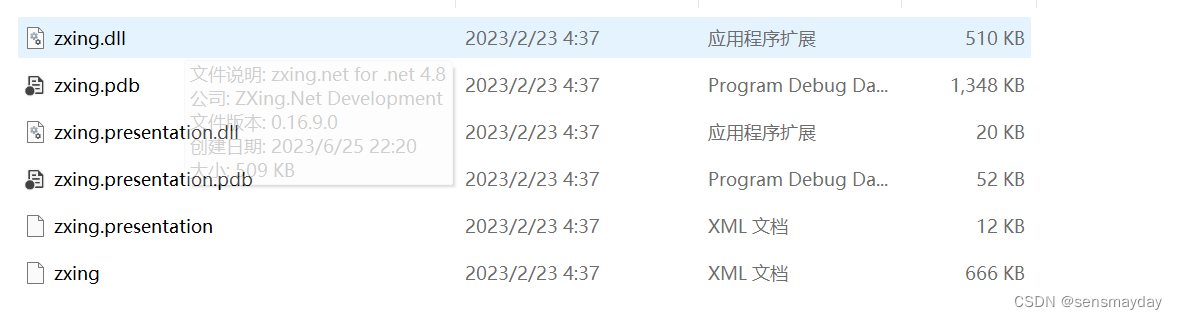

点击“解决资源方案管理器”中的“引用”,找到刚下载的文件,选择zxing.dll
2.窗体设计

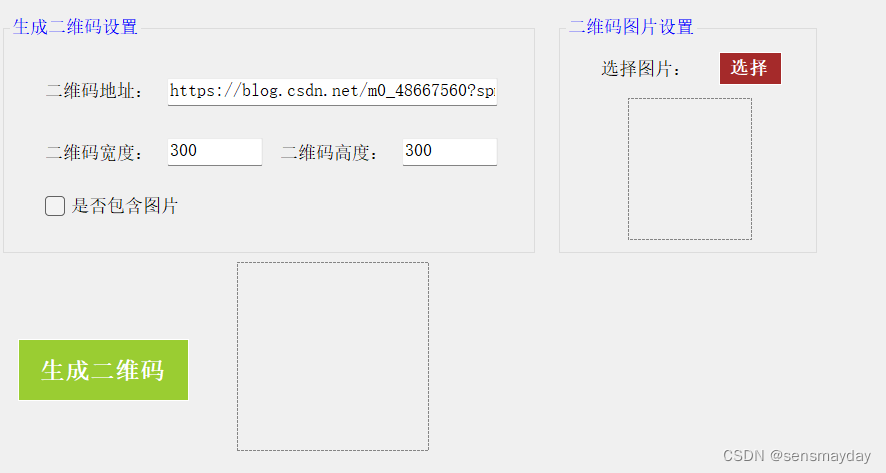

窗体主界面如下图所示:
3.代码编写
1.引入命名空间
using ZXing;
using ZXing.Common;
using ZXing.QrCode.Internal;
using System.Drawing.Imaging;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using ZXing;
using ZXing.Common;
using ZXing.QrCode.Internal;
using System.Drawing.Imaging;
namespace Train_ZXing
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
/// <summary>
/// 生成二维码图片
/// </summary>
/// <param name="strMessage">要生成二维码的字符串</param>
/// <param name="width">二维码图片宽度(单位:像素)</param>
/// <param name="height">二维码图片高度(单位:像素)</param>
/// <returns></returns>
private Bitmap GetQRCodeByZXingNet(String strMessage, Int32 width, Int32 height)
{
Bitmap result = null;
try
{
BarcodeWriter barCodeWriter = new BarcodeWriter();
barCodeWriter.Format = BarcodeFormat.QR_CODE;
barCodeWriter.Options.Hints.Add(EncodeHintType.CHARACTER_SET, "UTF-8");
barCodeWriter.Options.Hints.Add(EncodeHintType.ERROR_CORRECTION, ZXing.QrCode.Internal.ErrorCorrectionLevel.H);
barCodeWriter.Options.Height = height;
barCodeWriter.Options.Width = width;
barCodeWriter.Options.Margin = 0;
ZXing.Common.BitMatrix bm = barCodeWriter.Encode(strMessage);
result = barCodeWriter.Write(bm);
}
catch { }
return result;
}
/// <summary>
/// 生成中间带有图片的二维码图片
/// </summary>
/// <param name="contents">要生成二维码包含的信息</param>
/// <param name="middleImg">要生成到二维码中间的图片</param>
/// <param name="width">生成的二维码宽度(单位:像素)</param>
/// <param name="height">生成的二维码高度(单位:像素)</param>
/// <returns>中间带有图片的二维码</returns>
public Bitmap GetQRCodeByZXingNet(string contents, Image middleImg, int width, int height)
{
if (string.IsNullOrEmpty(contents))
{
return null;
}
if (middleImg == null)
{
return GetQRCodeByZXingNet(contents, width, height);
}
//构造二维码写码器
MultiFormatWriter mutiWriter = new MultiFormatWriter();
Dictionary<EncodeHintType, object> hint = new Dictionary<EncodeHintType, object>();
hint.Add(EncodeHintType.CHARACTER_SET, "UTF-8");
hint.Add(EncodeHintType.ERROR_CORRECTION, ErrorCorrectionLevel.H);
//生成二维码
BitMatrix bm = mutiWriter.encode(contents, BarcodeFormat.QR_CODE, width, height, hint);
BarcodeWriter barcodeWriter = new BarcodeWriter();
Bitmap bitmap = barcodeWriter.Write(bm);
//获取二维码实际尺寸(去掉二维码两边空白后的实际尺寸)
int[] rectangle = bm.getEnclosingRectangle();
//计算插入图片的大小和位置
int middleImgW = Math.Min((int)(rectangle[2] / 3.5), middleImg.Width);
int middleImgH = Math.Min((int)(rectangle[3] / 3.5), middleImg.Height);
int middleImgL = (bitmap.Width - middleImgW) / 2;
int middleImgT = (bitmap.Height - middleImgH) / 2;
//将img转换成bmp格式,否则后面无法创建 Graphics对象
Bitmap bmpimg = new Bitmap(bitmap.Width, bitmap.Height, System.Drawing.Imaging.PixelFormat.Format32bppArgb);
using (Graphics g = Graphics.FromImage(bmpimg))
{
g.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;
g.DrawImage(bitmap, 0, 0);
}
//在二维码中插入图片
Graphics myGraphic = Graphics.FromImage(bmpimg);
//白底
myGraphic.FillRectangle(Brushes.White, middleImgL, middleImgT, middleImgW, middleImgH);
myGraphic.DrawImage(middleImg, middleImgL, middleImgT, middleImgW, middleImgH);
return bmpimg;
}
private void button1_Click(object sender, EventArgs e)
{
Bitmap qrCode;
if (checkBox1.Checked)
qrCode = GetQRCodeByZXingNet(textBox1.Text, pictureBox1.Image, Convert.ToInt32(textBox2.Text), Convert.ToInt32(textBox2.Text));
else
qrCode = GetQRCodeByZXingNet(textBox1.Text, Convert.ToInt32(textBox2.Text), Convert.ToInt32(textBox2.Text));
qrCode.Save("qr.png",ImageFormat.Png);
pictureBox2.Image = qrCode;
}
private void button2_Click(object sender, EventArgs e)
{
OpenFileDialog openFile = new OpenFileDialog();
openFile.Filter = "图片文件|*.jpg;*.jpeg;*.png;*.bmp";
if (openFile.ShowDialog() == DialogResult.OK)
{
pictureBox1.Image = Image.FromFile(openFile.FileName);
}
}
private void checkBox1_CheckedChanged(object sender, EventArgs e)
{
if (checkBox1.Checked)
groupBox2.Visible = true;
else
groupBox2.Visible = false;
}
}
