交换综合配置

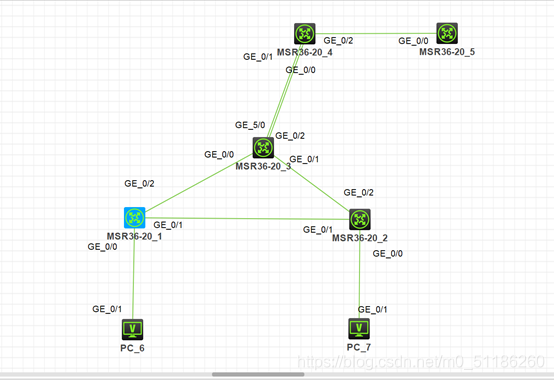

L1
[H3C]dis cu

version 7.1.075, Alpha 7571

sysname H3C

router id 1.1.1.1

ospf 1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 192.168.1.0 0.0.0.255

system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series

vlan 1

interface Serial1/0

interface Serial2/0

interface Serial3/0

interface Serial4/0

interface NULL0

interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 192.168.10.2 255.255.255.0

interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 192.168.1.1 255.255.255.252

interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 192.168.1.9 255.255.255.252

L2
[H3C]dis cu

version 7.1.075, Alpha 7571

sysname H3C

router id 2.2.2.2

ospf 1
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 192.168.1.0 0.0.0.255

system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series

vlan 1

interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 192.168.20.2 255.255.255.0

interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 192.168.1.2 255.255.255.252

interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 192.168.1.5 255.255.255.252

L3
[H3C]dis cu

version 7.1.075, Alpha 7571

sysname H3C

router id 3.3.3.3

ospf 1
default-route-advertise
import-route static
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 192.168.1.0 0.0.0.255

interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 192.168.1.10 255.255.255.252

interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 192.168.1.6 255.255.255.252

interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 172.16.1.1 255.255.255.0

interface GigabitEthernet5/0
port link-mode route
combo enable copper
ip address 172.16.0.1 255.255.255.0

L4
[H3C]dis cu

version 7.1.075, Alpha 7571

sysname H3C

rip 1
undo summary
version 2
network 10.0.0.0
network 172.16.0.0

system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series

vlan 1

interface Serial1/0

interface Serial2/0

interface Serial3/0

interface Serial4/0

interface NULL0

interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 172.16.1.2 255.255.255.0

interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 172.16.0.2 255.255.255.0

interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 10.0.0.1 255.255.255.0

interface GigabitEthernet5/0
port link-mode route
combo enable copper

interface GigabitEthernet5/1
port link-mode route
combo enable copper

interface GigabitEthernet6/0
port link-mode route
combo enable copper

interface GigabitEthernet6/1
port link-mode route
combo enable copper

scheduler logfile size 16

line class aux
user-role network-operator

line class console
user-role network-admin

line class tty
user-role network-operator

line class vty
user-role network-operator

line aux 0
user-role network-operator

line con 0
user-role network-admin

line vty 0 63
user-role network-operator

ip route-static 0.0.0.0 0 172.16.1.1
ip route-static 0.0.0.0 0 172.16.0.1

L5

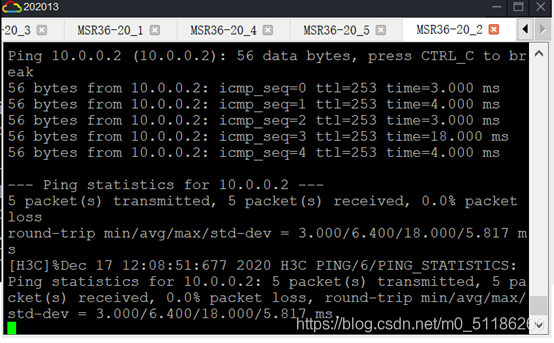

[H3C]dis cu

version 7.1.075, Alpha 7571

sysname H3C

router id 5.5.5.5

rip 1
undo summary
version 2
network 10.0.0.0

system-working-mode standard
xbar load-single
password-recovery enable
lpu-type f-series

vlan 1

interface Serial1/0

interface Serial2/0

interface Serial3/0

interface Serial4/0

interface NULL0

interface LoopBack0
ip address 9.9.9.9 255.255.255.255

interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 10.0.0.2 255.255.255.0

interface GigabitEthernet0/1
port link-mode route
combo enable copper

interface GigabitEthernet0/2
port link-mode route
combo enable copper

interface GigabitEthernet5/0
port link-mode route
combo enable copper

interface GigabitEthernet5/1
port link-mode route
combo enable copper

interface GigabitEthernet6/0
port link-mode route
combo enable copper

interface GigabitEthernet6/1
port link-mode route
combo enable copper

scheduler logfile size 16

line class aux
user-role network-operator

line class console
user-role network-admin

line class tty
user-role network-operator

line class vty
user-role network-operator

line aux 0
user-role network-operator

line con 0
user-role network-admin

line vty 0 63
user-role network-operator

ip route-static 0.0.0.0 0 10.0.0.1
