1.0、初识SpringMVC

1.0、初识spring-MVC

·配置web.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

<!--    注册DispatcherServlet-->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!--        关联一个Springmvc的配置文件springmvc-servlet.xml-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc-servlet.xml</param-value>
        </init-param>
<!--        启动级别1-->
        <load-on-startup>1</load-on-startup>
    </servlet>
<!--    /匹配所有的请求（不包括.jsp）-->
<!--    /*匹配所有的请求；（包括.jsp）-->
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>


</web-app>

·配置配置springmvc-servlet.xml文件

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

    <bean class="org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping" />
    <bean class="org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter" />
<!--视图解析器：DispatcherServlet给他的ModelAndView-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<!--        前缀-->
        <property name="prefix" value="/WEB-INF/jsp/" />
<!--        后缀-->
        <property name="suffix" value=".jsp" />
    </bean>

    <bean id="/hello" class="com.hkl.controller.HelloController" />

</beans>

·导入SpringMVC所需要的依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>spring-1-mvc</groupId>
    <artifactId>spring-1-mvc</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
    </dependencies>


</project>

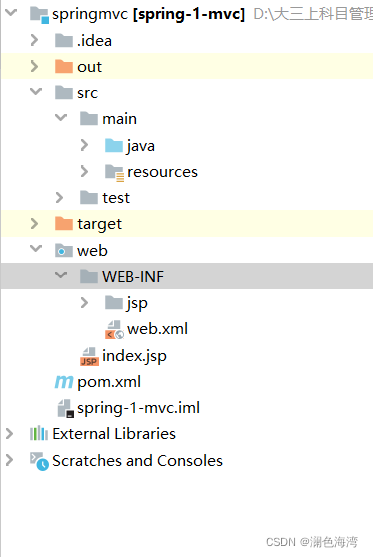

目录结构如下图所示：

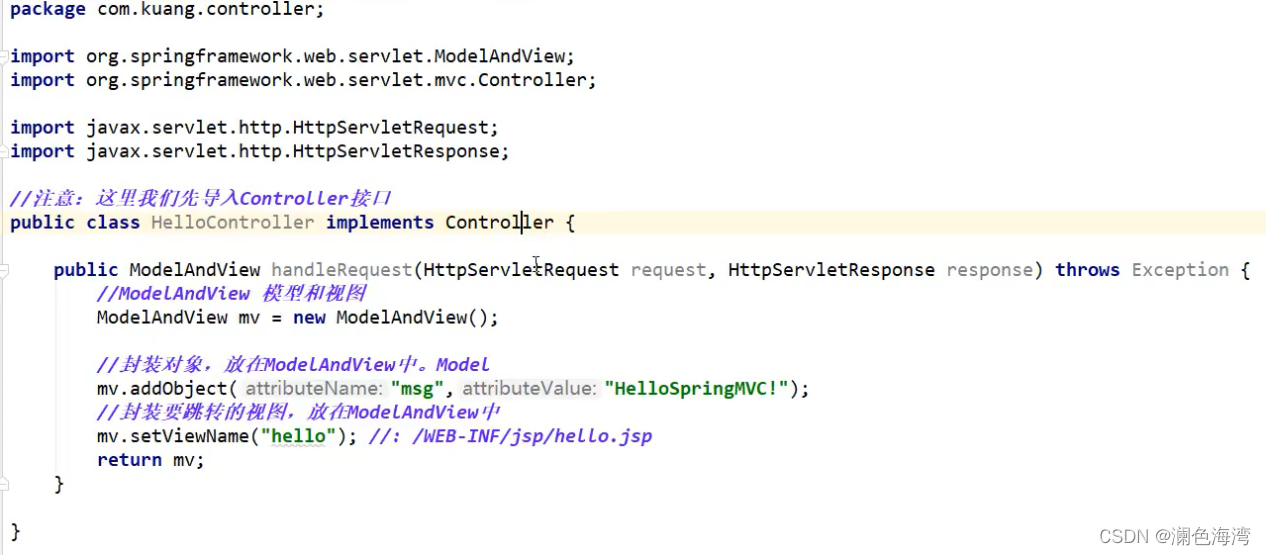

Controller层文件

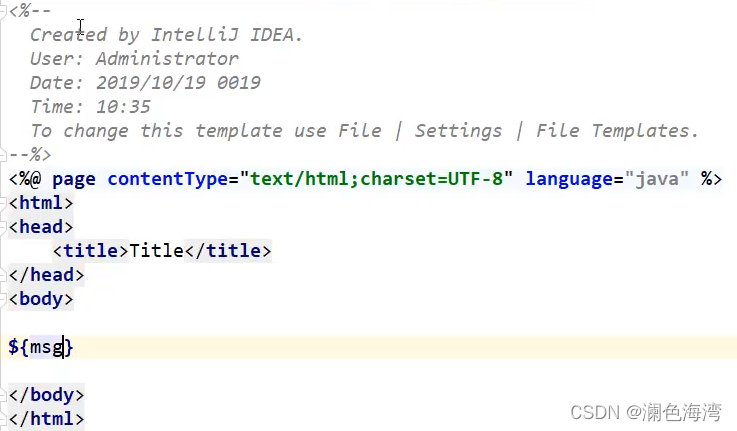

jsp文件



可能遇到的问题：访问出现404，排查步骤：

1.查看控制台输出，看一下是不是缺少了什么jar包

2.查看jar包存在，显示无法输出，就在IDEA的项目发布中，添加lib依赖！

3.重启Tomcat即可解决！

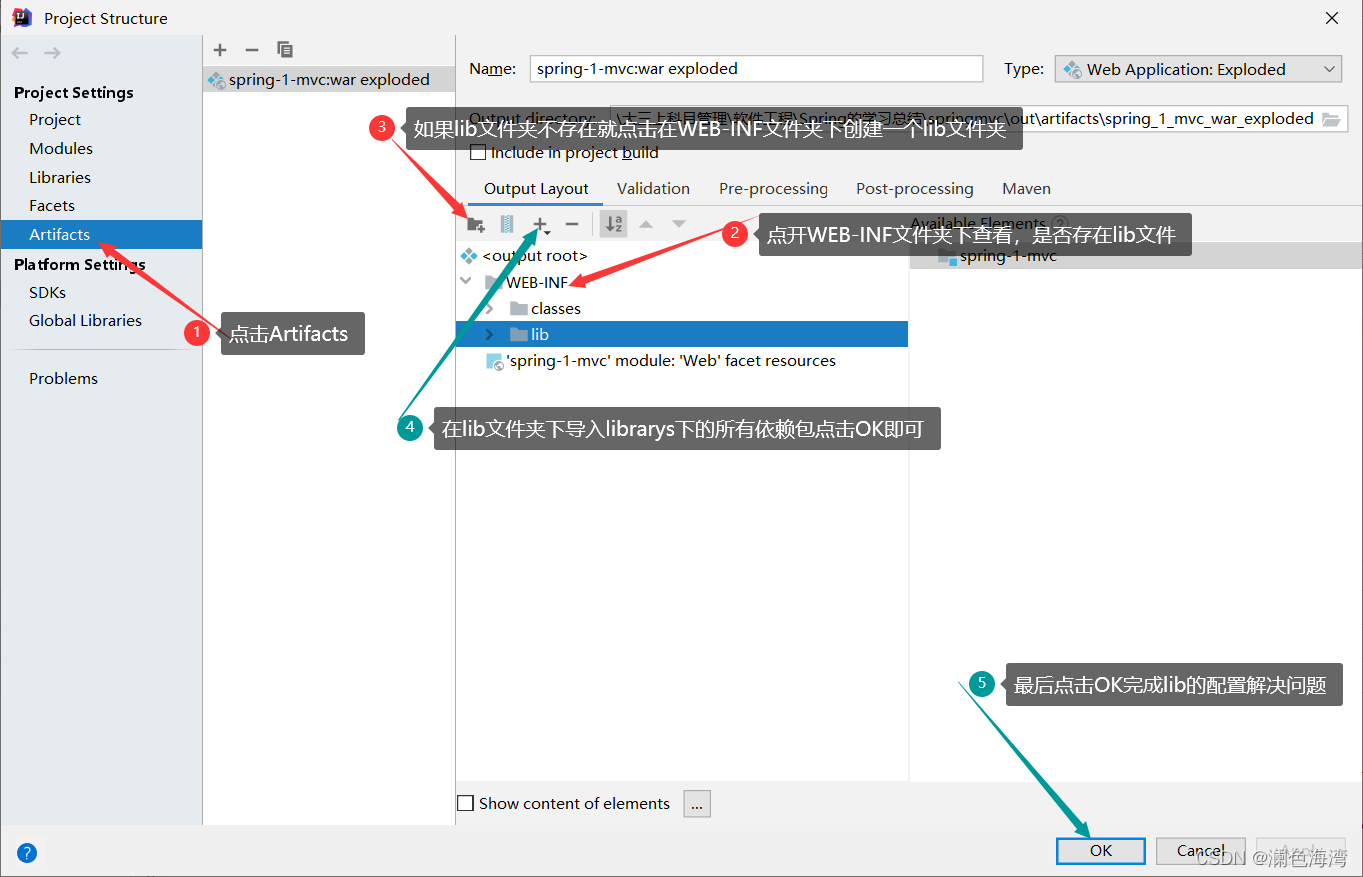

解决方案步骤如下：
