算法模板：秒杀BFS算法以及相关例题

宽度优先搜索，又称BFS，在面试中出现频率仅次于双指针，由于其上手快，难度较低，性价比很高！推荐各位同学们优先掌握。

1.适用场景

BFS的使用场景可分为三种：

1. 连通块问题

• 通过一个点找到图中连通的所有点
• 非递归的方式找所有方案

2. 分层遍历

• 图的层次遍历
• 简单图最短路径（复杂图:Floyd, Dijkstra, Bellman-ford, SPFA) --> 面试中一般不考复杂图最短路径问题）

3. 拓扑排序

• 求任意拓扑序
• 求是否有拓扑序
• 求字典序的最小拓扑序

2.算法模板

/*
// Definition for a Node.
class Node {
    public int val;
    public List<Node> neighbors;
    public Node() {
        val = 0;
        neighbors = new ArrayList<Node>();
    }
}
*/

//由于链表比数组慢，因此推荐使用new ArrayDeque不建议new LinkedList
Queue<Node> queue = new ArrayDeque<>();
HashMap<Node,Integer> distance = new HashMap<>();

//1.初始化：
//2.把初始节点放到queue中，如果有多个就都放进去；
//3.标记初始节点的distance为0，记录在distance的hashmap中；
//4.distacne有两个作用，一是判断是否遍历过，二是记录离起点的位置。
queue.offer(node);
distance.put(node,0);

//2.不断访问队列：
//while 循环 + 每次pop 队列中的一个点出来。
while(!queue.isEmpty()){
	Node node = queue.pop();
	//3.扩展相邻节点
	//pop 出的节点的相邻节点，加入队列并在distance中存储距离
	for(Node neighbour : node.neighbours()){
		if(distance.containsKey(neighbour)){
		continue;
		}

		queue.offer(neighbour);
		distance.put(neighbour, distance.get(node) + 1);
	}
}


3.相关例题

接下来，让我们拿几道LeetCode上的题目练练手，运用以上的模板。

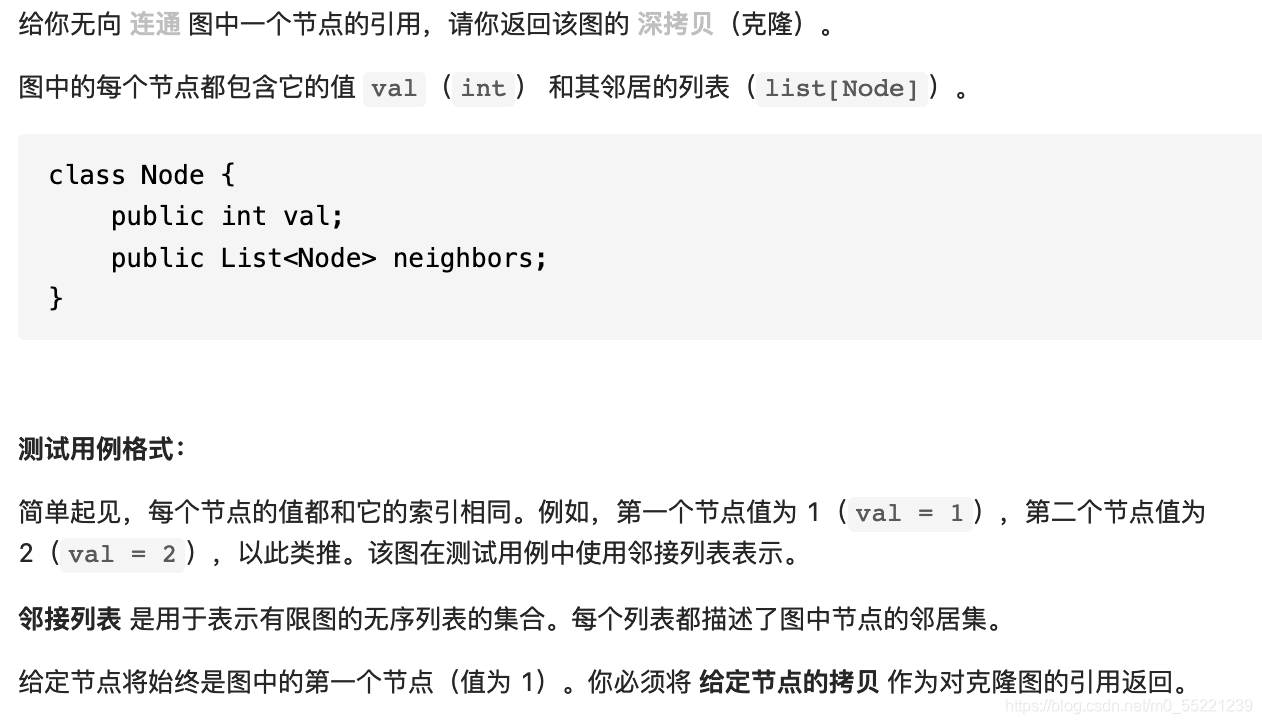

3.1 克隆图 Clone Graph

LeetCode 133.克隆图

class Solution {
    public Node cloneGraph(Node node) {
        if(node == null){
            return null;
        }
        //step1: find nodes
        List<Node> nodes = findNodesByBFS(node);
        //step2: copy nodes
        Map<Node,Node> mapping = copyNodes(nodes);
        //step3: copy edges
        copyEdges(nodes,mapping);
        return mapping.get(node);
    }

    private List<Node> findNodesByBFS(Node node){
        Queue<Node> queue = new ArrayDeque<>();
        Set<Node> visited = new HashSet<>();
        queue.offer(node);
        visited.add(node);
        while(!queue.isEmpty()){
            Node curNode = queue.poll();
            for(Node neighbor : curNode.neighbors){
                if(visited.contains(neighbor)){
                    continue;
                }
                visited.add(neighbor);
                queue.offer(neighbor);
            }
        }
        return new LinkedList<>(visited);
    }

    private Map<Node,Node>copyNodes(List<Node> nodes){
        Map<Node, Node> mapping = new HashMap<>();
        for(Node node : nodes){
            mapping.put(node, new Node(node.val));
        }
        return mapping;
    }

    private void copyEdges(List<Node> nodes, Map<Node,Node> mapping){
        for(Node node : nodes){
            Node newNode = mapping.get(node);
            for(Node neighbor : node.neighbors){
                Node newNeighbor = mapping.get(neighbor);
                newNode.neighbors.add(newNeighbor);
            }
        }
    }
}

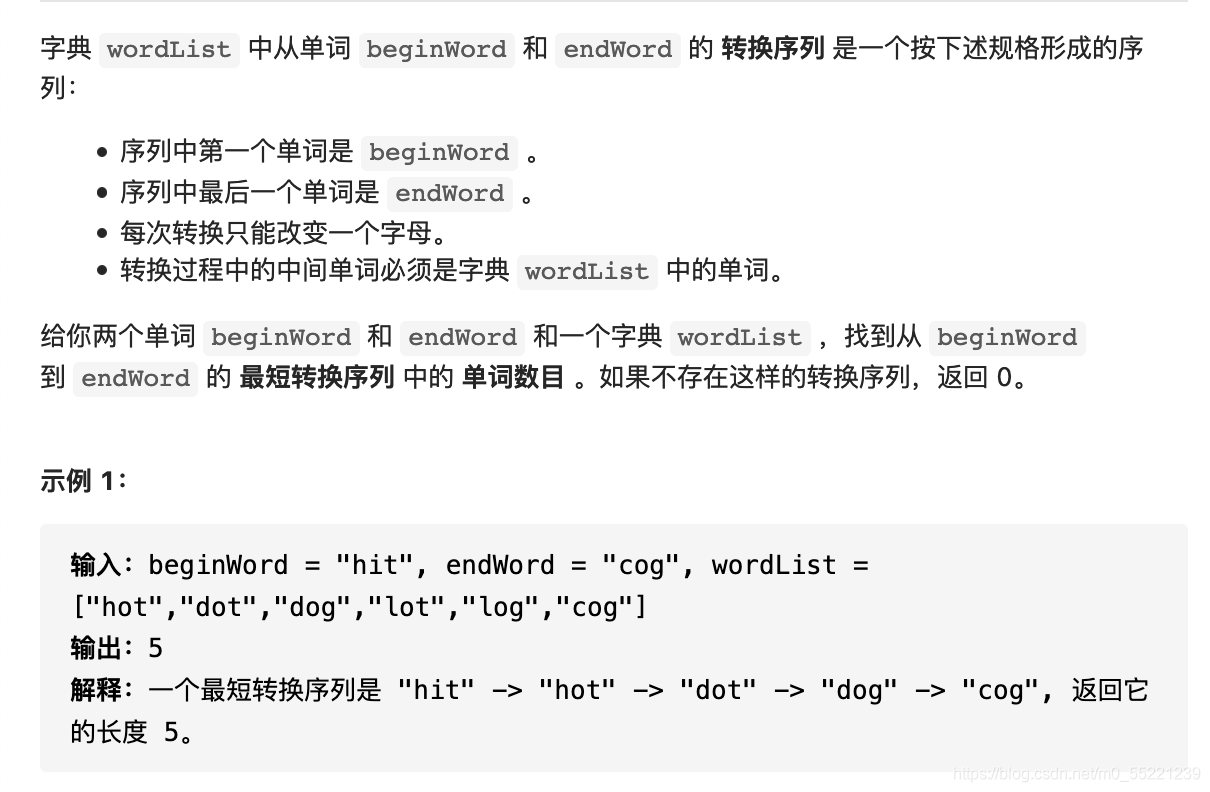

3.2 词语接龙 Word Ladder

LeetCode 127.单词接龙

public class Solution {
    public int ladderLength(String start, String end, List<String> wordList) {
        Set<String> dict = new HashSet<>();
        for (String word : wordList) {
        //将wordList中的单词加入dict, 有一个test case里面wordlist很长，会超时。所以要转成set，因为list的contains操作是O(n)，set的contains操作是O(1)
            dict.add(word);
        }

        if (start.equals(end)) {
            return 1;
        }

        HashSet<String> hash = new HashSet<String>();
        Queue<String> queue = new LinkedList<String>();
        queue.offer(start);
        hash.add(start);

        int length = 1;
        while (!queue.isEmpty()) {			//开始bfs
            length++;
            int size = queue.size();
            for (int i = 0; i < size; i++) {		//枚举当前步数队列的情况
                String word = queue.poll();
                for (String nextWord: getNextWords(word, dict)) {
                    if (hash.contains(nextWord)) {
                        continue;
                    }
                    if (nextWord.equals(end)) {
                        return length;
                    }

                    hash.add(nextWord);				//存入新单词
                    queue.offer(nextWord);
                }
            }
        }

        return 0;
    }

    // replace character of a string at given index to a given character
    // return a new string
    private String replace(String s, int index, char c) {
        char[] chars = s.toCharArray();
        chars[index] = c;
        return new String(chars);
    }

    // get connections with given word.
    // for example, given word = 'hot', dict = {'hot', 'hit', 'hog'}
    // it will return ['hit', 'hog']
    private ArrayList<String> getNextWords(String word, Set<String> dict) {
        ArrayList<String> nextWords = new ArrayList<String>();
        for (char c = 'a'; c <= 'z'; c++) {					//枚举替换字母
            for (int i = 0; i < word.length(); i++) {		//枚举替换位置
                if (c == word.charAt(i)) {
                    continue;
                }
                String nextWord = replace(word, i, c);
                if (dict.contains(nextWord)) {				//如果dict中包含新单词，存入nextWords
                    nextWords.add(nextWord);
                }
            }
        }
        return nextWords;									//构造当前单词的全部下一步方案
    }
}

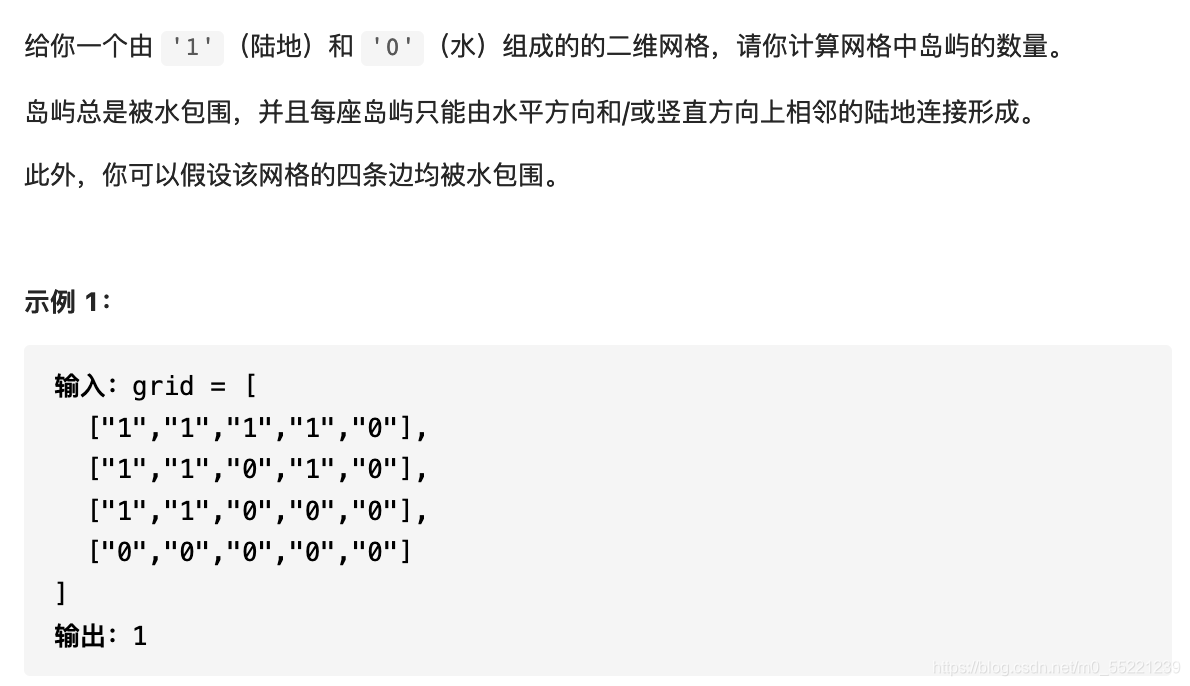

3.3 岛屿数量 Number of Islands

LeetCode 200. 岛屿数量

class Coordinate {
    int x, y;
    public Coordinate(int x, int y) {
        this.x = x;
        this.y = y;
    }
}

public class Solution {
    /**
     * @param grid a boolean 2D matrix
     * @return an integer
     */
    int[] deltaX = {0, 1, -1, 0};
    int[] deltaY = {1, 0, 0, -1};

    public int numIslands(char[][] grid) {


        if (grid == null || grid.length == 0) {
            return 0;
        }
        if (grid[0] == null || grid[0].length == 0) {
            return 0;
        }

        int islands = 0;
        int n = grid.length, m = grid[0].length;
        boolean[][] grids = new boolean[n][m];
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < m; j++) {
                if (grid[i][j] == '1') {
                    grids[i][j] = true;
                }else{
                    grids[i][j] = false;
                }
            }
        }

        boolean[][] visited = new boolean[n][m];
        for (int i = 0; i < n; i++) {
            for (int j = 0; j < m; j++) {
                if (grids[i][j] && !visited[i][j]) {
                    bfs(grids, i, j, visited);
                    islands++;
                }
            }
        }

        return islands;
    }

    private void bfs(boolean[][] grid, int x, int y, boolean[][] visited) {
        Queue<Coordinate> queue = new ArrayDeque<>();
        queue.offer(new Coordinate(x, y));
        visited[x][y] = true;

        while (!queue.isEmpty()) {
            Coordinate coor = queue.poll();
            for (int direction = 0; direction < 4; direction++) {
                int newX = coor.x + deltaX[direction];
                int newY = coor.y + deltaY[direction];
                if (!isVaild(grid, newX, newY, visited)) {
                    continue;
                }
                queue.offer(new Coordinate(newX, newY));
                visited[newX][newY] = true;
            }
        }
    }

    private boolean isVaild(boolean[][] grid, int x, int y, boolean[][] visited) {
        int n = grid.length, m = grid[0].length;
        if (x < 0 || x >= n || y < 0 || y >= m) {
            return false;
        }
        if (visited[x][y]) {
            return false;
        }
        return grid[x][y];
    }
}

总结

能够用 BFS 解决的问题，一定不要用 DFS 去做! 因为用 Recursion 实现的 DFS 可能造成 StackOverflow!
