HAL库配置RS485通信

在配置好串口的基础上完成RS485的配置

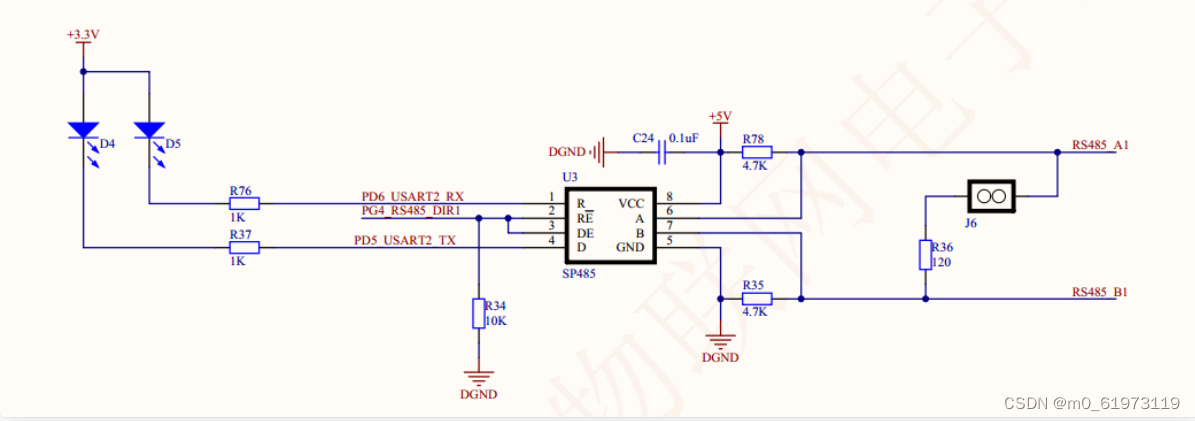

一、使能RS485的发送和接收模式引脚

  __HAL_RCC_GPIOG_CLK_ENABLE();

  //高电平是发送模式，低电平是接收模式，默认是接收模式
  HAL_GPIO_WritePin(PG4_RS485_DIR1_Port, PG4_RS485_DIR1_Pin, GPIO_PIN_RESET);

  GPIO_InitStruct.Pin = PG4_RS485_DIR1_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_PULLUP;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH;
  HAL_GPIO_Init(PG4_RS485_DIR1_Port, &GPIO_InitStruct);

#define RS485_Receive() HAL_GPIO_WritePin(PG4_RS485_DIR1_Port, PG4_RS485_DIR1_Pin, GPIO_PIN_RESET);
#define RS485_Send() HAL_GPIO_WritePin(PG4_RS485_DIR1_Port, PG4_RS485_DIR1_Pin, GPIO_PIN_SET);



二、编写RS485发送函数

/**
 * @description: 控制rs485发送数据
 * @
