DHVT是为了解决ViT在小数据集上训练时与CNN相比的性能差距而设计的。通过引入串联重叠的Patch嵌入（SOPE）和动态聚合前馈（DAFF），以及相互作用多头自注意力（HI-MHSA），DHVT增强了模型的空间相关性和通道表示多样性，从而在小数据集上获得更好的性能。在CIFAR-100和ImageNet-1K数据集上，DHVT在轻量级模型中实现了与CNN相当甚至更优的准确性。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

★★★ 本文源自AlStudio社区精品项目，【点击此处】查看更多精品内容 >>>

摘要

在小数据集上从头开始训练时，视觉Transformer和卷积神经网络之间仍然存在着巨大的性能差距，这是由于缺乏归纳偏置造成的。在本文中，我们进一步考虑了这一问题，并指出了ViTs在归纳偏置下的两个弱点，即空间相关性和不同的通道表示。首先，在空间方面，对象具有局部紧凑性和相关性，因此需要从令牌及其邻域中提取细粒度特征。而数据的缺乏则阻碍了VITS参与空间相关性的研究。第二，在通道方面，不同通道的表征呈现出多样性。但是由于数据的稀少，使得VITS无法学习到足够强的表示来进行准确的识别。为此，我们提出了动态混合视觉变压器(DHVT)作为增强两种归纳偏置的解决方案。在空间方面，我们采用了一种混合结构，将卷积融合到Patch嵌入和多层感知器模块中，强制模型捕获令牌及其邻近特征。在通道方面，我们在MLP中引入了动态特征聚合模块，在多头自关注模块中引入了全新的“头令牌”设计，以帮助重新校准通道表示，并使不同的通道组表示相互影响。弱通道表示的融合形成了足够强的分类表示。通过这种设计，我们成功地消除了CNNS和VITS之间的性能差距，我们的DHVT在轻量级模型上实现了一系列最先进的性能，CIFAR-100在22.8M参数上实现了85.68%的性能，ImageNet-1K在24.0M参数上实现了82.3%的性能。

1. DHVT

本文针对ViT缺乏空间相关性和多样的通道表示这两个弱点，提出了一种新的Transformer架构——DHVT，DHVT的总体框架如图1所示，采用的与ViT架构相同，没有使用分层架构。

1.1 串联重叠的Patch嵌入（Sequential Overlapping Patch Embedding，SOPE）

改进后的补丁嵌入称为Sequential overlap patch embedding(SOPE)，它包含了3×3步长s=2的卷积、BN和GELU激活的几个连续卷积层。卷积层数与patch大小的关系为P=2^k。SOPE能够消除以前嵌入模块带来的不连续性，保留重要的底层特征。它能在一定程度上提供位置信息。在一系列卷积层前后分别采用两次仿射变换。该操作对输入特征进行了缩放和移位，其作用类似于归一化，使训练性能在小数据集上更加稳定。SOPE的整个流程可以表述如下：

$\begin{array}{c} \operatorname{Aff}(\mathbf{x})=\operatorname{Diag}(\boldsymbol{\alpha}) \mathbf{x}+\boldsymbol{\beta} \\ G_{i}(\mathbf{x})=\operatorname{GELU}(B N(\operatorname{Conv}(\mathbf{x}))), i=1, \ldots, k \\ \operatorname{SOPE}(\mathbf{x})=\operatorname{Reshape}\left(\operatorname{Aff}\left(G_{k}\left(\ldots\left(G_{2}\left(G_{1}(\operatorname{Aff}(\mathbf{x}))\right)\right)\right)\right)\right) \end{array}$

这里的α和β为可学习参数，分别初始化为1和0。

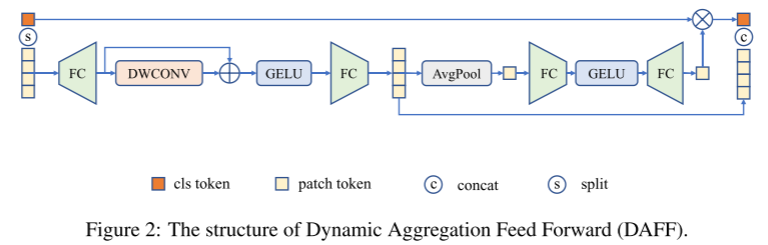

1.2 动态聚合前馈 (Dynamic Aggregation Feed Forward，DAFF)

ViT 中的普通前馈网络 (FFN) 由两个全连接层和 GELU 组成。DAFF 在 FFN 中集成了来自 MobileNetV1 的深度卷积 (DWConv)。由于深度卷积带来的归纳偏置，模型被迫捕获相邻特征，解决了空间视图上的问题。它极大地减少了在小型数据集上从头开始训练时的性能差距，并且比标准 CNN 收敛得更快。还使用了与来自 SENet 的 SE 模块类似的机制。Xc、Xp 分别表示类标记和补丁标记。类标记在投影层之前从序列中分离为 Xc。剩余的令牌 Xp 则通过一个内部有残差连接的深度集成多层感知器。然后将输出的补丁标记平均为权重向量 W。在squeeze-excitation操作之后，输出权重向量将与类标记通道相乘。然后重新校准的类令牌将与输出补丁令牌以恢复令牌序列，DAFF的SE操作可以表述如下：

$\begin{array}{c} \mathbf{W}=\operatorname{Linear}\left(G E L U\left(\text { Linear }\left(\left(\text { Average }\left(\mathbf{X}_{p}\right)\right)\right)\right)\right. \\ \mathbf{X}_{c}=\mathbf{X}_{c} \odot \mathbf{W} \end{array}$

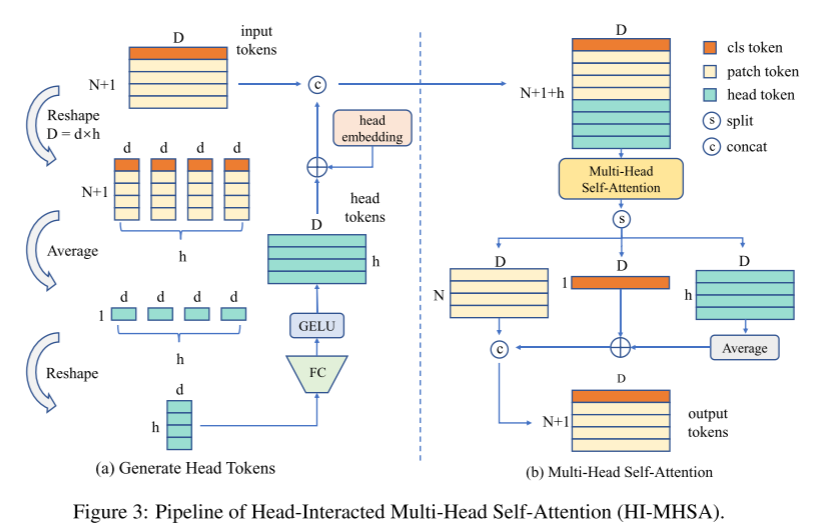

1.3 相互作用多头自注意(HI-MHSA)

在最初的MHSA模块中，每个注意头都没有与其他头交互。在缺乏训练数据的情况下，每个通道组的表征都太弱而无法识别。在HI-MHSA中，每个d维令牌，包括类令牌，将被重塑为h部分。每个部分包含d个通道，其中d =d×h。所有分离的标记在它们各自的部分中取平均值。因此总共得到h个令牌，每个令牌都是d维的。所有这样的中间令牌将再次投影到d维，总共产生h个头部令牌，头令牌的生成过程如下所示：

$$$$

然后将头令牌与类令牌和Patch令牌合并，并使用原始的多头注意力进行交互，最后对头令牌进行平均池化操作，并将其与类令牌相加，以增强类令牌的判别能力，整体架构如图3所示。

2. 代码复现

2.1 下载并导入所需的库

!pip install einops-0.3.0-py3-none-any.whl

!pip install paddlex

%matplotlib inline
import paddle
import paddle.fluid as fluid
import numpy as np
import matplotlib.pyplot as plt
from paddle.vision.datasets import Cifar10
from paddle.vision.transforms import Transpose
from paddle.io import Dataset, DataLoader
from paddle import nn
import paddle.nn.functional as F
import paddle.vision.transforms as transforms
import os
import matplotlib.pyplot as plt
from matplotlib.pyplot import figure
import paddlex
import itertools
from einops.layers.paddle import Rearrange
import math
from functools import partial

2.2 创建数据集

train_tfm = transforms.Compose([
    transforms.RandomResizedCrop(32),
    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),
    transforms.RandomHorizontalFlip(0.5),
    transforms.RandomRotation(20),
    paddlex.transforms.MixupImage(),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

test_tfm = transforms.Compose([
    transforms.Resize((32, 32)),
    transforms.ToTensor(),
    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),
])

paddle.vision.set_image_backend('cv2')
# 使用Cifar10数据集
train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )
val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)
print("train_dataset: %d" % len(train_dataset))
print("val_dataset: %d" % len(val_dataset))

train_dataset: 50000
val_dataset: 10000

batch_size=256

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)
val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

2.3 模型的创建

2.3.1 标签平滑

class LabelSmoothingCrossEntropy(nn.Layer):
    def __init__(self, smoothing=0.1):
        super().__init__()
        self.smoothing = smoothing

    def forward(self, pred, target):

        confidence = 1. - self.smoothing
        log_probs = F.log_softmax(pred, axis=-1)
        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)
        nll_loss = paddle.gather_nd(-log_probs, index=idx)
        smooth_loss = paddle.mean(-log_probs, axis=-1)
        loss = confidence * nll_loss + self.smoothing * smooth_loss

        return loss.mean()

2.3.2 DropPath

def drop_path(x, drop_prob=0.0, training=False):
    """
    Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).
    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...
    See discussion: https://github.com/tensorflow/tpu/issues/494#issuecomment-532968956 ...
    """
    if drop_prob == 0.0 or not training:
        return x
    keep_prob = paddle.to_tensor(1 - drop_prob)
    shape = (paddle.shape(x)[0],) + (1,) * (x.ndim - 1)
    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)
    random_tensor = paddle.floor(random_tensor)  # binarize
    output = x.divide(keep_prob) * random_tensor
    return output


class DropPath(nn.Layer):
    def __init__(self, drop_prob=None):
        super(DropPath, self).__init__()
        self.drop_prob = drop_prob

    def forward(self, x):
        return drop_path(x, self.drop_prob, self.training)

2.4.3 DAFF

class DAFF(nn.Layer):
    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.,
                 kernel_size=3, with_bn=True):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        # pointwise
        self.conv1 = nn.Conv2D(in_features, hidden_features, kernel_size=1, stride=1, padding=0)
        # depthwise
        self.conv2 = nn.Conv2D(
            hidden_features, hidden_features, kernel_size=kernel_size, stride=1,
            padding=(kernel_size - 1) // 2, groups=hidden_features)

        # pointwise
        self.conv3 = nn.Conv2D(hidden_features, out_features, kernel_size=1, stride=1, padding=0)
        self.act = act_layer()

        self.bn1 = nn.BatchNorm2D(hidden_features)
        self.bn2 = nn.BatchNorm2D(hidden_features)
        self.bn3 = nn.BatchNorm2D(out_features)

        # The reduction ratio is always set to 4
        self.squeeze = nn.AdaptiveAvgPool2D((1, 1))
        self.compress = nn.Linear(in_features, in_features//4)
        self.excitation = nn.Linear(in_features//4, in_features)

    def forward(self, x):
        B, N, C = x.shape
        cls_token, tokens = paddle.split(x, [1, N - 1], axis=1)
        x = tokens.reshape((B, int(math.sqrt(N - 1)), int(math.sqrt(N - 1)), C)).transpose([0, 3, 1, 2])

        x = self.conv1(x)
        x = self.bn1(x)
        x = self.act(x)

        shortcut = x
        x = self.conv2(x)
        x = self.bn2(x)
        x = self.act(x)
        x = shortcut + x

        x = self.conv3(x)
        x = self.bn3(x)

        weight = self.squeeze(x).flatten(1).reshape((B, 1, C))
        weight = self.excitation(self.act(self.compress(weight)))
        cls_token = cls_token * weight

        tokens = x.flatten(2).transpose([0, 2, 1])
        out = paddle.concat((cls_token, tokens), axis=1)

        return out

2.4.4 HI-MHSA

class HI_Attention(nn.Layer):
    def __init__(self, dim, num_heads=8, qkv_bias=False, attn_drop=0., proj_drop=0.):
        super().__init__()
        self.num_heads = num_heads
        head_dim = dim // num_heads
        self.scale = head_dim ** -0.5

        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)

        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim, dim)
        self.proj_drop = nn.Dropout(proj_drop)

        self.act = nn.GELU()
        self.ht_proj = nn.Linear(dim//self.num_heads, dim, bias_attr=True)
        self.ht_norm = nn.LayerNorm(dim//self.num_heads)
        self.pos_embed = self.create_parameter(shape=(1, self.num_heads, dim), default_initializer=nn.initializer.TruncatedNormal(std=.02))

    def forward(self, x):
        B, N, C = x.shape
        H = W =int(math.sqrt(N-1))

        # head token
        head_pos = paddle.expand(self.pos_embed, shape=(x.shape[0], -1, -1))
        x_ = x.reshape((B, -1, self.num_heads, C // self.num_heads)).transpose([0, 2, 1, 3])
        x_ = paddle.mean(x_, axis=2, keepdim=True)  # now the shape is [B, h, 1, d//h]
        x_ = self.ht_proj(x_).reshape((B, -1, self.num_heads, C // self.num_heads))
        x_ = self.act(self.ht_norm(x_)).flatten(2)
        x_ = x_ + head_pos
        x = paddle.concat([x, x_], axis=1)

        # normal mhsa
        qkv = self.qkv(x).reshape((B, N+self.num_heads, 3, self.num_heads, C // self.num_heads)).transpose([2, 0, 3, 1, 4])
        q, k, v = qkv[0], qkv[1], qkv[2]   # make torchscript happy (cannot use tensor as tuple)

        attn = (q @ k.transpose([0, 1, 3, 2])) * self.scale
        attn = F.softmax(attn, axis=-1)
        attn = self.attn_drop(attn)

        x = (attn @ v).transpose([0, 2, 1, 3]).reshape((B, N+self.num_heads, C))
        x = self.proj(x)

        # merge head tokens into cls token
        cls, patch, ht = paddle.split(x, [1, N-1, self.num_heads], axis=1)
        cls = cls + paddle.mean(ht, axis=1, keepdim=True)
        x = paddle.concat([cls, patch], axis=1)

        x = self.proj_drop(x)

        return x

class DHVT_Block(nn.Layer):

    def __init__(self, dim, num_heads, mlp_ratio=4., qkv_bias=False, drop=0., attn_drop=0., qk_scale=None,
                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm):
        super().__init__()
        self.norm1 = norm_layer(dim)
        self.attn = HI_Attention(dim, num_heads=num_heads, qkv_bias=qkv_bias,attn_drop=attn_drop, proj_drop=drop)
        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim)

        mlp_hidden_dim = int(dim * mlp_ratio)
        self.mlp = DAFF(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop, kernel_size=3)
        self.mlp_hidden_dim = mlp_hidden_dim

    def forward(self, x):
        B, N, C = x.shape
        x = x + self.drop_path(self.attn(self.norm1(x)))
        x = x + self.drop_path(self.mlp(self.norm2(x)))
        return x

class Affine(nn.Layer):
    def __init__(self, dim):
        super().__init__()
        self.alpha = self.create_parameter(shape=[1, dim, 1, 1], default_initializer=nn.initializer.Constant(1.0))
        self.beta = self.create_parameter(shape=[1, dim, 1, 1], default_initializer=nn.initializer.Constant(0.0))

    def forward(self, x):
        x = x * self.alpha + self.beta
        return x

def to_2tuple(x):
    return (x, x)


def conv3x3(in_planes, out_planes, stride=1):
    """3x3 convolution with padding"""
    return nn.Sequential(
        nn.Conv2D(
            in_planes, out_planes, kernel_size=3, stride=stride, padding=1, bias_attr=False
        ),
        nn.BatchNorm2D(out_planes)
    )


class ConvPatchEmbed(nn.Layer):
    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768, init_values=1e-2):
        super().__init__()
        ori_img_size = img_size
        img_size = to_2tuple(img_size)
        patch_size = to_2tuple(patch_size)
        num_patches = (img_size[1] // patch_size[1]) * (img_size[0] // patch_size[0])
        self.img_size = img_size
        self.patch_size = patch_size
        self.num_patches = num_patches

        if patch_size[0] == 16:
            self.proj = nn.Sequential(
                conv3x3(3, embed_dim // 8, 2),
                nn.GELU(),
                conv3x3(embed_dim // 8, embed_dim // 4, 2),
                nn.GELU(),
                conv3x3(embed_dim // 4, embed_dim // 2, 2),
                nn.GELU(),
                conv3x3(embed_dim // 2, embed_dim, 2),
            )
        elif patch_size[0] == 4:
            self.proj = nn.Sequential(
                conv3x3(3, embed_dim // 2, 2),
                nn.GELU(),
                conv3x3(embed_dim // 2, embed_dim, 2),
            )
        elif patch_size[0] == 2:
            self.proj = nn.Sequential(
                conv3x3(3, embed_dim, 2),
                nn.GELU(),
            )
        else:
            raise("For convolutional projection, patch size has to be in [2, 4, 16]")
        self.pre_affine = Affine(3)
        self.post_affine = Affine(embed_dim)

    def forward(self, x):
        B, C, H, W = x.shape

        x = self.pre_affine(x)
        x = self.proj(x)
        x = self.post_affine(x)

        Hp, Wp = x.shape[2], x.shape[3]
        x = x.flatten(2).transpose([0, 2, 1])

        return x

class DHVT(nn.Layer):

    def __init__(self, img_size=32, patch_size=16, in_chans=3, num_classes=100, embed_dim=768, depth=12, num_heads=12,
                 mlp_ratio=4., qkv_bias=True, drop_rate=0., attn_drop_rate=0., drop_path_rate=0., norm_layer=None, act_layer=None):
        super().__init__()
        self.img_size = img_size
        self.depth = depth
        self.num_classes = num_classes
        self.num_features = self.embed_dim = embed_dim  # num_features for consistency with other models
        self.num_tokens = 1
        norm_layer = norm_layer or partial(nn.LayerNorm, epsilon=1e-6)
        act_layer = act_layer or nn.GELU

        # Patch Embedding
        self.patch_embed = ConvPatchEmbed(img_size=img_size, embed_dim=embed_dim, patch_size=patch_size)

        self.cls_token = self.create_parameter(shape=(1, 1, embed_dim), default_initializer=nn.initializer.TruncatedNormal(std=.02))

        self.pos_drop = nn.Dropout(drop_rate)

        dpr = [x.item() for x in paddle.linspace(0, drop_path_rate, depth)]  # stochastic depth decay rule

        self.blocks = nn.LayerList([
            DHVT_Block(
                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, drop=drop_rate,
                attn_drop=attn_drop_rate, drop_path=dpr[i], norm_layer=norm_layer, act_layer=act_layer)
            for i in range(depth)])

        self.norm = norm_layer(embed_dim)

        # Classifier head(s)
        self.head = nn.Linear(self.num_features, num_classes) if num_classes > 0 else nn.Identity()
        self.apply(self.init_weights)

    def init_weights(self, m):
        tn = nn.initializer.TruncatedNormal(std=0.02)
        zero = nn.initializer.Constant(0.0)
        one = nn.initializer.Constant(1.0)
        km = nn.initializer.KaimingNormal()
        if isinstance(m, nn.Linear):
            tn(m.weight)
            if isinstance(m, nn.Linear) and m.bias is not None:
                zero(m.bias)
        elif isinstance(m, nn.LayerNorm):
            zero(m.bias)
            one(m.weight)
        elif isinstance(m, nn.Conv2D):
            km(m.weight)
            if m.bias is not None:
               zero(m.bias)


    def forward_features(self, x):
        B, _, h, w = x.shape
        x = self.patch_embed(x)
        cls_token = self.cls_token.expand([x.shape[0], -1, -1])  # stole cls_tokens impl from Phil Wang, thanks

        x = paddle.concat((cls_token, x), axis=1)

        for i, blk in enumerate(self.blocks):
            x  = blk(x)

        x = self.norm(x)

        return x[:, 0]


    def forward(self, x):
        x = self.forward_features(x)
        x = self.head(x)
        return x

num_classes = 10


def dhvt_tiny_cifar_patch4():

    model = DHVT(img_size=32, patch_size=4, embed_dim=192, depth=12, num_heads=4, mlp_ratio=4, num_classes=num_classes)

    return model


def dhvt_small_cifar_patch4():

    model = DHVT(img_size=32, patch_size=4, embed_dim=384, depth=12, num_heads=8, mlp_ratio=4, num_classes=num_classes)

    return model


def dhvt_tiny_cifar_patch2():

    model = DHVT(img_size=32, patch_size=2, embed_dim=192, depth=12, num_heads=4, mlp_ratio=4, num_classes=num_classes)

    return model


def dhvt_small_cifar_patch2():

    model = DHVT(img_size=32, patch_size=2, embed_dim=384, depth=12, num_heads=8, mlp_ratio=4, num_classes=num_classes)

    return model

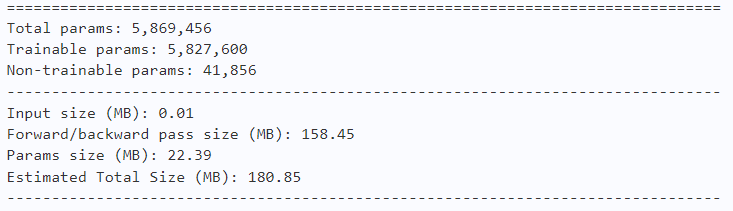

2.3.5 模型的参数

model = dhvt_tiny_cifar_patch2()
paddle.summary(model, (1, 3, 32, 32))

2.4 训练

learning_rate = 0.001
n_epochs = 50
paddle.seed(42)
np.random.seed(42)

work_path = 'work/model'

# DHVT-T-2
model = dhvt_tiny_cifar_patch2()

criterion = LabelSmoothingCrossEntropy()

scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)
optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)

gate = 0.0
threshold = 0.0
best_acc = 0.0
val_acc = 0.0
loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording loss
acc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracy

loss_iter = 0
acc_iter = 0

for epoch in range(n_epochs):
    # ---------- Training ----------
    model.train()
    train_num = 0.0
    train_loss = 0.0

    val_num = 0.0
    val_loss = 0.0
    accuracy_manager = paddle.metric.Accuracy()
    val_accuracy_manager = paddle.metric.Accuracy()
    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))
    for batch_id, data in enumerate(train_loader):
        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)

        logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        accuracy_manager.update(acc)
        if batch_id % 10 == 0:
            loss_record['train']['loss'].append(loss.numpy())
            loss_record['train']['iter'].append(loss_iter)
            loss_iter += 1

        loss.backward()

        optimizer.step()
        scheduler.step()
        optimizer.clear_grad()

        train_loss += loss
        train_num += len(y_data)

    total_train_loss = (train_loss / train_num) * batch_size
    train_acc = accuracy_manager.accumulate()
    acc_record['train']['acc'].append(train_acc)
    acc_record['train']['iter'].append(acc_iter)
    acc_iter += 1
    # Print the information.
    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))

    # ---------- Validation ----------
    model.eval()

    for batch_id, data in enumerate(val_loader):

        x_data, y_data = data
        labels = paddle.unsqueeze(y_data, axis=1)
        with paddle.no_grad():
          logits = model(x_data)

        loss = criterion(logits, y_data)

        acc = paddle.metric.accuracy(logits, labels)
        val_accuracy_manager.update(acc)

        val_loss += loss
        val_num += len(y_data)

    total_val_loss = (val_loss / val_num) * batch_size
    loss_record['val']['loss'].append(total_val_loss.numpy())
    loss_record['val']['iter'].append(loss_iter)
    val_acc = val_accuracy_manager.accumulate()
    acc_record['val']['acc'].append(val_acc)
    acc_record['val']['iter'].append(acc_iter)

    print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))

    # ===================save====================
    if val_acc > best_acc:
        best_acc = val_acc
        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))
        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))

print(best_acc)
paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))
paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

2.5 结果分析

def plot_learning_curve(record, title='loss', ylabel='CE Loss'):
    ''' Plot learning curve of your CNN '''
    maxtrain = max(map(float, record['train'][title]))
    maxval = max(map(float, record['val'][title]))
    ymax = max(maxtrain, maxval) * 1.1
    mintrain = min(map(float, record['train'][title]))
    minval = min(map(float, record['val'][title]))
    ymin = min(mintrain, minval) * 0.9

    total_steps = len(record['train'][title])
    x_1 = list(map(int, record['train']['iter']))
    x_2 = list(map(int, record['val']['iter']))
    figure(figsize=(10, 6))
    plt.plot(x_1, record['train'][title], c='tab:red', label='train')
    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')
    plt.ylim(ymin, ymax)
    plt.xlabel('Training steps')
    plt.ylabel(ylabel)
    plt.title('Learning curve of {}'.format(title))
    plt.legend()
    plt.show()

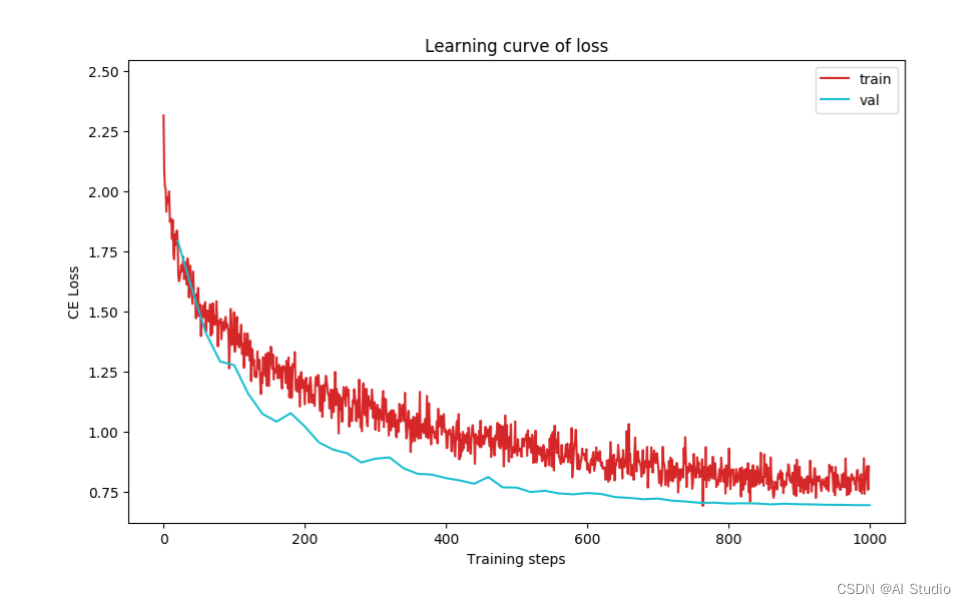

plot_learning_curve(loss_record, title='loss', ylabel='CE Loss')

在这里插入图片描述

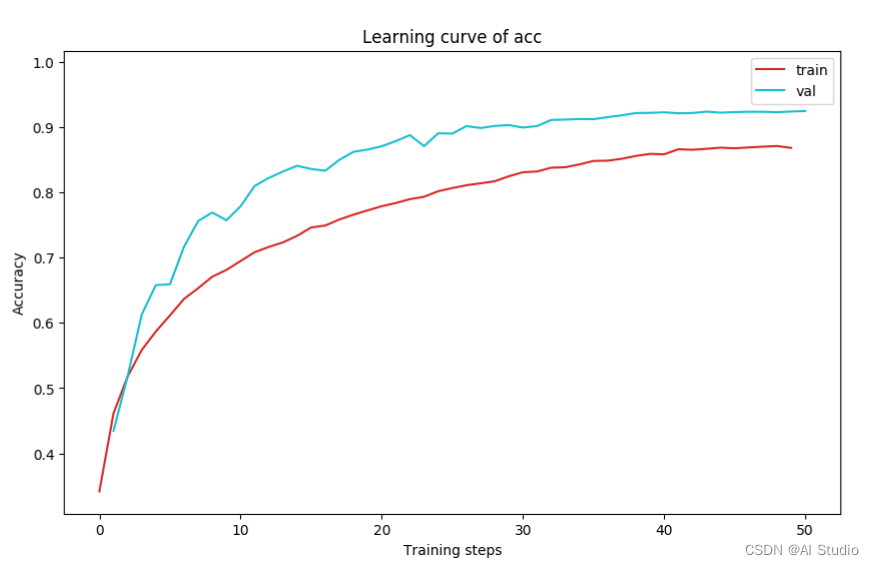

plot_learning_curve(acc_record, title='acc', ylabel='Accuracy')

在这里插入图片描述

import time
work_path = 'work/model'
model = dhvt_tiny_cifar_patch2()
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
aa = time.time()
for batch_id, data in enumerate(val_loader):

    x_data, y_data = data
    labels = paddle.unsqueeze(y_data, axis=1)
    with paddle.no_grad():
        logits = model(x_data)
bb = time.time()
print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

Throughout:976

def get_cifar10_labels(labels):
    """返回CIFAR10数据集的文本标签。"""
    text_labels = [
        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',
        'horse', 'ship', 'truck']
    return [text_labels[int(i)] for i in labels]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):
    """Plot a list of images."""
    figsize = (num_cols * scale, num_rows * scale)
    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)
    axes = axes.flatten()
    for i, (ax, img) in enumerate(zip(axes, imgs)):
        if paddle.is_tensor(img):
            ax.imshow(img.numpy())
        else:
            ax.imshow(img)
        ax.axes.get_xaxis().set_visible(False)
        ax.axes.get_yaxis().set_visible(False)
        if pred or gt:
            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])
    return axes

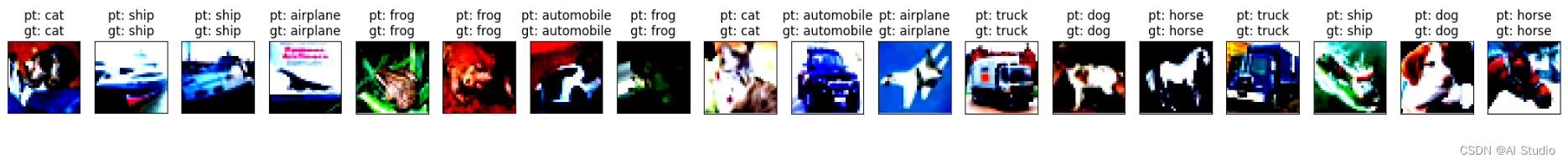

work_path = 'work/model'
X, y = next(iter(DataLoader(val_dataset, batch_size=18)))
model = dhvt_tiny_cifar_patch2()
model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))
model.set_state_dict(model_state_dict)
model.eval()
logits = model(X)
y_pred = paddle.argmax(logits, -1)
X = paddle.transpose(X, [0, 2, 3, 1])
axes = show_images(X.reshape((18, 32, 32, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))
plt.show()

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

.255] for integers).

在这里插入图片描述
