BGP路由优化实现

原创于 2025-05-15 20:54:50 发布 · 1.1k 阅读

10 ·

CC 4.0 BY-SA版权

文章标签：

#网络 #服务器 #运维

HCIP 专栏收录该内容

6 篇文章

订阅专栏

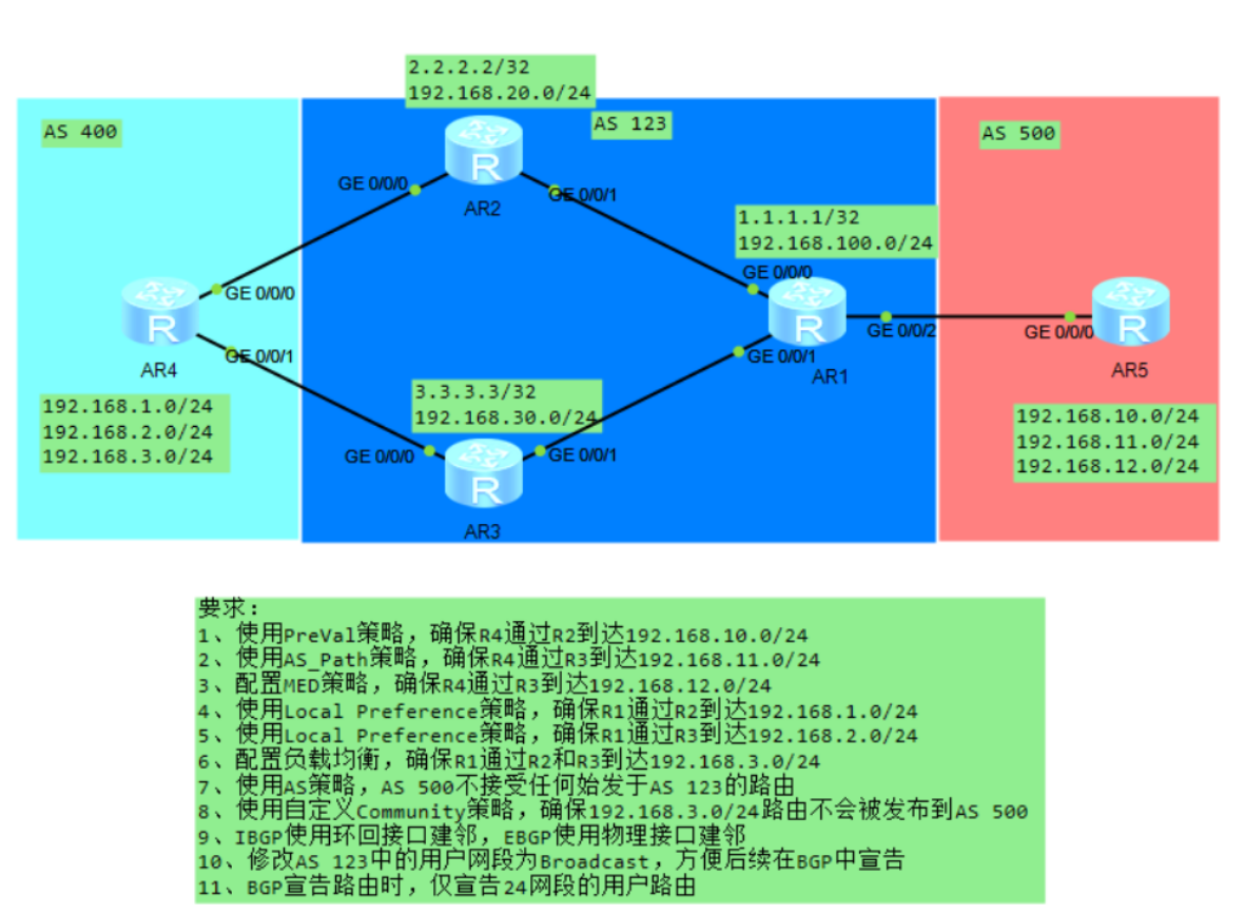

一.拓扑图

二.需求

1.使用Preva1策略，确保R4通过R2到达192.168.10.0/24

2、用As Path策略，确保R4通过R3到达192.168.11.0/24

3.配置MED策略，确保R4通过R3到达192.168.12.0/24

4.使用Local Preference策略，确保R1通过R2到达192.168.1.0/24

5.使用Local Preference策略，确保R1通过R3到达192.168.2.0/24

6.配置负载均衡，确保R1通过R2和R3到达192.168.3.0/24

7.使用As策略，As 50不接受任何始发于AS123的路由

8.使用自定义community策略，确保192.168.3.0/24路由不会被发布到As 500

9、IBGP使用环回接口建邻，EBGP使用物理接口建邻

10、修改AS 123中的用户网段为Broadcast，方便后续在BGP中宣告

11、BGP宣告路由时，仅宣告24网段的用户路由

三.需求分析

PreVal 策略：在 AR4 上配置 PreVal 策略，让其去往 192.168.10.0/24 网段时优先选择经 AR2 的路径，需设置相关属性使该路径在选路时更优。
AS_Path 策略：在 AR4 上运用 AS_Path 策略，使其去往 192.168.11.0/24 网段走 AR3 路径，可能通过修改 AS_Path 长度或添加特定 AS 号，影响选路。
MED 策略：配置 MED 策略控制 AR4 到 192.168.12.0/24 路由的路径，MED 用于向外部 AS 建议进入本 AS 时的最佳入口路径，需合理设置 MED 值引导流量。
Local Preference 策略 - 1：在 AS 123 内配置，让 AR1 去往 192.168.1.0/24 网段时优先走 AR2 路径，Local Preference 在 AS 内部影响选路，值越高越优先。
Local Preference 策略 - 2：在 AS 123 内配置，使 AR1 去往 192.168.2.0/24 网段时优先选 AR3 路径，同样是设置合适 Local Preference 值。
负载均衡：在 AS 123 内对 AR1 进行配置，使其去往 192.168.3.0/24 网段时，通过 AR2 和 AR3 实现负载均衡，可借助 BGP 相关属性（如多条路径属性等）实现。
AS 策略 - 1：在 AS 500 配置策略，使其不接收 AS 123 的路由，可能通过 AS_Path 过滤、路由映射等方式拒绝来自 AS 123 的路由更新。
自定义 Community 策略：对 192.168.3.0/24 路由设置自定义 Community 属性，使该路由不发布到 AS 500 ，通过设置特定 Community 值，结合路由过滤规则实现。
BGP 建邻：AS 123 内部 IBGP 使用环回接口建邻，增强稳定性；与外部 AS（AS 400、AS 500 ）的 EBGP 使用物理接口建邻，需正确配置 IP 地址、邻居关系等参数。
网段修改：将 AS 123 中用户网段修改为 Broadcast 类型，方便在 BGP 中宣告，涉及子网掩码、网络类型等配置调整。
BGP 宣告：配置 BGP 宣告路由时，仅宣告 24 网段的用户路由，需在 BGP 进程中准确配置网络宣告语句，过滤非 24 网段路由。

五.配置

IP配置

[R1]int l 0
[R1-LoopBack0]ip add 1.1.1.1 32
[R1-LoopBack0]int l 1
[R1-LoopBack1]ip add 192.168.100.1 24
[R1-LoopBack1]int g 0/0/0
[R1-GigabitEthernet0/0/0]ip add 12.0.0.2 24
[R1-GigabitEthernet0/0/0]int g 0/0/1
[R1-GigabitEthernet0/0/1]ip add 13.0.0.2 24
[R1-GigabitEthernet0/0/1]int g 0/0/2
[R1-GigabitEthernet0/0/2]ip add 15.0.0.1 24

[R2]int l 0
[R2-LoopBack0]ip add 2.2.2.2 32
[R2-LoopBack0]int l 1
[R2-LoopBack1]ip add 192.168.20.1 24
[R2-LoopBack1]int g 0/0/0
[R2-GigabitEthernet0/0/0]ip add 24.0.0.2 24
[R2-GigabitEthernet0/0/0]int g 0/0/1
[R2-GigabitEthernet0/0/1]ip add 12.0.0.1 24

[R3]int l 0
[R3-LoopBack0]ip add 3.3.3.3 32
[R3-LoopBack0]int l 1
[R3-LoopBack1]ip add 192.168.30.1 24
[R3-LoopBack1]int g 0/0/0
[R3-GigabitEthernet0/0/0]ip add 34.0.0.2 24
[R3-GigabitEthernet0/0/0]int g 0/0/1
[R3-GigabitEthernet0/0/1]ip add 13.0.0.1 24


[R4]int l 0
[R4-LoopBack0]ip add 192.168.1.1 24
[R4-LoopBack0]int l 1
[R4-LoopBack1]ip add 192.168.2.1 24
[R4-LoopBack1]int l 2
[R4-LoopBack2]ip add 192.168.3.1 24
[R4-LoopBack2]int g 0/0/0
[R4-GigabitEthernet0/0/0]ip add 24.0.0.1 24
[R4-GigabitEthernet0/0/0]int g 0/0/1
[R4-GigabitEthernet0/0/1]ip add 34.0.0.1 24

[R5]int l 0
[R5-LoopBack0]ip add 192.168.10.1 24
[R5-LoopBack0]int l 1
[R5-LoopBack1]ip add 192.168.11.1 24
[R5-LoopBack1]int l 2
[R5-LoopBack2]ip add 192.168.12.1 24
[R5-LoopBack2]int g 0/0/0
[R5-GigabitEthernet0/0/0]ip add 15.0.0.2 24

检查直连

修改环回接口网络类型

[R1]int l 1
[R1-LoopBack1]ospf network-type broadcast

[R2]int l 1
[R2-LoopBack1]ospf network-type broadcast

[R3]int l 1
[R3-LoopBack1]ospf network-type broadcast

OSPF配置

[R1]ospf 1 rou 1.1.1.1
[R1-ospf-1]a 0
[R1-ospf-1-area-0.0.0.0]net 1.1.1.1 0.0.0.0
[R1-ospf-1-area-0.0.0.0]net 12.0.0.2 0.0.0.0
[R1-ospf-1-area-0.0.0.0]net 13.0.0.2 0.0.0.0
[R1-ospf-1-area-0.0.0.0]net 192.168.100.1 0.0.0.0

[R2]ospf 1 rou 2.2.2.2
[R2-ospf-1]a 0
[R2-ospf-1-area-0.0.0.0]net 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 192.168.20.1 0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 12.0.0.1 0.0.0.0

[R3]ospf 1 rou 3.3.3.3
[R3-ospf-1]a 0
[R3-ospf-1-area-0.0.0.0]net 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 192.168.30.1 0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 13.0.0.1 0.0.0.0

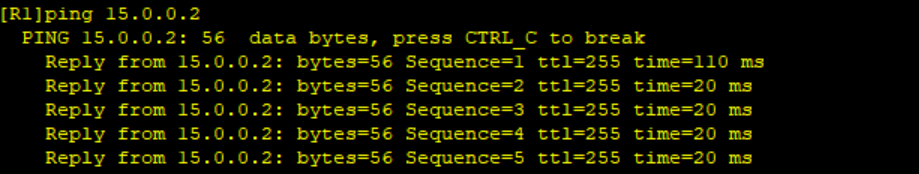

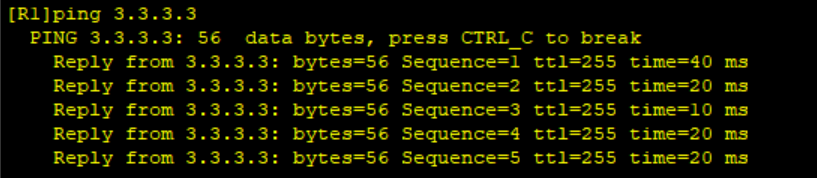

测试

BGP配置

启动BGP协议

[R4]bgp 400
[R4-bgp]router-id 4.4.4.4
[R4-bgp]peer 24.0.0.2 as 123
[R4-bgp]peer 34.0.0.2 as 123

[R2]bgp 123
[R2-bgp]router-id 2.2.2.2
[R2-bgp]peer 24.0.0.1 as 400
[R2-bgp]peer 1.1.1.1 as 123
[R2-bgp]peer 1.1.1.1 con l0
[R2-bgp]peer 1.1.1.1 next-hop-local

[R3]bgp 123
[R3-bgp]router-id 3.3.3.3
[R3-bgp]peer 34.0.0.1 as 400
[R3-bgp]peer 1.1.1.1 as 123
[R3-bgp]peer 1.1.1.1 con l0
[R3-bgp]peer 1.1.1.1 next-hop-local

[R1]bgp 123
[R1-bgp]router-id 1.1.1.1
[R1-bgp]peer 2.2.2.2 as 123
[R1-bgp]peer 2.2.2.2 con l0
[R1-bgp]peer 2.2.2.2 next-hop-local
[R1-bgp]peer 3.3.3.3 as 123
[R1-bgp]peer 3.3.3.3 con l0
[R1-bgp]peer 3.3.3.3 next-hop-local
[R1-bgp]peer 15.0.0.2 as 500

[R5]bgp 500
[R5-bgp]router-id 5.5.5.5
[R5-bgp]peer 15.0.0.1 as 123

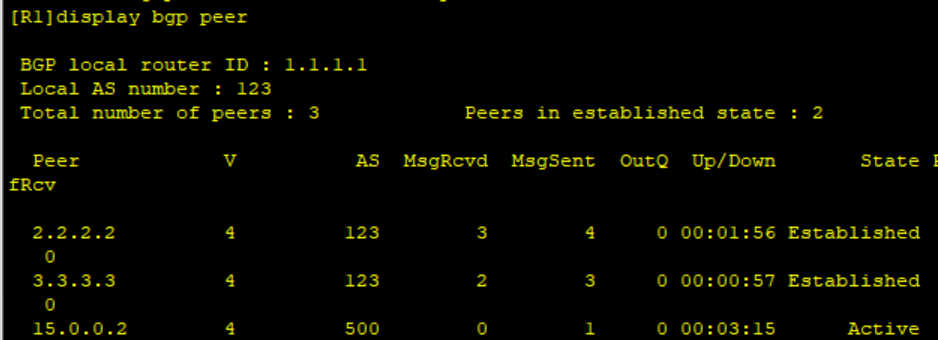

检查邻接关系：

BGP宣告

[R4]bgp 400
[R4-bgp]net 192.168.1.0 24
[R4-bgp]net 192.168.2.0 24
[R4-bgp]net 192.168.3.0 24

[R2]bgp 123
[R2-bgp]net 192.168.20.0 24

[R3]bgp 123
[R3-bgp]net 192.168.30.0 24

[R1]bgp 123
[R1-bgp]net 192.168.100.0 24

[R5]bgp 500
[R5-bgp]net 192.168.10.0 24
[R5-bgp]net 192.168.11.0 24
[R5-bgp]net 192.168.12.0 24

使用PreVa1策略，确保R4通过R2到达192.168.10.0/24

[R4]ip ip-prefix pv permit 192.168.10.0 24
[R4]route-policy pv permit node 10
Info: New Sequence of this List.
[R4-route-policy]if-match ip-prefix pv
[R4-route-policy]apply preferred-value 100
[R4-route-policy]q
[R4]route-policy pv permit node 100
Info: New Sequence of this List.
[R4-route-policy]q
[R4]bgp 400
[R4-bgp]peer 24.0.0.2 route-policy pv import

使用AS_Path策略，确保R4通过R3到达192.168.11.0/24

[R4]ip ip-prefix ap permit 192.168.11.0 24
[R4]route-policy pv permit node 20
Info: New Sequence of this List.
[R4-route-policy]if-match ip-prefix ap
[R4-route-policy]apply as-path 123 additive
[R4-route-policy]q

配置MED策略，确保R4通过R3到达192.168.12.0/24

[R4]ip ip-prefix med permit 192.168.12.0 24
[R4]route-policy pv permit node 30
Info: New Sequence of this List.
[R4-route-policy]if-match ip-prefix med
[R4-route-policy]apply cost 20
[R4-route-policy]q

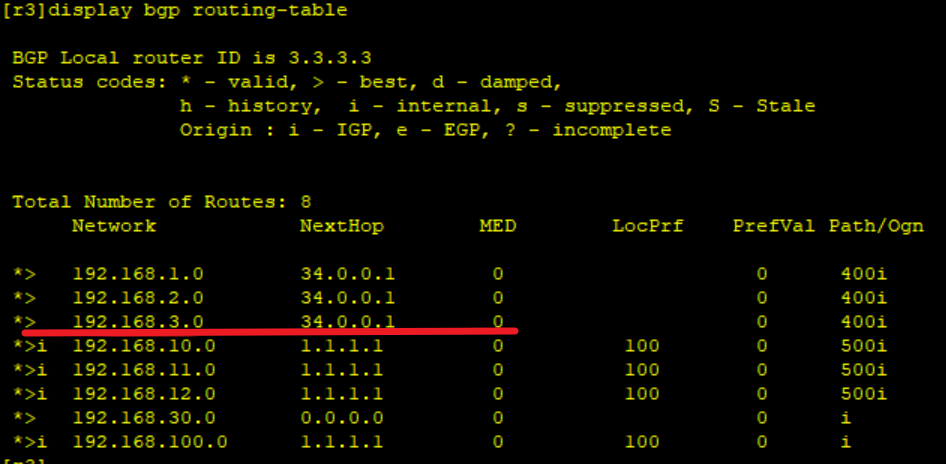

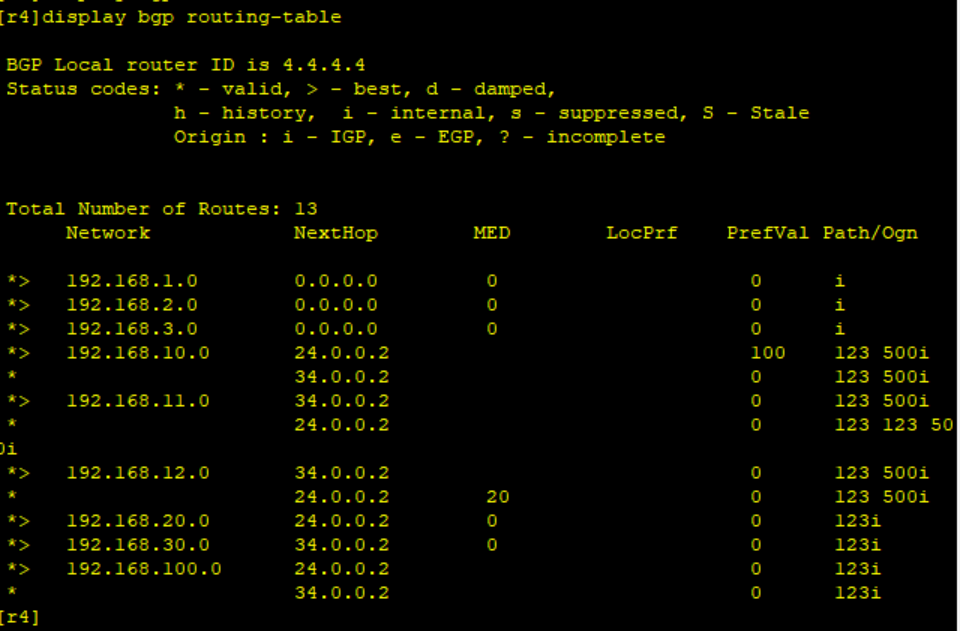

三个配置完成后检查R4 BGP

使用Local Preference策略，确保R1通过R2到达192.168.1.0/24

[R1]ip ip-prefix lp1 permit 192.168.1.0 24
[R1]route-policy lp1 permit node 10
Info: New Sequence of this List.
[R1-route-policy]if-match ip-prefix lp1
[R1-route-policy]apply local-preference 200
[R1-route-policy]q
[R1]route-policy lp1 permit node 100
Info: New Sequence of this List.
[R1-route-policy]q
[R1]bgp 123
[R1-bgp]peer 2.2.2.2 route-policy lp1 import

使用Local Preference策略，确保R1通过R3到达192.168.2.0/24

[R1]ip ip-prefix lp2 permit 192.168.2.0 24
[R1]route-policy lp2 permit node 10
Info: New Sequence of this List.
[R1-route-policy]if-match ip-prefix lp2
[R1-route-policy]apply local-preference 200
[R1-route-policy]q
[R1]route-policy lp2 permit node 100
Info: New Sequence of this List.
[R1-route-policy]q
[R1]bgp 123
[R1-bgp]peer 3.3.3.3 route-policy lp2 import

配置负载均衡，确保R1通过R2和R3到达192.168.3.0/24

[R1]bgp 123
[R1-bgp]maximum load-balancing 2

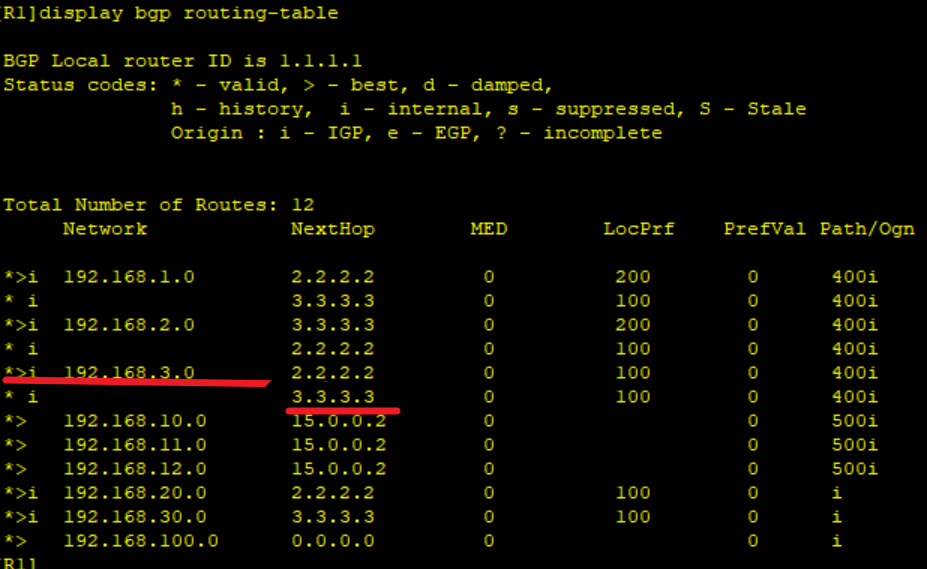

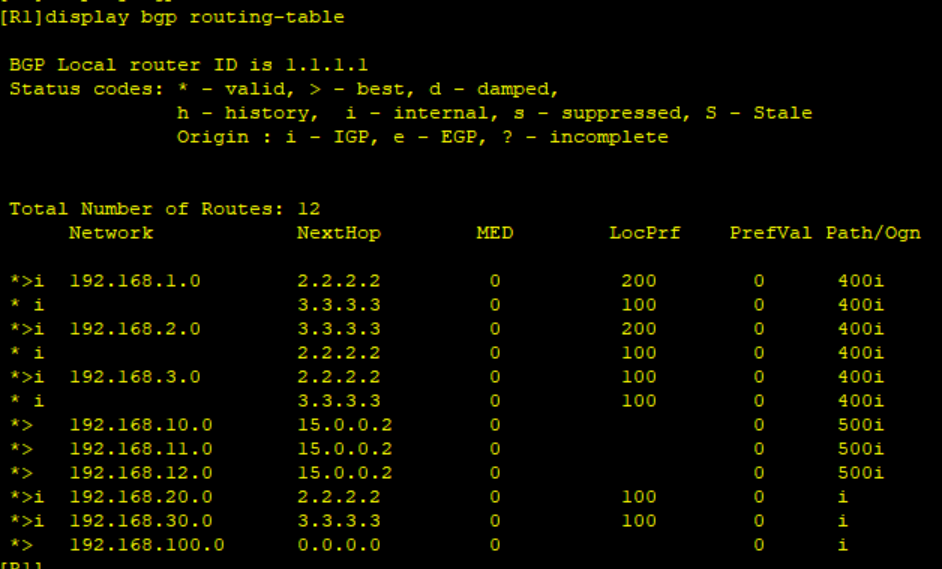

检查R1BGP：

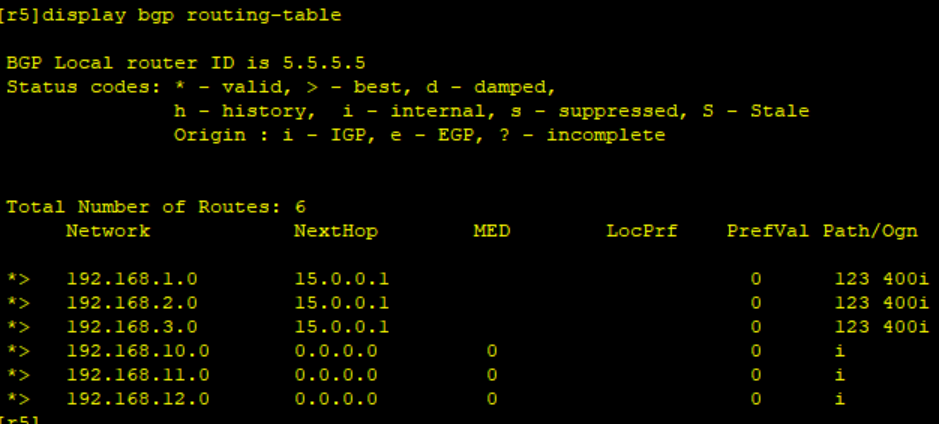

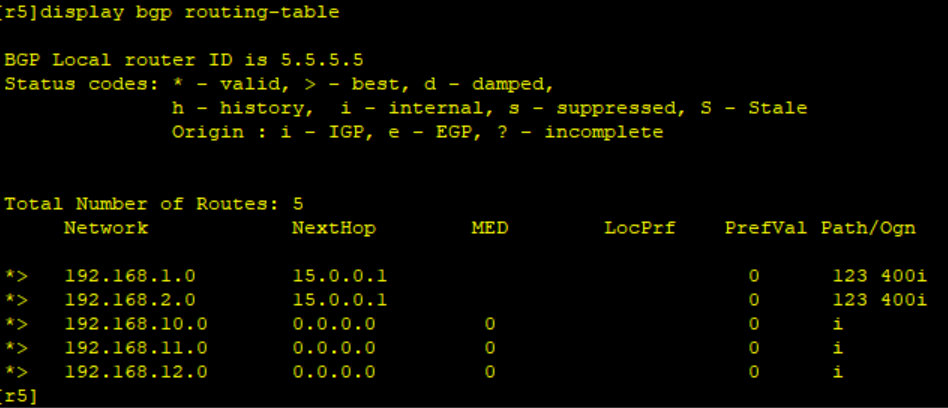

使用As策略，AS 500不接受任何始发于AS 123的路由

[R5]ip as-path-filter 1 deny _123$
[R5]ip as-path-filter 1 permit .*
[R5]bgp 500
[R5-bgp]peer 15.0.0.1 as-path-filter 1 import

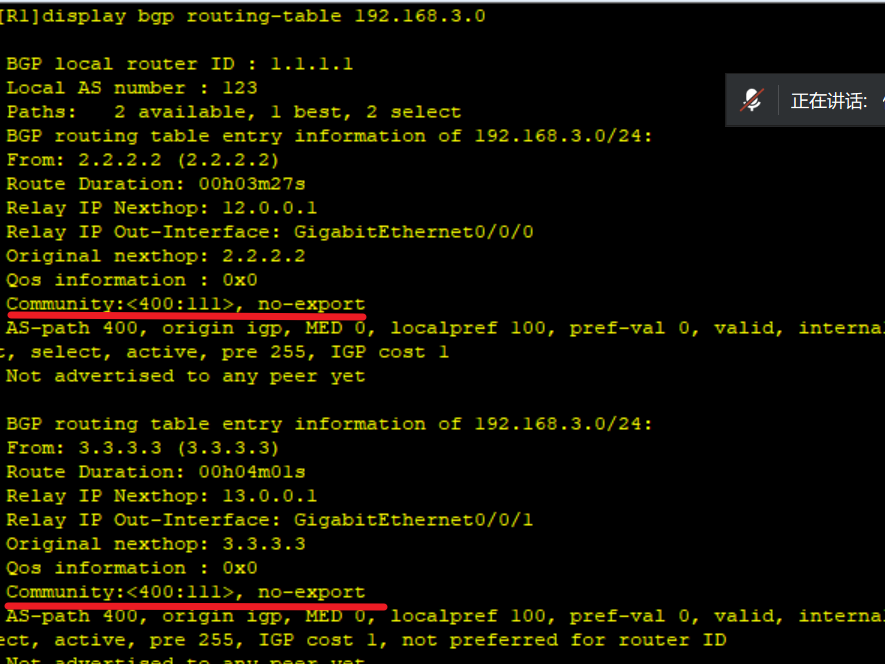

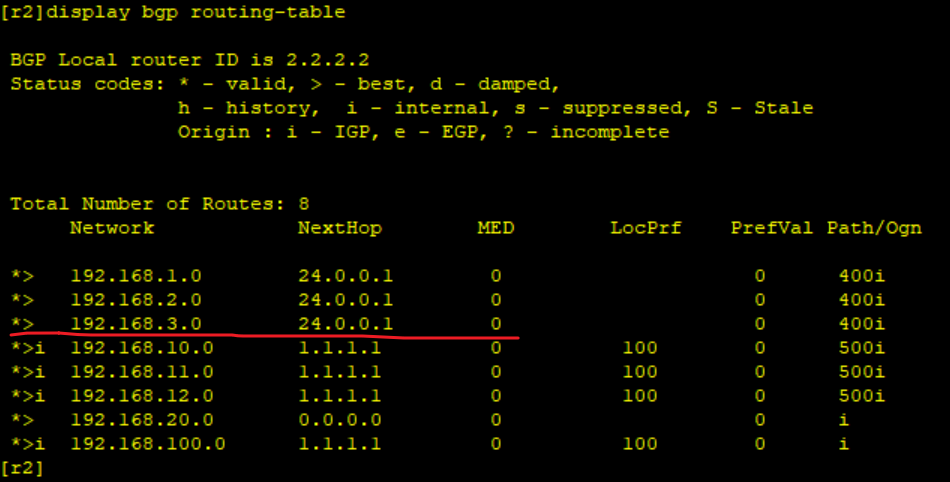

使用自定义Community策略，确保192.168.3.0/24路由不会被发布到AS 500

[R4]route-policy com-1 permit node 10
Info: New Sequence of this List.
[R4-route-policy]apply community 400:111
[R4-route-policy]q
[R4]bgp 400
[R4-bgp]net 192.168.3.0 24 route-policy com-1

[R4-bgp]peer 24.0.0.2 advertise-community
[R4-bgp]peer 34.0.0.2 advertise-community

[R2]bgp 123
[R2-bgp]peer 1.1.1.1 advertise-community

[R3]bgp 123
[R3-bgp]peer 1.1.1.1 advertise-community

[R2]ip community-filter 1 permit 400:111
[R2]route-policy com permit node 10
Info: New Sequence of this List.
[R2-route-policy]if-match community-filter 1
[R2-route-policy]apply community no-export additive
[R2-route-policy]q
[R2]route-policy com permit node 100
Info: New Sequence of this List.
[R2-route-policy]q

[R3]ip community-filter 1 permit 400:111
[R3]route-policy com permit node 10
Info: New Sequence of this List.
[R3-route-policy]if-match community-filter 1
[R3-route-policy]apply community no-export additive
[R3-route-policy]q
[R3]route-policy com permit node 100
Info: New Sequence of this List.
[R3-route-policy]q

[R2]bgp 123
[R2-bgp]peer 24.0.0.1 route-policy com import

[R3]bgp 123
[R3-bgp]peer 34.0.0.1 route-policy com import
