zookeeper 集群搭建

1、准备三台设备

主机名	系统	IP地址
worker1	Centos7.6	192.168.1.115
worker2	Centos7.6	192.168.1.116
worker3	Centos7.6	192.168.1.117

2、主机名配置

hostnamectl set-hostname worker1 hostnamectl set-hostname worker2 hostnamectl set-hostname worker3

3、主机名与IP地址解析

vi /etc/hosts 添加

192.168.1.115 worker1 192.168.1.116 worker2 192.168.1.117 worker3

4、配置有ssh服务，可以进行免密登录

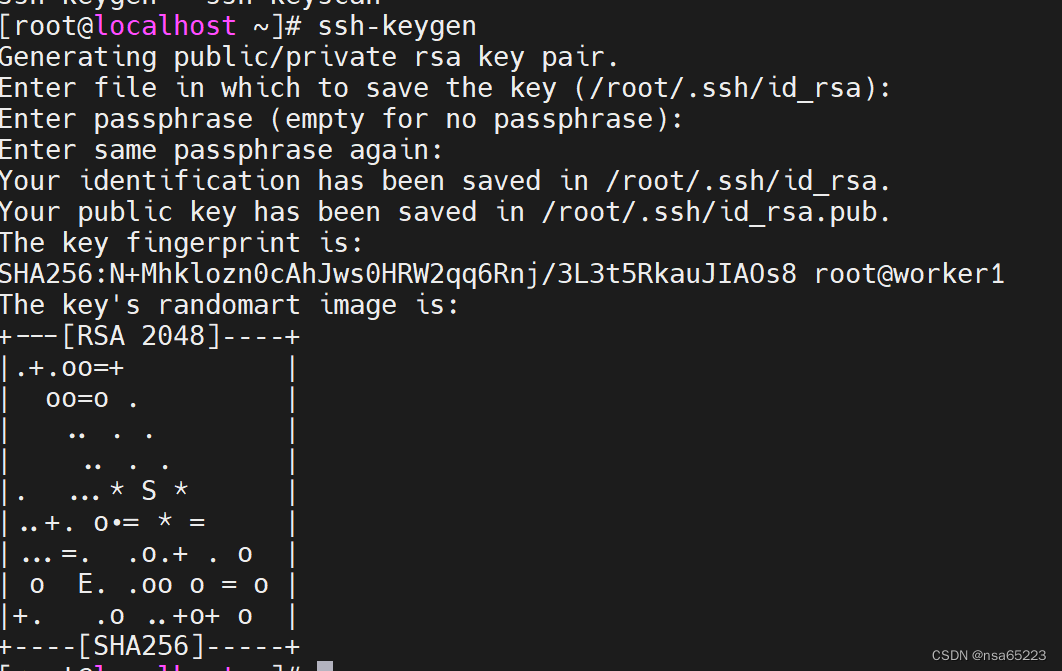

ssh-key密钥认证

 连接

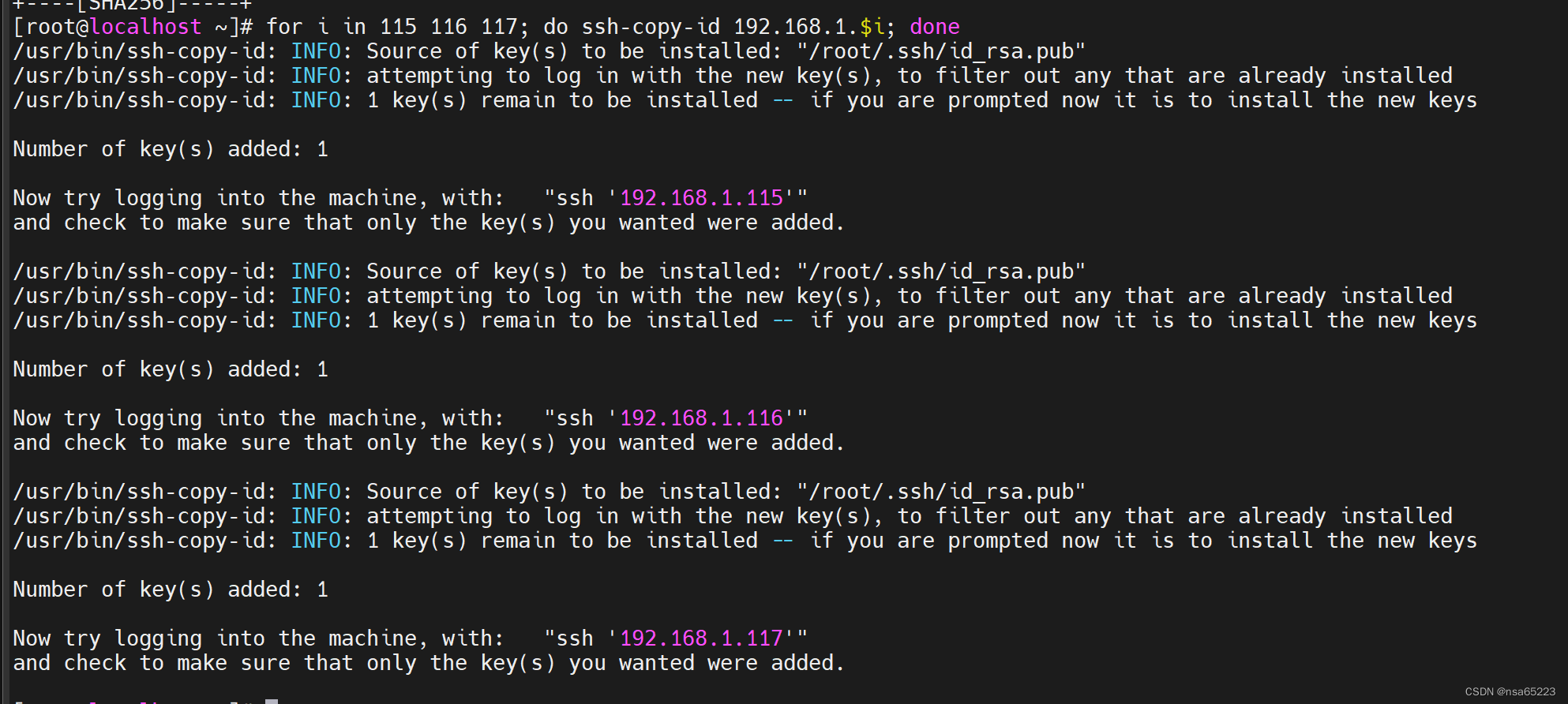

for i in 115 116 117; do ssh-copy-id 192.168.1.$i; done

 测试

ssh worker2

5、编辑环境变量

 vim /etc/profile

export JAVA_HOME=/usr/local/jdk-11.0.18 export JRE_HOME=${JAVA_HOME}/jre export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib export PATH=${JAVA_HOME}/bin:$PATH

配置生效

source /etc/profile

6、修改zookeeper 配置文件

cd zookeeper/conf

[root@hadoop1 conf]# cp zoo_sample.cfg zoo.cfg


vim  zoo.cfg

# The number of milliseconds of each tick tickTime=2000 # The number of ticks that the initial # synchronization phase can take initLimit=10 # The number of ticks that can pass between # sending a request and getting an acknowledgement syncLimit=5 # the directory where the snapshot is stored. # do not use /tmp for storage, /tmp here is just # example sakes. dataDir=/opt/module/zookeeper/data dataLogDir=/opt/module/zookeeper/log # the port at which the clients will connect clientPort=2181 # the maximum number of client connections. # increase this if you need to handle more clients #maxClientCnxns=60 # # Be sure to read the maintenance section of the # administrator guide before turning on autopurge. # # https://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance # # The number of snapshots to retain in dataDir #autopurge.snapRetainCount=3 # Purge task interval in hours # Set to "0" to disable auto purge feature #autopurge.purgeInterval=1 ## Metrics Providers # # https://prometheus.io Metrics Exporter #metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider #metricsProvider.httpHost=0.0.0.0 #metricsProvider.httpPort=7000 #metricsProvider.exportJvmInfo=true server.1=worker1:2888:3888 server.2=worker2:2888:3888 server.3=worker3:2888:3888

修改dataDir

dataDir=/opt/module/zookeeper/data
进入data目录

生成myid文件，指定myid服务号

echo "1" > myid
其他节点的同样操作

myid唯一

7、zookeeper集群的脚本

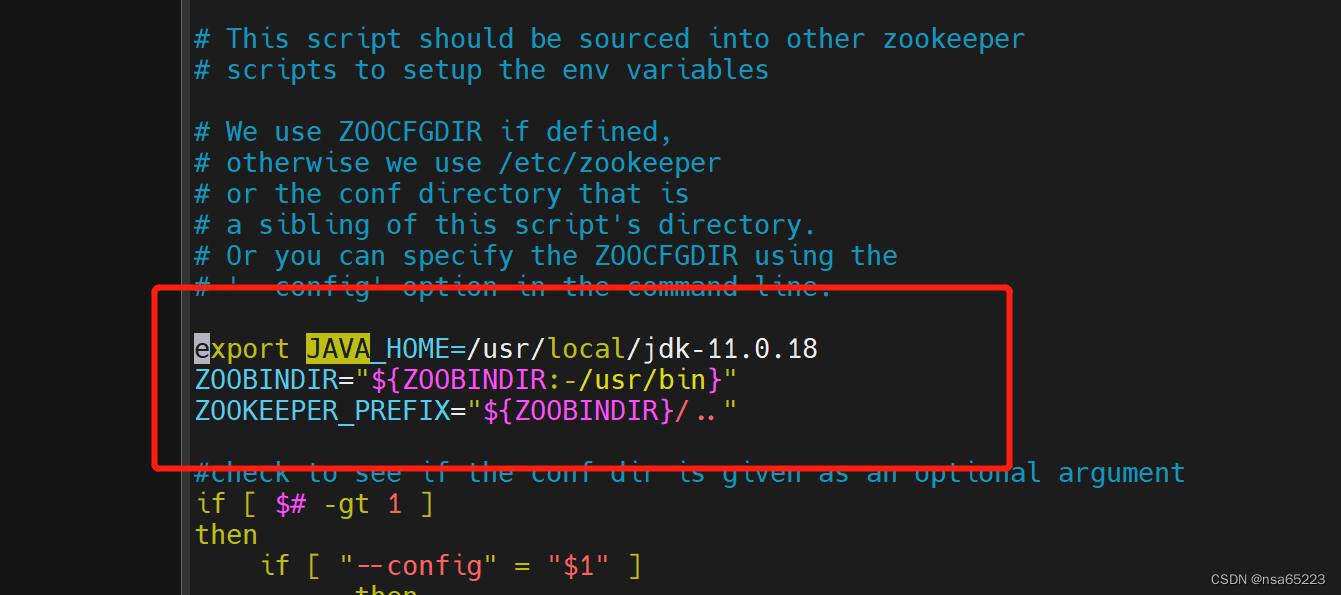

zkEnv.sh里添加JAVA_HOME

脚本 zk.sh

#!/bin/bash case $1 in "start"){         for i in worker1 worker2 worker3         do                  echo -------------------------------- $i zookeeper 启动 ---------------------------                 ssh $i "/opt/module/zookeeper/bin/zkServer.sh start"         done } ;; "stop"){         for i in worker1 worker2 worker3         do                 echo -------------------------------- $i zookeeper 停止 ---------------------------                 ssh $i "/opt/module/zookeeper/bin/zkServer.sh stop"         done } ;; "status"){         for i in worker1 worker2 worker3         do                 echo -------------------------------- $i zookeeper 状态 ---------------------------                 ssh $i "/opt/module/zookeeper/bin/zkServer.sh status"         done } ;; esac

8、启动集群

./zk.sh start
