SkyWalking 使用

部署SkyWalking

version: '3.3'
services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:7.5.0
    container_name: elasticsearch
    restart: always
    ports:
      - 9200:9200
    environment:
      - discovery.type=single-node
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ulimits:
      memlock:
        soft: -1
        hard: -1
  oap:
    image: apache/skywalking-oap-server:7.0.0-es7
    container_name: oap
    depends_on:
      - elasticsearch
    links:
      - elasticsearch
    restart: always
    ports:
      - 11800:11800
      - 12800:12800
    environment:
      SW_STORAGE: elasticsearch7
      SW_STORAGE_ES_CLUSTER_NODES: elasticsearch:9200
  ui:
    image: apache/skywalking-ui:7.0.0
    container_name: ui
    depends_on:
      - oap
    links:
      - oap
    restart: always
    ports:
      - 8080:8080
    environment:
      SW_OAP_ADDRESS: oap:12800

1、执行docker-compose 命令启动应用

#切换到包含skywalking docker-compose.yml 文件目录下
docker-compose up -d

2、查看运行状态，全是up表示启动成功

 docker-compose ps

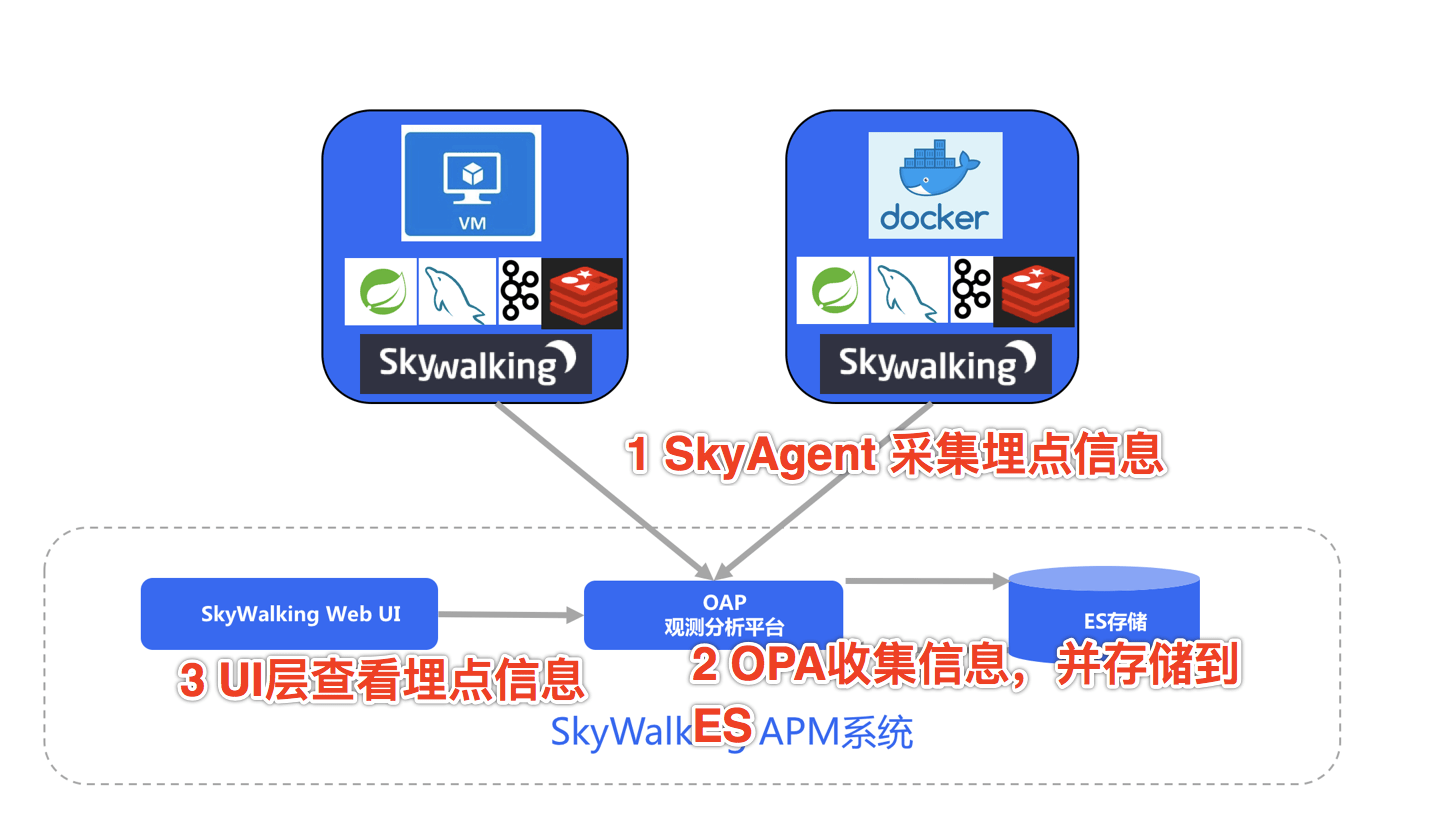

调用链追踪数据流

1. SkyWalking Agent 以Sidecar的形式部署在应用运行的环境中
2. Agent上报埋点信息到OPA系统，并存储到ES
3. UI层查看埋点信息

 应用调用链追踪

java -javaagent:/your-agent-path/apache-skywalking-apm-bin-es7/agent/skywalking-agent.jar -Dskywalking.agent.service_name=sk-docker -Dskywalking.collector.backend_service=localhost:11800 -jar springboot-helloworld-1.0-SNAPSHOT.jar

 -javaagent：指的skywalking agent坐在目录，使得java应用在启动前被拦截，同时修改应用字节码，达到自动埋点的功能

• -Dskywalking.agent.service_name：指定被埋点的应用名
• -Dskywalking.collector.backend_service：指定OPA地址

idea 调用使用
