C# XPTable 自己画cell单元格（XPTable控件使用说明六）

private void Form_Load(object sender, EventArgs e)
{
   table.BeforePaintCell += new PaintCellEventHandler(table_BeforePaintCell);
}


private void table_BeforePaintCell(object sender, PaintCellEventArgs e)
{
   // draw a checkerboard style table
   if ((e.Row + e.Column) % 2 == 0)
   {
      e.Graphics.FillRectangle(Brushes.Black, e.CellRect);
      e.Graphics.DrawString(e.Cell.Text, e.Cell.Font, Brushes.White, e.CellRect);

      // must set e.Handled to true otherwise the table
      // may erase what we've just done (depends on what
      // the cell and row background colors are but we
      // don't want to take that chance)
      e.Handled = true;
   }
}

private void Form_Load(object sender, EventArgs e)
{
   table.AfterPaintCell += new PaintCellEventHandler(table_AfterPaintCell);
}


private void table_AfterPaintCell(object sender, PaintCellEventArgs e)
{
   // draw a blue box around the cell if it is
   // in an even row and column number
   if (e.Column % 2 == 0 && e.Row % 2 == 0)
   {
      e.Graphics.DrawRectangle(Pens.Blue, e.CellRect.X, e.CellRect.Y, e.CellRect.Width-1, e.CellRect.Height-1);
   }

   // draw a red box around the cell if it is
   // in an odd row and column number
   if (e.Column % 2 == 1 && e.Row % 2 == 1)
   {
      e.Graphics.DrawRectangle(Pens.Red, e.CellRect.X, e.CellRect.Y, e.CellRect.Width-1, e.CellRect.Height-1);
   }

   // no need to set e.Handled property as the table
   // has already drawn the cell for us
}

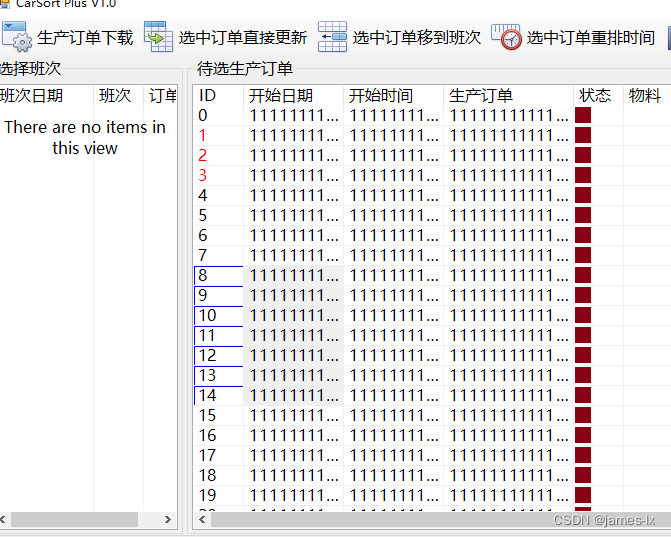

 private void table2_AfterPaintCell(object sender, XPTable.Events.PaintCellEventArgs e)
        {


            if (  tableModel2.Selections.IsRowSelected(e.Row))
            {

                foreach (Row item in tableModel2.Selections.SelectedItems)
                {
                    if (e.Column == 0)
                    {
                        Row row = tableModel2.Rows[e.Row];

                        Rectangle r = table2.RowRect(row);

                        r.Width = table2.Width;

                        e.Graphics.DrawRectangle(Pens.Blue, r);
                    }


                }
            }
        }
