ConcurrentLinkedQueue原码解析

描述


ConcurrentLinkedQueue是一个基于单链表的无界线程安全队列,该队列是FIFO的。ConcurrentLinkedQueue/ConcurrentLinkedDeue和LinkedBlockingQueue/LinkedBlockingDeue

相比,不同点在于它们是non-blocking的,并且是lock-free的,而后者则是利用ReentrantLock实现的,所以他们具有更高的吞吐量。


源码解析(基于jdk1.8.0_40)


数据结构

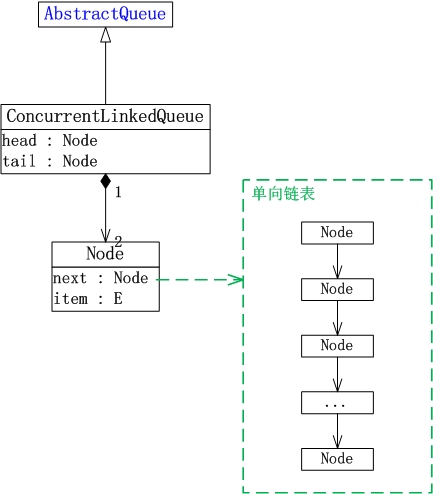

类图:




head,tail结点定义和描述:

    /**
     * A node from which the first live (non-deleted) node (if any)
     * can be reached in O(1) time.
     * Invariants:
     * - all live nodes are reachable from head via succ()
     * - head != null
     * - (tmp = head).next != tmp || tmp != head
     * Non-invariants:
     * - head.item may or may not be null.
     * - it is permitted for tail to lag behind head, that is, for tail
     *   to not be reachable from head!
     */
    private transient volatile Node<E> head;

    /**
     * A node from which the last node on list (that is, the unique
     * node with node.next == null) can be reached in O(1) time.
     * Invariants:
     * - the last node is always reachable from tail via succ()
     * - tail != null
     * Non-invariants:
     * - tail.item may or may not be null.
     * - it is permitted for tail to lag behind head, that is, for tail
     *   to not be reachable from head!
     * - tail.next may or may not be self-pointing to tail.
     */
    private transient volatile Node<E> tail;


链表结构


构造函数,初始化时让head和tail同时指向一个dummy结点(否则入队时需要同时修改head,tail 2个指针,需要加锁。而有了dummy结点,入队/出队只需各自竞争一个资源即可--入队CAS竞争修改头结点item属性:p.casItem(item, null),出队CAS竞争修改尾结点next指针:p.casNext(null, newNode)):

    /**
     * Creates a {@code ConcurrentLinkedQueue} that is initially empty.
     */
    public ConcurrentLinkedQueue() {
        head = tail = new Node<E>(null);
    }

ConcurrentLinkedQueue中单链表结构示意图:
     *
     *         head                                   tail
     *           |                                     |
     *           v                                     v
     *
     *        +------+       +------+               +------+
     *        |dummy |------>|   a  |   ...   ----->|   n  |----->null
     *        +------+       +------+               +------+
     *

注意head和tail指针不是一定要每次更新的,事实上它们的更新是迟钝的,有滞后的(这样有助于减少CAS操作,jdk7中,head/tail指针在滞后实际的头/尾结点2步以上时才会更新,甚至会发生tail指针滞后于head指针)。真正的尾结点可以通过tail指针向后找,直到node.next==null。同样真正的队列头结点可以通过head指针向后找,直到node.item!=null。下面的描述来自ConcurrentLinkedQueue Node类的doc文档:

     * Both head and tail are permitted to lag.  In fact, failing to
     * update them every time one could is a significant optimization
     * (fewer CASes). As with LinkedTransferQueue (see the internal
     * documentation for that class), we use a slack threshold of two;
     * that is, we update head/tail when the current pointer appears
     * to be two or more steps away from the first/last node.
     *
     * Since head and tail are updated concurrently and independently,
     * it is possible for tail to lag behind head (why not)?

入队offer方法


从队尾入队,找到队尾结点p后,cas竞争更新p.next指针,选择性的更新tail指针(前面提到的滞后更新)。

    /**
     * Inserts the specified element at the tail of this queue.
     * As the queue is unbounded, this method will never return {@code false}.
     *
     * @return {@code true} (as specified by {@link Queue#offer})
     * @throws NullPointerException if the specified element is null
     */
    public boolean offer(E e) {
        checkNotNull(e);
        final Node<E> newNode = new Node<E>(e);

        for (Node<E> t = tail, p = t;;) {
            Node<E> q = p.next;
            if (q == null) {
                // p is last node
                if (p.casNext(null, newNode)) {
                    // Successful CAS is the linearization point
                    // for e to become an element of this queue,
                    // and for newNode to become "live".
                    if (p != t) // hop two nodes at a time
                        casTail(t, newNode);  // Failure is OK.
                    return true;
                }
                // Lost CAS race to another thread; re-read next
            }
            else if (p == q)
                // We have fallen off list.  If tail is unchanged, it
                // will also be off-list, in which case we need to
                // jump to head, from which all live nodes are always
                // reachable.  Else the new tail is a better bet.
                p = (t != (t = tail)) ? t : head;
            else
                // Check for tail updates after two hops.
                p = (p != t && t != (t = tail)) ? t : q;
        }
    }

出队poll方法


从队列头部出队,找到头部结点p后,cas竞争把p.item值置null,选择性的更新head指针(前面提到的滞后更新)。注意head,tail指针始终不会为null,即使出队后队列空了,head和tail也会指向dummy结点。

    public E poll() {
        restartFromHead:
        for (;;) {
            for (Node<E> h = head, p = h, q;;) {
                E item = p.item;

                if (item != null && p.casItem(item, null)) {
                    // Successful CAS is the linearization point
                    // for item to be removed from this queue.
                    if (p != h) // hop two nodes at a time
                        updateHead(h, ((q = p.next) != null) ? q : p);
                    return item;
                }
                else if ((q = p.next) == null) {
                    updateHead(h, p);
                    return null;
                }
                else if (p == q)
                    continue restartFromHead;
                else
                    p = q;
            }
        }
    }


updateHead方法,cas更新head指针,并通过h.lazySetNext(h),把出队的结点h的next指针指向h自己,标示出已经出队(虽然已经通过设置node.item为null标示,但这里修改next指针是为了帮助GC):

    /**
     * Tries to CAS head to p. If successful, repoint old head to itself
     * as sentinel for succ(), below.
     */
    final void updateHead(Node<E> h, Node<E> p) {
        if (h != p && casHead(h, p))
            h.lazySetNext(h);
    }

size方法


size(), contains(), toArray()方法都需要遍历整个链表。

    /**
     * Returns the number of elements in this queue.  If this queue
     * contains more than {@code Integer.MAX_VALUE} elements, returns
     * {@code Integer.MAX_VALUE}.
     *
     * <p>Beware that, unlike in most collections, this method is
     * <em>NOT</em> a constant-time operation. Because of the
     * asynchronous nature of these queues, determining the current
     * number of elements requires an O(n) traversal.
     * Additionally, if elements are added or removed during execution
     * of this method, the returned result may be inaccurate.  Thus,
     * this method is typically not very useful in concurrent
     * applications.
     *
     * @return the number of elements in this queue
     */
    public int size() {
        int count = 0;
        for (Node<E> p = first(); p != null; p = succ(p))
            if (p.item != null)
                // Collection.size() spec says to max out
                if (++count == Integer.MAX_VALUE)
                    break;
        return count;
    }


succ方法,寻找后继结点(通过判断p==p.next来跳过已经出队的结点):

    /**
     * Returns the successor of p, or the head node if p.next has been
     * linked to self, which will only be true if traversing with a
     * stale pointer that is now off the list.
     */
    final Node<E> succ(Node<E> p) {
        Node<E> next = p.next;
        return (p == next) ? head : next;
    }

相关内容链接


聊聊并发(六)——ConcurrentLinkedQueue的实现原理分析 (基于jdk1.6的源码解析)
