RecyclerView的万能分割线

版权声明:本文为博主原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/pengkv/article/details/50538121

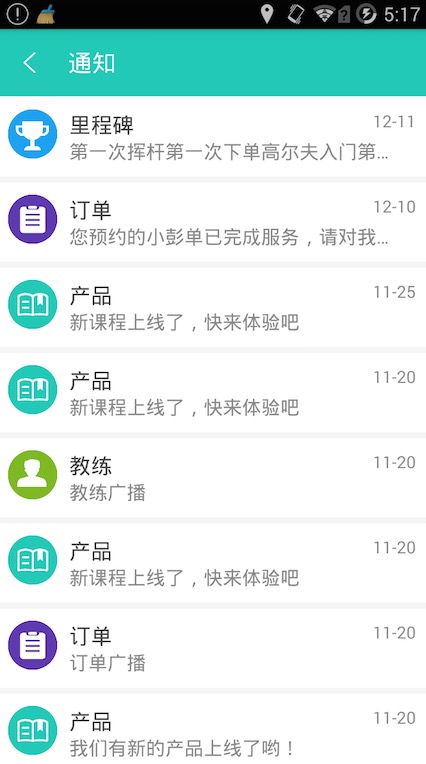

效果图:

这里写图片描述

使用方法:

添加默认分割线:高度为2px,颜色为灰色

mRecyclerView.addItemDecoration(new RecycleViewDivider(mContext, LinearLayoutManager.VERTICAL));

添加自定义分割线:可自定义分割线drawable

mRecyclerView.addItemDecoration(new RecycleViewDivider(
    mContext, LinearLayoutManager.VERTICAL, R.drawable.divider_mileage));

添加自定义分割线:可自定义分割线高度和颜色

mRecyclerView.addItemDecoration(new RecycleViewDivider(
    mContext, LinearLayoutManager.VERTICAL, 10, getResources().getColor(R.color.divide_gray_color)));

万能分割线登场:

public class RecycleViewDivider extends RecyclerView.ItemDecoration {

    private Paint mPaint;
    private Drawable mDivider;
    private int mDividerHeight = 2;//分割线高度,默认为1px
    private int mOrientation;//列表的方向:LinearLayoutManager.VERTICAL或LinearLayoutManager.HORIZONTAL
    private static final int[] ATTRS = new int[]{android.R.attr.listDivider};

    /**
     * 默认分割线:高度为2px,颜色为灰色
     *
     * @param context
     * @param orientation 列表方向
     */
    public RecycleViewDivider(Context context, int orientation) {
        if (orientation != LinearLayoutManager.VERTICAL && orientation != LinearLayoutManager.HORIZONTAL) {
            throw new IllegalArgumentException("请输入正确的参数!");
        }
        mOrientation = orientation;

        final TypedArray a = context.obtainStyledAttributes(ATTRS);
        mDivider = a.getDrawable(0);
        a.recycle();
    }

    /**
     * 自定义分割线
     *
     * @param context
     * @param orientation 列表方向
     * @param drawableId  分割线图片
     */
    public RecycleViewDivider(Context context, int orientation, int drawableId) {
        this(context, orientation);
        mDivider = ContextCompat.getDrawable(context, drawableId);
        mDividerHeight = mDivider.getIntrinsicHeight();
    }

    /**
     * 自定义分割线
     *
     * @param context
     * @param orientation   列表方向
     * @param dividerHeight 分割线高度
     * @param dividerColor  分割线颜色
     */
    public RecycleViewDivider(Context context, int orientation, int dividerHeight, int dividerColor) {
        this(context, orientation);
        mDividerHeight = dividerHeight;
        mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mPaint.setColor(dividerColor);
        mPaint.setStyle(Paint.Style.FILL);
    }


    //获取分割线尺寸
    @Override
    public void getItemOffsets(Rect outRect, View view, RecyclerView parent, RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        outRect.set(0, 0, 0, mDividerHeight);
    }

    //绘制分割线
    @Override
    public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
        super.onDraw(c, parent, state);
        if (mOrientation == LinearLayoutManager.VERTICAL) {
            drawVertical(c, parent);
        } else {
            drawHorizontal(c, parent);
        }
    }

    //绘制横向 item 分割线
    private void drawHorizontal(Canvas canvas, RecyclerView parent) {
        final int left = parent.getPaddingLeft();
        final int right = parent.getMeasuredWidth() - parent.getPaddingRight();
        final int childSize = parent.getChildCount();
        for (int i = 0; i < childSize; i++) {
            final View child = parent.getChildAt(i);
            RecyclerView.LayoutParams layoutParams = (RecyclerView.LayoutParams) child.getLayoutParams();
            final int top = child.getBottom() + layoutParams.bottomMargin;
            final int bottom = top + mDividerHeight;
            if (mDivider != null) {
                mDivider.setBounds(left, top, right, bottom);
                mDivider.draw(canvas);
            }
            if (mPaint != null) {
                canvas.drawRect(left, top, right, bottom, mPaint);
            }
        }
    }

    //绘制纵向 item 分割线
    private void drawVertical(Canvas canvas, RecyclerView parent) {
        final int top = parent.getPaddingTop();
        final int bottom = parent.getMeasuredHeight() - parent.getPaddingBottom();
        final int childSize = parent.getChildCount();
        for (int i = 0; i < childSize; i++) {
            final View child = parent.getChildAt(i);
            RecyclerView.LayoutParams layoutParams = (RecyclerView.LayoutParams) child.getLayoutParams();
            final int left = child.getRight() + layoutParams.rightMargin;
            final int right = left + mDividerHeight;
            if (mDivider != null) {
                mDivider.setBounds(left, top, right, bottom);
                mDivider.draw(canvas);
            }
            if (mPaint != null) {
                canvas.drawRect(left, top, right, bottom, mPaint);
            }
        }
    }
}

附:自定的drawable文件一份

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <size android:height="20dp" />
    <solid android:color="#ff992900" />
</shape>
