Angular_01_入门_上篇_开发环境_CLI工具_Component

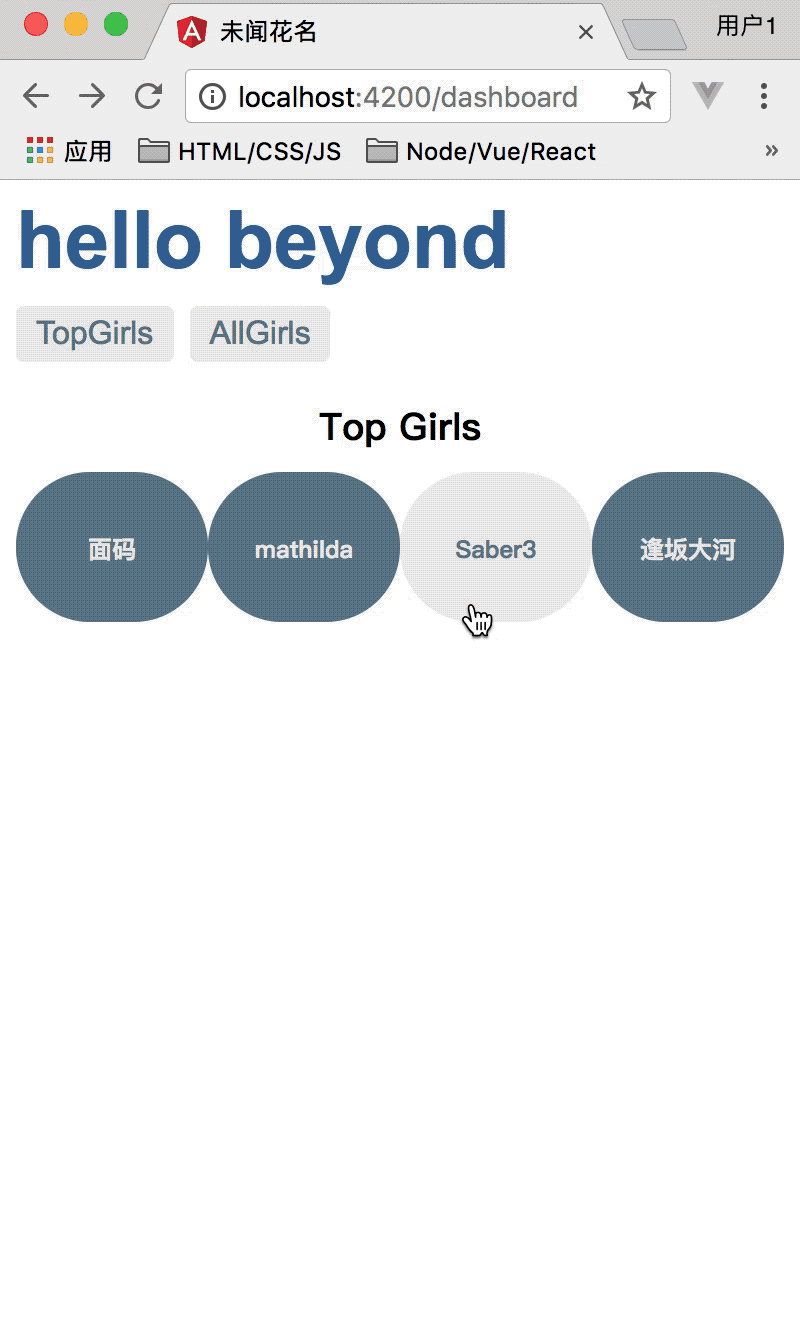

最终效果如下:

附录:

github地址: https://github.com/ixixii/angular_tutorial_demo.git

cd /Users/beyond/sg_angular/angular_01/angular-tutorial-demo

git status

git add src/app/

git commit -m 'first commit'

git push https://github.com/ixixii/angular_tutorial_demo.git master

.

Angular2官方文档地址:  https://angular.io/tutorial/toh-pt1

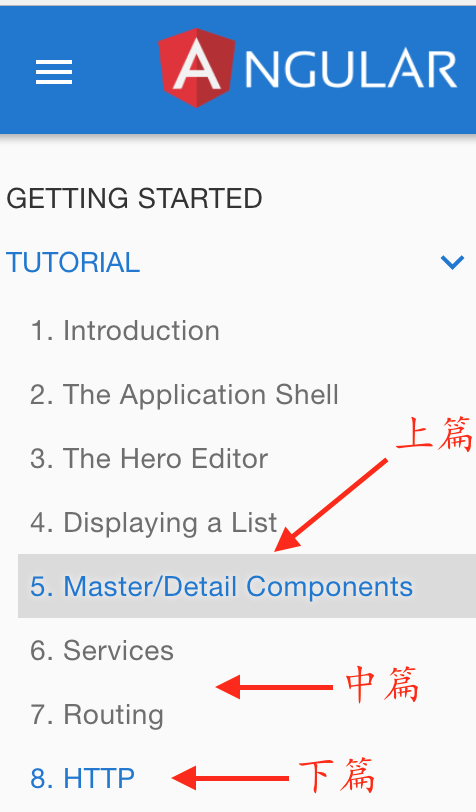

由于内容太长,分为上中下三篇

QuickStart

Good tools make application development quicker and easier to maintain than if you did everything by hand.

The Angular CLI is a command line interface tool that can create a project, add files,

and perform a variety of ongoing development tasks such as testing, bundling, and deployment.

The goal in this guide is to build and run a simple Angular application in TypeScript,

using the Angular CLI while adhering to the Style Guide recommendations that benefit every Angular project.

By the end of the chapter, you'll have a basic understanding of development with the CLI

and a foundation for both these documentation samples and for real world applications.

And you can also download the example.

Step 1. Set up the Development Environment

You need to set up your development environment before you can do anything.

注意:  Install Node.js® and npm if they are not already on your machine.

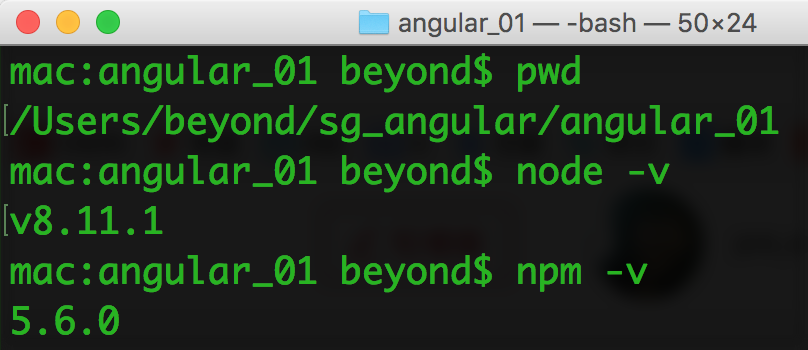

Verify that you are running at least Node.js version 8.x or greater and npm version 5.x or greater by running node -v and npm -v in a terminal/console window.

因为: Older versions produce errors, but newer versions are fine.

Then install the Angular CLI globally.

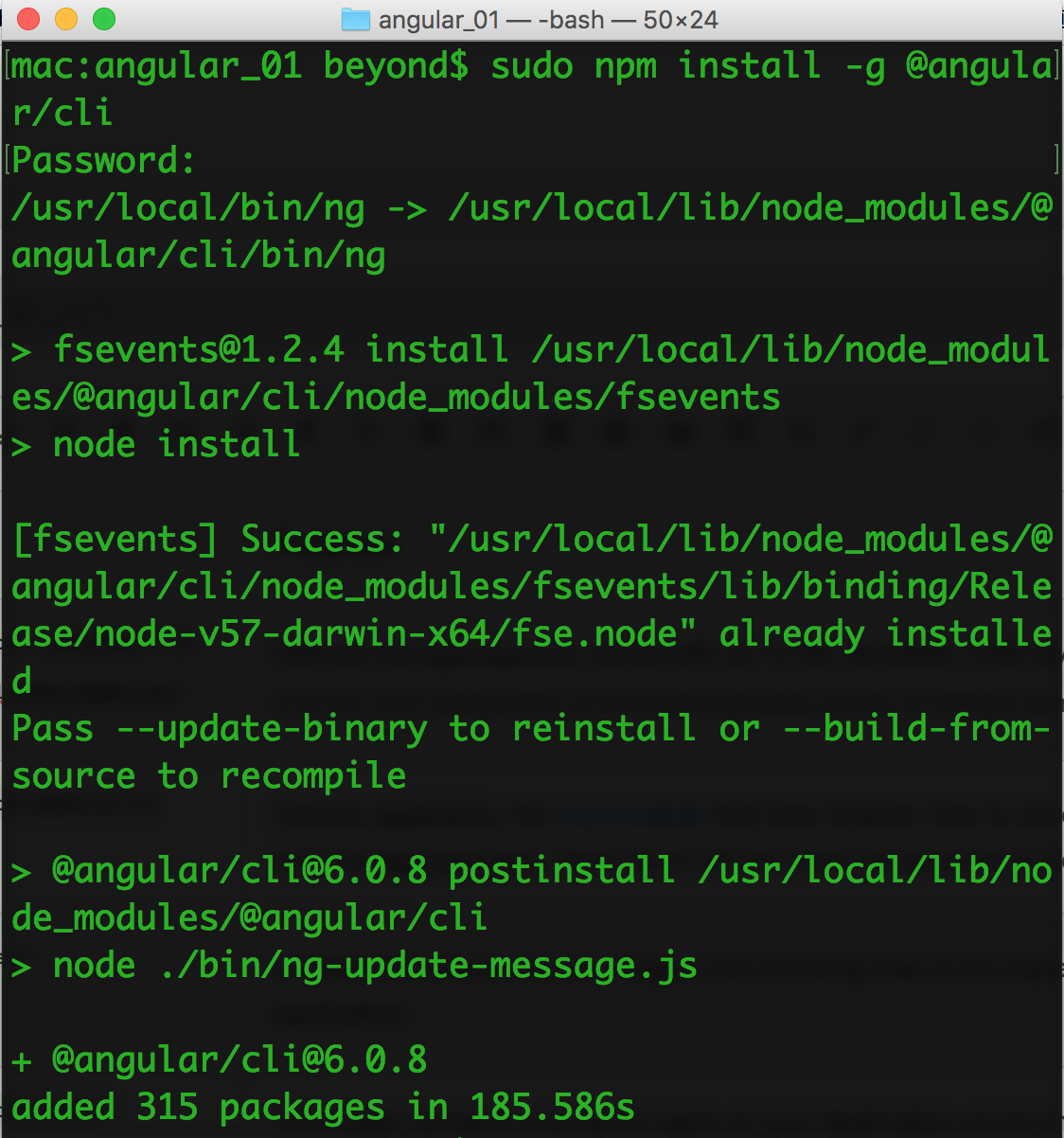

content_copysudo npm install -g @angular/cli

Step 2. Create a new project

Open a terminal window.

Generate a new project and default app by running the following command:

content_copyng new my-app

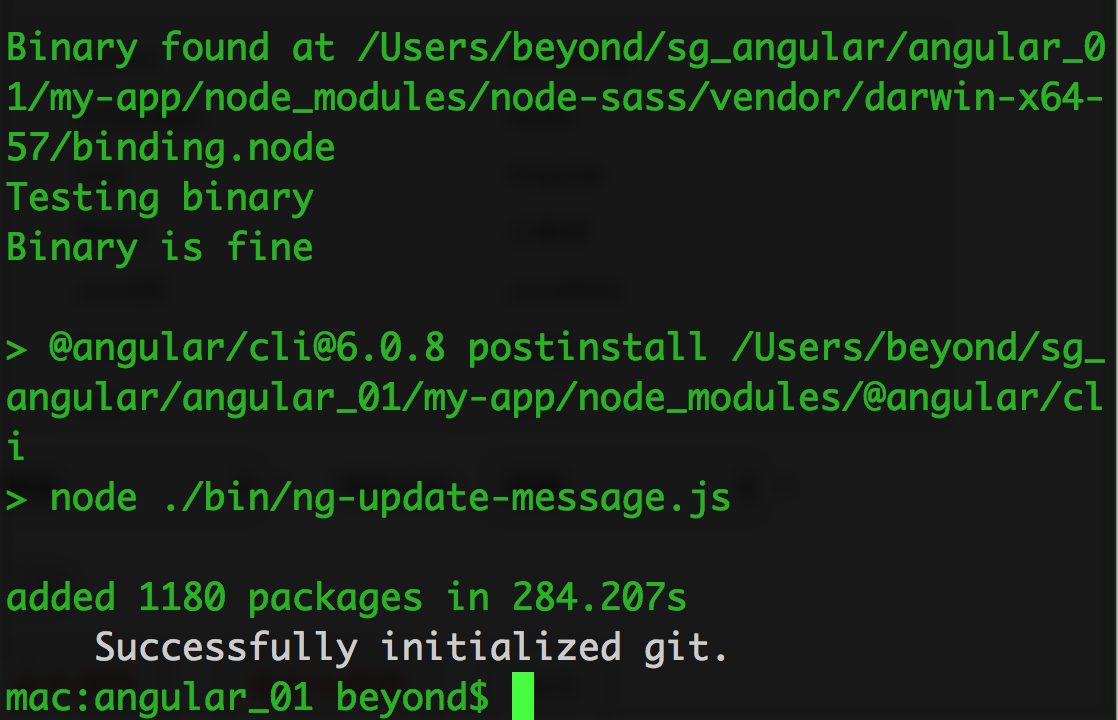

如图所示: asdf

The Angular CLI installs the necessary npm packages, creates the project files, and populates the project with a simple default app.

This can take some time.

You can add pre-packaged functionality to a new project by using the ng add command.

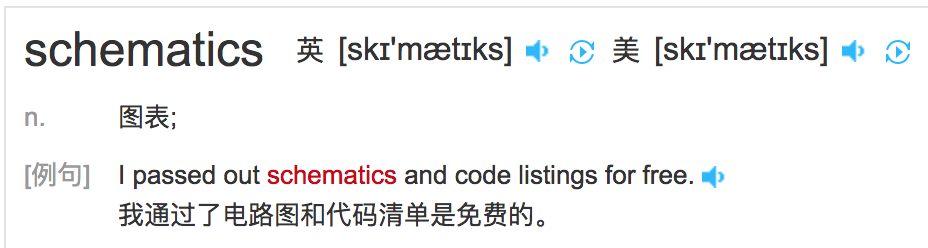

The ng add command transforms a project by applying the schematics in the specified package.

For more information, see the Angular CLI documentation.

Angular Material provides schematics for typical app layouts.

See the Angular Material documentation for details.

Step 3: Serve the application

Go to the project directory and launch the server.

content_copycd my-app
ng serve --open

The ng serve command launches the server, watches your files, and rebuilds the app as you make changes to those files.

Using the --open (or just -o) option will automatically open your browser on

http://localhost:4200/.

Your app greets you with a message:

Step 4: Edit your first Angular component

The CLI created the first Angular component for you.

This is the root component and it is named app-root. You can find it in ./src/app/app.component.ts.

Open the component file and change the title property from 'app' to 'My First Angular App!'.

src/app/app.component.ts

content_copyexport class AppComponent {

  title = 'Hello Beyond';
}

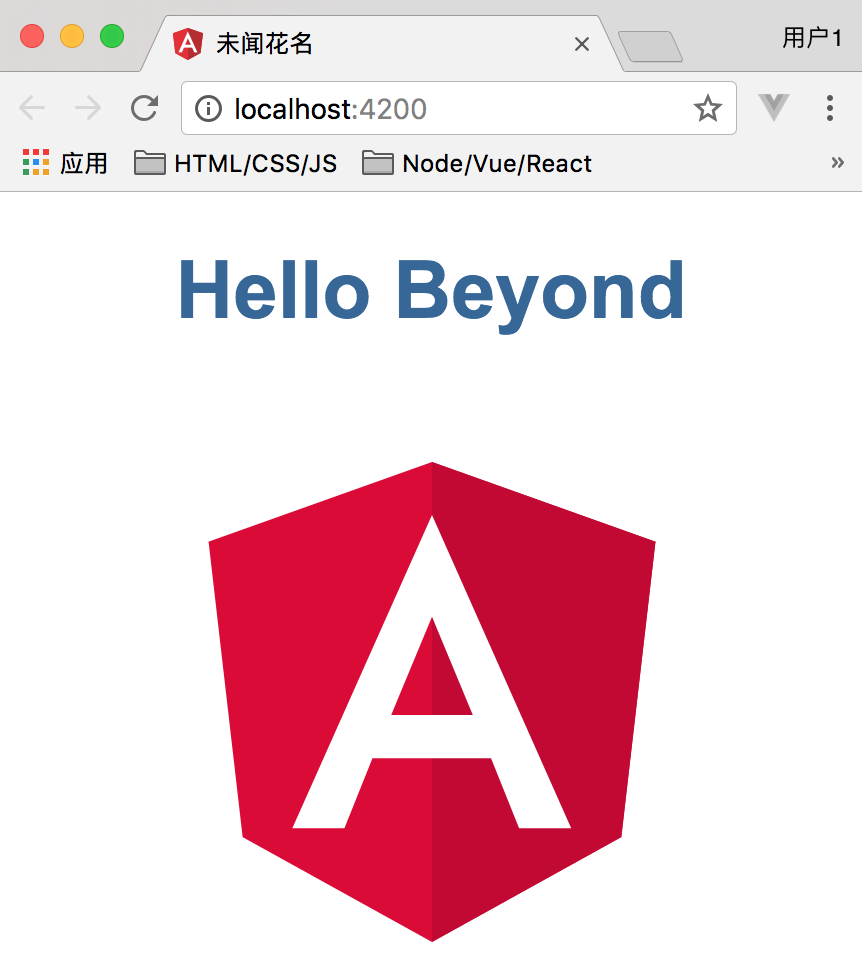

The browser reloads automatically with the revised title.

That's nice, but it could look better.

Open src/app/app.component.css and give the component some style.

src/app/app.component.css

content_copyh1 {

  color: #369;
  font-family: Arial, Helvetica, sans-serif;
  font-size: 250%;
}

Looking good!

What's next?

That's about all you'd expect to do in a "Hello, Beyond" app.

You're ready to take the Tour of Heroes Tutorial and build a small application that demonstrates the great things you can build with Angular.

Or you can stick around a bit longer to learn about the files in your brand new project.

Project file review

An Angular CLI project is the foundation for both quick experiments and enterprise solutions.

The first file you should check out is README.md. It has some basic information on how to use CLI commands.

Whenever you want to know more about how Angular CLI works make sure to visit the Angular CLI repository and Wiki.

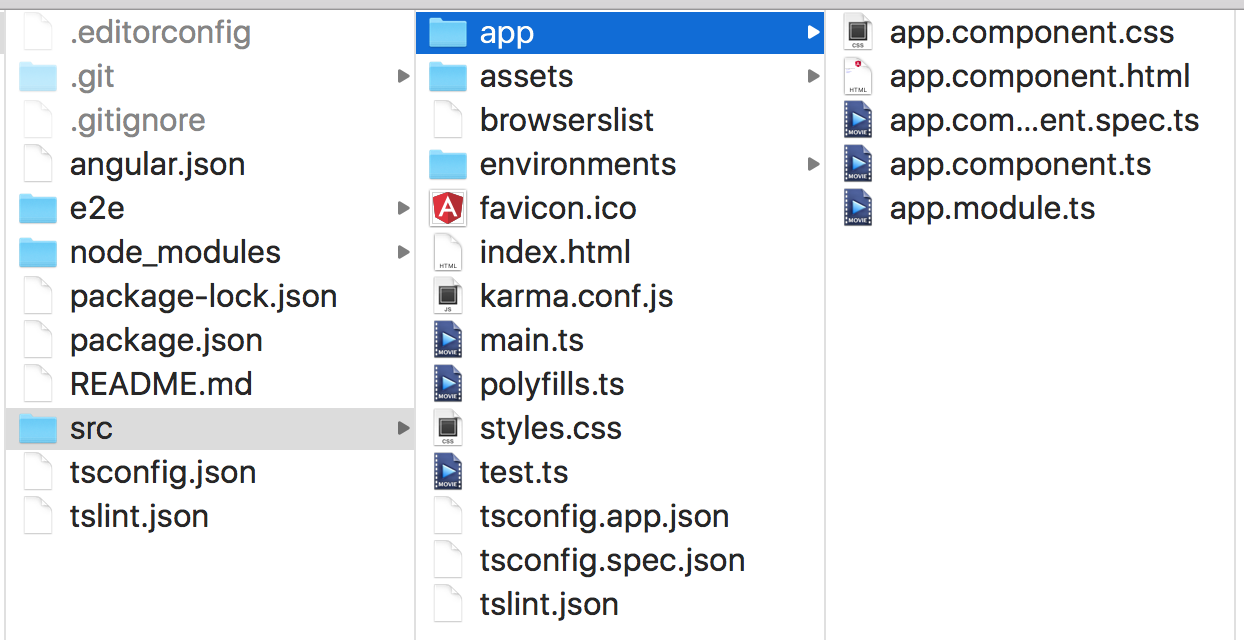

Some of the generated files might be unfamiliar to you.

The src folder

Your app lives in the src folder.

All Angular components, templates, styles, images, and anything else your app needs go here.

???Any files outside of this folder are meant to support building your app???

src

app

app.component.css

app.component.html

app.component.spec.ts

app.component.ts

app.module.ts

assets

.gitkeep

environments

environment.prod.ts

environment.ts

browserslist

favicon.ico

index.html

karma.conf.js

main.ts

polyfills.ts

styles.css

test.ts

tsconfig.app.json

tsconfig.spec.json

tslint.json

File	Purpose
app/app.component.{t s,html,css,spec.ts}	Defines the AppComponent along with an HTML template, CSS stylesheet, and a unit test.  It is the root component of what will become a tree of nested components as the application evolves.
app/app.module.ts	Defines AppModule, the root module that tells Angular how to assemble the application.  Right now it declares only the AppComponent.  Soon there will be more components to declare.
assets/*	A folder where you can put images and anything else to be copied wholesale when you build your application.
environments/*	This folder contains one file for each of your destination environments,  each exporting simple configuration variables to use in your application.  The files are replaced on-the-fly when you build your app.  You might use a different API endpoint for development than you do for production  or maybe different analytics tokens.  You might even use some mock services. Either way, the CLI has you covered.
browserslist	A configuration file to share target browsers between different front-end tools.
favicon.ico	Every site wants to look good on the bookmark bar.  Get started with your very own Angular icon.
index.html	The main HTML page that is served when someone visits your site.  Most of the time you'll never need to edit it.  The CLI automatically adds all js and css files when building your app  so you never need to add any <script> or <link> tags here manually.
karma.conf.js	Unit test configuration for the Karma test runner, used when running ng test.
main.ts	The main entry point for your app.  Compiles the application with the JIT compiler and bootstraps  the application's root module (AppModule) to run in the browser.  You can also use the AOT compiler without changing any code by appending the--aot flag  to the ng build and ng serve commands.
polyfills.ts	Different browsers have different levels of support of the web standards.  Polyfills help normalize those differences.  You should be pretty safe with core-js and zone.js,  but be sure to check out the Browser Support guide for more information.
styles.css	Your global styles go here.  Most of the time you'll want to have local styles in your components for easier maintenance,  but styles that affect all of your app need to be in a central place.
test.ts	This is the main entry point for your unit tests.  It has some custom configuration that might be unfamiliar,  but it's not something you'll need to edit.
tsconfig.{app|spec}. json	TypeScript compiler configuration for the Angular app (tsconfig.app.json)  and for the unit tests (tsconfig.spec.json).
tslint.json	Additional Linting configuration for TSLint together with Codelyzer, used when running ng lint.  Linting helps keep your code style consistent.

The root folder

The src/ folder is just one of the items inside the project's root folder.

Other files help you build, test, maintain, document, and deploy the app.

These files go in the root folder next to src/.

my-app

e2e

src

app.e2e-spec.ts

app.po.ts

tsconfig.e2e.json

protractor.conf.js

node_modules/...

src/...

karma.conf.js

.editorconfig

.gitignore

angular.json

package.json

README.md

tsconfig.json

tslint.json

File	Purpose
e2e/	Inside e2e/ live the end-to-end tests.  They shouldn't be inside src/  because e2e tests are really a separate app that just so happens to test your main app.  That's also why they have their own tsconfig.e2e.json.
node_modules/	Node.js creates this folder and puts all third party modules listed in package.json inside of it.
.editorconfig	Simple configuration for your editor  to make sure everyone that uses your project has the same basic configuration.  Most editors support an .editorconfig file.  See http://editorconfig.org for more information.
.gitignore	Git configuration to make sure autogenerated files are not committed to source control.
angular.json	Configuration for Angular CLI.  In this file you can set several defaults  and also configure what files are included when your project is built.  Check out the official documentation if you want to know more.
package.json	npm configuration listing the third party packages your project uses.  You can also add your own custom scripts here.
protractor.conf.js	End-to-end test configuration for Protractor,  used when running ng e2e.
README.md	Basic documentation for your project, pre-filled with CLI command information.  Make sure to enhance it with project documentation  so that anyone checking out the repo can build your app!
tsconfig.json	TypeScript compiler configuration for your IDE to pick up and give you helpful tooling.
tslint.json	Linting configuration for TSLint together with Codelyzer, used when running ng lint.  Linting helps keep your code style consistent.

Next Step

If you're new to Angular, continue with the tutorial.

You can skip the "Setup" step since you're already using the Angular CLI setup.

Tutorial: Tour of Heroes

The Tour of Heroes tutorial covers the fundamentals of Angular.
In this tutorial you will build an app that helps a staffing agency (劳务中介) manage its stable of heroes.

This basic app has many of the features you'd expect to find in a data-driven application.

1. It acquires and displays a list of heroes,

2. edits a selected hero's detail,

3. and navigates among different views of heroic data.

By the end of the tutorial you will be able to do the following:

• Use built-in Angular directives to show and hide elements and display lists of hero data.
• Create Angular components to display hero details and show an array of heroes.
• Use one-way data binding for read-only data.
• Add editable fields to update a model with two-way data binding.
• Bind component methods to user events, like keystrokes and clicks.
• Enable users to select a hero from a master list and edit that hero in the details view.
• Format data with pipes.
• Create a shared service to assemble the heroes.
• Use routing to navigate among different views and their components.

You'll learn enough Angular to get started and gain confidence that Angular can do whatever you need it to do.

After completing all tutorial steps,

the final app will look like this live example / download example.

What you'll build

Here's a visual idea of where this tutorial leads,

beginning with the "Dashboard" view and the most heroic heroes:

You can click the two links above the dashboard ("Dashboard" and "Heroes")

to navigate between this Dashboard view and a Heroes view.

If you click the dashboard hero "Magneta,"

the router opens a "Hero Details" view where you can change the hero's name.

Clicking the "Back" button returns you to the Dashboard.

Links at the top take you to either of the main views.

If you click "Heroes," the app displays the "Heroes" master list view.

When you click a different hero name,

the read-only mini detail beneath the list reflects the new choice.

You can click the "View Details" button to drill into the editable details of the selected hero.

</
