eNSP两台三层交换机不同VLAN互通

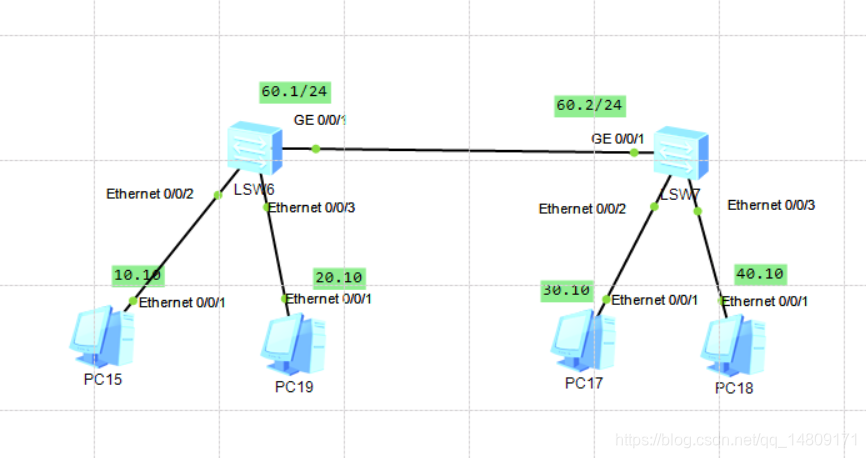

拓扑图如上

1. PC设置IP

PC15:192.168.10.10/24 网关:10.1

PC19:192.168.20.10/24 网关: 20.1

PC17:192.168.30.10/24 网关: 30.1

PC18:192.168.30.10/24 网关:40.1

2.配置SW6

# vlan batch 10 20

# inter face vlanif 10

   ip address 192.168.10.1 24

   ip address 192.168.20.1 24 sub

# inter face Ethernet 0/0/2

  port link-type access

  port default vlan 10

# interface Ethernet 0/0/3

 port link-type access

 port default vlan 10

#interface vlanif 20

 ip address 192.168.60.1 24

#int g0/0/1

port link-type trunk

port trunk allow-pass vlan 20

3.配置SW7

#vlan batch 30 20

#

# inter face vlanif 30

   ip address 192.168.30.1 24

   ip address 192.168.40.1 24 sub

# inter face Ethernet 0/0/2

  port link-type access

  port default vlan 30

# interface Ethernet 0/0/3

 port link-type access

 port default vlan 30

#interface vlanif 20

 ip address 192.168.60.2 24

#int g0/0/1

port link-type trunk

port trunk allow-pass vlan 20

3.配置静态路由

LSW6: ip route-static:0.0.0.0 0.0.0.0 192.168.60.2

LSW7: ip roue-static:0.0.0.0 0.0.0.0 192.168.60.1

主机互通测试成功！
