Akka分布式模拟学生向老师提问题

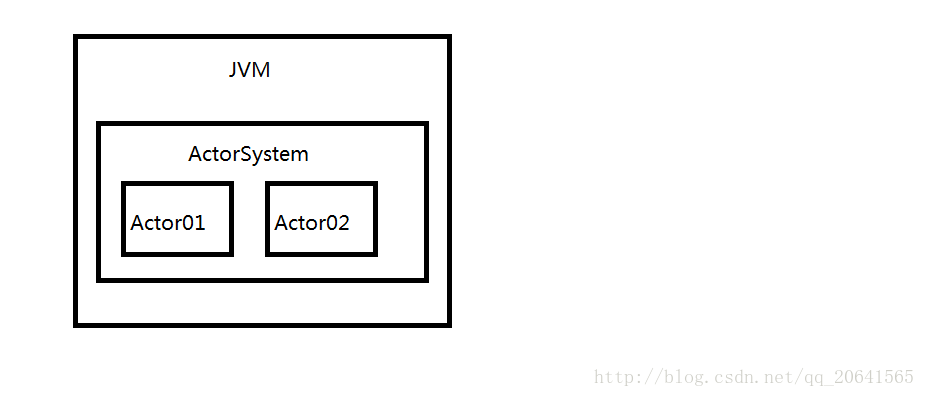

Akka处理并发的方法基于Actor模型。在Akka里，Actor之间通信的唯一机制就是消息传递，每个Actor都有一个ActorSystem管理，其中ActorSystem是单例的，它管理了多个actor

家里电脑没装visio，勉强看看就行

下面就介绍下使用Akka来模拟学生向老师提问题的场景

首先得建立工程，scala也可以使用Maven管理，和java一样创建一个Maven项目，然后修改 src/main/java 和 src/test/java 为 src/main/scala 和 src/test/scala，修改pom文件，并且添加scala和akka的依赖包以及scala的编译插件等

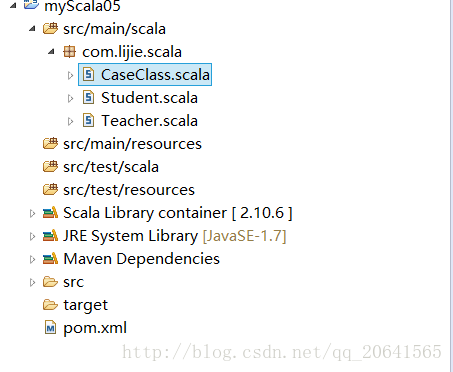

项目整个结构如下：

1.Pom文件如下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>myScala05</groupId>
    <artifactId>myScala05</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>2.10.6</version>
        </dependency>

        <dependency>
            <groupId>com.typesafe.akka</groupId>
            <artifactId>akka-actor_2.10</artifactId>
            <version>2.3.14</version>
        </dependency>

        <dependency>
            <groupId>com.typesafe.akka</groupId>
            <artifactId>akka-remote_2.10</artifactId>
            <version>2.3.14</version>
        </dependency>
        <dependency>
            <groupId>jdk.tools</groupId>
            <artifactId>jdk.tools</artifactId>
            <version>1.7</version>
            <scope>system</scope>
            <systemPath>${JAVA_HOME}/lib/tools.jar</systemPath>
        </dependency>
    </dependencies>

    <build>
        <sourceDirectory>src/main/scala</sourceDirectory>
        <testSourceDirectory>src/test/scala</testSourceDirectory>
        <plugins>
            <plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.2.2</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                        <configuration>
                            <args>
                                <arg>-make:transitive</arg>
                                <arg>-dependencyfile</arg>
                                <arg>${project.build.directory}/.scala_dependencies</arg>
                            </args>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <filters>
                                <filter>
                                    <artifact>*:*</artifact>
                                    <excludes>
                                        <exclude>META-INF/*.SF</exclude>
                                        <exclude>META-INF/*.DSA</exclude>
                                        <exclude>META-INF/*.RSA</exclude>
                                    </excludes>
                                </filter>
                            </filters>
                            <transformers>
                                <transformer
                                    implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>reference.conf</resource>
                                </transformer>
                                <transformer
                                    implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass>MyMaster</mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                </configuration>
            </plugin>
        </plugins>
    </build>


</project>

2.Teacher.scala类如下：

package com.lijie.scala

import com.typesafe.config.ConfigFactory

import akka.actor.Actor
import akka.actor.ActorSystem
import akka.actor.Props
import akka.actor.actorRef2Scala

/**
 * @author lijie
 */
class Teacher extends Actor {

  override def preStart(): Unit = {
    println("preStart在构造方法执行完后 receive执行之前被调用！")
  }

  override def receive: Receive = {

    case TeacherOnline(name) => {
      println(s"$name 上线了,学生可以进行提问")
    }

    //用来匹配学生上线的消息
    case StudentConnect(name) => {
      println(s"学生:$name 上线了!!!")
    }

    //用来匹配学生的计算问题
    case Sum(a, b) => {
      val sum = a + b
      println(s"执行了学生发送的问题 计算$a + $b = $sum")

      //返回计算结果
      sender ! ResultSum(sum)
    }
  }

}

object Teacher {
  def main(args: Array[String]): Unit = {

    val argss = Array[String]("127.0.0.1", "8080")

    val host = argss(0)

    val port = argss(1).toInt

    //配置文件
    val conf = s"""
      |akka.actor.provider = "akka.remote.RemoteActorRefProvider"
      |akka.remote.netty.tcp.hostname = "$host"
      |akka.remote.netty.tcp.port = "$port"
      """.stripMargin

    //创建配置文件对象
    val config = ConfigFactory.parseString(conf)

    //创建ActorSystem(每个actor都有一个ActorSystem它是单例的,ActorSystem管理多个actor)
    val actorSys = ActorSystem("TeacherSys", config)

    //创建actor
    val teacher = actorSys.actorOf(Props(new Teacher), "Teacher")

    //老师上线了
    teacher ! TeacherOnline("苍老师")

    actorSys.awaitTermination()
  }
}

3.Student.scala类如下：

package com.lijie.scala

import com.typesafe.config.ConfigFactory

import akka.actor.Actor
import akka.actor.ActorSelection
import akka.actor.ActorSelection.toScala
import akka.actor.ActorSystem
import akka.actor.Props
import akka.actor.actorRef2Scala

/**
 * @author lijie
 */
class Student(val teacherHost: String, val teacherPort: Int, val teacherActorSystem: String, val teacherName: String) extends Actor {

  //老师的代理对象
  var teacher: ActorSelection = _

  override def preStart(): Unit = {

    //获取老师的代理对象
    teacher = context.actorSelection(s"akka.tcp://$teacherActorSystem@$teacherHost:$teacherPort/user/$teacherName")

    //发送学生上线消息
    teacher ! StudentConnect("lijie")
  }

  override def receive: Receive = {

    //匹配向老师提问请求
    case Sum(a, b) => {
      //向老师请求计算a+b
      teacher ! Sum(a, b)
    }

    //匹配老师返回的结果
    case ResultSum(sum) => {
      println("收到老师的回答，计算结果为:" + sum)
    }
  }
}

object Student {
  def main(args: Array[String]): Unit = {
    val argss = Array[String]("127.0.0.1", "8089", "127.0.0.1", "8080", "TeacherSys", "Teacher")

    val host = argss(0)

    val port = argss(1).toInt

    val teacherHost = argss(2)

    val teacherPort = argss(3).toInt

    val teacherActorSystem = argss(4)

    val teacherName = argss(5)

    val conf = s"""
      |akka.actor.provider = "akka.remote.RemoteActorRefProvider"
      |akka.remote.netty.tcp.hostname = "$host"
      |akka.remote.netty.tcp.port = "$port"
      """.stripMargin

    val config = ConfigFactory.parseString(conf)
    //创建学生的ActorSystem
    val actorSys = ActorSystem("StudentSys", config)

    //创建学生的actor对象
    val actor = actorSys.actorOf(Props(new Student(teacherHost, teacherPort, teacherActorSystem, teacherName)), "Student")

    //请求老师计算
    actor ! Sum(1, 2)

    actorSys.awaitTermination()
  }
}

4.CaseClass.scala类如下：

package com.lijie.scala

import java.io.Serializable

/**
 * @author lijie
 */

case class TeacherOnline(name: String) extends Serializable

case class StudentConnect(name: String) extends Serializable

case class MyResult(sum: Int) extends Serializable

case class Sum(a: Int, b: Int) extends Serializable

case class ResultSum(sum: Int) extends Serializable

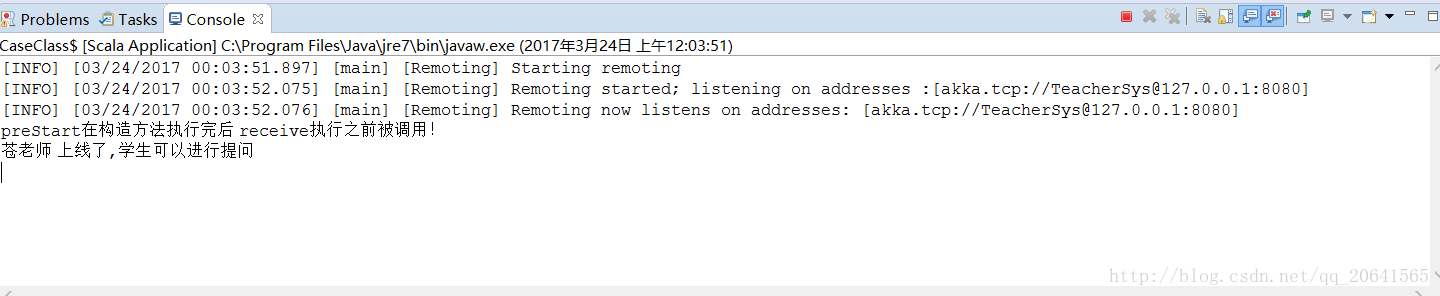

首先运行Teacher程序：

然后运行Student程序，运行Student之后 老师那边会先收到学生上线的消息，然后收到学生请求计算的消息，最后会返回计算结果给学生：

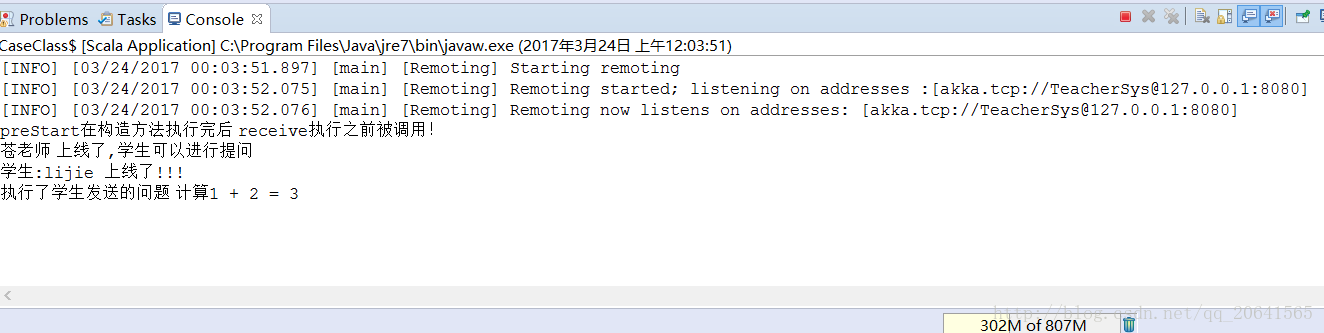

老师收到学生消息并计算返回

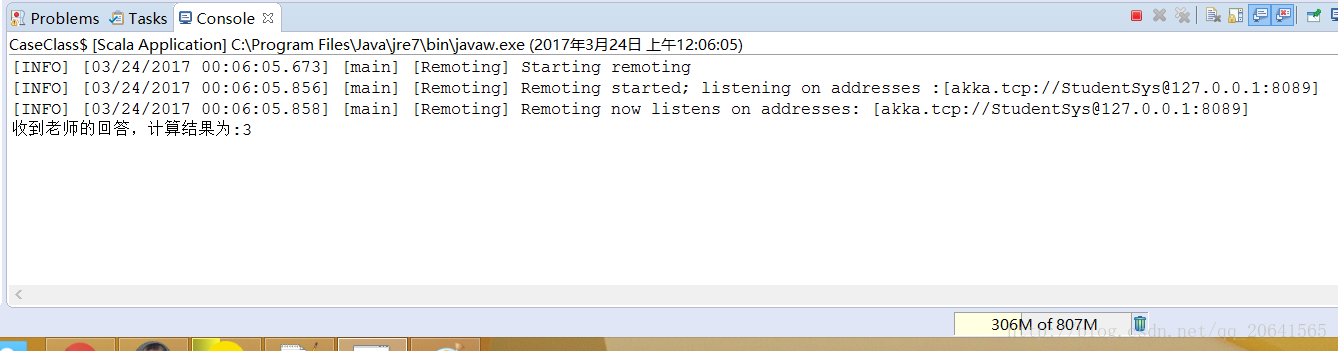

学生请求老师计算并收到结果：

可以分别把老师和学生的程序打包然后部署到不同服务器上面执行，先启动老师然后启动学生，效果一样，这样就模拟了一个 Akka分布式的学生向老师提问题的程序
