docker-compose.yml安装cadvisor+grafana+influxdb

前提是先安装好docker-compose

vi docker-compose.yml

内容如下

version: '3.1'
volumes:
  grafana_data: {}
services:
 influxdb:
  image: tutum/influxdb:0.9
  restart: always
  environment:
    - PRE_CREATE_DB=cadvisor
  ports:
    - "8083:8083"
    - "8086:8086"
  volumes:
    - ./data/influxdb:/data
 cadvisor:
  image: google/cadvisor
  links:
    - influxdb:influxsrv
  command: -storage_driver=influxdb -storage_driver_db=cadvisor -storage_driver_host=influxsrv:8086
  restart: always
  ports:
    - "8080:8080"
  volumes:
    - /:/rootfs:ro
    - /var/run:/var/run:rw
    - /sys:/sys:ro
    - /var/lib/docker/:/var/lib/docker:ro
 grafana:
  user: "104"
  image: grafana/grafana
  user: "104"
  restart: always
  links:
    - influxdb:influxsrv
  ports:
    - "3000:3000"
  volumes:
    - grafana_data:/var/lib/grafana
  environment:
    - HTTP_USER=admin
    - HTTP_PASS=admin
    - INFLUXDB_HOST=influxsrv
    - INFLUXDB_PORT=8086
    - INFLUXDB_NAME=cadvisor
    - INFLUXDB_USER=root
    - INFLUXDB_PASS=root

启动

docker-compose up -d

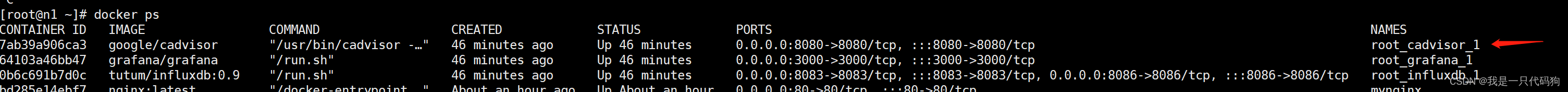

docker ps

访问

http://192.168.184.136:8083/

http://192.168.184.136:8080/containers/

http://192.168.184.136:3000

grafana的账号密码admin/admin

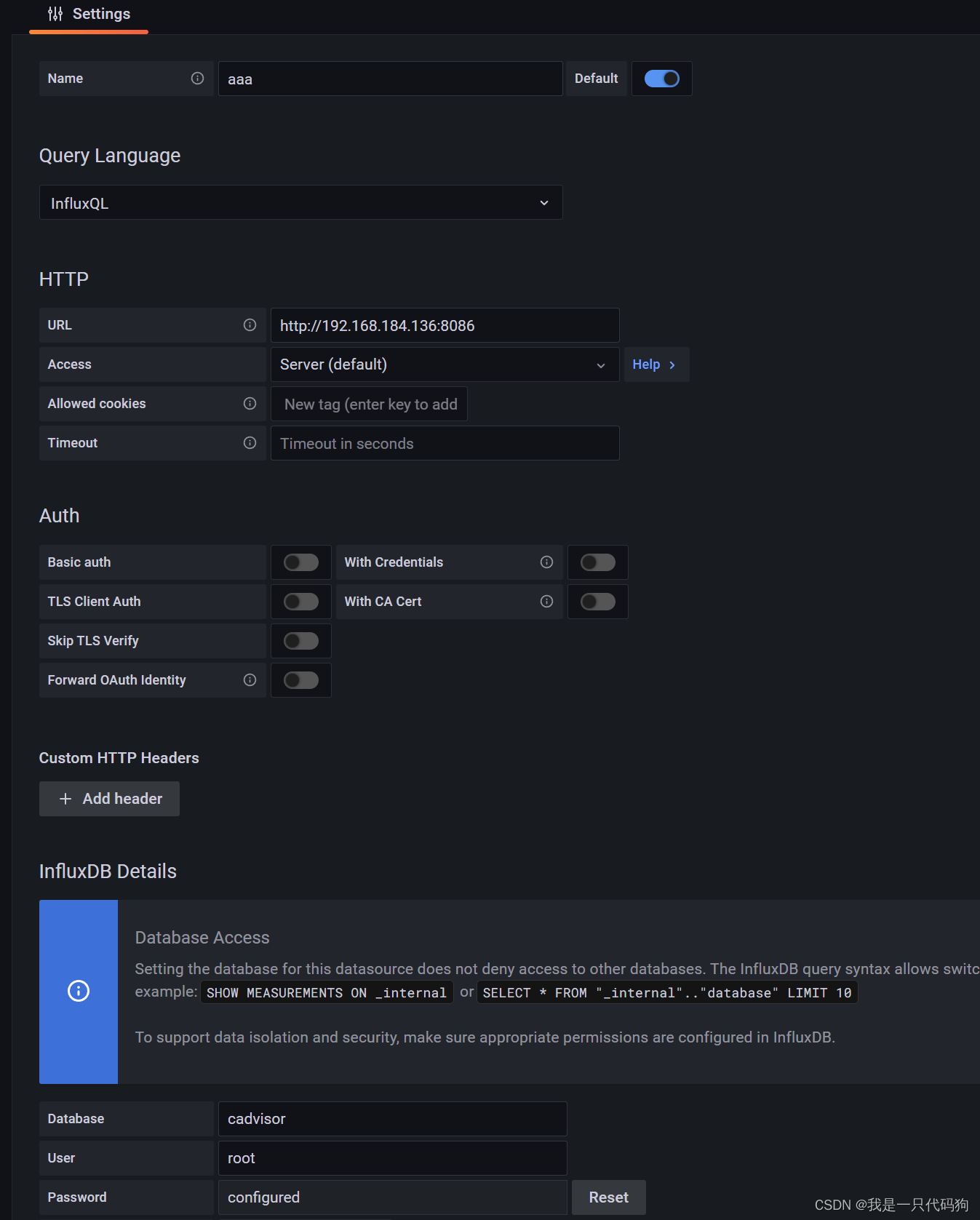

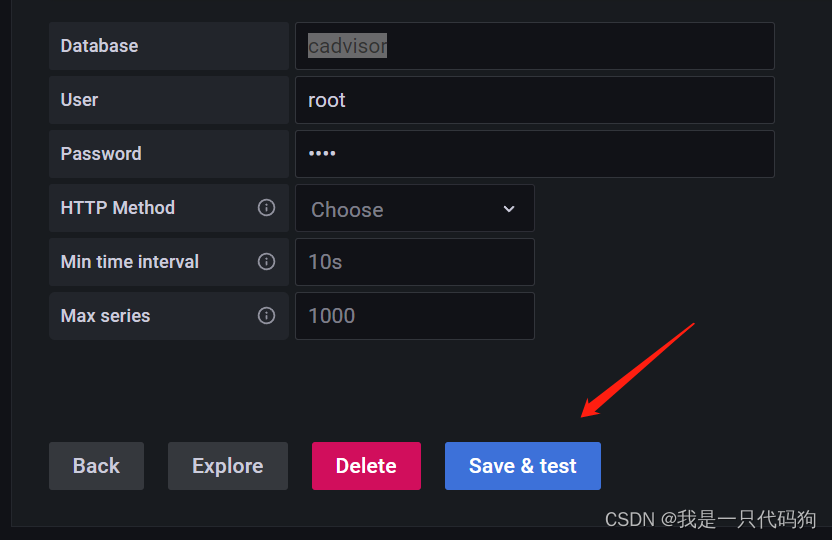

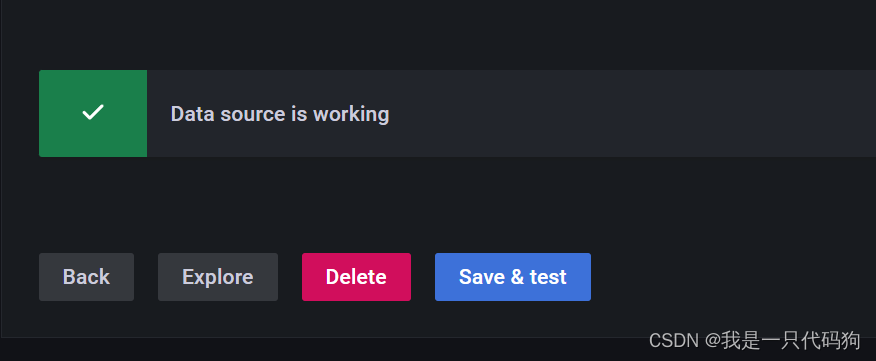

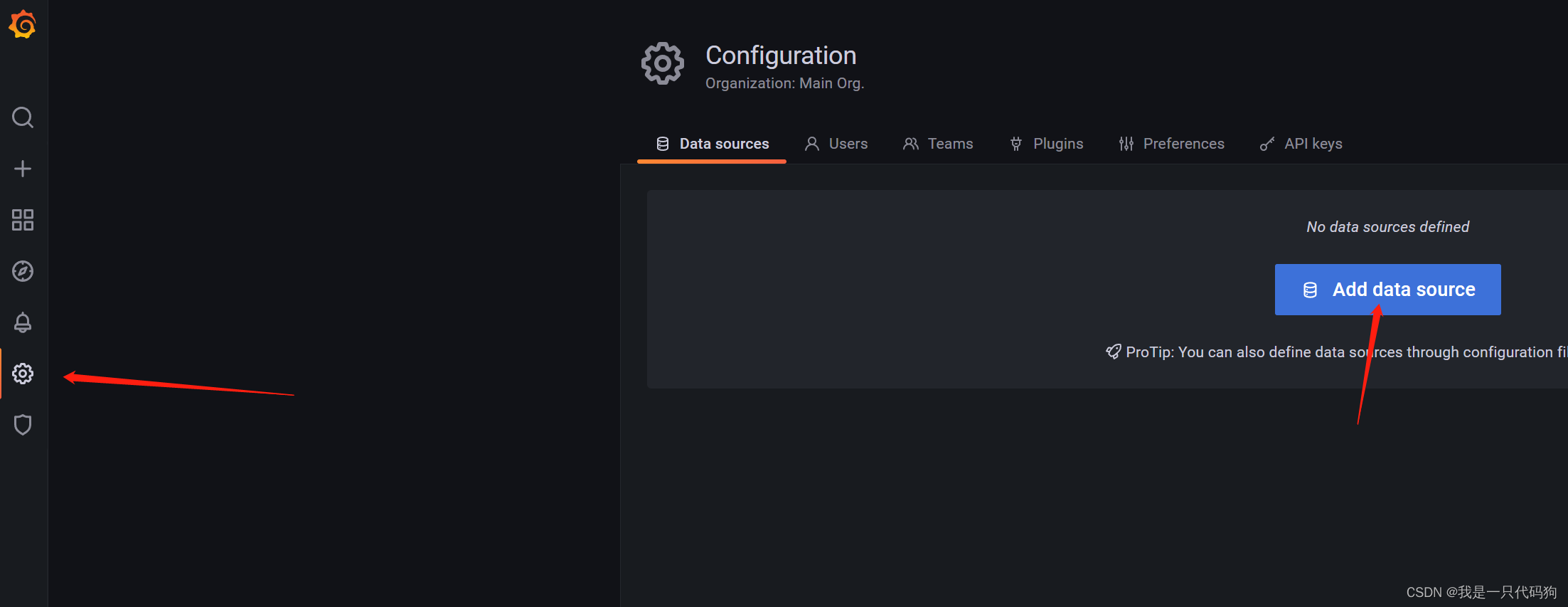

配置数据源

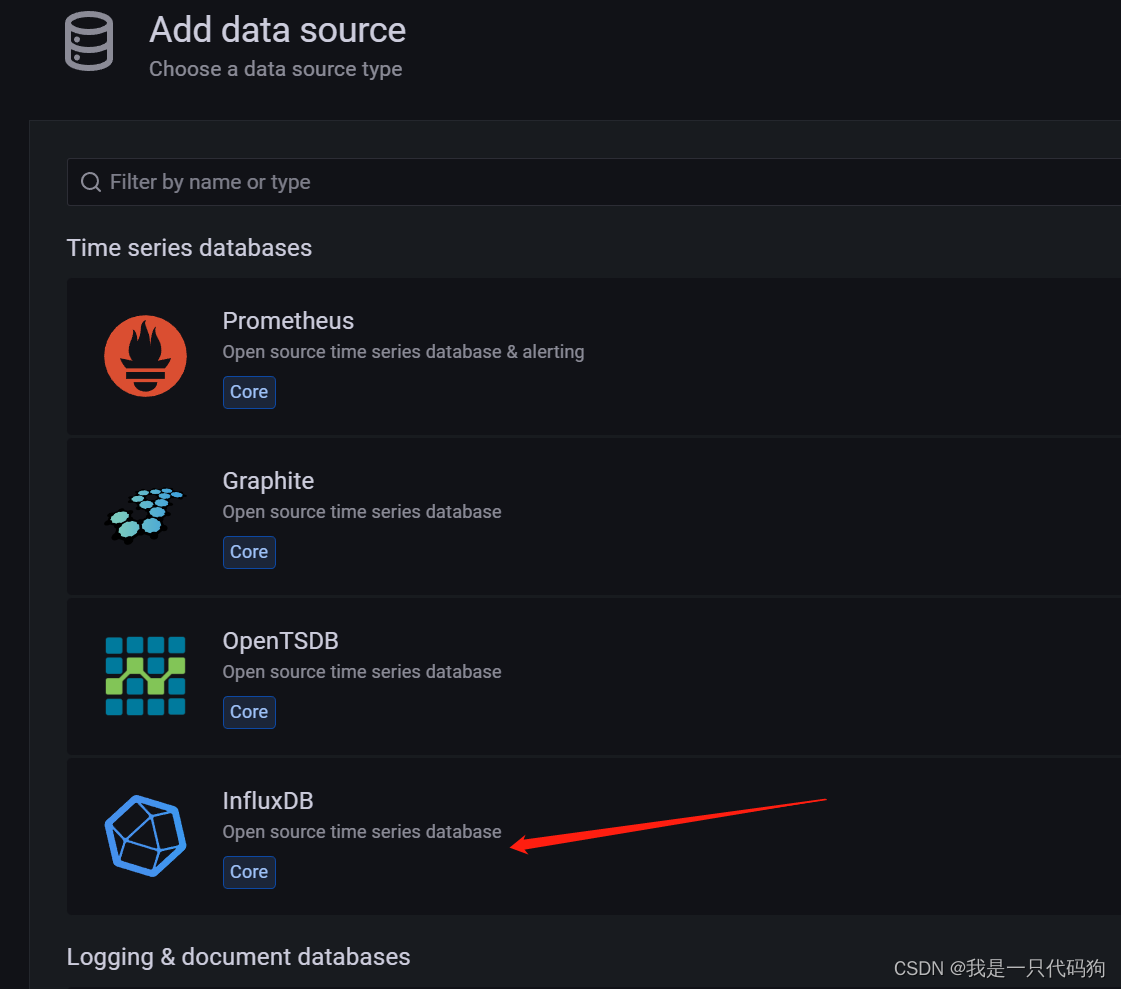

 选择InfluxDB



名称: aaa

url: http://192.168.184.136:8086

数据库:cadvisor

user:root

password:root

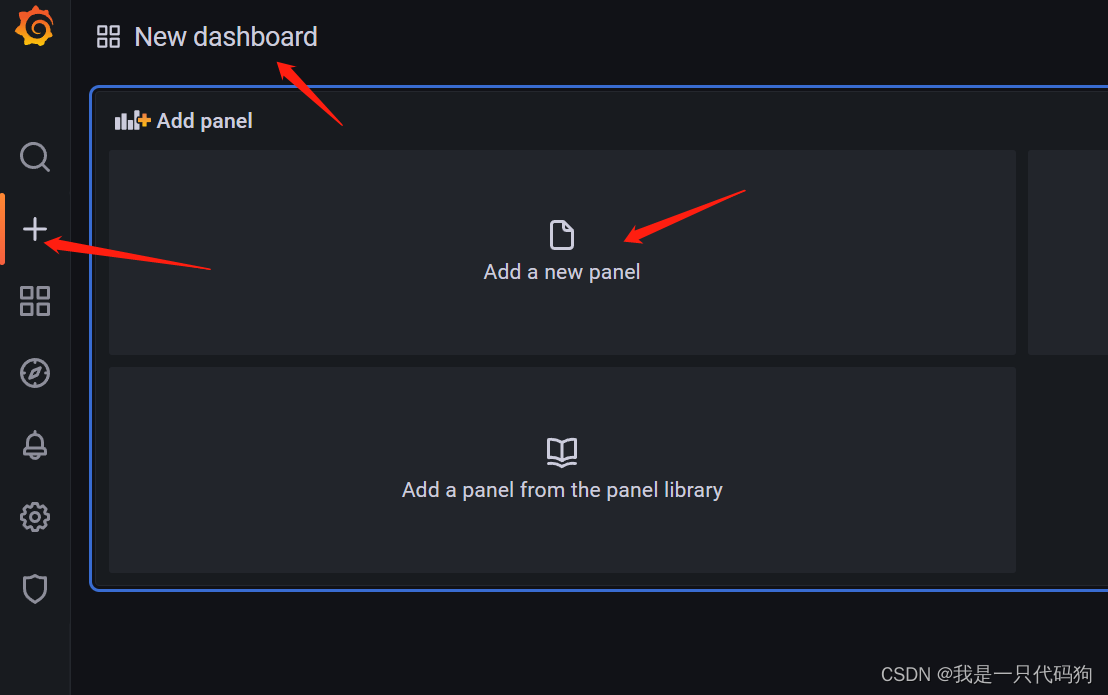

接下来配置面板

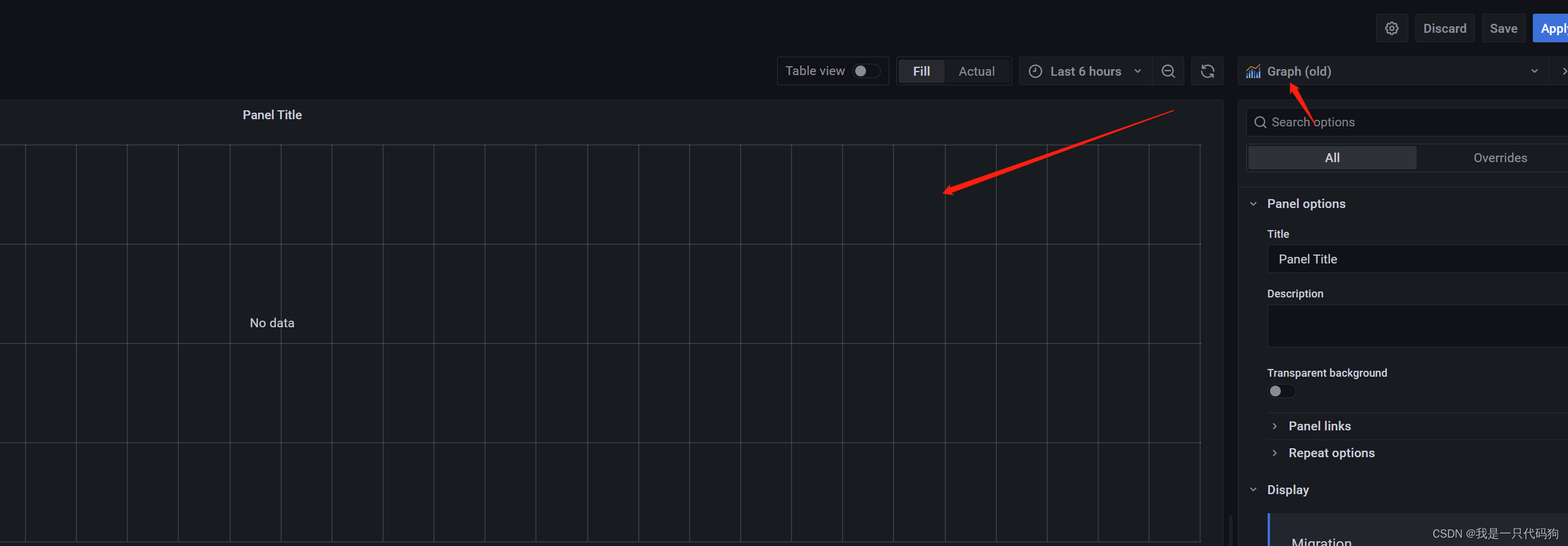

 右侧选择,Graph(old)

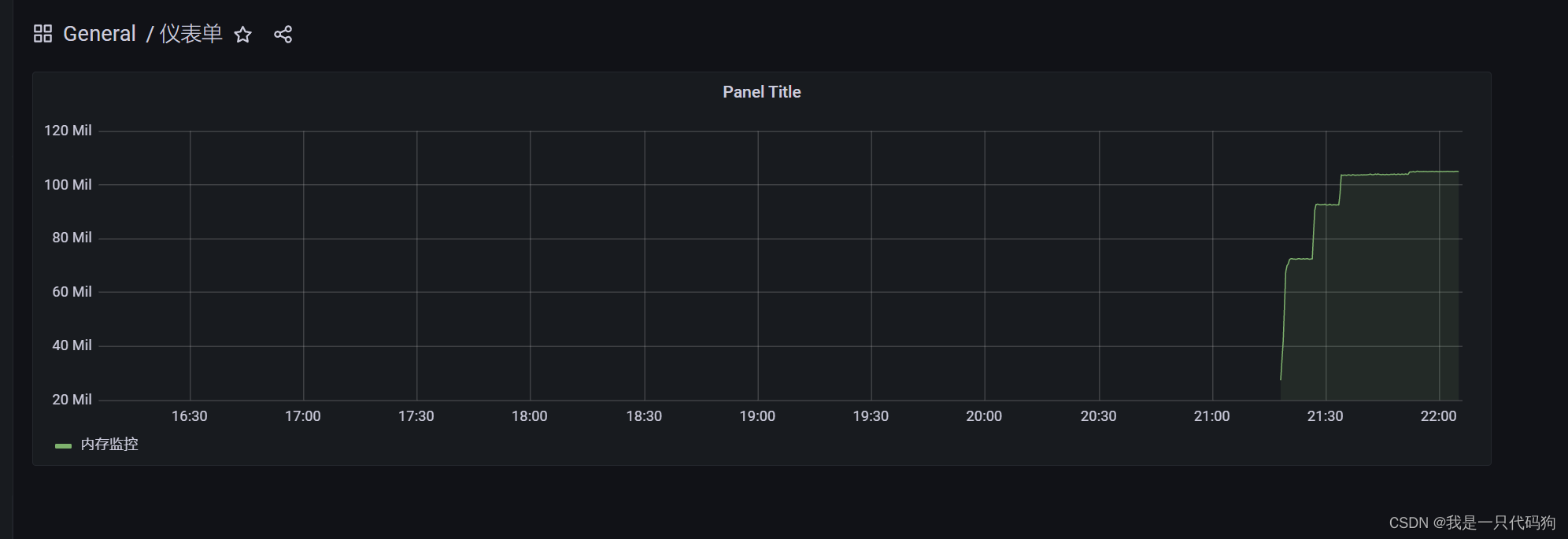

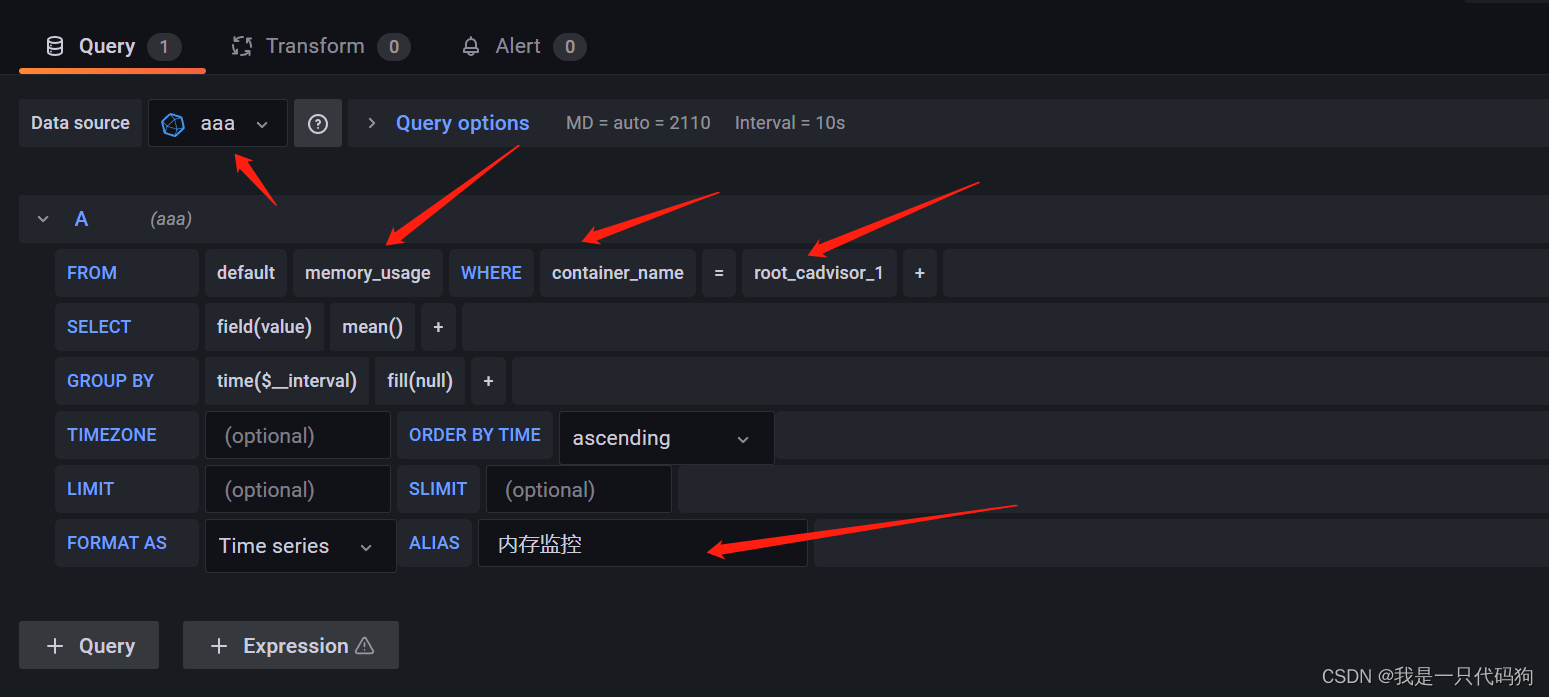

 选择一个docker容器进行监控

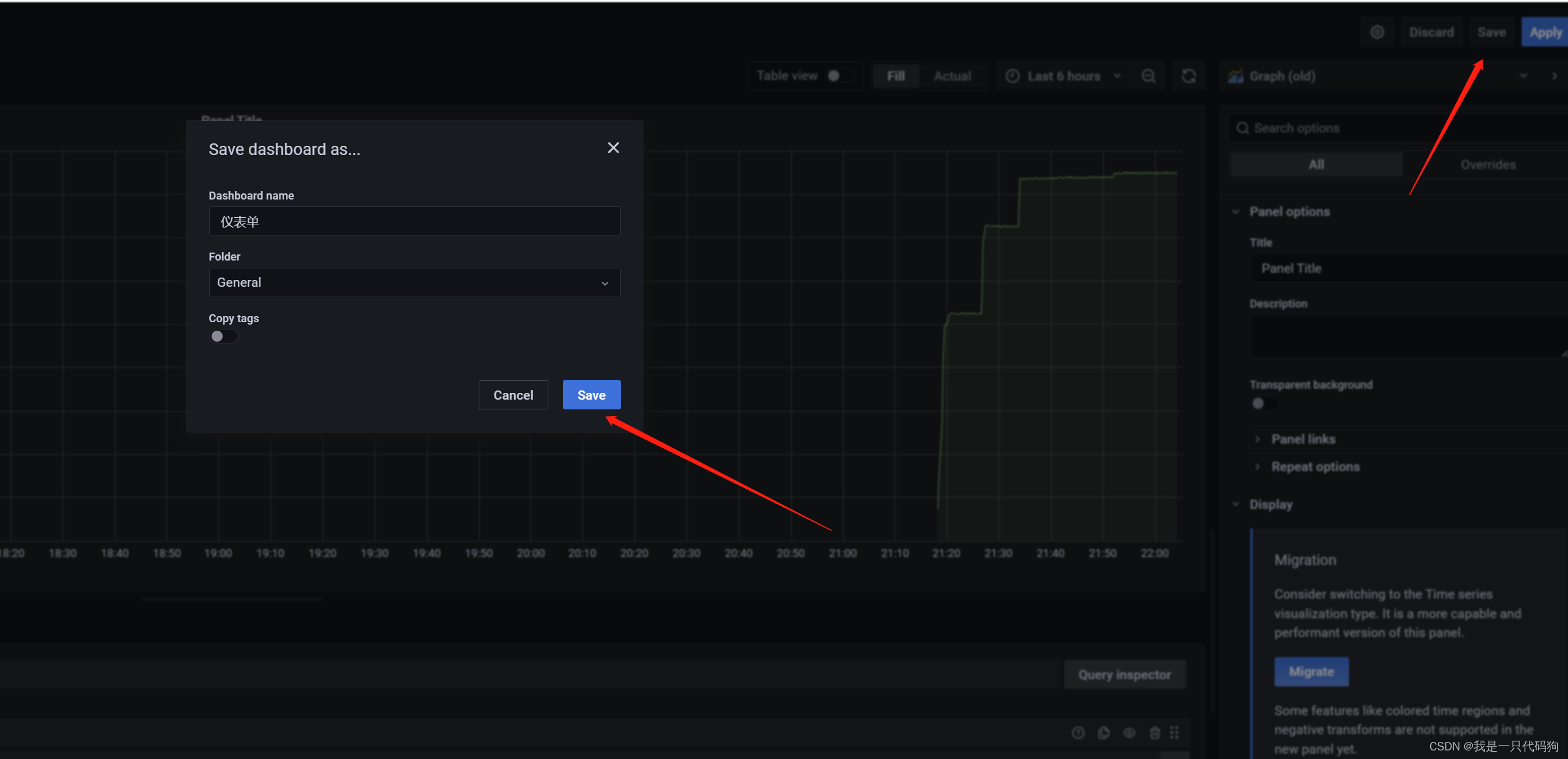

 到这里就完成了

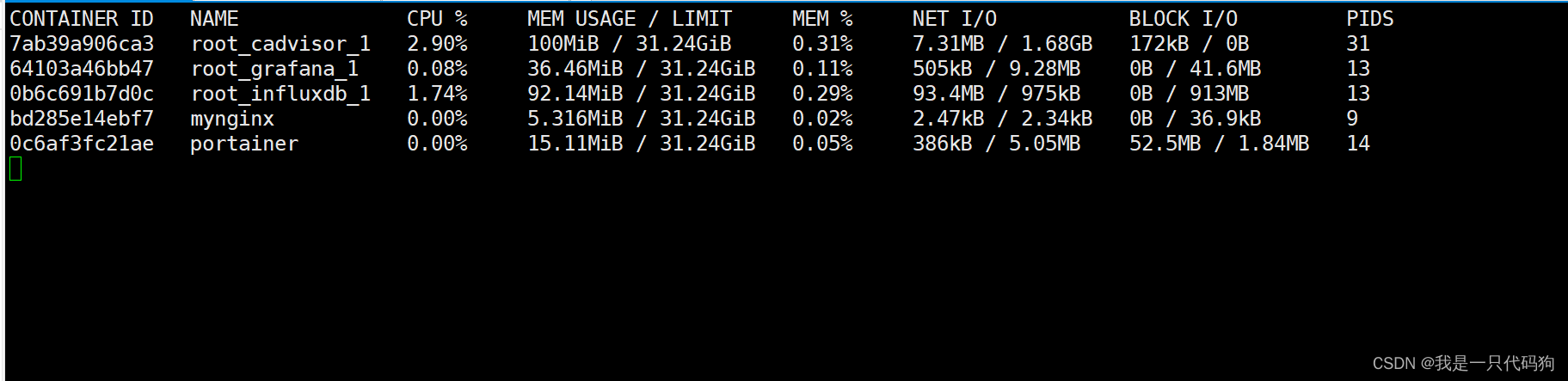

在docker 统计的话，可以使用

docker stats
