K8S集群安装部署

一、系统基本环境搭建

角色IP组件
node1192.168.24.136kube-apiserver, kube-controller-manager, kube-scheduler, etcd
node2192.168.24.137kubelet，kube-proxy，docker etcd
node3192.168.24.138kubelet，kube-proxy，docker etcd

1.关闭swap

[root@node1 ~]# swapoff -a
[root@node1 ~]# vim /etc/fstab

2.关闭SELINUX

[root@node1 ~]# setenforce 0 && sed -i 's/^SELINUX=. */SELINUX=disabled/' /etc/selinux/config

3.调整内核参数

[root@node1 ~]# cat > /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
EOF
# 生效
[root@node1 ~]# sysctl --system

4.调整系统时区

#设置系统时区为中国/上海
[root@node1 ~]# timedatectl set-timezone Asia/Shanghai
#将当前的UTC时间写入硬件时钟
[root@node1 ~]# timedatectl set-local-rtc 0
#重启依赖于系统时间的服务
[root@node1 ~]# systemctl restart rsyslog
[root@node1 ~]# systemctl restart crond

5.关闭系统不需要的服务

[root@node1 ~]# systemctl stop postfix && systemctl disable postfix

二、安装etcd

1.创建证书文件

[root@localhost home]# mkdir /opt/TLS/etcd && cd /opt/TLS/etcd
[root@localhost etcd]# wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
[root@localhost etcd]# wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
[root@localhost etcd]# wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd6
[root@localhost etcd]# mkdir /usr/local/cfssl/
[root@localhost etcd]# mv cfssl_linux-amd64 /usr/local/cfssl/
[root@localhost etcd]# mv cfssljson_linux-amd64 /usr/local/cfssl/
[root@localhost etcd]# mv cfssl-certinfo_linux-amd6 /usr/local/cfssl/
[root@localhost etcd]#  vim > ca-config.json<< EOF
{
	"signing": {
		"default": {
			"expiry": "87600h"
		},
		"profiles": {
			"www": {
				"expiry": "87600h",
				"usages": [
					"signing",
					"key encipherment",
					"server auth",
					"client auth"
				]
			}
		}
	}
}
[root@localhost etcd]#  vim ca-csr.json
{
        "CN": "etcd CA",
        "key": {
                "algo": "rsa",
                "size": 2048
        },
        "names": [
                {
                        "C": "CN",
                        "L": "Beijing",
                        "ST": "Beijing"
                }
        ]
}
[root@localhost etcd]# vim server-csr.json
{
	"CN": "etcd",
	"hosts": [
		"192.168.24.136",
		"192.168.24.137",
		"192.168.24.138"
	],
	"key": {
		"algo": "rsa",
		"size": 2048
	},
	"names": [
		{
			"C": "CN",
			"L": "BeiJing",
			"ST": "BeiJing"
		}
	]
}
[root@localhost etcd]# /usr/local/cfssl/cfssl_linux-amd64 gencert -initca ca-csr.json | /usr/local/cfssl/cfssljson_linux-amd64 -bare ca -
2021/06/30 23:30:35 [INFO] generating a new CA key and certificate from CSR
2021/06/30 23:30:35 [INFO] generate received request
2021/06/30 23:30:35 [INFO] received CSR
2021/06/30 23:30:35 [INFO] generating key: rsa-2048
2021/06/30 23:30:36 [INFO] encoded CSR
2021/06/30 23:30:36 [INFO] signed certificate with serial number 725059738840226310954172302162231768550676521910
[root@localhost etcd]#

[root@localhost etcd]# /usr/local/cfssl/cfssl_linux-amd64 gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | /usr/local/cfssl/cfssljson_linux-amd64 -bare server
2021/06/30 23:39:25 [INFO] generate received request
2021/06/30 23:39:25 [INFO] received CSR
2021/06/30 23:39:25 [INFO] generating key: rsa-2048
2021/06/30 23:39:25 [INFO] encoded CSR
2021/06/30 23:39:25 [INFO] signed certificate with serial number 411396881075107735287957499160567737895798023863
2021/06/30 23:39:25 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
[root@localhost etcd]#

[root@localhost etcd]# ll
total 36
-rw-r--r-- 1 root root  226 Jun 30 23:26 ca-config.json
-rw-r--r-- 1 root root  956 Jun 30 23:30 ca.csr
-rw-r--r-- 1 root root  143 Jun 30 23:28 ca-csr.json
-rw------- 1 root root 1679 Jun 30 23:30 ca-key.pem
-rw-r--r-- 1 root root 1265 Jun 30 23:30 ca.pem
-rw-r--r-- 1 root root 1013 Jun 30 23:39 server.csr
-rw-r--r-- 1 root root  215 Jun 30 23:35 server-csr.json
-rw------- 1 root root 1679 Jun 30 23:39 server-key.pem
-rw-r--r-- 1 root root 1338 Jun 30 23:39 server.pem
[root@localhost etcd]#

2. 安装etcd

2.1 node1上操作

[root@node1 opt]# wget https://github.com/etcd-io/etcd/releases/download/v3.4.9/etcd-v3.4.9-linux-amd64.tar.gz
[root@node1 opt]# tar -zxvf etcd-v3.4.9-linux-amd64.tar.gz
[root@node1 opt]# mkdir -p /opt/etcd/{bin,cfg,ssl}
[root@node1 opt]# mv etcd-v3.4.9-linux-amd64/{etcd,etcdctl} /opt/etcd/bin/
[root@node1 etcd]# scp -r /opt/TLS/etcd/{ca.pem,server-key.pem,server.pem} /opt/etcd/ssl/
[root@node1 opt]# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.24.136:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.24.136:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.24.136:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.24.136:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.24.136:2380,etcd-2=https://192.168.24.137:2380,etcd-3=https://192.168.24.138:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#[Security]
ETCD_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"

[root@node1 opt]# vim /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
[Service]
Type=notify
EnvironmentFile=/opt/etcd/cfg/etcd.conf
ExecStart=/opt/etcd/bin/etcd
Restart=on-failure
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
[root@node1 etcd]# scp -r /opt/etcd root@node2:/opt/
[root@node1 etcd]# scp -r /opt/etcd root@node3:/opt/
[root@node1 etcd]# scp -r /usr/lib/systemd/system/etcd.service root@node1:/usr/lib/systemd/system/
[root@node1 etcd]# scp -r /usr/lib/systemd/system/etcd.service root@node2:/usr/lib/systemd/system/
[root@node1 etcd]# systemctl daemon-reload

2.2 node2上操作

[root@node2 ~]# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-2"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.24.137:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.24.137:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.24.137:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.24.137:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.24.136:2380,etcd-2=https://192.168.24.137:2380,etcd-3=https://192.168.24.138:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#[Security]
ETCD_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"

[root@node2 etcd]# systemctl daemon-reload

2.3 node3上操作

[root@node3 ~]# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-3"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.24.138:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.24.138:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.24.138:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.24.138:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.24.136:2380,etcd-2=https://192.168.24.137:2380,etcd-3=https://192.168.24.138:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#[Security]
ETCD_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/opt/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/opt/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/opt/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"
[root@node3 etcd]# systemctl daemon-reload

2.4 分别启动etcd

[root@node1 etcd]# systemctl start etcd
[root@node1 etcd]# systemctl enable etcd
# 启动node1的etcd后需要立即启动node2、node3上的etcd,否则node1的etcd访问node2、node3不通，一段时候会报启动失败

备注说明

  • ETCD3.4版本ETCDCTL_API=3 etcdctl 和 etcd --enable-v2=false 成为了默认配置，如要使用v2版本，执行etcdctl时候需要设置ETCDCTL_API环境变量，例如：ETCDCTL_API=2 etcdctl
  • ETCD3.4版本会自动读取环境变量的参数，所以EnvironmentFile文件中有的参数，不需要再次在ExecStart启动参数中添加，二选一，如同时配置，会触发以下类似报错“etcd: conflicting environment variable - - “ETCD_NAME” is shadowed by corresponding command-line flag (either unset environment variable or disable flag)”
  • flannel操作etcd使用的是v2的API，而kubernetes操作etcd使用的v3的API

/opt/etcd/cfg/etcd.conf 配置文件参数说明：

参数含义
ETCD_NAME节点名称，集群中唯一
ETCD_DATA_DIR数据目录
ETCD_LISTEN_PEER_URLS集群通信监听地址
ETCD_LISTEN_CLIENT_URLS客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEER_URLS集群通告地址
ETCD_ADVERTISE_CLIENT_URLS客户端通告地址
ETCD_INITIAL_CLUSTER集群节点地址
ETCD_INITIAL_CLUSTER_TOKEN集群 Token
ETCD_INITIAL_CLUSTER_STATE加入集群的当前状态，new 是新集群，existing 表示加入

三、安装docker

node1节点

[root@node1 opt]# wget https://download.docker.com/linux/static/stable/x86_64/docker-19.03.9.tgz
[root@node1 opt]# mv docker /usr/local/
[root@node1 opt]# vim /usr/lib/systemd/system/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
ExecStart=/usr/bin/dockerd
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TimeoutStartSec=0
Delegate=yes
KillMode=process
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target
[root@node1 opt]# systemctl daemon-reload
[root@node1 opt]# systemctl start docker
[root@node1 opt]# systemctl enable docker

[root@node1 opt]# scp -r docker/* root@node2:/usr/bin/
[root@node1 opt]# scp -r docker/* root@node3:/usr/bin/
[root@node1 opt]# scp -r /usr/lib/systemd/system/docker.service root@node2:/usr/lib/systemd/system/
[root@node1 opt]# scp -r /usr/lib/systemd/system/docker.service root@node3:/usr/lib/systemd/system/

node2节点

[root@node2 opt]# systemctl daemon-reload && systemctl start docker && systemctl enable docker

node3节点

[root@node2 opt]# systemctl daemon-reload && systemctl start docker && systemctl enable docker

四、部署api-server（Master Node）

1.创建apiserver自签证书

[root@node1 k8s]# vim /opt/TLS/k8s/ca-config.json
{
	"signing": {
		"default": {
			"expiry": "87600h"
		},
		"profiles": {
			"kubernetes": {
				"expiry": "87600h",
				"usages": [
					"signing",
					"key encipherment",
					"server auth",
					"client auth"
				]
			}
		}
	}
}

[root@node1 k8s]# vim /opt/TLS/k8s/ca-csr.json
{
	"CN": "kubernetes",
	"key": {
		"algo": "rsa",
		"size": 2048
	},
	"names": [
		{
			"C": "CN",
			"L": "Beijing",
			"ST": "Beijing",
			"O": "k8s",
			"OU": "System"
		}
	]
}

[root@node1 k8s]# vim /opt/TLS/k8s/server-csr.json
{
	"CN": "kubernetes",
	"hosts": [
		"10.0.0.1",
		"127.0.0.1",
		"kubernetes",
		"kubernetes.default",
		"kubernetes.default.svc",
		"kubernetes.default.svc.cluster",
		"kubernetes.default.svc.cluster.local",
		"192.168.24.136",
		"192.168.24.137",
		"192.168.24.138"
	],
	"key": {
		"algo": "rsa",
		"size": 2048
	},
	"names": [
		{
			"C": "CN",
			"L": "BeiJing",
			"ST": "BeiJing",
			"O": "k8s",
			"OU": "System"
		}
	]
}

# 生成证书文件
[root@node1 k8s]# /usr/local/cfssl/cfssl gencert -initca ca-csr.json | /usr/local/cfssl/cfssljson -bare ca -
2021/07/03 17:50:47 [INFO] generating a new CA key and certificate from CSR
2021/07/03 17:50:47 [INFO] generate received request
2021/07/03 17:50:47 [INFO] received CSR
2021/07/03 17:50:47 [INFO] generating key: rsa-2048
2021/07/03 17:50:47 [INFO] encoded CSR
2021/07/03 17:50:47 [INFO] signed certificate with serial number 112636923636866601548066763582581017478124700260
[root@node1 k8s]#

#使用自签 CA 签发 kube-apiserver HTTPS 证书
[root@node1 k8s]# /usr/local/cfssl/cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | /usr/local/cfssl/cfssljson -bare server
2021/07/03 17:53:04 [INFO] generate received request
2021/07/03 17:53:04 [INFO] received CSR
2021/07/03 17:53:04 [INFO] generating key: rsa-2048
2021/07/03 17:53:05 [INFO] encoded CSR
2021/07/03 17:53:05 [INFO] signed certificate with serial number 60072710308510964584407608453253056896368493951
2021/07/03 17:53:05 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@node1 k8s]# ls server*.pem
server-key.pem  server.pem
[root@node1 k8s]#

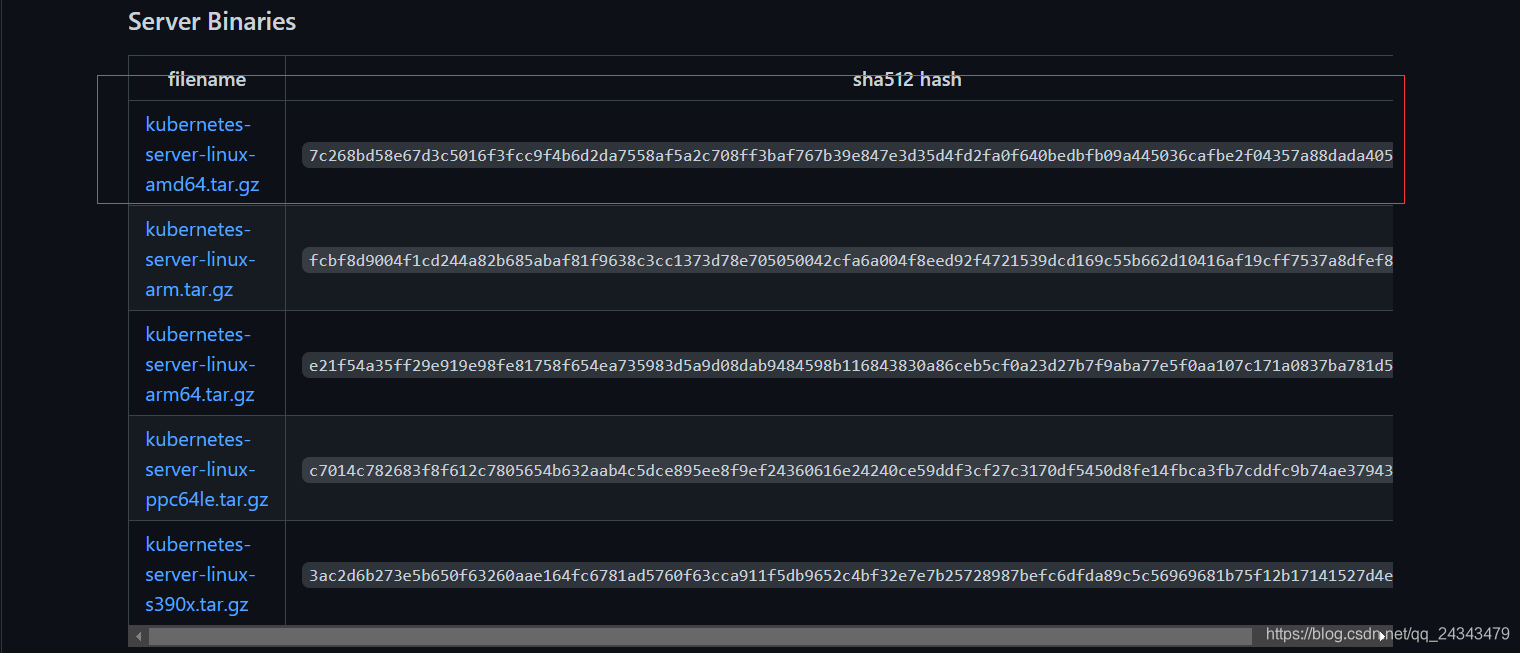

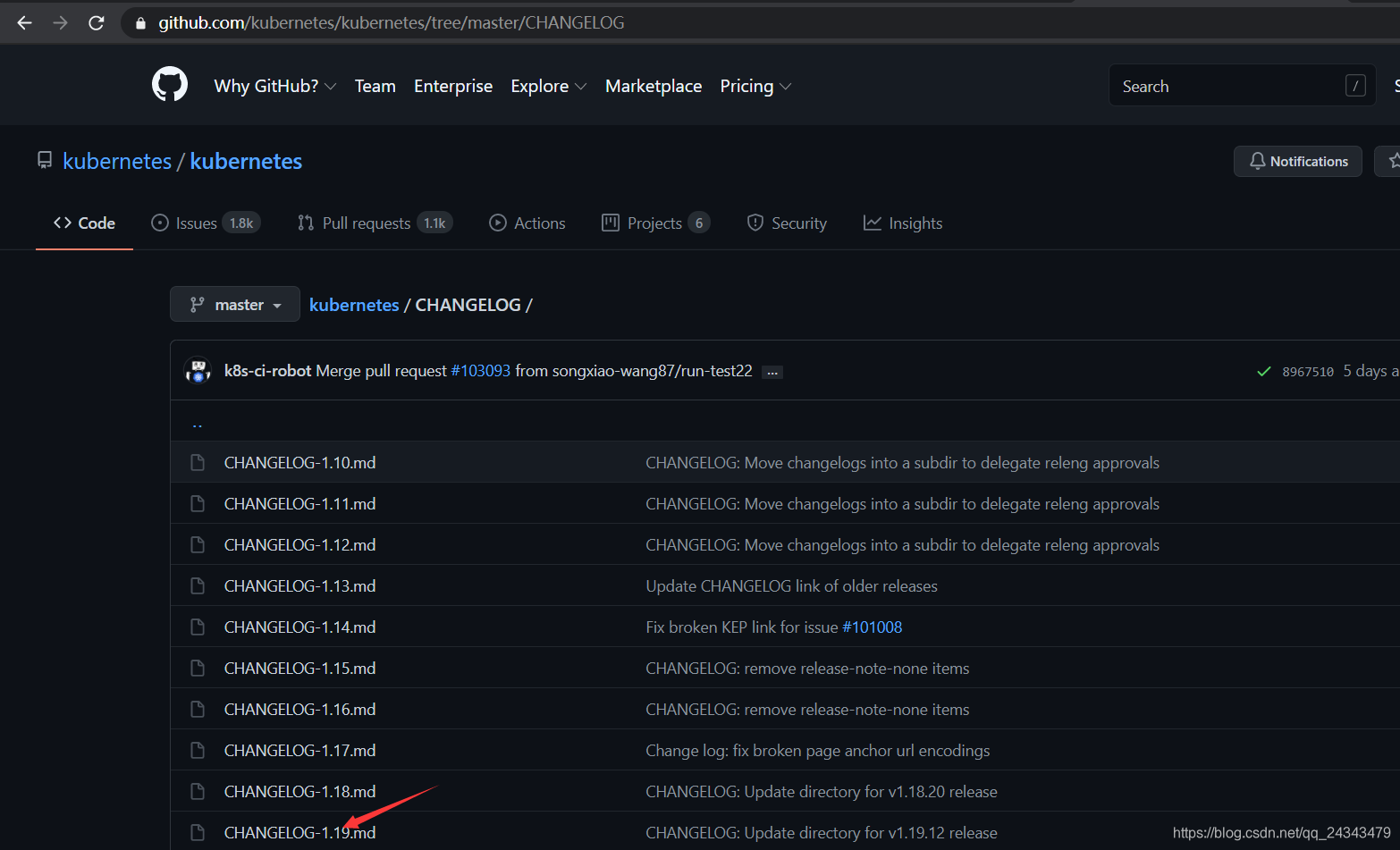

2.下载安装包

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

[root@node1 opt]# wget https://dl.k8s.io/v1.19.0/kubernetes-server-linux-amd64.tar.gz
[root@node1 opt]# tar -zxvf kubernetes-server-linux-amd64.tar.gz
[root@node1 opt]# mv kubernetes kubernetes_package
[root@node1 opt]# mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
[root@node1 opt]# cp kubernetes_package/kubernetes/server/bin/{kube-apiserver,kube-scheduler,kube-controller-manager,kubectl} /opt/kubernetes/bin/
[root@node1 opt]# ll /opt/kubernetes/bin/
total 300412
-rwxr-xr-x 1 root root 115245056 Jul  3 18:13 kube-apiserver
-rwxr-xr-x 1 root root 107249664 Jul  3 18:13 kube-controller-manager
-rwxr-xr-x 1 root root  43003904 Jul  3 18:15 kubectl
-rwxr-xr-x 1 root root  42123264 Jul  3 18:13 kube-scheduler
[root@node1 opt]# ln -s /opt/kubernetes/bin/kubectl /usr/bin/kubectl
[root@node1 opt]#
[root@node1 opt]# cp /opt/TLS/k8s/{ca-key.pem,ca.pem,server-key.pem,server.pem} /opt/kubernetes/ssl/
[root@node1 opt]# ll /opt/kubernetes/ssl/
total 16
-rw------- 1 root root 1679 Jul  3 18:20 ca-key.pem
-rw-r--r-- 1 root root 1359 Jul  3 18:20 ca.pem
-rw------- 1 root root 1679 Jul  3 18:20 server-key.pem
-rw-r--r-- 1 root root 1627 Jul  3 18:20 server.pem
[root@node1 opt]#

3.配置api-server配置文件

[root@node1 opt]# vim /opt/kubernetes/cfg/kube-apiserver.conf
KUBE_APISERVER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--etcd-servers=https://192.168.24.136:2379,https://192.168.24.137:2379,https://192.168.24.138:2379 \
--bind-address=192.168.24.136 \
--secure-port=6443 \
--advertise-address=192.168.24.136 \
--allow-privileged=true \
--service-cluster-ip-range=10.0.0.0/24 \
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction  \
--authorization-mode=RBAC,Node \
--enable-bootstrap-token-auth=true \
--token-auth-file=/opt/kubernetes/cfg/token.csv \
--service-node-port-range=30000-32767 \
--kubelet-client-certificate=/opt/kubernetes/ssl/server.pem \
--kubelet-client-key=/opt/kubernetes/ssl/server-key.pem \
--tls-cert-file=/opt/kubernetes/ssl/server.pem \
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \
--client-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \
--etcd-cafile=/opt/etcd/ssl/ca.pem \
--etcd-certfile=/opt/etcd/ssl/server.pem \
--etcd-keyfile=/opt/etcd/ssl/server-key.pem \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--audit-log-path=/opt/kubernetes/logs/k8s-audit.log
参数参数解释
–logtostderr启用日志
–v日志等级
–log-dir日志目录
–etcd-serversetcd 集群地址
–bind-address监听地址
–secure-porthttps 安全端口
–advertise-address集群通告地址
–allow-privileged启用授权
–service-cluster-ip-rangeService 虚拟 IP 地址段
–enable-admission-plugins准入控制模块
–authorization-mode认证授权，启用 RBAC 授权和节点自管理
–enable-bootstrap-token-auth启用 TLS bootstrap 机制
–token-auth-filebootstrap token 文件
–service-node-port-rangeService nodeport 类型默认分配端口范围
–kubelet-client-xxxapiserver 访问 kubelet 客户端证书
–tls-xxx-fileapiserver https 证书
–etcd-xxxfile连接 Etcd 集群证书
–audit-log-xxx审计日志
  • 启用 TLS Bootstrapping
    TLS Bootstrapping机制 TLS Bootstraping：Master apiserver 启用 TLS 认证后，Node 节点 kubelet 和 kube- proxy 要与 kube-apiserver 进行通信，必须使用 CA 签发的有效证书才可以，当 Node 节点很多时，这种客户端证书颁发需要大量工作，同样也会增加集群扩展复杂度。为了 简化流程，Kubernetes 引入了 TLS bootstraping 机制来自动颁发客户端证书，kubelet 会以一个低权限用户自动向 apiserver 申请证书，kubelet 的证书由 apiserver 动态签署。
    所以强烈建议在 Node 上使用这种方式，目前主要用于 kubelet，kube-proxy 还是由我 们统一颁发一个证书。

4.创建token文件

格式：token，用户名，UID，用户组

[root@node1 ~]# head -c 16 /dev/urandom | od -An -t x | tr -d ' '
ef80e12f86c4e342f449e64e3f94f3a9
[root@node1 opt]# vim /opt/kubernetes/cfg/token.csv
c47ffb939f5ca36231d9e3121a252940,kubelet-bootstrap,10001,"system:node- bootstrapper"

5.systemd 管理 apiserver

[root@node1 opt]# vim /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-apiserver.conf
ExecStart=/opt/kubernetes/bin/kube-apiserver $KUBE_APISERVER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
[root@node1 opt]#

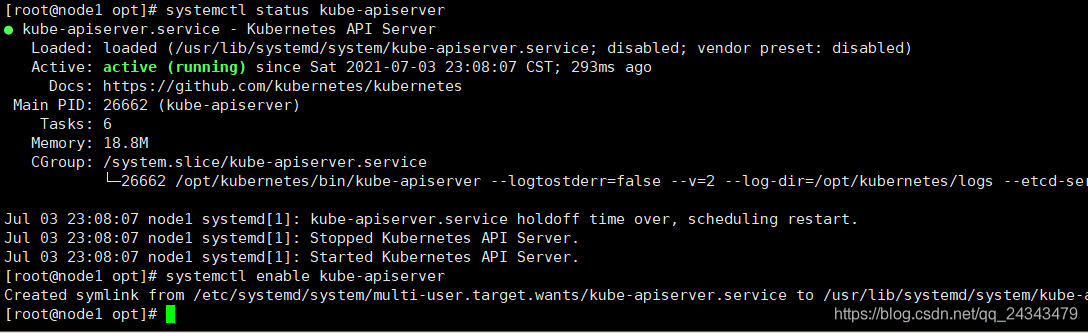

6.启动并设置开机启动

[root@node1 opt]# systemctl daemon-reload
[root@node1 opt]# systemctl start kube-apiserver
[root@node1 opt]# systemctl enable kube-apiserver

7.授权 kubelet-bootstrap 用户允许请求证书

[root@node1 opt]# kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --user=kubelet-bootstrap

在这里插入图片描述

五、部署kube-controller-manager（Master Node）

1. 创建配置文件

[root@node1 opt]# vim /opt/kubernetes/cfg/kube-controller-manager.conf
KUBE_CONTROLLER_MANAGER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--leader-elect=true \
--master=127.0.0.1:8080 \
--bind-address=127.0.0.1 \
--allocate-node-cidrs=true \
--cluster-cidr=10.244.0.0/16 \
--service-cluster-ip-range=10.0.0.0/24 \
--cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \
--cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem \
--root-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-private-key-file=/opt/kubernetes/ssl/ca-key.pem \
--experimental-cluster-signing-duration=87600h0m0s"

2. systemd 管理 controller-manager

[root@node1 opt]# vim /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-controller-manager.conf
ExecStart=/opt/kubernetes/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target

3. 启动并设置开机启动

[root@node1 opt]# systemctl daemon-reload
[root@node1 opt]# systemctl start kube-controller-manager
[root@node1 opt]# systemctl enable kube-controller-manager

六、部署 kube-scheduler（Master Node）

1. 创建配置文件

[root@node1 opt]# vim /opt/kubernetes/cfg/kube-scheduler.conf

2. systemd 管理 kube-scheduler

[root@node1 opt]# vim /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-scheduler.conf
ExecStart=/opt/kubernetes/bin/kube-scheduler $KUBE_SCHEDULER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target

3. 启动并设置开机启动

[root@node1 opt]# systemctl daemon-reload
[root@node1 opt]# systemctl status kube-scheduler
[root@node1 opt]# systemctl enable kube-scheduler

七、查看集群状态

[root@node1 opt]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-1               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}
etcd-2               Healthy   {"health":"true"}
[root@node1 opt]#

八、部署 kubelet(Worker Node)

1. 创建kubelet.conf配置文件

[root@node2 ~]# mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
[root@node2 ~]# vim /opt/kubernetes/cfg/kubelet.conf
KUBELET_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--hostname-override=node2 \
--network-plugin=cni \
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \
--config=/opt/kubernetes/cfg/kubelet-config.yml \
--cert-dir=/opt/kubernetes/ssl \
--pod-infra-container-image=lizhenliang/pause-amd64:3.0"

2.配置kubelet-config.yml参数文件

[root@node2 ~]# vim /opt/kubernetes/cfg/kubelet-config.yml
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: cgroupfs
clusterDNS:
- 10.0.0.2
clusterDomain: cluster.local
failSwapOn: false
authentication:
	anonymous:
		enabled: false
	webhook:
		cacheTTL: 2m0s
		enabled: true
	x509:
		clientCAFile: /opt/kubernetes/ssl/ca.pem
authorization:
	mode: Webhook
	webhook:
		cacheAuthorizedTTL: 5m0s
		cacheUnauthorizedTTL: 30s
evictionHard:
imagefs.available: 15%
memory.available: 100Mi
nodefs.available: 10%
nodefs.inodesFree: 5%
maxOpenFiles: 1000000
maxPods: 110

3.生成bootstrap.kubeconfig 配置文件

[root@node1 ~]# scp -r /opt/kubernetes_package/kubernetes/server/bin/{kubectl,kubelet,kube-proxy} root@node2:/opt/kubernetes/bin/
[root@node1 ~]# scp -r /opt/kubernetes/ssl/ca.pem root@node2:/opt/kubernetes/ssl/
[root@node2 ]# cd /opt/kubernetes/cfg
[root@node2 cfg]# export KUBE_APISERVER="https://192.168.24.136:6443"
  145
[root@node2 cfg]# export PORT TOKEN="c47ffb939f5ca36231d9e3121a252940"
[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-cluster kubernetes \
--certificate-authority=/opt/kubernetes/ssl/ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=bootstrap.kubeconfig
[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-credentials "kubelet-bootstrap" \
--token=${TOKEN} \
--kubeconfig=bootstrap.kubeconfig
[root@node2 cfg]#
[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-context default \
--cluster=kubernetes \
--user="kubelet-bootstrap" \
--kubeconfig=bootstrap.kubeconfig
[root@node2 cfg]# /opt/kubernetes/bin/kubectl config use-context default --kubeconfig=bootstrap.kubeconfig
[root@node2 cfg]# cat bootstrap.kubeconfig
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUR2akNDQXFhZ0F3SUJBZ0lVRTdyUWVKS2wrNGdxOXNPMzQvclBKdDRpZ21Rd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1pURUxNQWtHQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbAphV3BwYm1jeEREQUtCZ05WQkFvVEEyczRjekVQTUEwR0ExVUVDeE1HVTNsemRHVnRNUk13RVFZRFZRUURFd3ByCmRXSmxjbTVsZEdWek1CNFhEVEl4TURjd016QTVORFl3TUZvWERUSTJNRGN3TWpBNU5EWXdNRm93WlRFTE1Ba0cKQTFVRUJoTUNRMDR4RURBT0JnTlZCQWdUQjBKbGFXcHBibWN4RURBT0JnTlZCQWNUQjBKbGFXcHBibWN4RERBSwpCZ05WQkFvVEEyczRjekVQTUEwR0ExVUVDeE1HVTNsemRHVnRNUk13RVFZRFZRUURFd3ByZFdKbGNtNWxkR1Z6Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBcXdQcXFUM0RTZE1odVlGQUExVngKSFpkU1NBQ0pRVkN3Mmdvb2JHM0dTaGh3bmY3dzc2MDF0eE5NbUsraEpGNVRBWUNnS05PU2svQ3lUT0wwY0NuNgprcmQ3TEVwNkVzZzl6cXQzN2VaRzExN0MzRXZhR25lZmY0NHUyM2xJSUJQUEJMam84c2Myd2d4SFI4bGREbWlECng0bWhyY3VoVzBHdjluUllUbDdFR2Z0OHlFRFh4SXdFNDFhejgxR0dHN29jd0tZK3BoaUx4TjVkbWZEWFpCWU8KQmdmdEtBOHBjNU9QVVlrUHhXOUcyQStNdkhnTlhBa0xha2lrc0h1MGkxZUxobWQyRUhDeEttbVJLWW1ZUkYxYwpRcy9yd0ZQS1ZHRUpRUyt1NkVDbHZvTGpqZ1VPcE41Ty9aYWxIdjA0aUdkTGd5a2x3ZjJ3RlRqY1BwalYxSFJXCnBRSURBUUFCbzJZd1pEQU9CZ05WSFE4QkFmOEVCQU1DQVFZd0VnWURWUjBUQVFIL0JBZ3dCZ0VCL3dJQkFqQWQKQmdOVkhRNEVGZ1FVdzIzZWN2UzJ6VVNrY0pSOEtPcG83eVRZaytzd0h3WURWUjBqQkJnd0ZvQVV3MjNlY3ZTMgp6VVNrY0pSOEtPcG83eVRZaytzd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFIUzE0ZVB5dGJ2VHZMc0E0Z3d3CmZqR09MeElRNi9iQ2hESml1Q3RxUG5XNld0VC9NdHBqbVFKN0xlMlFFejVMMitLbERsSmdWcE9HWFdqSkY2NHoKZUFDTHhyYlM0TEhhVFZZdnBHM3V0by8rdVNQRkYwTlU3QUdGZnBOVEtMK0I0TTdidUVuYUFBSnpKQnNYSXhqeQowdDdPeEljUWNlN05IRTNTUkhlaHVPbkw1Ymk0K09KbkpwaVYzK1I4ZUsvU3g3ZTRrRXFLdG9mYmY3M0dhbE9vClQzZEh3TzVkeFNkT1B4SzFCbUtHb2pZUEdtUTNrSnM2Nmw0ZmxFZGpKV2prSDd3MWdXcTZHaGx1ZXRFVFlUTzIKQzRlUVpJSTJjZnRRTkh6Q2hJcHM1cXVoNGxackYzaStITHJpbjlxR3Y2N0YwREtwRlAwMXgzVkFTUkwxK2xHcgpobUE9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
    server: https://192.168.24.136:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kubelet-bootstrap
  name: default
current-context: ""
kind: Config
preferences: {}
users:
- name: kubelet-bootstrap
  user:
    token: c47ffb939f5ca36231d9e3121a252940
[root@node2 cfg]#

4. systemd 管理 kubelet

[root@node2 cfg]# vim /usr/lib/systemd/system/kubelet.service
[Unit]
Description=Kubernetes Kubelet
After=docker.service

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kubelet.conf
ExecStart=/opt/kubernetes/bin/kubelet $KUBELET_OPTS

Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

5. 启动并设置开机启动

[root@node2 cfg]# systemctl daemon-reload
[root@node2 cfg]# systemctl start kubelet
[root@node2 cfg]# systemctl enable kubelet

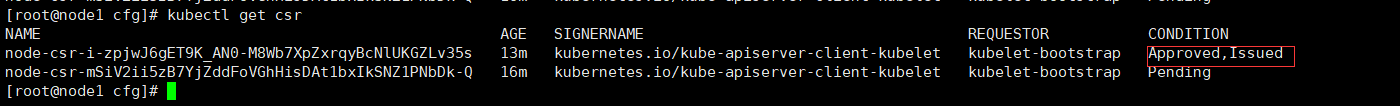

6.批准 kubelet 证书申请并加入集群

[root@node1 cfg]# kubectl get csr
[root@node1 cfg]# kubectl certificate approve node-csr-i-zpjwJ6gET9K_AN0-M8Wb7XpZxrqyBcNlUKGZLv35s
[root@node1 cfg]# kubectl get node
NAME    STATUS     ROLES    AGE   VERSION
node2   NotReady   <none>   80s   v1.19.0
[root@node1 cfg]#

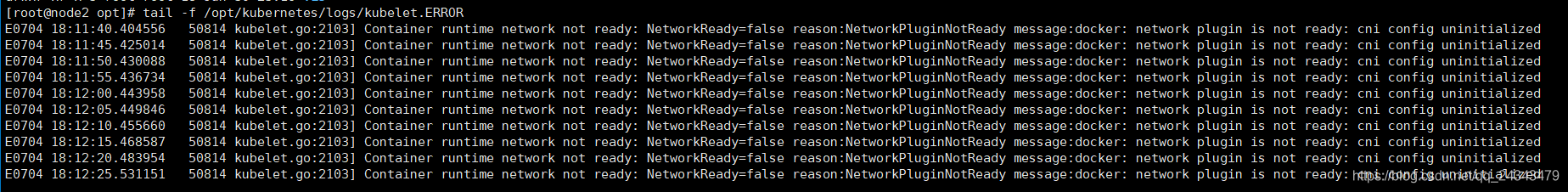

注：由于网络插件还没有部署，节点会没有准备就绪 NotReady

在这里插入图片描述在这里插入图片描述

九、部署 kube-proxy

1.创建kube-proxy.conf

[root@node2 cfg]# vim /opt/kubernetes/cfg/kube-proxy.conf
KUBE_PROXY_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"

2.配置参数文件

[root@node2 cfg]# vim /opt/kubernetes/cfg/kube-proxy-config.yml
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 0.0.0.0:10249
clientConnection:
        kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: node2
clusterCIDR: 10.0.0.0/24

3.生成 kube-proxy.kubeconfig

# master节点上生成
[root@node1 k8s]# cd /opt/TLS/k8s
[root@node1 k8s]# vim kube-proxy-csr.json
{
	"CN": "system:kube-proxy",
	"hosts": [],
	"key": {
		"algo": "rsa",
		"size": 2048
	},
	"names": [
		{
			"C": "CN",
			"L": "BeiJing",
			"ST": "BeiJing",
			"O": "k8s",
			"OU": "System"
		}
	]
}

[root@node1 k8s]# /usr/local/cfssl/cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | /usr/local/cfssl/cfssljson -bare kube-proxy
[root@node1 k8s]# scp -r {kube-proxy-key.pem,kube-proxy.pem} root@node2:/opt/kubernetes/ssl/

4.生成kubeconfig

[root@node2 cfg]# export KUBE_APISERVER="https://192.168.24.136:6443"
[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-cluster kubernetes \
--certificate-authority=/opt/kubernetes/ssl/ca.pem \
--embed-certs=true \
--server=${KUBE_APISERVER} \
--kubeconfig=kube-proxy.kubeconfig

[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-credentials kube-proxy \
--client-certificate=/opt/kubernetes/ssl/kube-proxy.pem \
--client-key=/opt/kubernetes/ssl/kube-proxy-key.pem \
--embed-certs=true \
--kubeconfig=kube-proxy.kubeconfig

[root@node2 cfg]# /opt/kubernetes/bin/kubectl config set-context default \
--cluster=kubernetes \
--user=kube-proxy \
--kubeconfig=kube-proxy.kubeconfig

[root@node2 cfg]# /opt/kubernetes/bin/kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig

5. systemd 管理 kube-proxy

[root@node2 cfg]# vim /usr/lib/systemd/system/kube-proxy.service
[Unit]
Description=Kubernetes Proxy
After=network.target

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-proxy.conf
ExecStart=/opt/kubernetes/bin/kube-proxy $KUBE_PROXY_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

6. 启动并设置开机启动

[root@node2 cfg]# systemctl daemon-reload
[root@node2 cfg]# systemctl start kube-proxy
[root@node2 cfg]# systemctl enable kube-proxy

十、部署 CNI 网络(Master Node)

master下载cni包，解压后，部署好网络插件，/opt/cni需要拷贝到其他节点上,其他节点也需要

[root@node1 opt]# wget https://github.com/containernetworking/plugins/releases/download/v0.8.6/cni-plugins-linux-amd64-v0.8.6.tgz
[root@node1 opt]# tar -zxvf cni-plugins-linux-amd64-v0.8.6.tgz -C /opt/cni/bin/
[root@node1 opt]# cd /opt/kubernetes/cfg
[root@node1 cfg]# wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
#默认镜像地址无法访问，修改为 docker hub 镜像仓库。
[root@node1 cfg]# sed -i -r "s#quay.io/coreos/flannel:.*-amd64#lizhenliang/flannel:v0.12.0-amd64#g" kube-flannel.yml
[root@node1 cfg]# scp -r /opt/cni root@node2:/opt/
[root@node1 cfg]# kubectl apply -f kube-flannel.yml

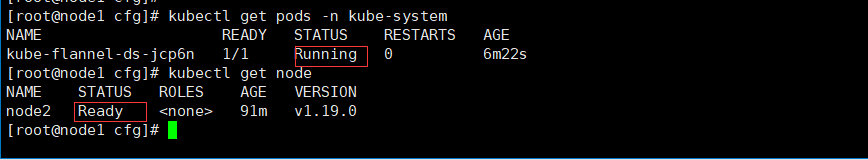

[root@node1 cfg]# kubectl get pods -n kube-system
NAME                    READY   STATUS    RESTARTS   AGE
kube-flannel-ds-jcp6n   1/1     Running   0          6m22s
[root@node1 cfg]# kubectl get node
NAME    STATUS   ROLES    AGE   VERSION
node2   Ready    <none>   91m   v1.19.0
[root@node1 cfg]#

在这里插入图片描述

1.授权 apiserver 访问 kubelet

[root@node1 cfg]# vim apiserver-to-kubelet-rbac.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
        annotations:
                rbac.authorization.kubernetes.io/autoupdate: "true"
        labels:
                kubernetes.io/bootstrapping: rbac-defaults
        name: system:kube-apiserver-to-kubelet
rules:
        - apiGroups:
                - ""
          resources:
                - nodes/proxy
                - nodes/stats
                - nodes/log
                - nodes/spec
                - nodes/metrics
                - pods/log
          verbs:
            - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
        name: system:kube-apiserver
        namespace: ""
roleRef:
        apiGroup: rbac.authorization.k8s.io
        kind: ClusterRole
        name: system:kube-apiserver-to-kubelet
subjects:
        - apiGroup: rbac.authorization.k8s.io
        kind: User
        name: kubernetes

十一、部署node3节点

1. 拷贝已部署好的 Node 相关文件到新节点

[root@node2 opt]# scp -r /opt/kubernetes root@node3:/opt/
[root@node2 opt]# scp -r /usr/lib/systemd/system/{kubelet,kube-proxy}.service root@node3:/usr/lib/systemd/system/

2. 删除 kubelet 证书和 kubeconfig 文件

[root@node3 cfg]# rm -rf /opt/kubernetes/cfg/kubelet.kubeconfig /opt/kubernetes/ssl/kubelet*
[root@node3 cfg]#

注：这几个文件是证书申请审批后自动生成的，每个 Node 不同，必须删除重新生成。

3. 修改主机名

[root@node3 cfg]# vim /opt/kubernetes/cfg/kubelet.conf
--hostname-override=node3
[root@node3 cfg]# vim /opt/kubernetes/cfg/kube-proxy-config.yml
hostnameOverride: node3
[root@node3 cfg]#

4. 启动并设置开机启动

[root@node3 cfg]# systemctl daemon-reload
[root@node3 cfg]# systemctl start kubelet
[root@node3 cfg]# systemctl enable kubelet
[root@node3 cfg]# systemctl start kube-proxy
[root@node3 cfg]# systemctl enable kube-proxy

5. 在 Master 上批准新 Node kubelet 证书申请

[root@node1 cfg]# kubectl certificate approve node-csr-V5KygJs8u7OWvFB2QI2FyiqdLJNwVpDyHnBhVmrC4oQ
certificatesigningrequest.certificates.k8s.io/node-csr-V5KygJs8u7OWvFB2QI2FyiqdLJNwVpDyHnBhVmrC4oQ approved

十二、验证测试

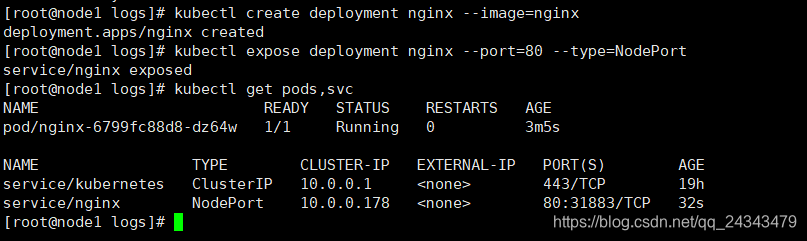

[root@node1 logs]# kubectl create deployment nginx --image=nginx
deployment.apps/nginx created
[root@node1 logs]# kubectl expose deployment nginx --port=80 --type=NodePort
service/nginx exposed

在这里插入图片描述

总结说明

1.kubectl get node 不是Ready状态

在这里插入图片描述
我这里的问题是，/opt/cni/ 插件从节点机器上没有部署

剑若问天
关注
  • 2
    点赞
  • 踩
  • 0
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
K8S部署skywalking
运维@小兵的博客
10-17 4553
文章目录一、安装K8S集群kubeadm部署K8s集群V1.19.0二、部署skywalking`2.1.创建命名空间``2.2.给节点打标签``2.3.skywalking-oap.yml``2.4.skywalking-ui.yml``2.5.访问`三、sidecar 模式挂载 agent四、微服务对接skywalking 一、安装K8S集群 kubeadm部署K8s集群V1.19.0 二、部署skywalking 2.1.创建命名空间 kubectl create ns skywalking 2
k8s 搭建 skywalking
lswzw的博客
04-01 3246
k8s 搭建 skywalking 仅用于测试环境es没做持久化,正式环境最好还是把es数据做一下持久化。 agent服务配置 下载agent 这里选择的是8.1.0版本须要对应 https://mirrors.tuna.tsinghua.edu.cn/apache/skywalking/8.1.0/apache-skywalking-apm-8.1.0.tar.gz 可以使用pvc方式或hostpath方式把agent目录挂载到容器内。 服务配置 启动项目jar前加上javaagent文件地址。 - c
项目集成SkyWalking，基于k8s搭建
qq_41349888的博客
05-23 816
可选节点，控制保留的归档文件的最大数量，超出数量就删除旧文件假设设置每个月滚动，且是6， 则只保存最近6个月的文件，删除之前的旧文件。-- 以下 每个配置的 filter 是过滤掉输出文件里面，会出现高级别文件，依然出现低级别的日志信息，通过filter 过滤只记录本级别的日志 -->--日志发送到logstash=>elasticSearch=>kibana start-->-- 日志输出规则 根据当前ROOT 级别，日志输出时，级别高于root默认的级别时 会输出 -->
k8s安装skywalking
u011830181的博客
04-07 3460
通过helm安装skywalking，个性化配置skywalking的保存存储时间
K8S 部署全链路监控skywalking8.7和9.1
ice_bird的专栏
12-21 4716
Skywalking是一个可观测性分析平台（Observability Analysis Platform简称OAP）和应用性能管理系统（Application Performance Management简称APM）。提供分布式链路追踪、服务网格(Service Mesh)遥测分析、度量(Metric)聚合和可视化一体化解决方案。Agent多语言支持Java, .Net Core, PHP, NodeJS, Golang, LUA, C++, Python。 使用nacos统一注册服务，ES存.
k8s安装部署
02-16
kubernetes的单机版安装和集群版安装，包括etcd和docker的安装
k8s安装部署.rar
06-13
k8s安装部署
K8s安装部署文档说明记录
06-29
K8s安装部署文档说明记录，适用于初学者安装调试部署参考材料
k8s安装部署教程.md
最新发布
06-13
附件是k8s安装部署教程，文件绿色安全，请大家放心下载，仅供交流学习使用，无任何商业目的！
K8S安装部署
HanYuHao11的博客
02-26 996
了解K8S的安装部署以及相关的组件
spring-cloud+skywalking链路跟踪1
08-08
SpringCloud+skywalking链路跟踪环境准备基础环境CentOS 6.9Eclpse Oxygen.2 Release (4.7.2)SkyWa
skywalking-kubernetes：Apache SkyWalking Kubernetes部署Helm Chart
02-03
skywalking-kubernetes：Apache SkyWalking Kubernetes部署Helm Chart
skywalking学习之路---skywalking环境从零搭建部署
Lee_0202的博客
03-26 5666
介绍 SkyWalking项目是由华为大牛吴晟开源的个人项目，目前已经加入Apache孵化器。SkyWalking项目的核心目标是针对微服务、Cloud Native、容器化架构提供应用性能监控和分布式调用链追踪功能，目前链路追踪和监控应用支持的组件包括主流框架和容器，如dubbo、motan、spring boot、spring cloud等。 整体架构如下图示： 整体主要分...
使用Kuboard管理工具k8s容器化部署skywalking实现链路追踪监控
枕上白书的博客
11-25 3179
因为需要使用Nacos作为注册中心，Mysql来存储。需要对skywalking-oap进行自定义。 一、自定义镜像 注意：因为skywalking-oap中没有Mysql驱动包，所以需要下载。 下载mysql驱动Jar包，我使用的是8.0.15版本，下载地址： https://cdn.mysql.com//archives/mysql-connector-java-8.0/mysql-connector-java-8.0.15.zip 新建dockerfile文件，一定要将mysql驱动包放在和dock
k8s部署EFK-elasticsearch+fluentd+kibana
qq_36200932的博客
03-07 5189
参考地址 https://kubernetes.io/docs/concepts/services-networking/service/#headless-services https://www.qikqiak.com/post/install-efk-stack-on-k8s/
k8s搭建部署（超详细）
热门推荐
qq_40954652的博客
03-01 11万+
简介 Kubernetes是Google 2014年创建管理的，是Google 10多年大规模容器管理技术Borg的开源版本。它是容器集群管理系统，是一个开源的平台，可以实现容器集群的自动化部署、自动扩缩容、维护等功能。 通过Kubernetes你可以： 快速部署应用 快速扩展应用 无缝对接新的应用功能 节省资源，优化硬件资源的使用 Kubernetes 特点: 可移植: 支持公有云，私有云，混合云，多重云（multi-cloud） 可扩展: 模块化, 插件化, 可挂载, 可组合 自动化: 自动部署，
K8S 安装部署（一）
weixin_44311939的博客
06-01 269
安装要求 准备三台Centos7虚拟机，2C4G 40G硬盘，搭建一主两从K8S集群，Master节点必须至少分配2核，Centos 需要访问外网，需要拉取镜像 Centos 7 安装不在赘述，建议安装最小版本即可，不需要可视化界面 虚拟机准备 如果Centos安装的版本为最小版本，建议首先执行下列命令，安装必要工具 yum install -y vim yum install -y net-tools yum install -y wget 关闭防火墙 systemctl stop f
部署k8s集群（k8s集群搭建详细实践版）
tiny_du的博客
03-29 8万+
k8s集群的搭建过程，本人实操记录，图文并茂，非常详细！
k8s安装部署微服务
05-12
1. 安装Kubernetes集群：可以使用工具如kubeadm等来进行安装。 2. 创建Kubernetes Namespace：在Kubernetes中，Namespace是对应用程序进行隔离的一种机制。 3. 创建Deployment对象：Deployment对象定义了应用程序...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
