项目描述

智能组卷平台（遗传算法）
分为3个端：管理员端，老师端，学生端
主要功能包括登录，学生管理，老师管理，题目管理，试卷管理，
知识管理。任务管理，教育管理，试卷管理，批卷管理，

运行环境

jdk8+redis+mysql+IntelliJ IDEA+maven

项目技术

springboot+layui+vue

项目截图

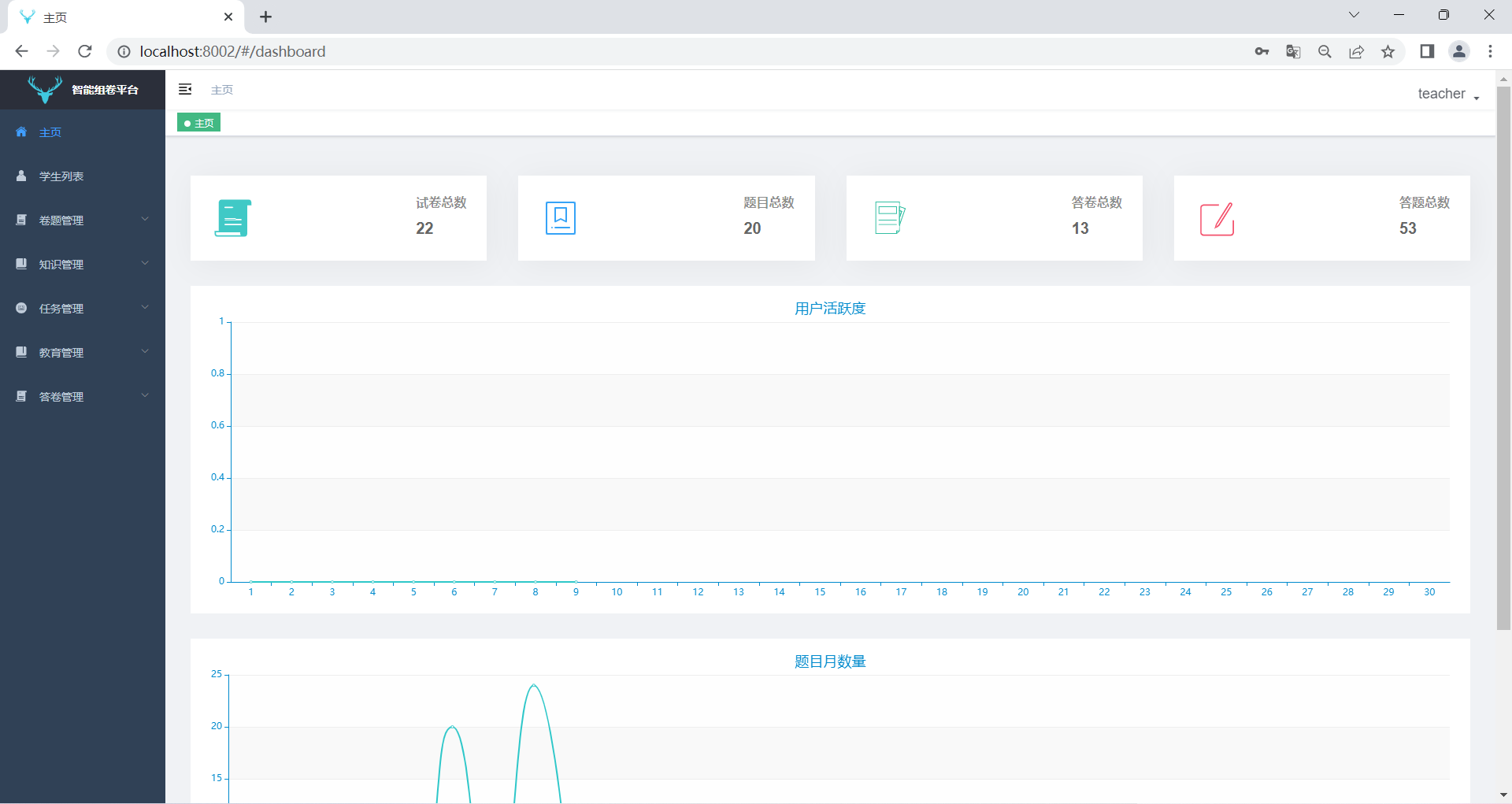

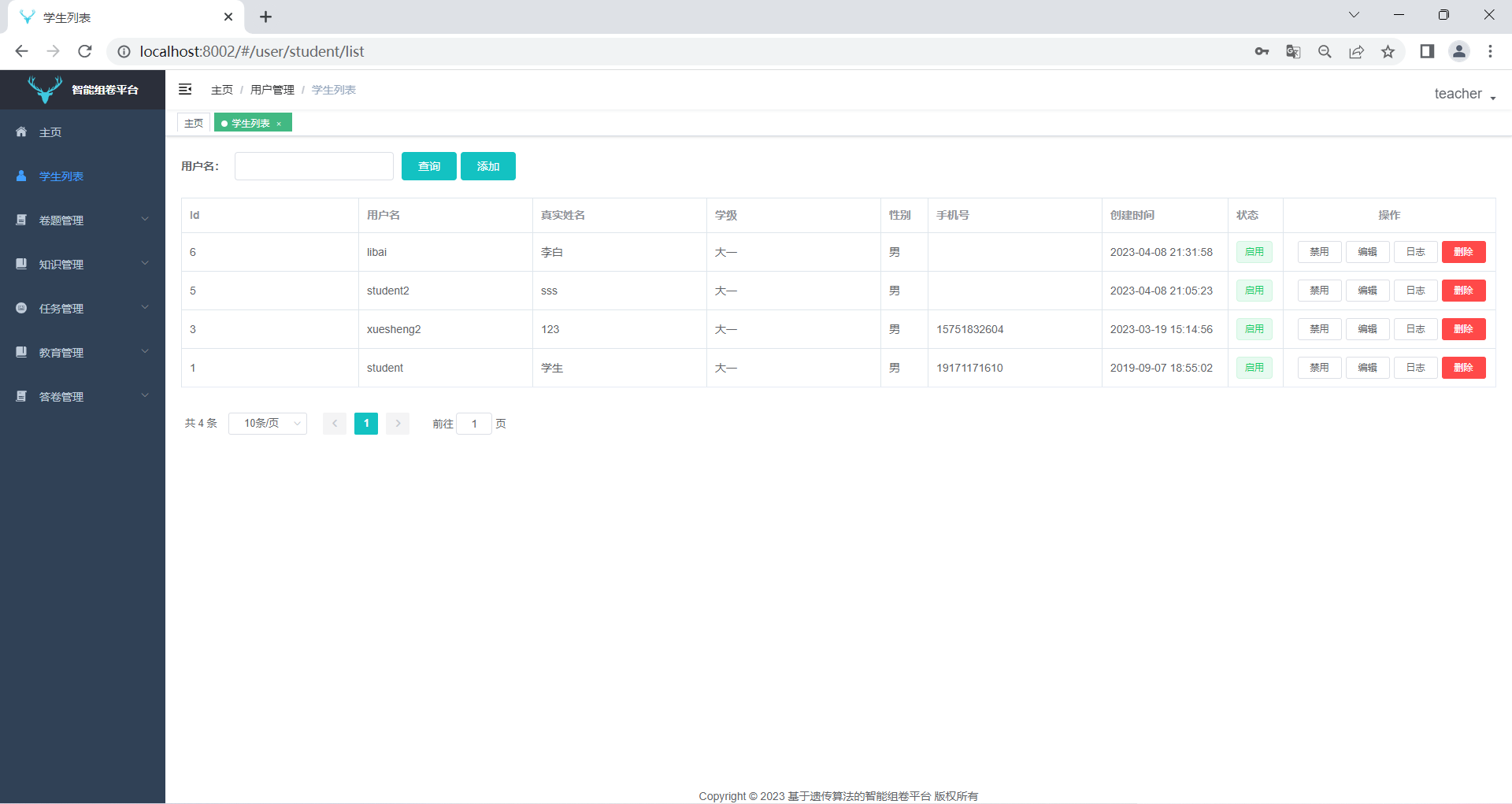

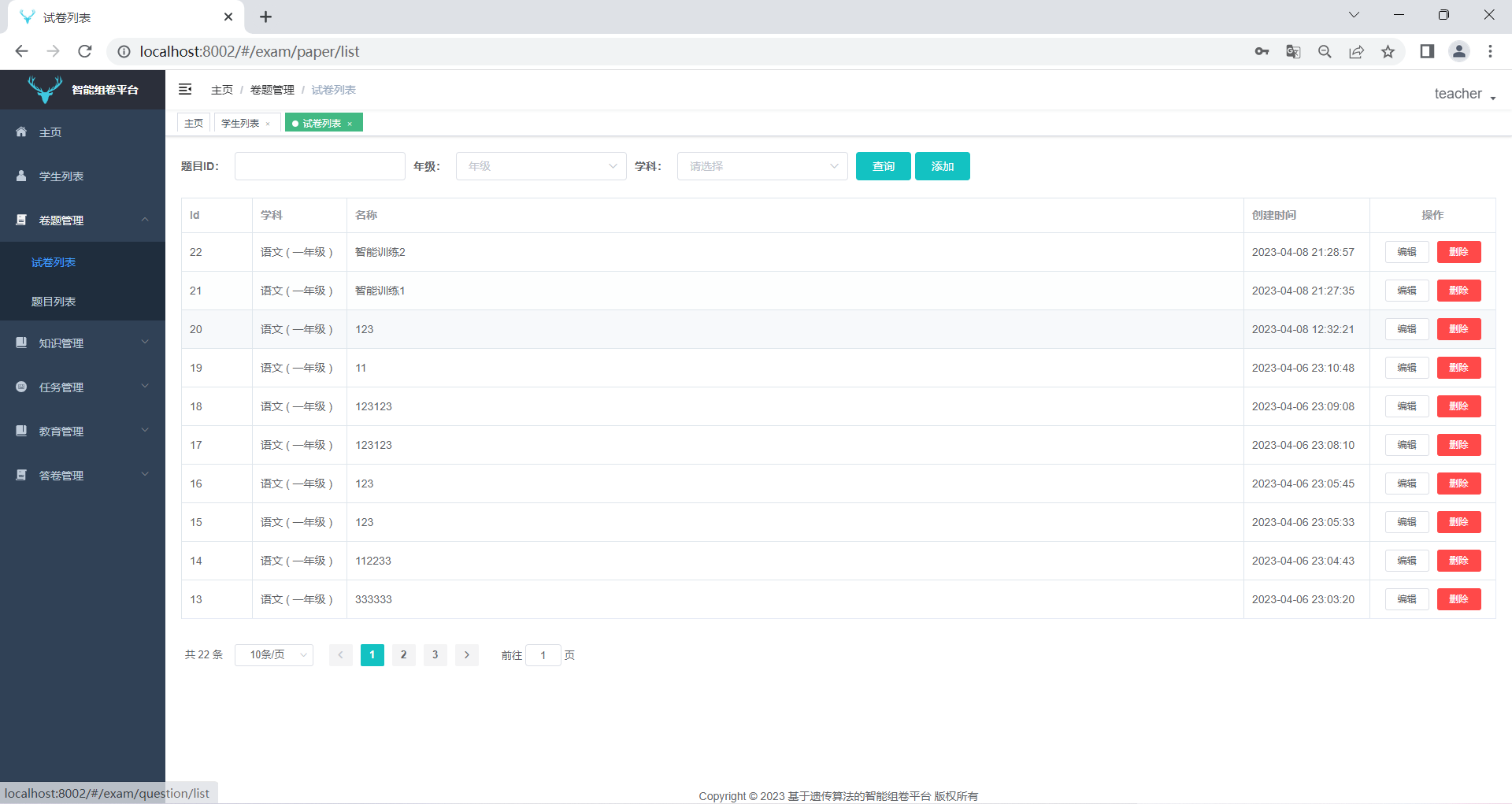

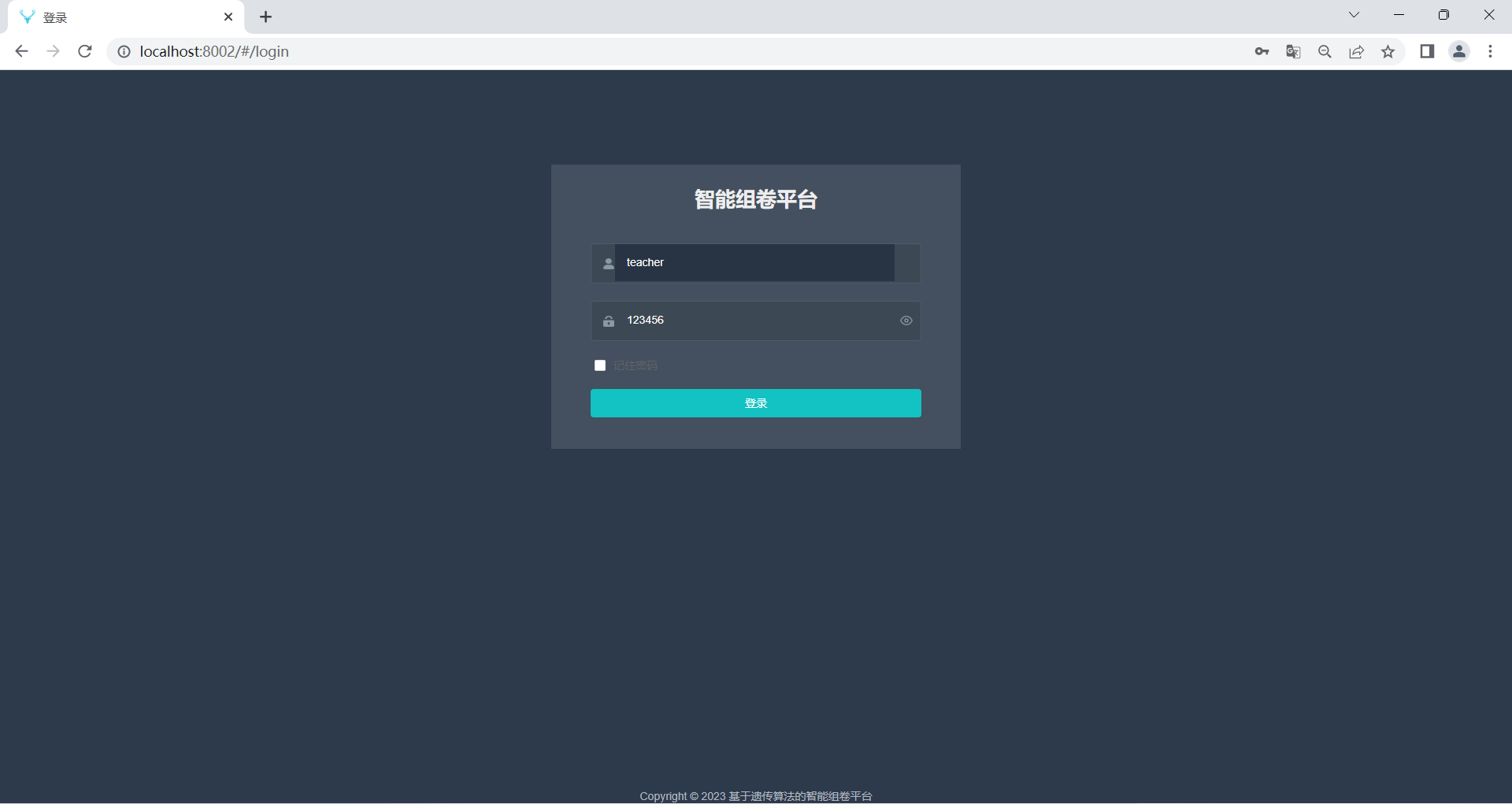

老师端

在这里插入图片描述

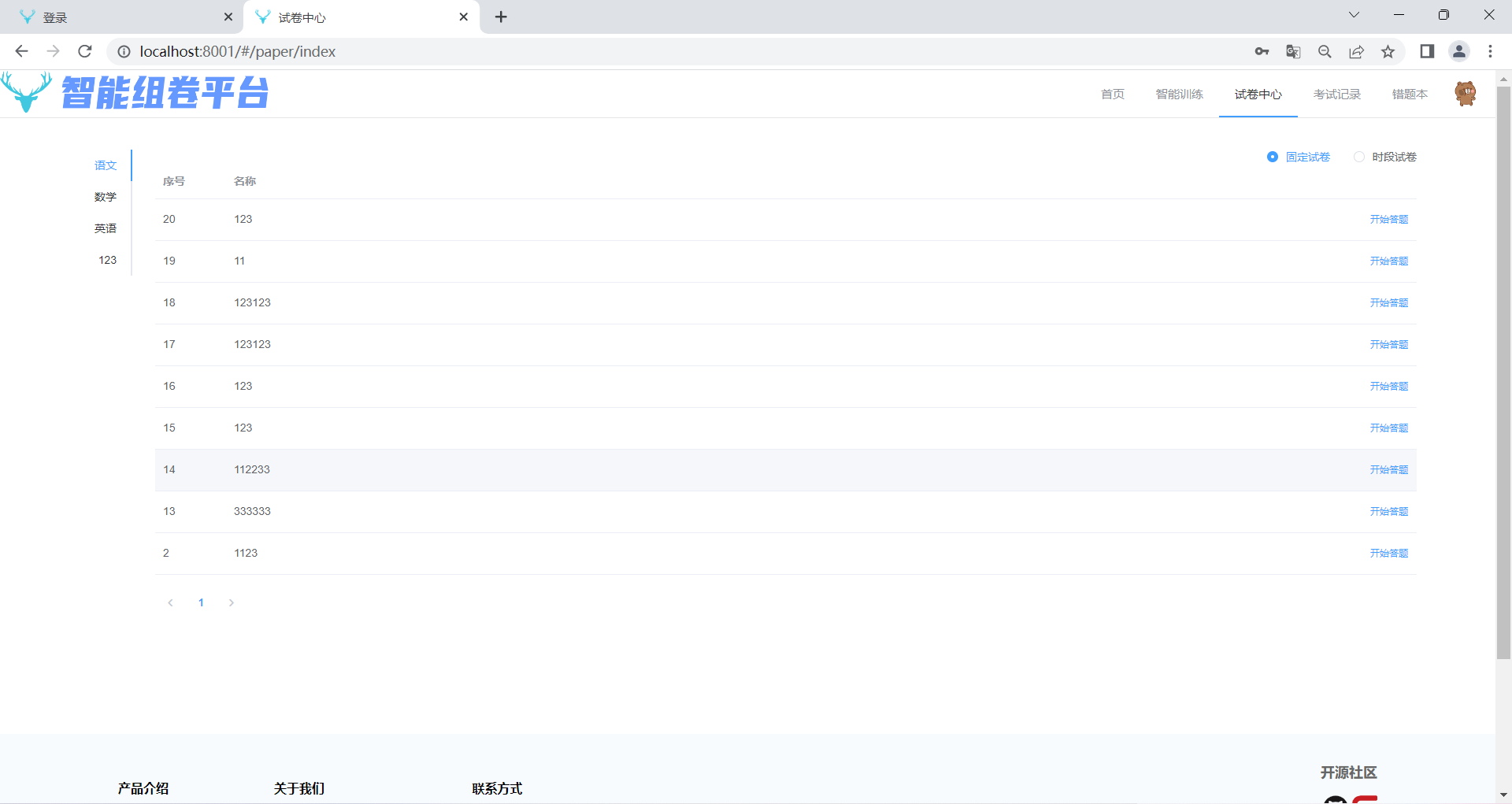

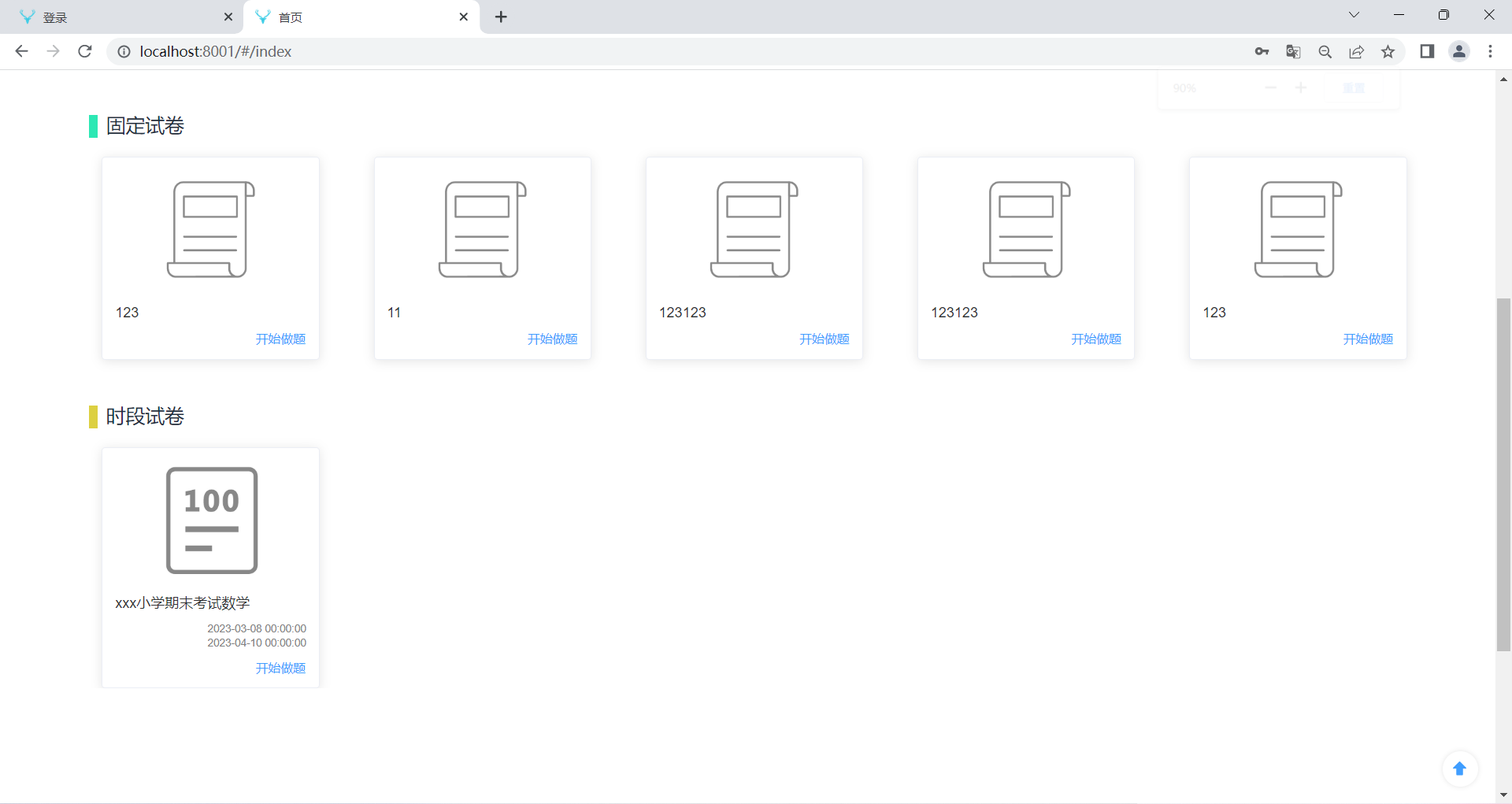

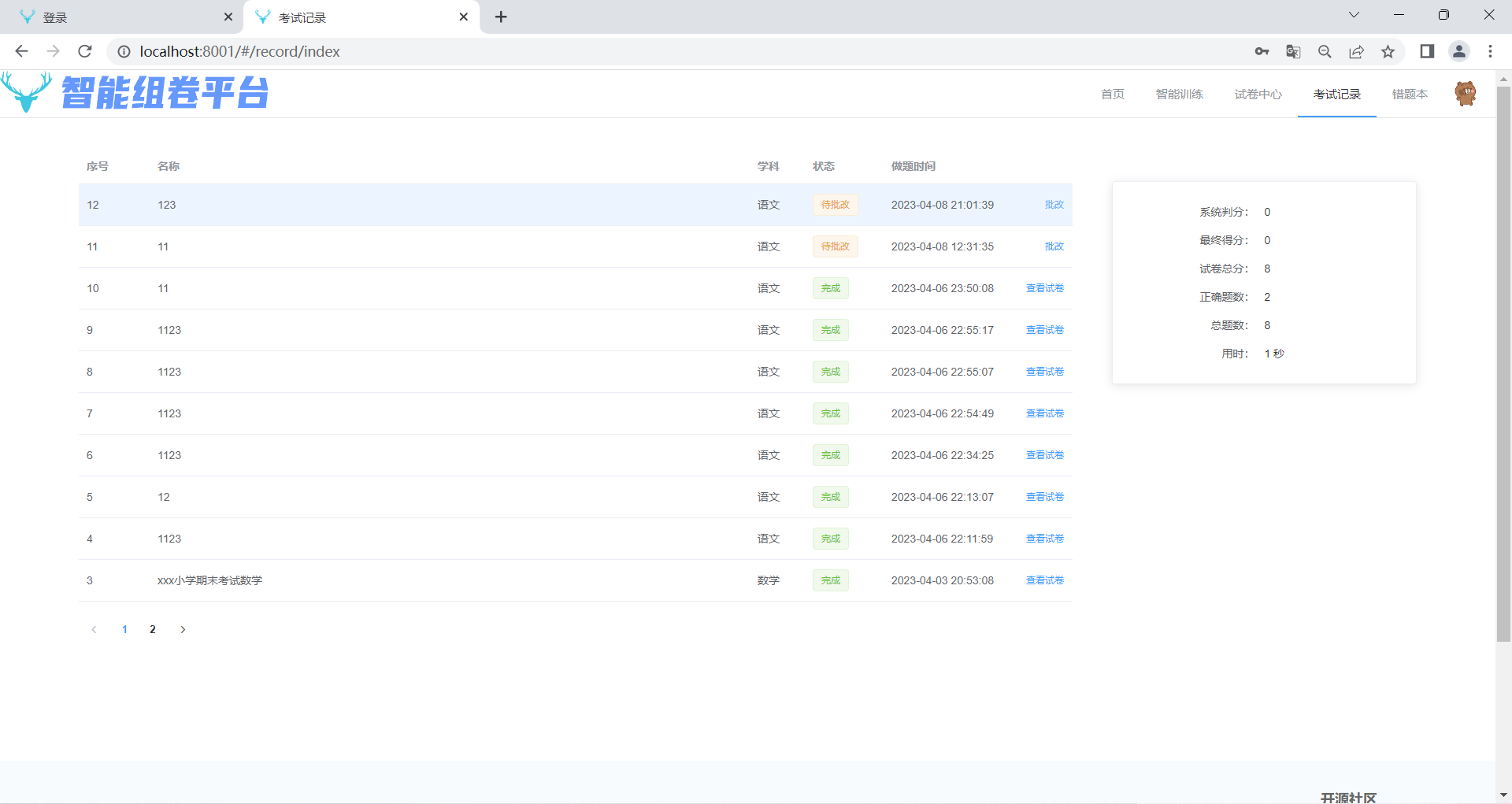

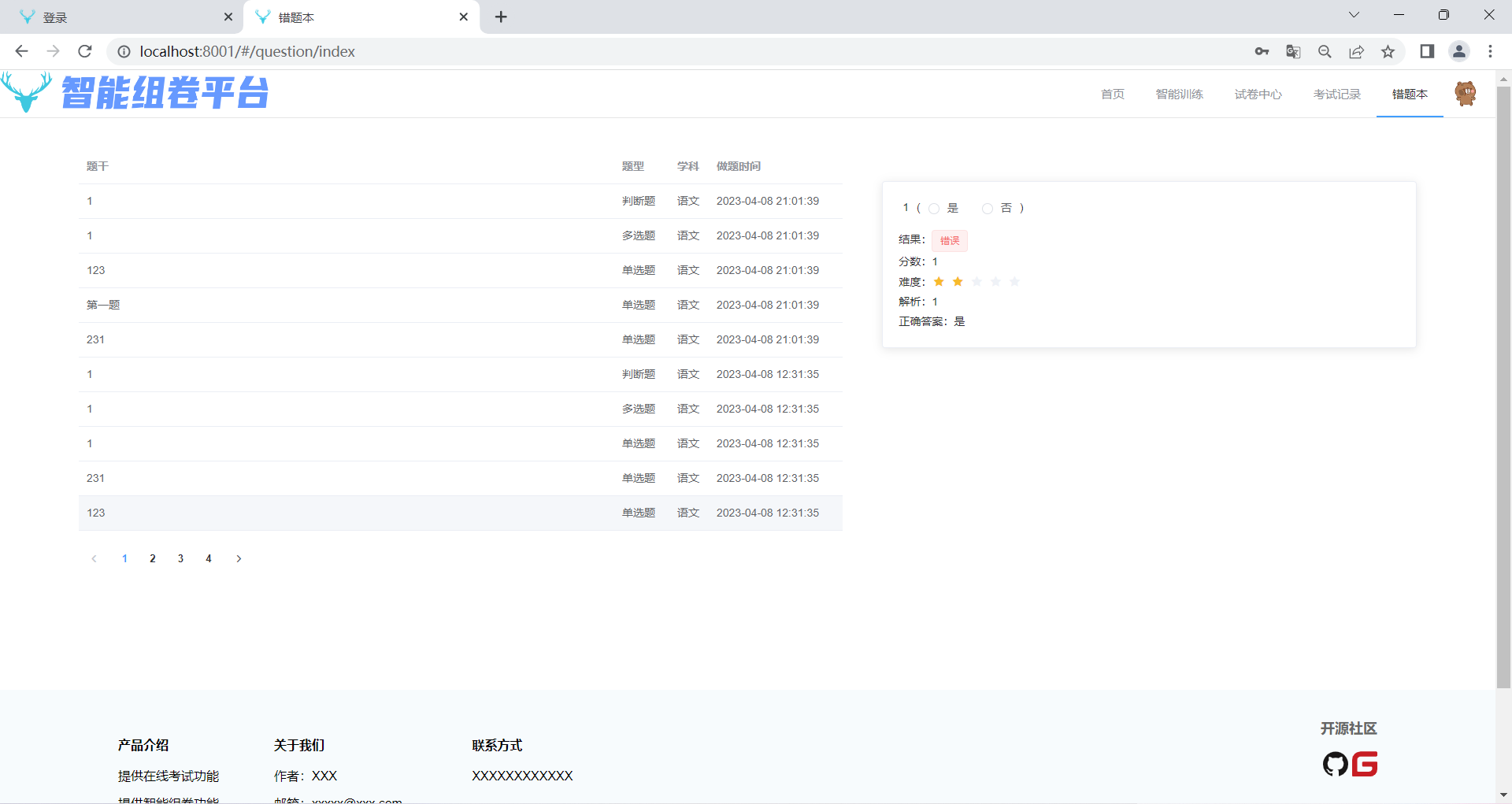

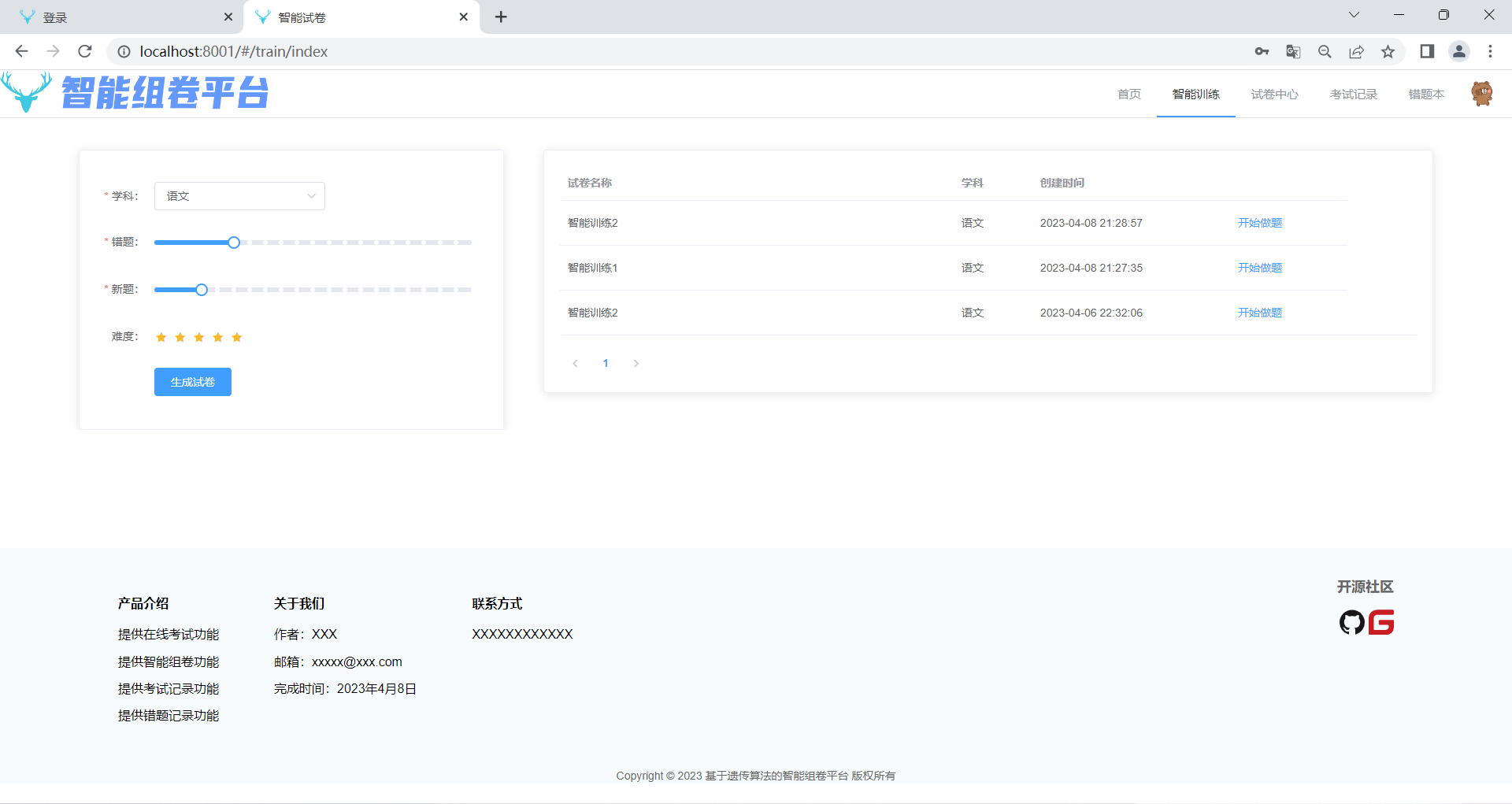

学生端

在这里插入图片描述

部分代码

遗传算法的使用


/**
 * 遗传算法
 */
public class GAUtil {

    //编译概率
    private static final double mutationRate = 0.085;

    //精英主义
    private static final boolean elitism = true;

    //淘汰数组大小
    private static final int tournamentSize = 5;



    /**
     * 种群进化
     * @param pop 种群对象
     * @param rule 进化规则
     * @return
     */
    public static Population evolvePopulation(Population pop, Rule rule,QuestionService questionService){

        Population newPop = new Population(pop.getLength());
        int elitismOffset;
        //精英主义
        if(elitism){
            elitismOffset = 1;
            //保留上一代最优秀的个体
            ExamPaperAlgotithmBean fitness = pop.getFitness();
            fitness.setId(0);
            newPop.setPaper(0,fitness);
        }

        //种群交叉操作，从当前的种群pop来创建下一代种群newPop
        for (int i = elitismOffset; i < newPop.getLength(); i++){
            //得到两个较优选择
            ExamPaperAlgotithmBean parent1 = select(pop);
            ExamPaperAlgotithmBean parent2 = select(pop);
            //保持连个选择不同
            while (parent1.getId() == parent2.getId()){
                parent2 = select(pop);
            }
            //交叉
            ExamPaperAlgotithmBean child = crossover(parent1, parent2, rule,questionService);
            child.setId(i);
            newPop.setPaper(i,child);
        }

        //种群变异操作
        ExamPaperAlgotithmBean tmpPeper;
        for (int i = elitismOffset; i < newPop.getLength(); i++){
            tmpPeper = newPop.getPaper(i);
            mutate(tmpPeper,questionService);
            //计算知识点覆盖率和适应度
            tmpPeper.setChapterCoverage(rule);
            tmpPeper.setAdaptationDegree(rule, ExamPaperWeightEnum.CHAPTER_WEIGHT,ExamPaperWeightEnum.DIFFICULTY_WEIGHT);
        }
        return newPop;
    }

    /**
     * 选择算子:得到最优个体
     * @param population
     * @return
     */
    public static ExamPaperAlgotithmBean select(Population population){
        Population pop = new Population(tournamentSize);
        for (int i = 0; i < tournamentSize; i++){
            pop.setPaper(i,population.getPaper((int)(Math.random()*population.getLength())));
        }
        return pop.getFitness();
    }

    /**
     * 交叉算子：
     * @param parent1
     * @param parent2
     * @param rule
     * @return
     */
    public static ExamPaperAlgotithmBean crossover(ExamPaperAlgotithmBean parent1,ExamPaperAlgotithmBean parent2,Rule rule,QuestionService questionService){
        ExamPaperAlgotithmBean child = new ExamPaperAlgotithmBean(parent1.getQuestionSize());
        int s1 = (int) Math.random() * parent1.getQuestionSize();
        int s2 = (int) Math.random() * parent1.getQuestionSize();
        // parent1的startPos、endPos之间的序列，会被遗传到下一代
        int startPos = s1 < s2 ? s1 : s2;
        int endPos = s1 > s2 ? s1 : s2;
        for (int i = startPos; i < endPos; i++){
            child.saveQuestion(i,parent1.getQuestions().get(i));//parent1遗传给下一代的序列
        }
        List<Integer> chapterList = rule.getChapters();
        for (int i = 0; i < startPos; i++){
            if (!child.containsQuestion(parent2.getQuestions().get(i))){
                child.saveQuestion(i,parent2.getQuestions().get(i));
            }else {
                //如果出现相同题目，重新查找一题题目类型、知识点相同的题目
                Integer type = parent2.getQuestions().get(i).getQuestionType();
                List<Question> questions = questionService.selectByLevelTypeChapters(type, chapterList);
                child.saveQuestion(i,questions.get((int) Math.random()*questions.size()));
            }
        }
        for (int i = endPos; i < parent2.getQuestionSize(); i++){
            if (!child.containsQuestion(parent2.getQuestions().get(i))){
                child.saveQuestion(i,parent2.getQuestions().get(i));
            }else {
                //如果出现相同题目，重新查找一题题目类型、知识点相同的题目
                Integer type = parent2.getQuestions().get(i).getQuestionType();
                List<Question> questions = questionService.selectByLevelTypeChapters(type, chapterList);
                child.saveQuestion(i,questions.get((int) Math.random()*questions.size()));
            }
        }
        return child;
    }

    /**
     * 突变算子 每个个体的每个基因都有可能突变 每个基因变异的概率大概为0.085，小于等于时可以变异
     * @param paper
     */
    public static void mutate(ExamPaperAlgotithmBean paper,QuestionService questionService){
        Question tmpQuestion;
        List<Question> list;
        int index;
        for (int i = 0;i < paper.getQuestionSize(); i++){
            if (Math.random() <= mutationRate){
                //进行突变
                tmpQuestion = paper.getQuestions().get(i);
                //从题库中获取和变异的题目类型一样分数相同的的题目（不包含编译题目）
                Integer type = paper.getQuestions().get(i).getQuestionType();
                Integer chapterId = paper.getQuestions().get(i).getChapterId();
                List<Integer> chapterIds = new ArrayList<>();
                chapterIds.add(chapterId);
                list = questionService.selectByLevelTypeChapters(type, chapterIds);
                if (list.size() > 0){
                    index = (int) Math.random()*list.size();
                    paper.saveQuestion(i,list.get(index));
                }

            }
        }
    }

}

智能组卷

 /**
     * 随机生成试卷题目id列表
     * @param model
     * @param user
     * @return
     */
    private List<Integer> getRandomQuetionIds(ExamPaperAttrVM model, User user){ ;
        List<Integer> errorIds = examPaperQuestionCustomerAnswerService.selectErrorIdList(user.getId());
        ExamPaperQuestionsAttrVM questionsAttrVM = new ExamPaperQuestionsAttrVM(model.getSubjectId(), model.getDifficult(), errorIds);
        List<Integer> newIds = questionMapper.selectNotErrorQuestionIds(questionsAttrVM);
        Integer errorNum = model.getErrorQuestionNum();
        Integer newNum = model.getNewQuestionNum();
        List<Integer> ids = ExamUtil.randomNewErrorQuestionIds(errorNum, newNum, errorIds, newIds);
        return ids;
    }

    /**
     * 生成试卷请求编辑vo -- 用于生成试卷对象 -- 智能训练
     * @param model
     * @return
     */
    @Override
    public ExamPaperEditRequestVM getExamPaperEditRequestVM(ExamPaperAttrVM model){
        User user = webContext.getCurrentUser();
        List<Integer> Ids = getRandomQuetionIds(model,user);
        List<Question> questions = questionService.selectQuestionsByIds(Ids);
        String totalScore = ExamUtil.scoreToVM(questions.stream().mapToInt(q -> q.getScore()).sum());//试卷总分
        List<Integer> qTypes = questions.stream().map(q ->
                q.getQuestionType()).distinct().collect(Collectors.toList());//试卷所有类型题名（单选、多选..）
        List<ExamPaperTitleItemVM> titleItems = qTypes.stream().map(qt -> {
            List<Question> titleQuestions =
                    questions.stream().filter(q -> q.getQuestionType() == qt).collect(Collectors.toList());//试卷每个小标题下的题目列表
            List<QuestionEditRequestVM> titleQuestionEditRequestVMs = titleQuestions.stream().map(q -> {
                QuestionEditRequestVM titleQuestionEditRequestVM = questionService.getQuestionEditRequestVM(q);
                return titleQuestionEditRequestVM;
            }).collect(Collectors.toList());//将Quetion转换为vo对象
            ExamPaperTitleItemVM examPaperTitleItemVM = new ExamPaperTitleItemVM();//生产试卷
            examPaperTitleItemVM.setName(QuestionTypeEnum.fromCode(qt).getName());
            examPaperTitleItemVM.setQuestionItems(titleQuestionEditRequestVMs);
            return examPaperTitleItemVM;
        }).collect(Collectors.toList());

        ExamPaperEditRequestVM vm = new ExamPaperEditRequestVM();
        vm.setName(ExamPaperTypeEnum.TelligentTrain.getName() + count.incrementAndGet());
        vm.setLevel(user.getUserLevel());
        vm.setSubjectId(model.getSubjectId());
        vm.setScore(totalScore);
        vm.setPaperType(ExamPaperTypeEnum.TelligentTrain.getCode());
        vm.setSuggestTime(ExamUtil.getExamPaperSuggestTime(questions));
        vm.setTitleItems(titleItems);
        return vm;
    }

    /**
     * 智能组卷
     * @param model
     * @return
     */
    @Override
    public ExamPaperEditRequestVM getExamPaperEditRequestVM(ExamPaperRuleVM model) {
        User user = webContext.getCurrentUser();
        ExamPaperEditRequestVM vm = getIntelligenceExamPaper(model, user, ExamPaperWeightEnum.runCount, ExamPaperWeightEnum.population_size, ExamPaperWeightEnum.expectAdapter);
        return vm;
    }

    /**
     * 智能组卷
     * @param model
     * @param user
     * @param runCount
     * @param populationSize
     * @param expectAdapter
     * @return
     */
    private ExamPaperEditRequestVM getIntelligenceExamPaper(ExamPaperRuleVM model, User user, int runCount, int populationSize,double expectAdapter ){
        Rule rule = getRuleFromVM(model);
        if (rule == null){
            throw new RuntimeException();
        }
        List<List<Question>> lists = getQuestionsByLevelAndChapters(rule.getChapters());
        ExamPaperAlgotithmBean fitness = getFitnessFromPopulation(rule, lists, true, runCount, populationSize, expectAdapter);
        List<Question> questions = fitness.getQuestions();
        String totalScore = ExamUtil.scoreToVM(questions.stream().mapToInt(q -> q.getScore()).sum());
        List<Integer> qTypes = questions.stream().map(q ->
                q.getQuestionType()).distinct().collect(Collectors.toList());
        List<ExamPaperTitleItemVM> titleItems = qTypes.stream().map(qt -> {
            List<Question> titleQuestions =
                    questions.stream().filter(q -> q.getQuestionType() == qt).collect(Collectors.toList());
            List<QuestionEditRequestVM> titleQuestionEditRequestVMs = titleQuestions.stream().map(q -> {
                Chapter chapter = chapterMapper.selectByPrimaryKey(q.getChapterId());
                TextContent textContent = textContentService.selectById(q.getInfoTextContentId());
                QuestionObject questionObject = JsonUtil.toJsonObject(textContent.getContent(), QuestionObject.class);
                QuestionEditRequestVM titleQuestionEditRequestVM = questionService.getQuestionEditRequestVM(q);
                titleQuestionEditRequestVM.setTitle(questionObject.getTitleContent() + "(" + chapter.getName() + ")");
                return titleQuestionEditRequestVM;
            }).collect(Collectors.toList());//将Quetion转换为vo对象
            ExamPaperTitleItemVM examPaperTitleItemVM = new ExamPaperTitleItemVM();//生产试卷
            examPaperTitleItemVM.setName(QuestionTypeEnum.fromCode(qt).getName());
            examPaperTitleItemVM.setQuestionItems(titleQuestionEditRequestVMs);
            return examPaperTitleItemVM;
        }).collect(Collectors.toList());

        ExamPaperEditRequestVM vm = new ExamPaperEditRequestVM();
        vm.setName(ExamPaperTypeEnum.TelligentExam.getName() + count.incrementAndGet());
        vm.setLevel(user.getUserLevel());
        vm.setSubjectId(model.getSubjectId());
        vm.setScore(totalScore);
        vm.setPaperType(ExamPaperTypeEnum.TelligentExam.getCode());
        vm.setSuggestTime(ExamUtil.getExamPaperSuggestTime(questions));
        vm.setTitleItems(titleItems);
        return vm;
    }

    /**
     * 得到不同类型题chapters知识点内的题目，然后添加到列表中
     * @param chapters
     * @return
     */
    private List<List<Question>> getQuestionsByLevelAndChapters(List<Integer> chapters){
        List<List<Question>> questions = new ArrayList<>(5);
        for (int i = QuestionTypeEnum.SingleChoice.getCode();i <= QuestionTypeEnum.ShortAnswer.getCode(); i++){
            questions.add(questionService.selectByLevelTypeChapters(i,chapters));
        }
        return questions;
    }

    private Rule getRuleFromVM(ExamPaperRuleVM model){
        Rule rule = modelMapper.map(model, Rule.class);
        double difficulty = rule.getDifficulty();
        rule.setDifficulty(difficulty * 1.5 / 5);//不限、简单、中等、困难 * 1.5
        Integer total = ExamUtil.getExpectTotalScore(rule);
        rule.setTotalScore(total);
        return  rule;
    }

    /**
     * 种群进化选出最优个体
     * @param rule
     * @param lists
     * @param initFlag
     * @param runCount
     * @param populationSize
     * @param expectAdapter
     * @return
     */
    private ExamPaperAlgotithmBean getFitnessFromPopulation(Rule rule,List<List<Question>> lists,boolean initFlag,int runCount,int populationSize,double expectAdapter){
        int initCount = 0;
        Population population = new Population(populationSize,true,rule,lists);
        System.out.println("---------------------------------------");
        int index = 0;
        for (ExamPaperAlgotithmBean e: population.getPapers()){
            System.out.println("个体：" + ++index + "适应度为：" + e.getAdaptationDegree() + "难度为：" + e.getDifficulty() + "知识点覆盖率为：" + e.getChapterCoverage());
        }
        System.out.println("初始适应度：" + population.getFitness().getAdaptationDegree());
        while (initCount < runCount && population.getFitness().getAdaptationDegree() < expectAdapter){
            initCount++;
            GAUtil.evolvePopulation(population,rule,questionService);
            System.out.println("第 " + initCount + " 次进化，适应度为：" + population.getFitness().getAdaptationDegree());
        }
        System.out.println("进化次数：" + initCount);
        System.out.println(population.getFitness().getAdaptationDegree());
        ExamPaperAlgotithmBean fitness = population.getFitness();
        return fitness;
    }
